**Silo:**
* 200 ton silo
* Hot oil heat
* Anti-segregation batcher
* Hi and low bindicators
* Legs to grade
* Bottom Saftey Gate
**Slat:**
* 400 Tph slat
* Reject chute
* stairway
* 75 hp, 460/3/60
* Hot oil heat
Silo
- capacity 200 ton of material based on material weighing 100#’s per cubic foot
- 12’ diameter
- 12’ wide driveway
- high and low bindicators
- anti-segregation batcher
- a deck height 49’
- batcher height 42”

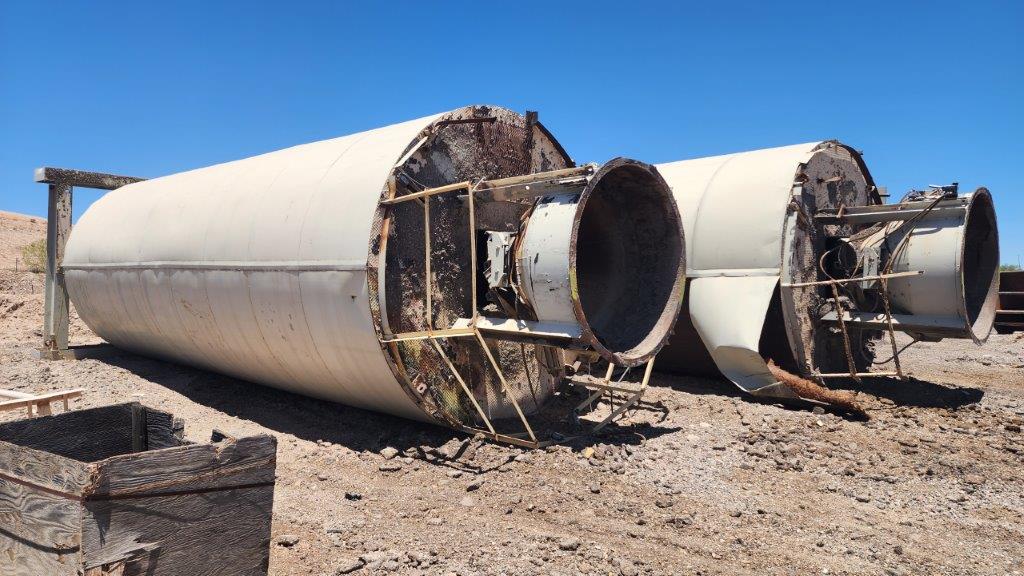

Dissassembled and ready for loadout
Loadout cost on buyer
More Photos:
(2) Stationary 200ton Standard Havens Silo Package (400ton Total)
**Silo System:**
* Year: 1998 (approx.)
* Capacaity: (2) 200 ton
* Stationary
* The two (2) Standard Havens silos are a nominal 200 tons each.
* Each silo has four inches of insulation on the sidewalls and cone and six inches on the top.
* Sixteen gauge galvanized metal wrapper covers the insulation and the 12’ square top is checker plated for antiskid.
* The 6-ton round anti segregation batchers are mounted to the top.
* Electrically heated cones with electrically heated double gates.
* There are high and low bindicators for material level indicators.

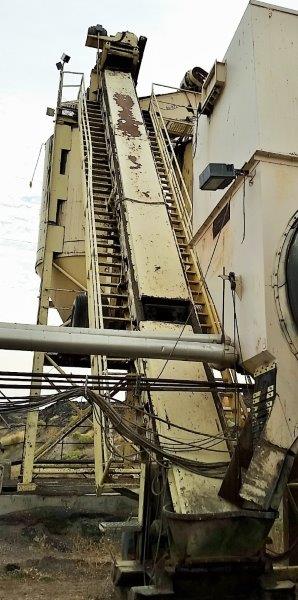

**Conveyor:**

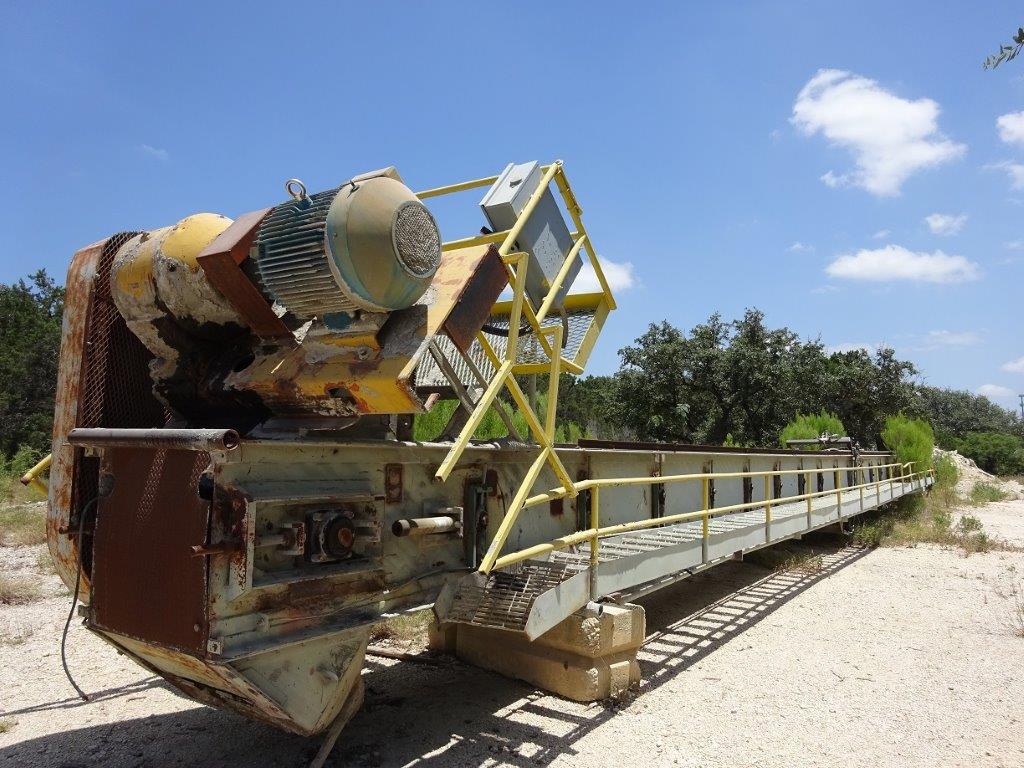

* The main drag slat conveyor is a 36" wide x 36” deep and 88’ long and is rated at 300 tph.
* 23" center of head sprocket to end of conveyor. Slats 4"tall x 3 1/2" x 33" wide with 3/4" clearance to walls The slat conveyor is 11ft tall at discharge end with reducer/motor and railings.
* There are twin four-inch pitch roller chains, with 34” wide x 5” deep slats on 12” centers that are gusset reinforced for strength.
* Seventeen floating bearings located at five-foot intervals on the sidewalls to allow the slat to move up and over any floor obstruction to prevent damage to the chains or slats.
* There is a mix reject gate in the floor. A 100 hp motor and a REX Neptune gear reducer power the conveyor.
* There are stairs (1) one side of the conveyor to make maintenance easier.
* There is hot oil heat on the sub-floor covered by insulation and metal covers and oil heat on the boot of the silo.
*Notes:
The pads on the silo legs were removed when the system was taken down, the silo cones and barrel walls look to need some repairs. The Silo Cones will need to relined. And there is (NO SILO TRANSFER). The silo's are down on the ground however there will be a $5,000.00 crane charge to load on buyers trucks.Slat at another location.*
More Photos:
100TON Bituma-Stor Silo System w Matching 300tph Drag
**100Ton Silo System**
**Make:** Bituma-Stor
**Model**: 100Ton
**Drag**: Matching 325tph Drag Slat Conveyor
**Other Info**:
The cones are in good condition
The ni-hard casting floor is in very good condition. approx. 90% LIFE LEFT
The single 6” pitch chain is 65%+

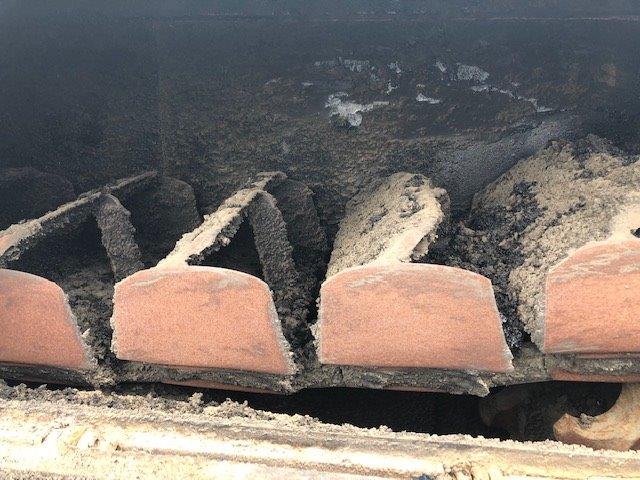

The slats need replacing. The bottom of the silo is totally enclosed.
The system is being replaced by twin 200 ton silos. The manual is included.

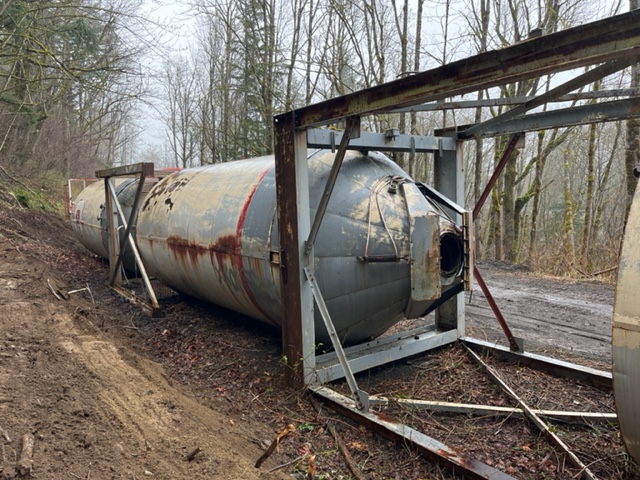

Silo system is now disassembled and on ground and ready for load out.
Loadout Cost's on Buyer, approx. $1,500 crane charge
Astec Silo Package
450 Tons of Storage
3-150 Ton Silo's (Older Style Silo's Oil Heated Cones and Gates, Walk
Around Platform, Cones Fair "Skin Very Rough")
(1) One Double Chain 36" 500 TPH Transfer Slat "Rebuilt "2015" (New
Floor, Chains, and Slat's)
(1) One Double Chain 36" 500 TPH Drag Slat "Rebuilt 2015 "638,000 Tons
Since Rebuild" Rebuild Included New Floor, Side Ware Plates, New
Sprockets, New Motor Platform, New Chain and Slats, NEW LOW POINT REJECT
GATE" Oil Heated Floor NOT HOOKED UP.
NO SCALES INCLUDED
NEED OFFSITE ASAP
MAKE OFFER
**(3) 200Ton Standard Havens Silo System**
**Silo Package**:
• Standard Havens
• 600 Ton of Storage
• (3) 200 Stand Alone Silos
• Re-Skinned corregated Metal in 2016
• Oil Heated COnes
• Electrically Heated Gates (Not Heated Up)
• Glassco 5,000lb Round Batchers
• #1 Silo has Buildup Around Cone
**(2) Transfer Slats:**
• 1-24'' Slats 21' Long
• 1-32'' Slats 21' Long
**92' Main Slat:**
• 32'' Slats
• Rebuilt
• Double Chain, New in 2019
• Floor Good
• Duel 24'' Side Walkways
• No Reject Chute
• 75hp Motor
**Three Section Pittless Scales**
• (3) 24' Sections
**Additional $5,000.00 per day to dismantle silo system. 3 day max**.
Storage silo system

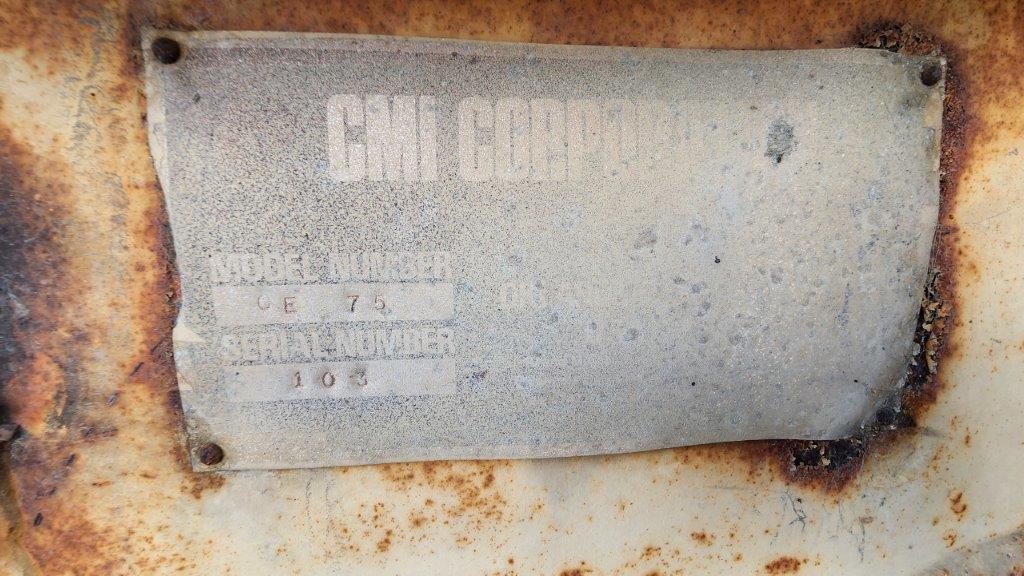

The unit was built by CMI. It is a nominal capacity 200-ton silo with 300-tph drag slat conveyor.
The slat is a 3’ x 3’ box and 86’ overall length.
The 60 hp motor and drive are mounted.
There are sliding bearing up the sidewalls.
The twin 4+” chains and sprockets are about 50%.
There is hot oil heat on the sidewalls of the silo with insulation and wrapping.
The silo, equipped with anti-segregation batcher, has a long-term storage gate on the top.
The length of the silo is, barrel plus cone 37’, batcher 6’, and the frame is 3’.
The bottom frame is 13’6” x 13’.
The silo has high and low bin indicators.
This unit requires some TLC but the bones are very good.
With some money and work it could be a very nice system.

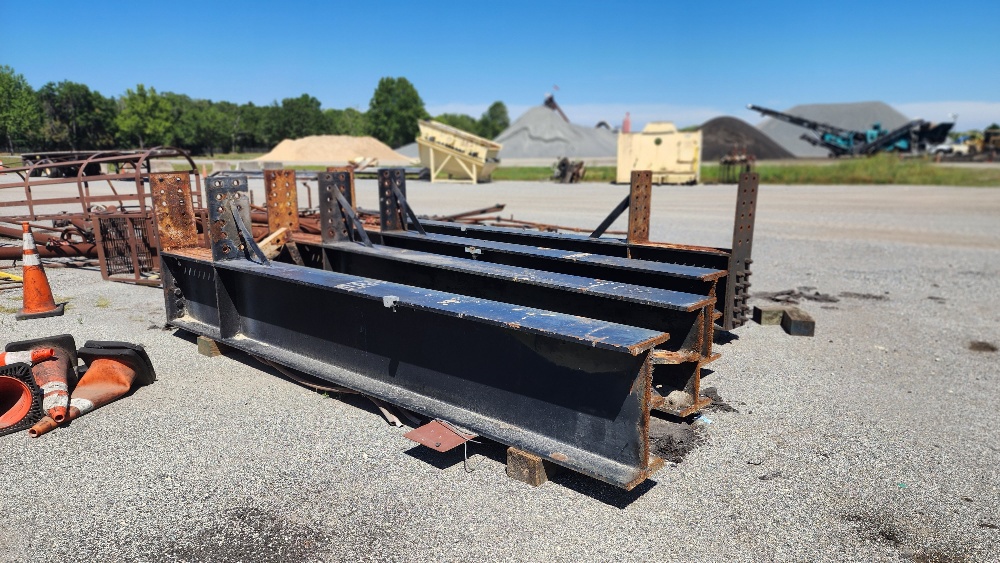

MISSING LEGS
CALL FOR PRICE!
Standard Havens built this nominal 200 ton capacity silo with matching drag slat conveyor.
The drag is 88’ long, 3’ wide and 3’ deep.
It is rated at 300 tph.

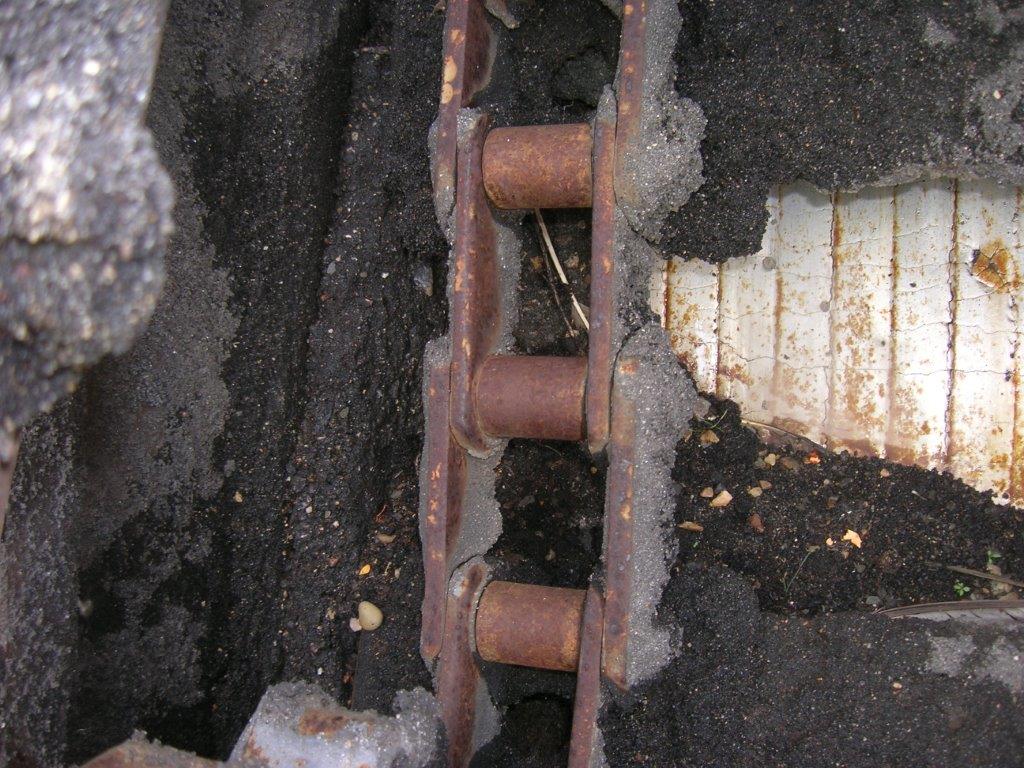

It uses 2 x 4” pitch roller chains and a chrome carbide floor.
The chains and sprockets are better than 50%.
The floor has been replaced but the chrome carbide is almost exhausted.
The complete motor 60hp and drive assembly are mounted.
The silo has Georgia DOT style gates and an anti-segregation batcher on top.
Part of the wrapper skin was removed to repair the hot oil piping. With some TLC this could be a very serviceable unit.

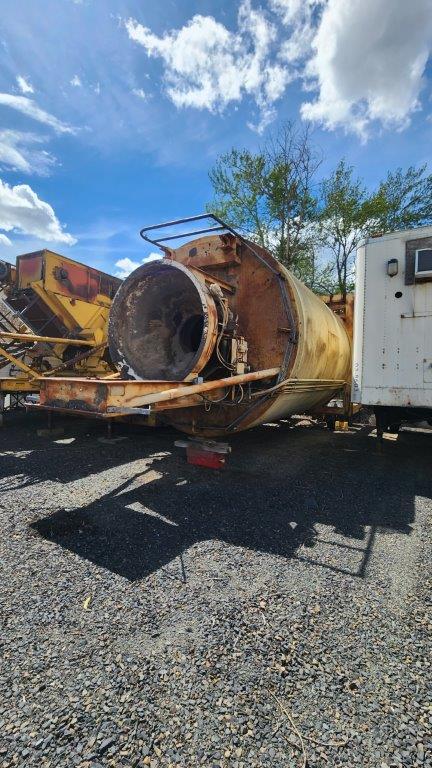

CMI built this nominal 160-ton capacity bullet cone style silo with legs attached.
The built-on batcher is full of material.

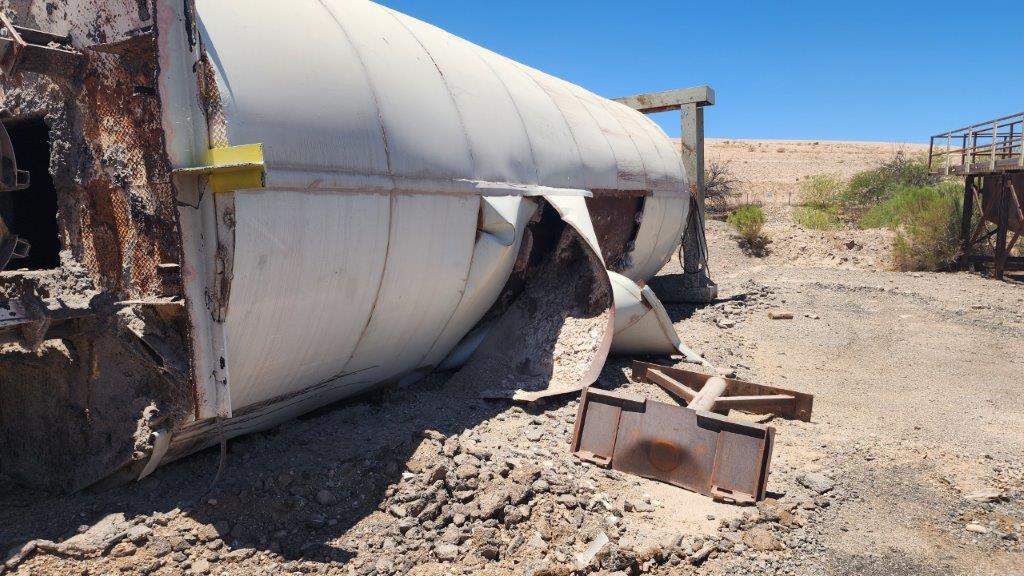

This system is in rough shape.
**Silo System**:
* Make: Standard Havens
* Capacity: 400 tons
* 2- 200 ton silos
* Batcher
* Oil heated cone/walls
* Electric cone heat
* Bin Indicators
* Insulated and skinned
* all piping included
**Slat Conveyo**r:
* Output: 325tph
* 325tph drag slat w/ 60hp motor
* 99' long
* 36"
* Walkway
* 325tph bin top conveyor w/ 25hp motor

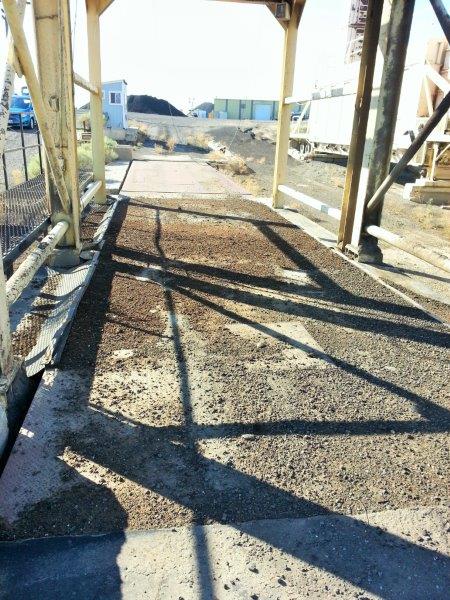

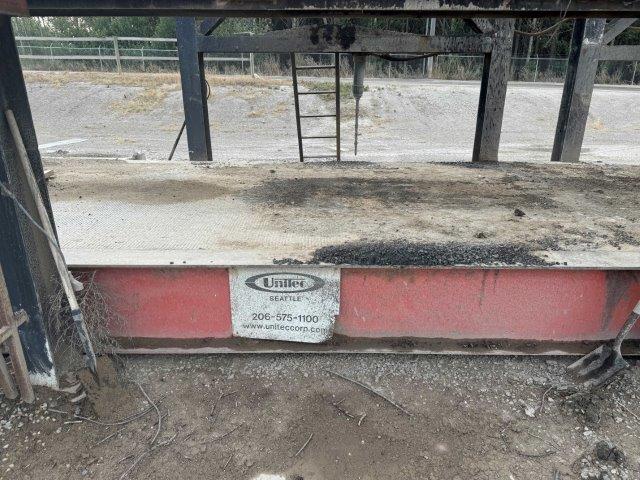

**Scales**:
* Make: Cardinal
* Model: 6085-PRC
* Scales included but have not been certified for some time
* 60T
* Steel above ground deck as well as side rails
**Make**: Standard Havens
**Year**: 2008
**Capacity**: 200
*NO DRAG OR TRANSFER*
Still **IN USE** Until 10/13/2020, Will Be Coming Down After That.
**Other:**
* The unit is equipped with clamshell gates for material load out. The batcher is round and built to make one 6,000# drop to reduce incidence of segregation.
* The silo is skinned down to the frame
* The silo is equipped with bottom (Single) safety gate.
* The top of the silo deck is made of checker plate anti-skid steel and is 12’ square.
* Handrails and Kick Plates are included.
* The silo has fifteen "15" inches of insulation on the top, six on the sidewalls and four on the cone. A heavy gauge galvanized wrapper covers the insulation and extends past the cone.
* There is hot oil heat piping on the cone, separate piping for the walls, and electric heat strips on the gates. The cone and sidewalls are in good condition. The batcher is 68” high.
* The distance from the deck of the silo to the bottom of the foot of the leg is a nominal 52’6”. Therefore the total height of the silo including the batcher is a nominal 58’4”. The drive thru height is 13’1”. The drive thru width is 12’. Of course the drive thru height can be adjusted with footers.
* The approx tonnage that has run through the silo is 850,000 the silo can be loaded on your truck 9-15-20 give or take a day.
**Silo is 13' wide x 13' high by 39'-2" long.
Weight new 45,000 lbs. **
**900 Tons of storage**
**Make**: Astec
**Size**: (3) 300 TON
**Type**: Stationary Silo System
**Shipping Dims:**
* 3 silos - each 15' w x 15'T x 60'long weighs approx 80,000lbs
* 1- drag slat 98' L weighs approx 98,000lbs
* 1- step deck with misc transfer slats
* 1- step deck with legs
* 1- stepdeck with misc
*
**(3) Silo features include:**
* The silos are heavily insulated on the sides, top deck and bottom
* High and Low Mix Level Indicators
* Top access decks with handrails
* Silos are equipped with Oil heat on the cones and gates
* The silo support structures are manufactured from heavy duty structural steel
* Silos heavily lined in the cone area
* Long term Storage Gates
* Batcher assemblies as well as High/Low level indicators

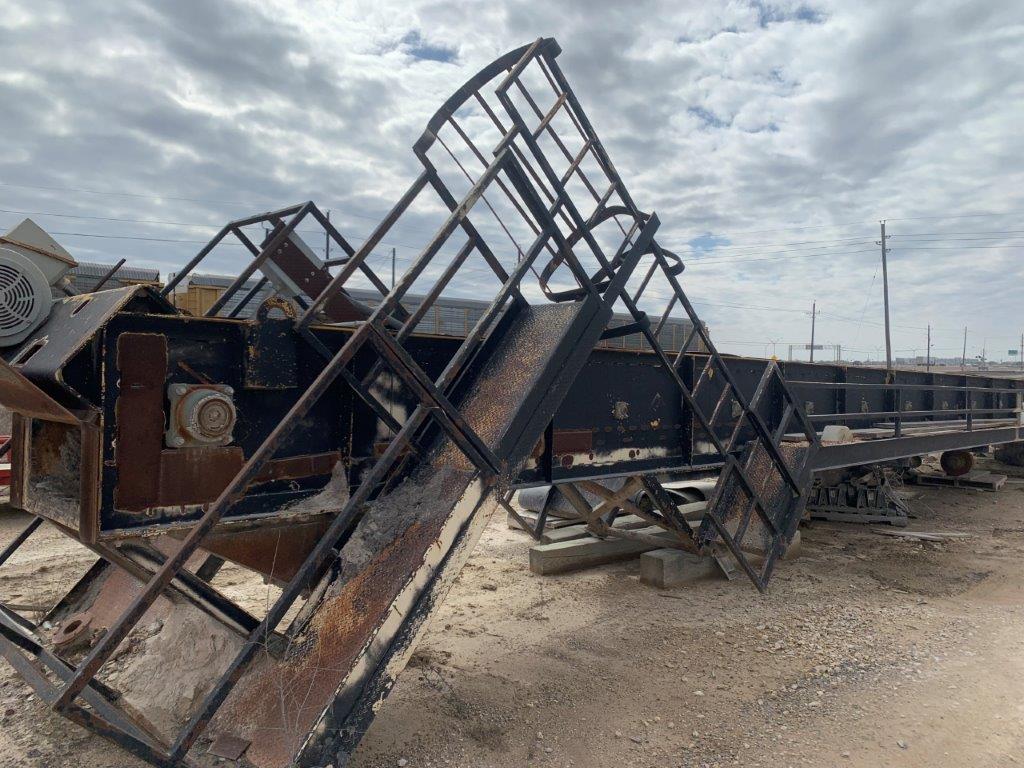

**Drag Slat features include**:
* This Slat Conveyor has nominal inside measurements of, 48” wide x 107’ long.
* The weld-on type slats measure; 34-1/2” wide x 8” tall with 12” spacing
* The Slat Chain is Single strand type in a 6” pitch.
* Floating type Intermediate Idler assemblies.
* Easily accessible, Tail Take-Up assembly for tracking and adjusting slat chain tension.
* Access stairs on one side of housing.
* Complete rebuild, never ran since last service
**(2) Bintop Conveyor features include:**
* Slat style Bintops with Flop Gates • 25HP Drive system
SILOS DOWN ON GROUND, LOAD OUT ON BUYER
CALL FOR PRICE
**Year**: 1985
**Manufacturer:** BITUMA-STOR
**Model**: twin 200 TON
**Description**
Twin 200tn Capacity insulated silo's with 300tn/hr elevator.
Silo's are on the ground and ready for loadout
**Make**: Estee Silo
**Storage:** 200 ton
**Condition**: Very Good
NO SLAT OR TRANSFER INCLUDED
**Other:**

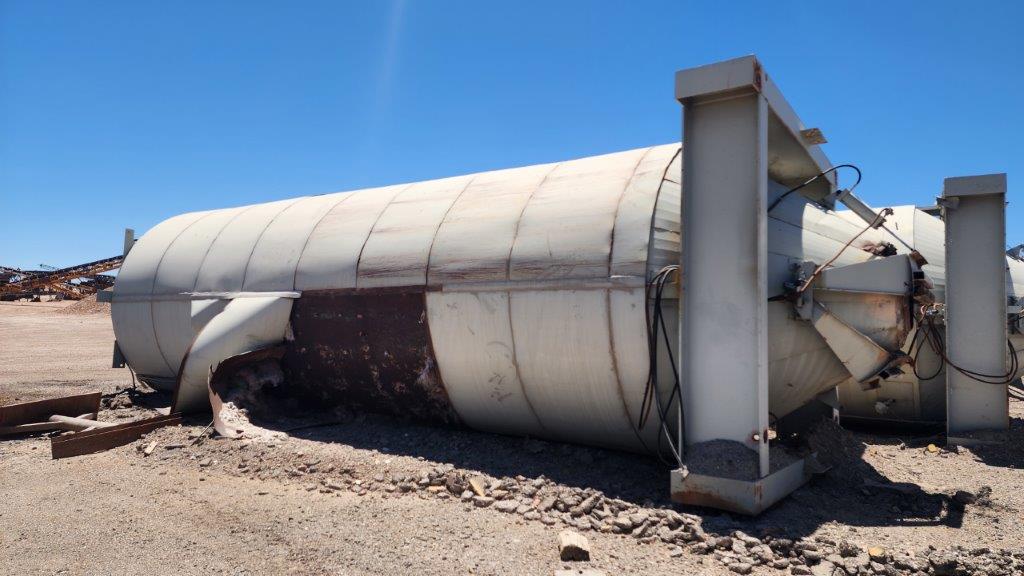

* This 200-ton silo is on the ground and ready to be moved to a new home.
* The unit appears to be in very good condition.
* Upon inspection there are no rusted thru areas; appears to be very solid.

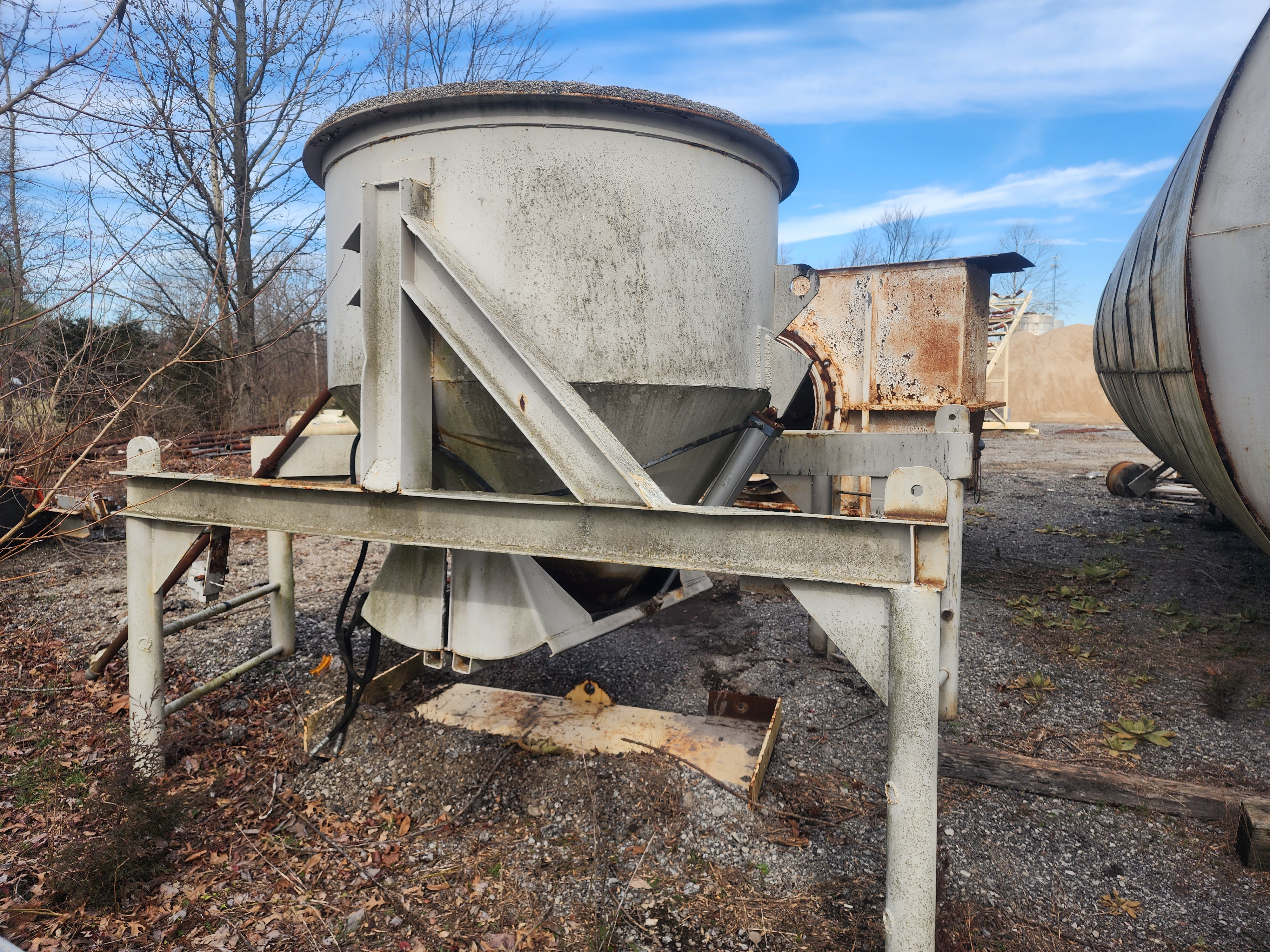

* The superior style batcher is the double split variety; this style has proven not to segregate materials.
* The tub of the silo appears to be structurally sound.
* Cone: Oil Heated with Electrically Heated Gates. Average Wear in Cone Area
* Insulated: The unit is heavily insulated and covered with a 10 gauge metal wrapper
**Other:**
* Newer Style
* Skinned To the Cone
* Insulated and Skinned
* Anti-Segrigation Batcher
* Side Ladder
* Down On The Ground With And The Legs have been removed and ready to load

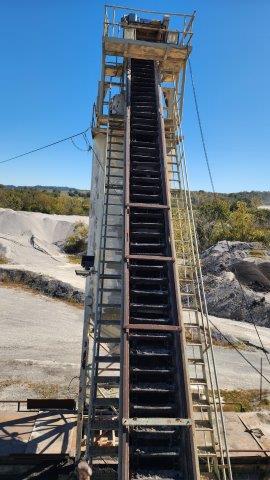

* Bucket elevator is on the ground and ready to load
MAKE OFFER
Astec Silo Package: 2- 200 ton silo's (Oil Heated Cones, Electrically Heated Gates) the silo's have some skinning issues. 93' Slat conveyor 21" Slats, Single Chain (The chain is severely worn with some bent slats) Missing Items (Silo Anti Seg Batchers, and the Silo Bin top Transfer, No Motor on main slat)
**Silo System:**
* Cedarapids /Standard Havens
* Capacity: 250 Tons
* Oil Heated Cone
* Electrically Heated Gates
* Insulated and skinned
* Anti Seg Batcher
* Missing gate air cylinders

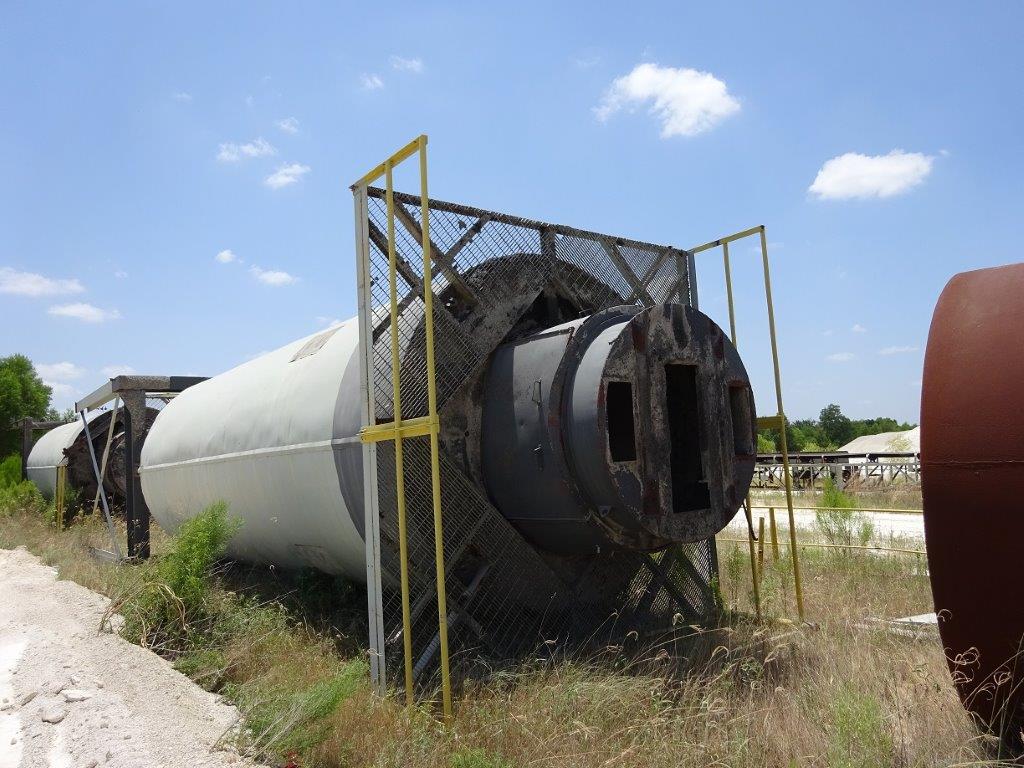

* Silo looks to be in good condition down on the ground ready to load.
* Cone looks good with no obvious damage to the skin.
* unit is 12'9" wide x 58' tall
More Photos:
(1) 85ton, (1) 95 ton, (1)105 ton silo, With transfer conveyors
* Sizes: 85ton... 95ton... 105ton
* Description: (1) 85ton, (1) 95 ton, (1)105 ton silo, With transfer conveyors, no drag conveyor
* Silos are on ground
* Electrically heated cones and gates
* Will piece out.
* SILOS: $13,500.00 EACH
* CONVEYERS: $8,500.00 EACH
* For more info, call or email
(2) 100 ton Stansteel silos
Relined 2 years ago
Silos skinned all they way down
Bottom of cones are boxed in for smoke recovery
Electric Heated
Top Transfer Slat conveyor included
Ran fine at shut down, end of this season
Was replaced with larger silos
76' Slat Conveyor
300tph
Chain 50% life
Some areas of the floor need repair, (4) small areas 1'' in diameter
Rest of floor is at 50% life.
Two walk ways on slat conveyor

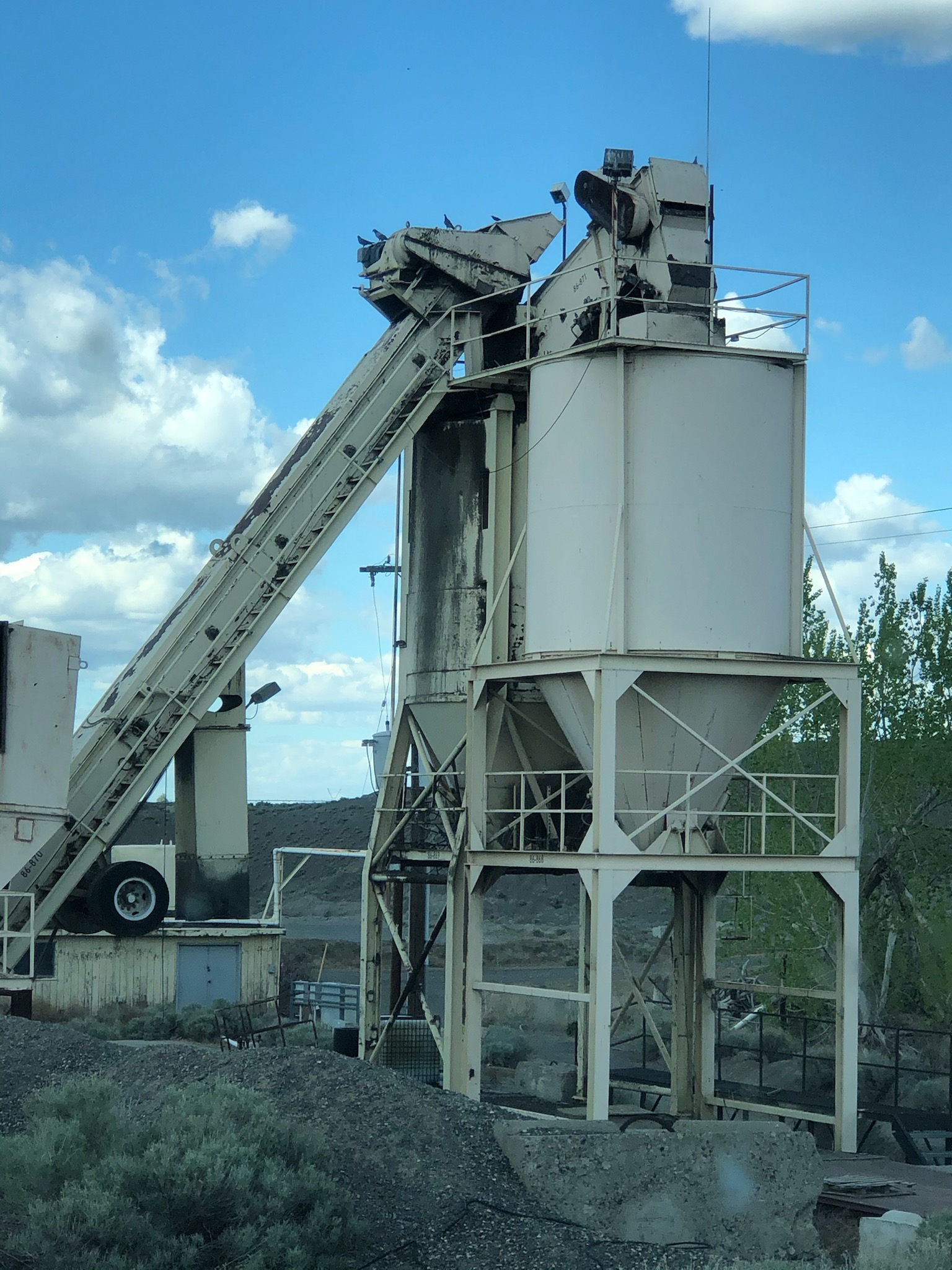

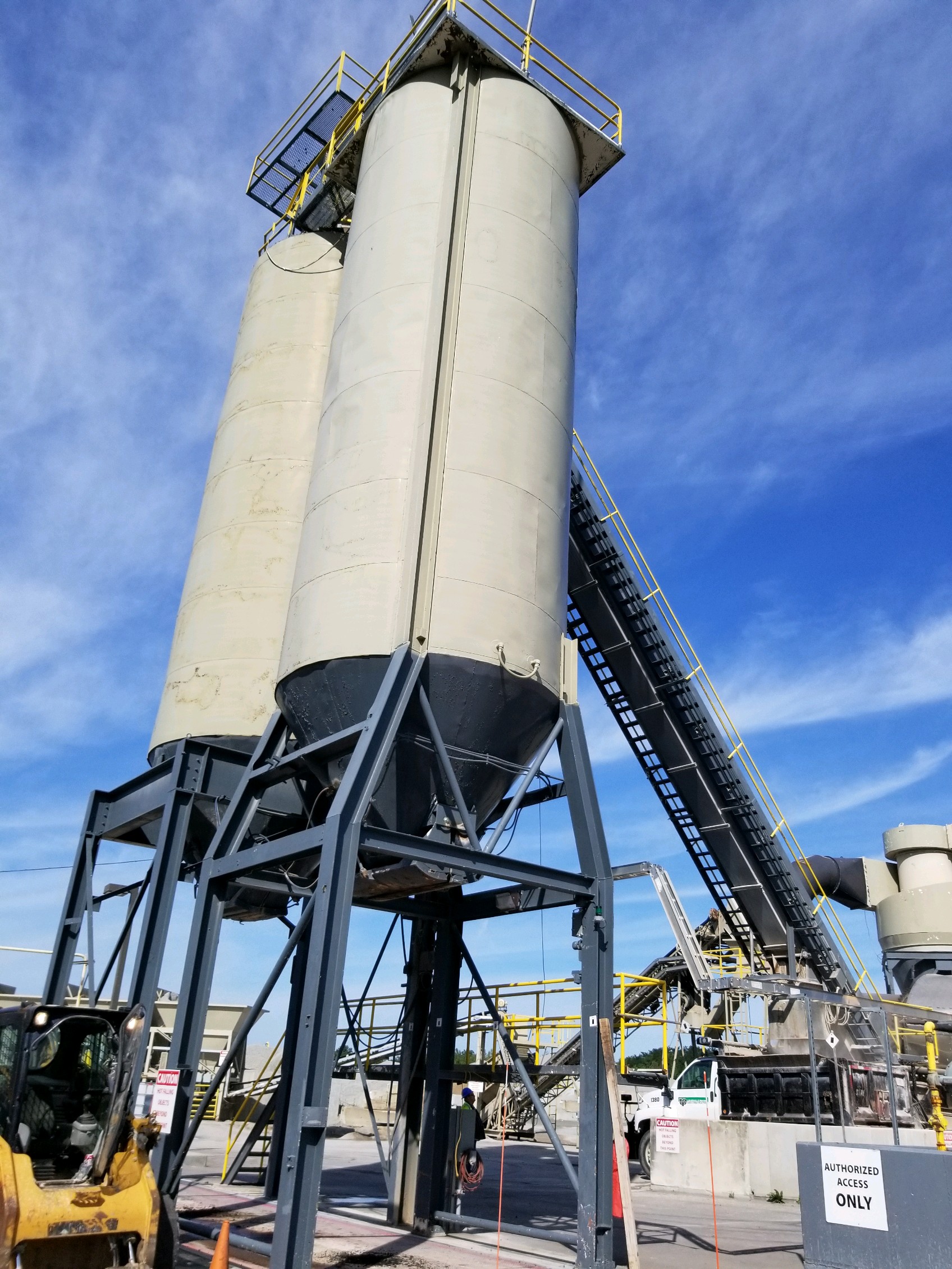

Still Erected

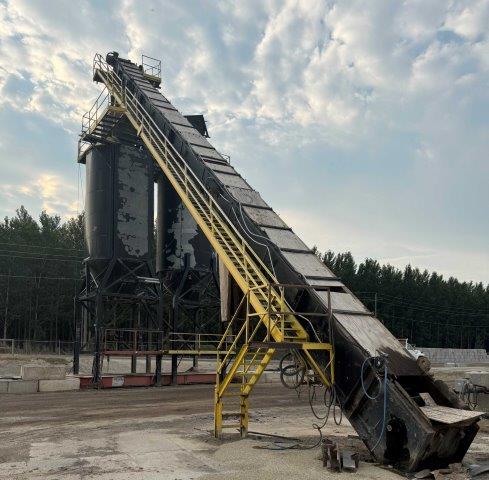

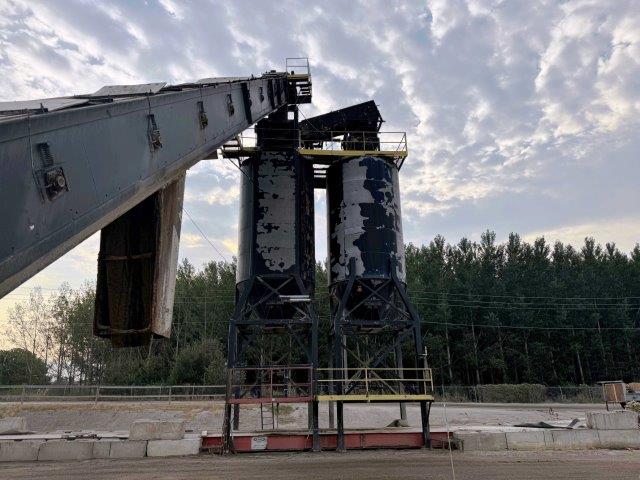

**Silo System:**
* 1-140ton silo
* 1-160 ton silo
* Stationary
* Still standing
* Electric heated cones
* Insulated
* Double gate discharge
* Air tank
**Conveyor:**
* 90'-30" slat w/ 75hp motor
* 300-350tph
* Single chain
* 14' Transfer slat w/ 25 hp motor
* Walkway
*NOTES:

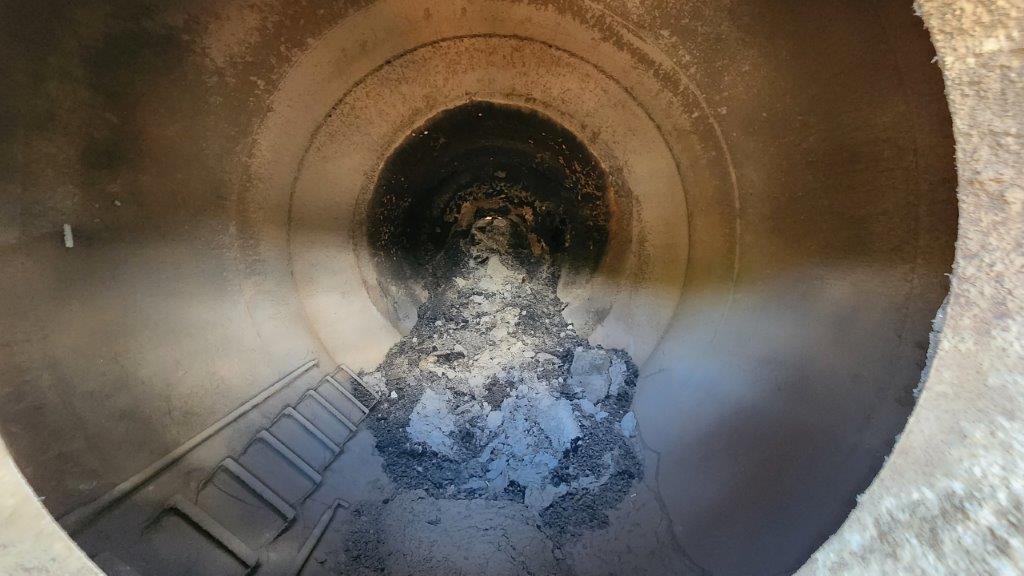

Silos have some material build up inside
Unit sill erected.
Ran fine at plant shut down, only available do to owner purchased larger newer plant.
Scales not included.*
More Photos:
Stationary 170ton H&B Reverse Weight Silo and Slat
**Silo System**:
* 170 Ton Insulated Asphalt Silo
* 170 Ton Silo with Weight Batcher
* Total length for Shipping 62 ft. 11ft 6inch dia.
**Conveyo**r:
* 300 TPH Drag Slat / Batcher
* 22 x 6 inch drag Slats.
* 6 inch Chain Rollers center to center
* 91 Ft Drag center to center Total
* 98 Ft over all shipping by 8 ft wide
* Collecting Box on Drag
**Silo System:**
* Capacity: 200 ton
* On the ground and ready to be moved to a new home
* The unit appears to be in very good condition but it needs paint
* Upon inspection there are no rusted thru areas; all rust appears superficial.
* The unit is heavily insulated and covered with a 10 gauge metal wrapper.
* The superior style batcher is the double split variety; this style has proven not to segregate materials.

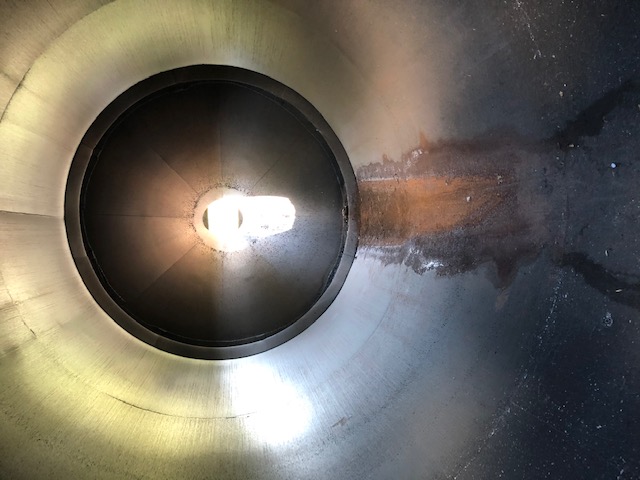

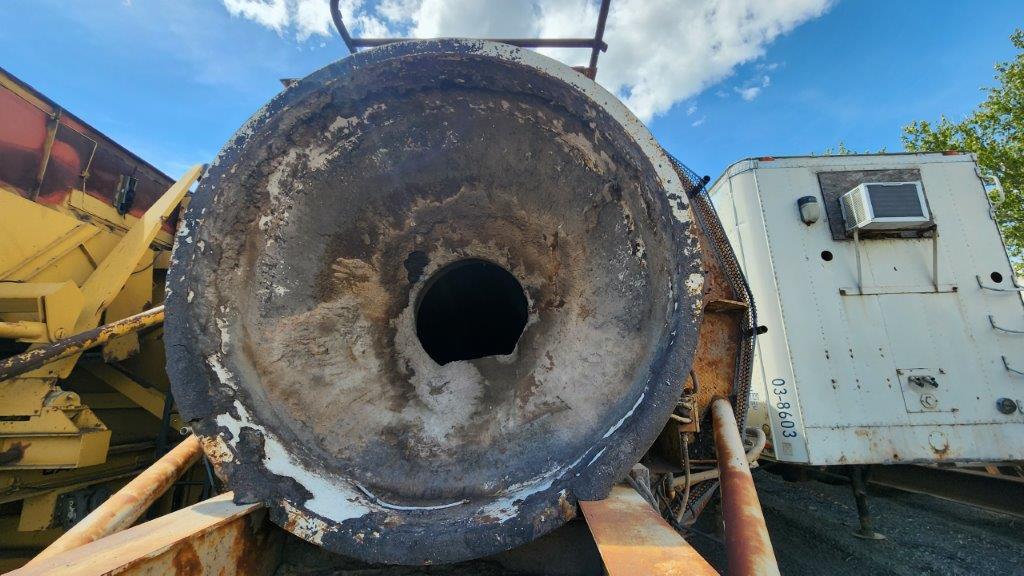

* The cone of the silo is covered with ceramic tiles.
* These tiles have shown to be the best guard against heavy wear in the cone area.

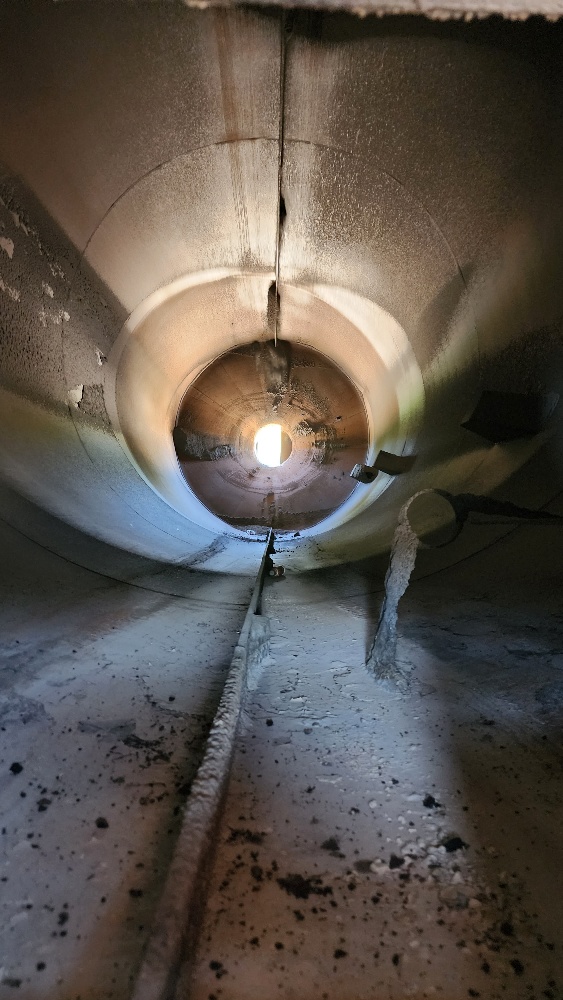

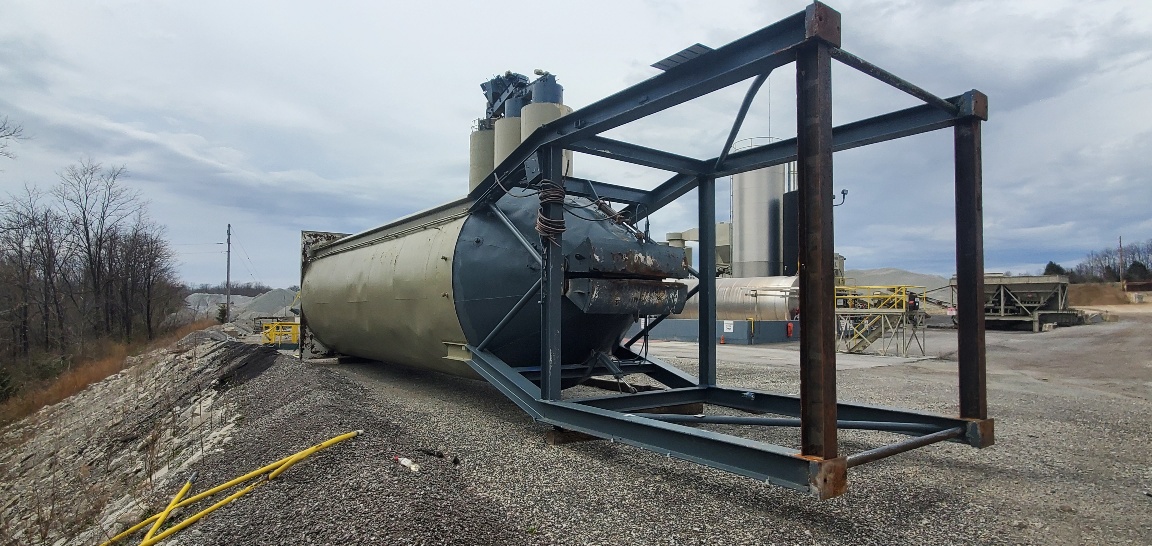

* The tub of the silo appears to be structurally sound.
**Dimensions**:
* The length of the legs: 16’ 4”
* The length of the silo including the cone & frame: 50’ 4”
* The length of the batcher: 3’ 8”
**OPTIONAL Bintop Conveyor (Additional $):**
* ASI has a bintop conveyor that could be sold with this unit.
* It is 400 tph, 14’2” shaft to shaft, with the flop gate extension of 34”.
* It utilizes a double 4” pitch roller chain (~60% remaining).
* The floor appears to be in very good condition.
* The unit has NO motor and drive
*Call for Pricing*

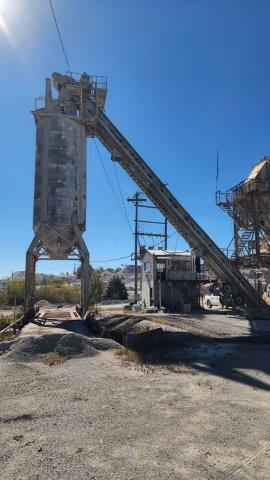

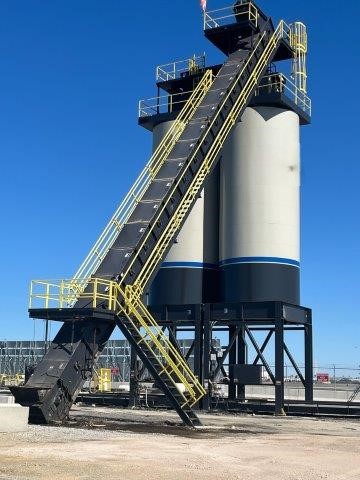

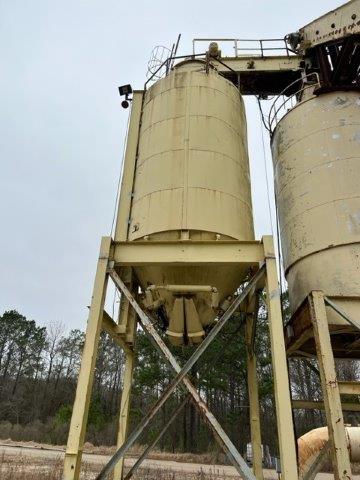

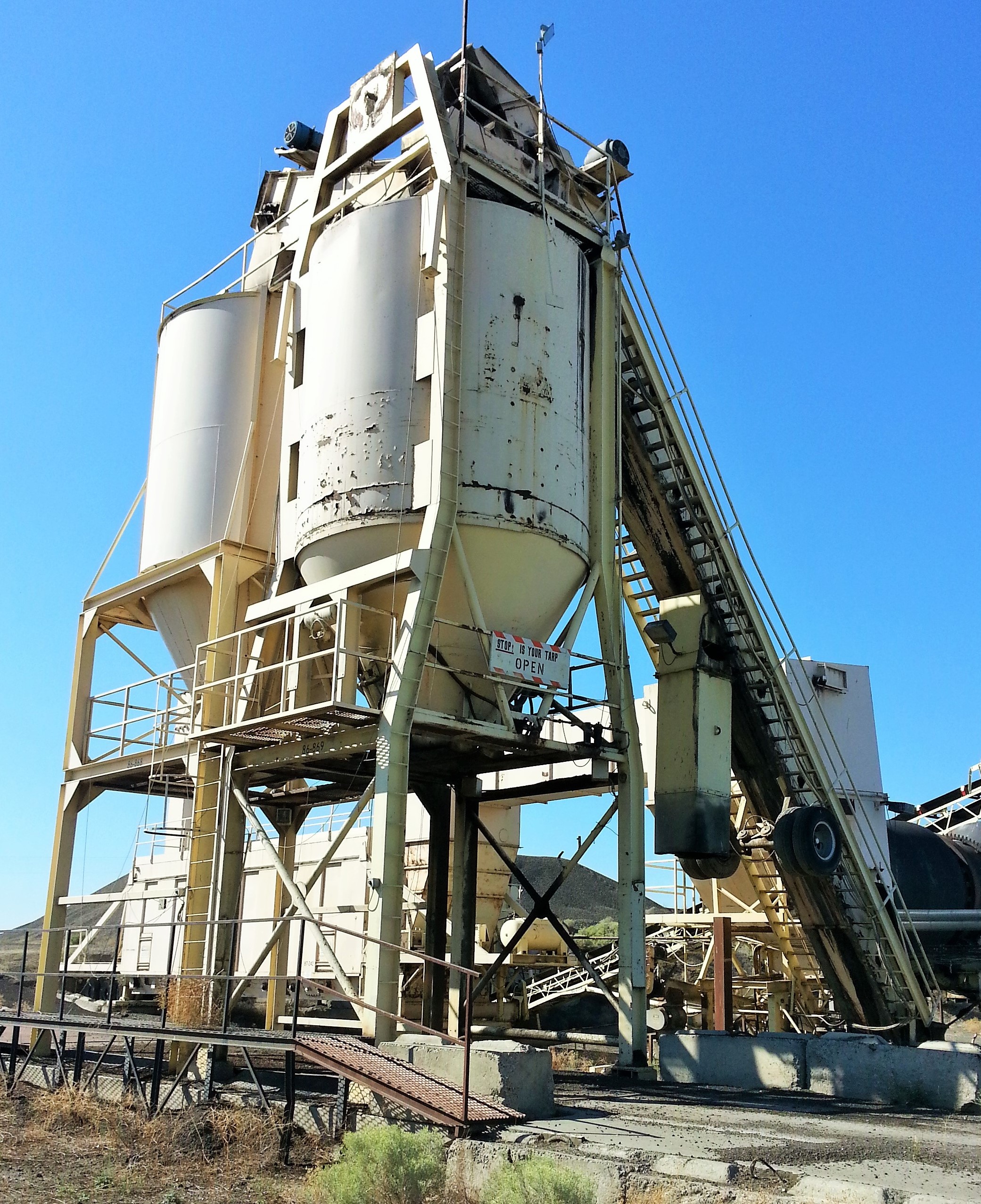

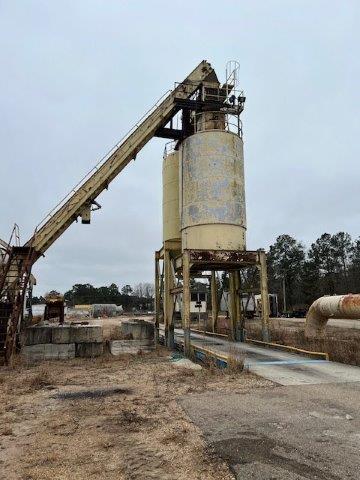

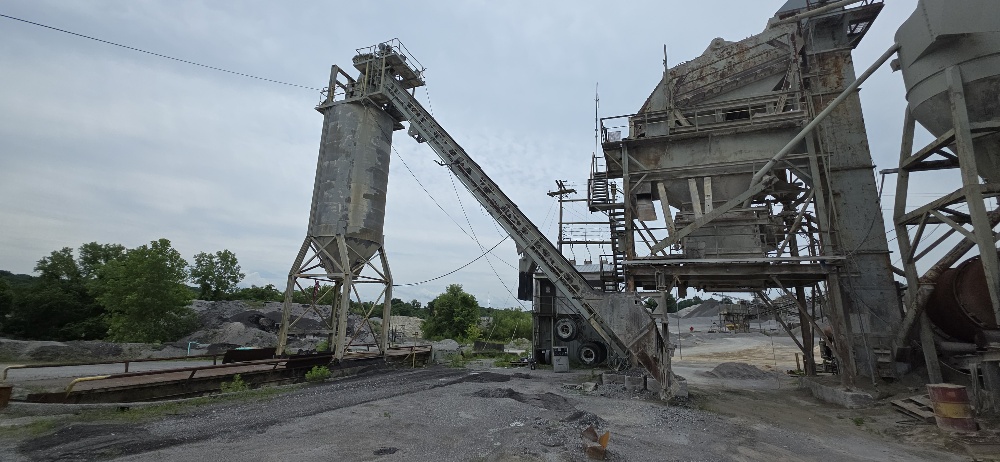

**Silo System**:

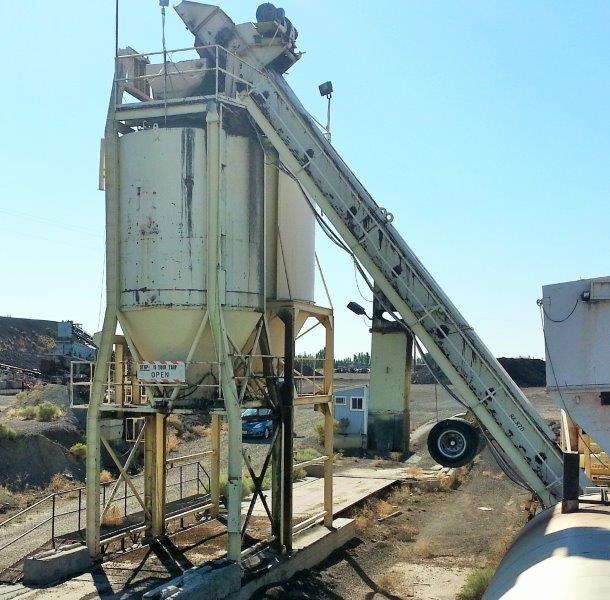

* The twin 125-ton silos are Semi- portable
* System is in good condition
* (1) Silo
* Make: Cederapids
* 5,000 lb batcher
* Electrically heated cone (missing axles),
* (2) Silo
* Make: Barber Greene
* 5,000 lb batcher
* Electrically heated cone. (Stationary)

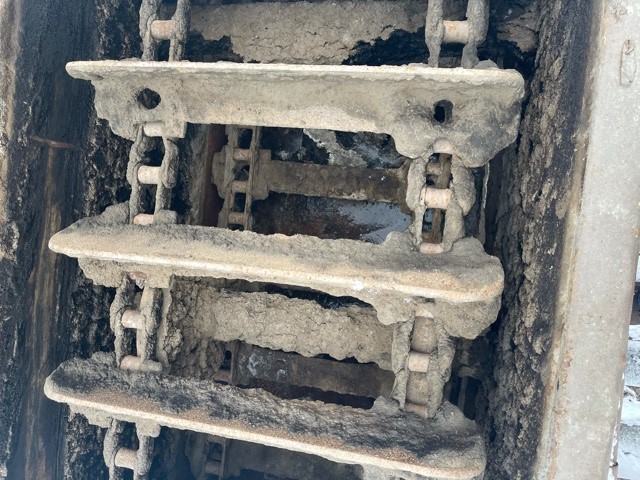

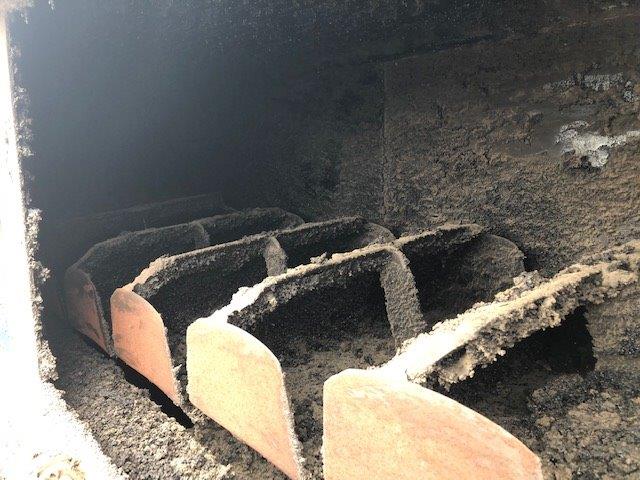

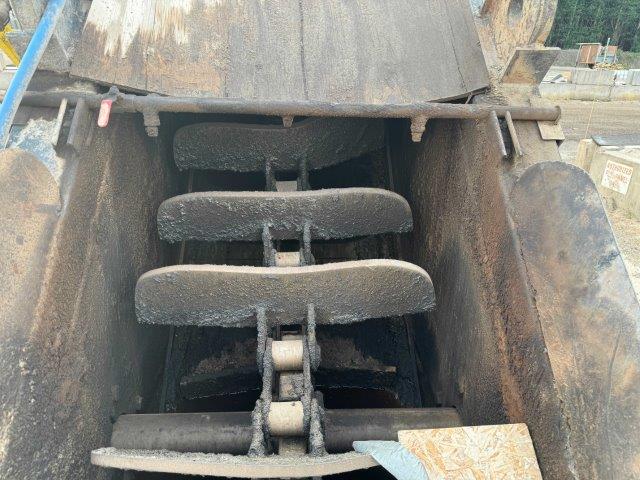

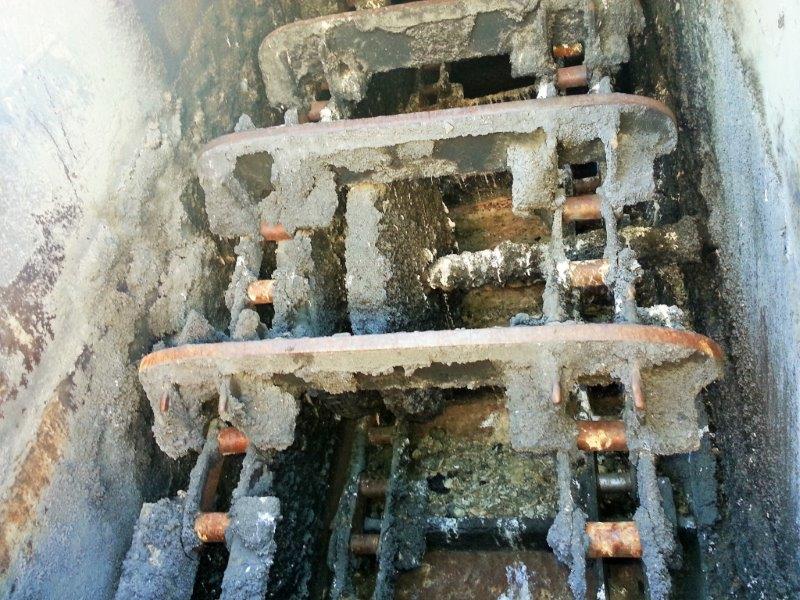

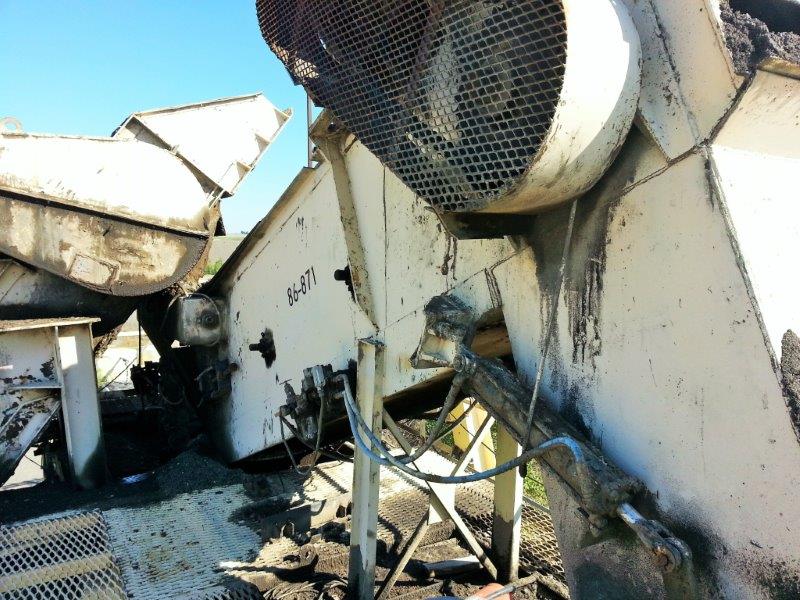

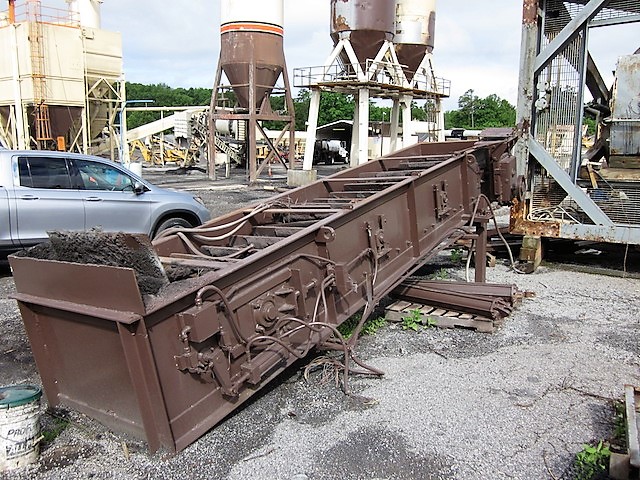

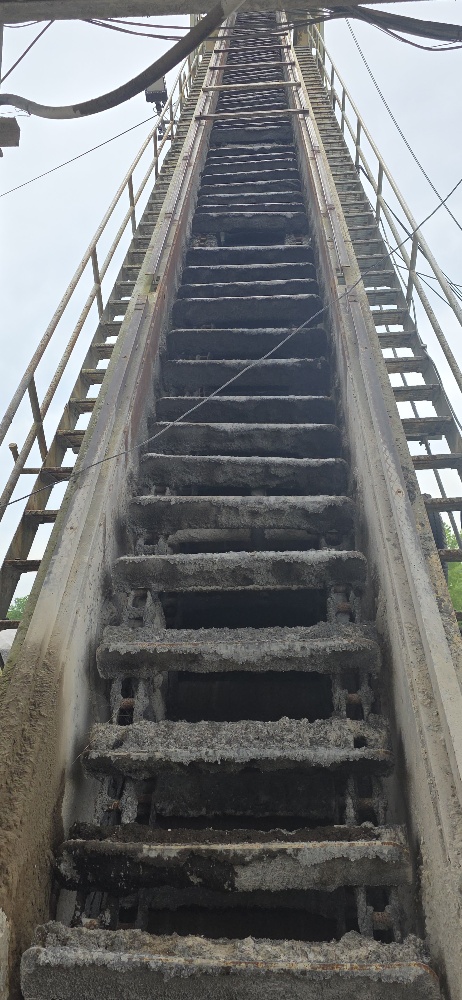

**Conveyor**:
* There is a 450 tph cross.
* The 36” x 65” drag slat conveyor is 400+ tph.
* The twin four-inch pitch roller chains
* Use 30” slats and is driven by a 60 hp motor to move the materials
* The reject chute is mounted mid way up the slat conveyor.
* The Slat has a single axle and king pin
**Scales**:
* Make: Cardinal
* Model: Pitless
* Size: 10’ x 60’
* Electro-mechanical
*NOTES: The silo package is empty and in good condition. The slats are 50%*

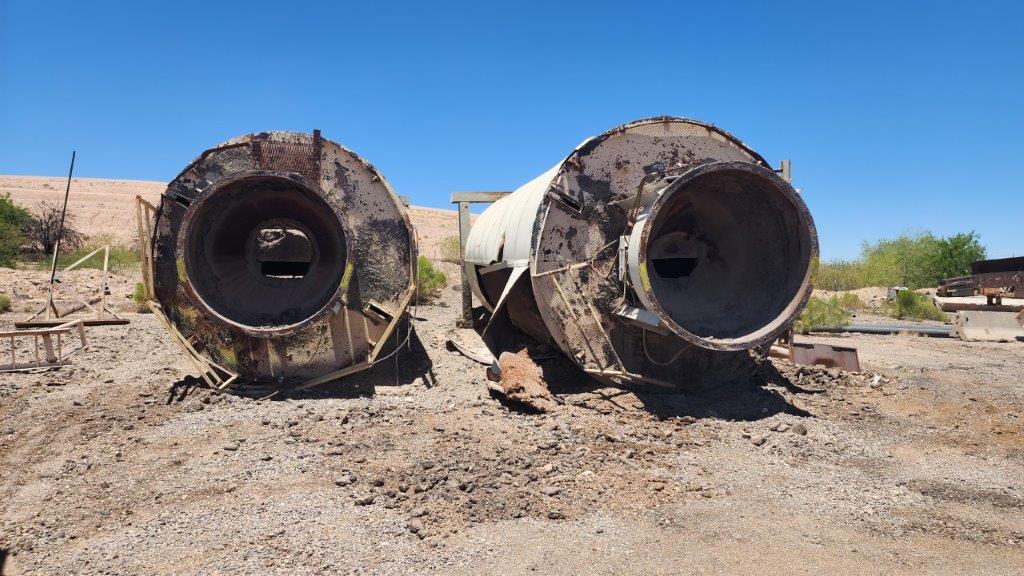

(2) 200 Ton Silos (identical)
Oil Sealed
Electric Cone
7'5" x 4' Single clam discharge - single cylinder
Ceramic tiles up the entire cone
CALL FOR PRICE!

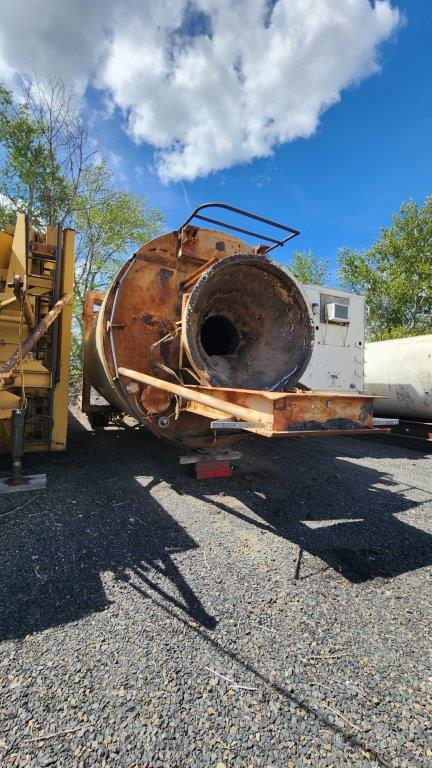

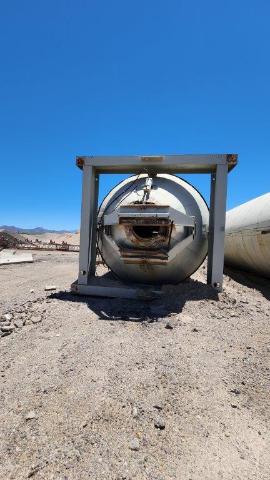

**Silo System:**
* (1) Yanke Fabrication 100 ton portable silo
* Insulated and skinned
* Truck load out silo w/air gates

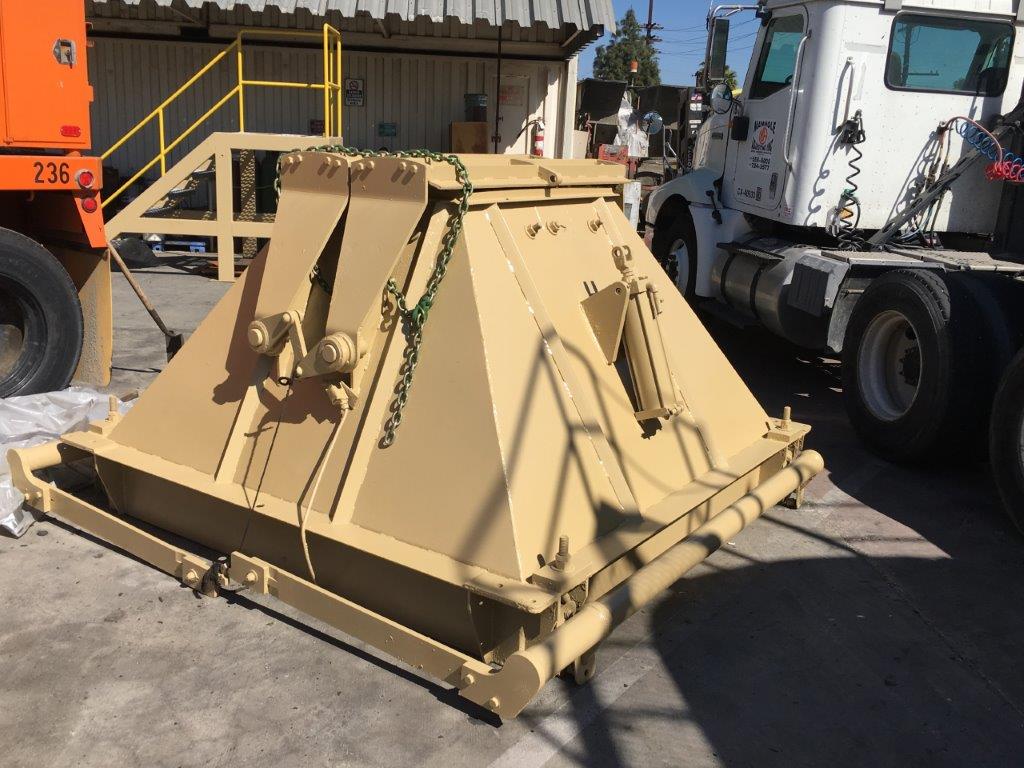

* 6’ x 6’ Anti Segregation Batcher
* 21’ L x 12’ W. Single gate dump
* Not Self-erecting
* Single Axle
* Weigh Batcher
* Cone and Gates heated by Transfer Oil

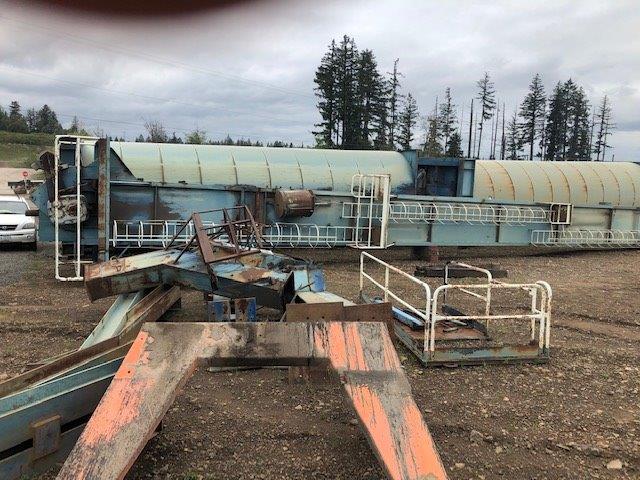

**Conveyor:**
* (1) Yanke 42' x 75' slat conveyor
* Portable w/ electric motor and drive
* 400tph
* Single axle
* Floor heated by transfer oil
* Duel chain, chain and slat in good condition
* Head and tail pulley in good condition
**Silo System:**
* Make: CMI
* Capacity: 100 Tons
* Portable (Has axle and tires)
* Model: PS-88-HT 133
* Oil heated cone and gates
* Insulated silo
* Anti seg batcher on top
* Weigh batcher must be shipped separately
* Shipping Dims: 13' 10" Tall, 12' Wide, (Needs light bar)
**Conveyor:**
84ft Slat
*NOTES:
Items modified/repaired on CMI Silo with weight batcher:
Repair and reinforce cracked chassis for landing gear.
Install new landing gear.
Remove and clean all material left inside Silo.
Change wheel seals, bearings, brake shoes and tires leaving unit road worthy for transportation.
Prep and paint.
Parts and labor total to roughly $23,534.00*
**Silo System:**
* (1) Yanke Fabrication 100 ton portable silo
* Insulated and skinned
* truck load out silo w/air gates
* 6’ x 6’ Anti Segregation Batcher
* 21’ L x 12’ W
* Single gate dump
* Not Self-erecting, Single Axle
* Weigh Batcher
* Cone and Gates heated by Transfer Oil
* Cone Thickness: (Top) .28 (Middle) .27 (Bottom) .27
**Conveyor:**
* (1) Yanke 42' x 75' slat conveyor
* Portable w/ electric motor and drive
* 400tph
* Single axle
* Floor heated by transfer oil
* Duel chain, chain and slat in good condition
* Head and tail pulley in good condition
* Thickness: (Floor Near Head Pulley) .52
* (Floor Near Tail Pulley) .51
* (Sides) .26
*NOTES:* Units on ground and ready for loadout
(Road readiness should be checked by local technician)
More Photos:

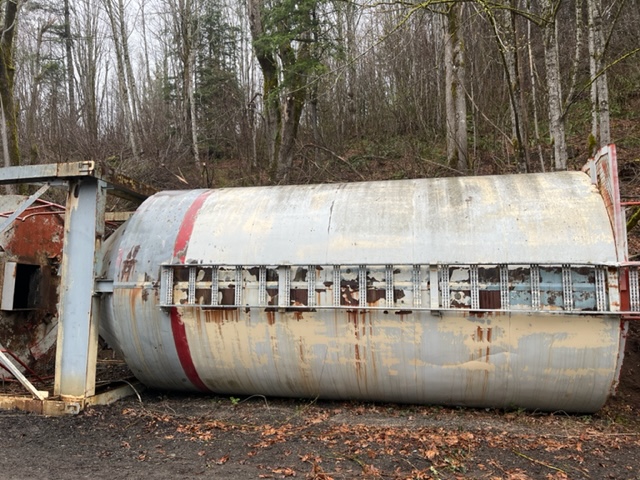

REDUCED PRICE - Portable 100ton Boeing Silo Package
**Barber Greene Silo System**
**Silo**:
Size: 100TON
Portability: Has Portable Package (not installed) Includes-

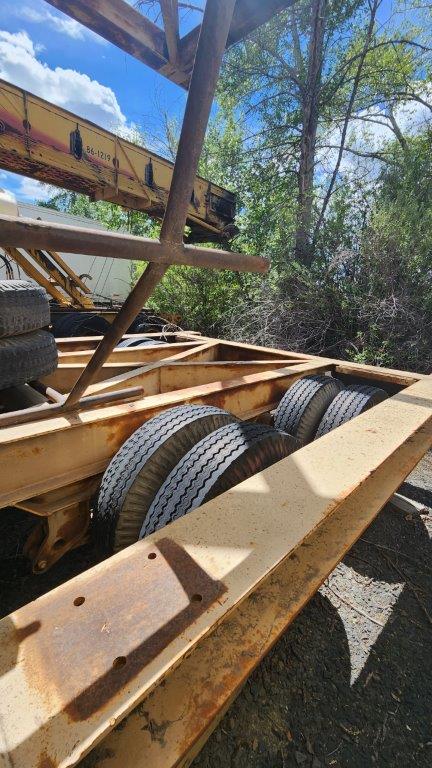

* Tandem Axles (Missing One Set Of Rims and Tires)
* Goose Neck
* Has 4 legs (Disconnected From Silo)
Other Info:
* Wiegh Batcher (5,000LB)
* Anti-Drug Batcher (Round)
* Reject Chute
* Insulated and Skinned
* Old Style Cone
* No Heat on Cone
* Electric Heat on Double Gates
* Condition Fair
*
**Slat:**
Make: Bituma Stor
Sn#: 300TPH-SCX86-198-79-NA
Tonnage: 300 TPH
Length: 68' Slat
Width: 24" Slat (80%)
Other Info:
Single Chain
Floor 60%
75HP
Single Walk-Way
Oil Heated Floor
(No Reject Chute)
Triple Axle (10.-15 Tires)
Has Wire With Disconnet

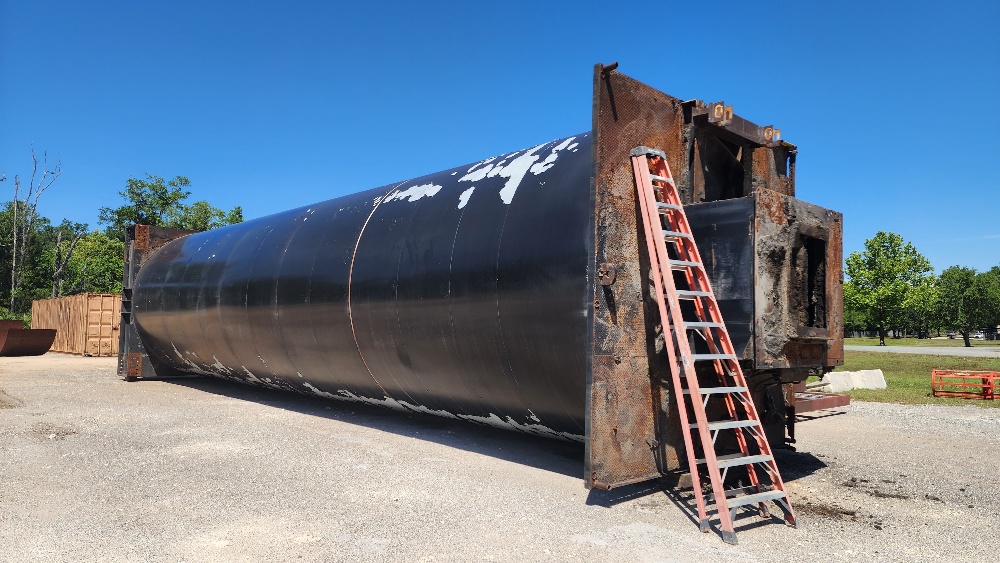

BOEING 100 TON SILO
Portable / Running Gear in place
Internals very good
6000# Weigh-out Pod
36" / 100HP Slat / 500+ TPH
Chain and Internals very good
Portable / Running Gear in place
Chrome Carbide Floor
**100TON Silo System (Rebuild Project, Needs Work, Opportunity to Refirbish and Resell)**
**Silo**:
**Make**: CMI
**Model: 100TON
Portability**: Single Axle
**Drag Conveyer:**
**Model**: 300TPH
**Portability**: Portable
Has reject gate (Needs Complete Rebuild, NO MOTOR)
Single Axle

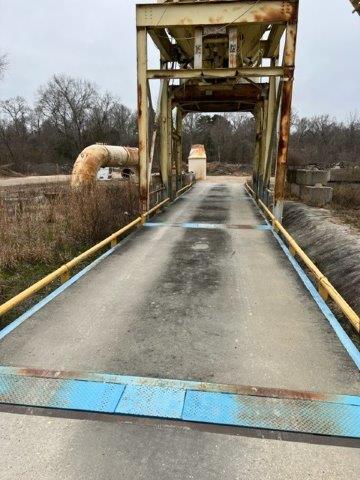

**Scale:**
10'x 60' Pitless Scales (Missing Metal Between Sections)
This remote control flop chute feed system is currently on a 6,000#
batch plant feeding a 300 TPH drag slat conveyor.
It includes all index railing and the air cylinder for interaction or
extraction.
It includes a vibrator on the lower chute. It is in very good condition.
