ASI

Hot Elevator

link SC
USED
ASI

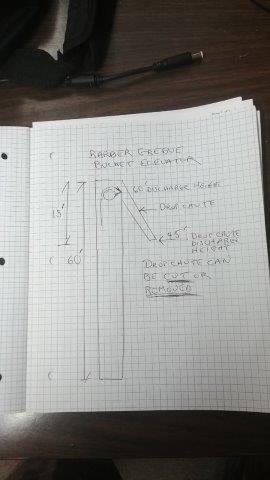

Barber Green Bucket Elevator

link WI
USED
$32,000.00
ASI

Bucket Elevator

link AL
USED
$11,900.00
ASI

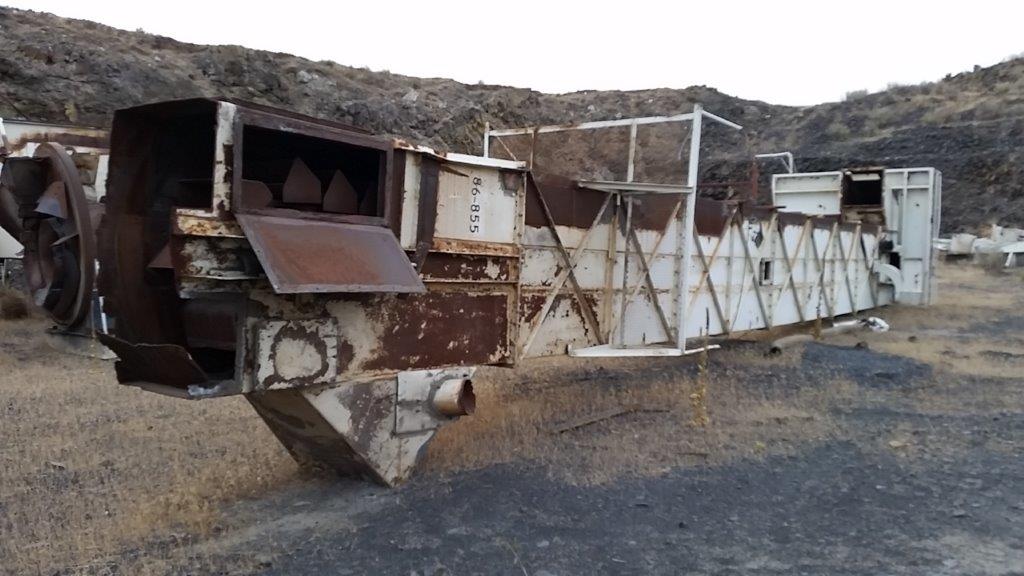

Stationary 300tph Stansteel Bucket Elevator

link Hermiston Or
USED
$12,500.00
ASI

65' Bucket Elevator

link MO
USED
$12,500.00
ASI

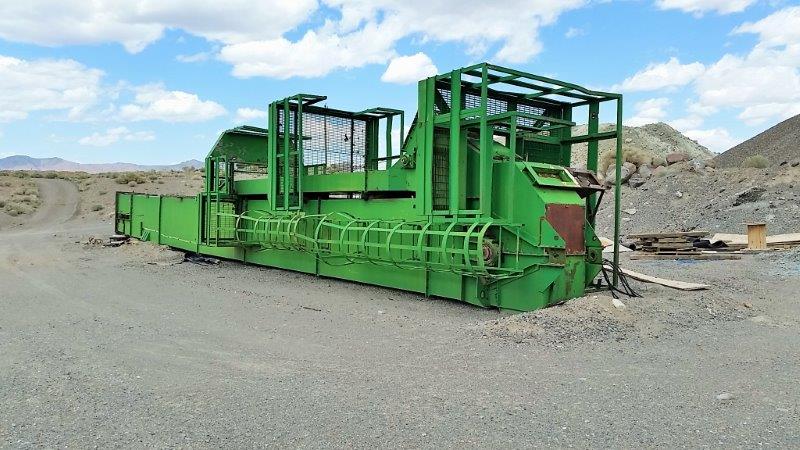

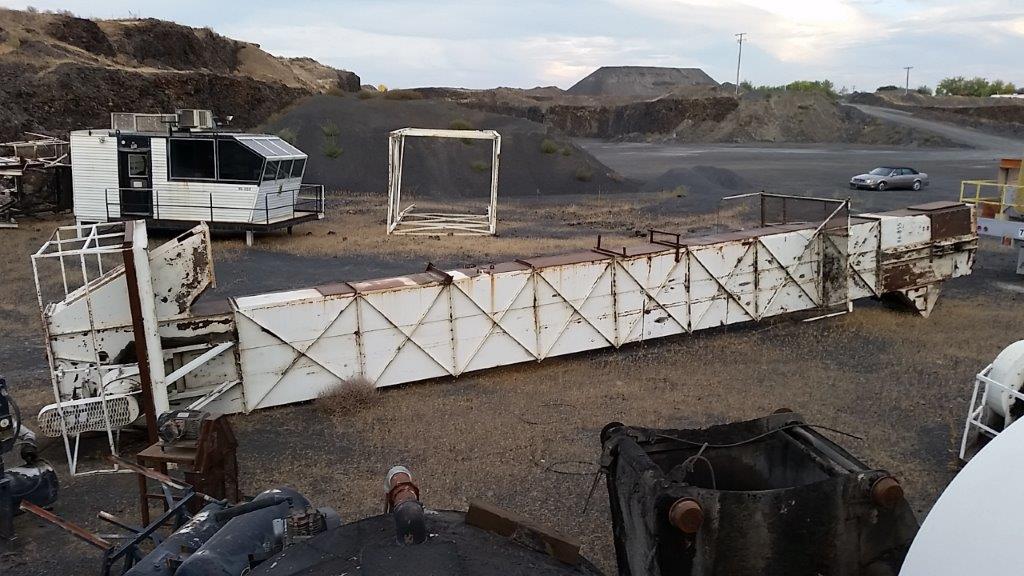

Stationary 300tph Barber Greene Hot Elevator

link Dayton, NV
USED
$9,500.00

Hot Elevator

Inventory #: BE1630

Hot Elevator for post mixing drum new, never used, hot elevator transfer unit for moving aggregates from the dryer to a post mixer. The hot elevator box is 32” wide by 5’ deep. Shaft to shaft the unit is 20’8” and the overall length is 26’. The hood section is 3’2”, the top section is 9’, the mid section is 7’, and is bottom section is 7’. Note: an additional section could be added. A Baldor 25 hp motor through a Dodge TXT 6A gearbox drives the unit. The head shaft measures 4”. The chain is a heavy-duty 6” roller and the buckets (not yet installed) measure 20” wide, 9.5” across and 9” deep. There is an extra pallet of chain. There is a 4’ long delivery chute, extensive platforms, and ladder. The unit was purchased to perform at 325 tph. All components to this unit were never used.

More Photos:
