Screen Decks

5' x 12' Double deck Screen Deck

Inventory #: SD1398

NEW- HAVE 2 IN STOCK 5' x 12' Double deck incline Screen Deck 15 HP drive package 3/4" top screen size 5/8" bottom screen size PRICE-$29,500.00 EACH obo

More Photos:

NEW 6' X 20' Triple Screen Deck

Inventory #: SD1473

**Make**: Terex | Cedarapids **Model**: Tsv6203-32 **Serial** #: Trxv6203kdulc3345 **Year**: 2020 **Screen Size**: 6' X 20' (Triple Deck) **Can be Tilted 10 Degrees!** **Other Info**: * V-Belt Drive Pacakge (Motor Sheave, Key, Bushing & V-Belts) * Right Hand Drive Standard * Triple Shaft Screen * Zero Degree Slope * Side Tension / Single Crown Decks (On All 3-Decks) * Configured For 4' Long Clamp Bars W/ 4' Long Screen Panels * Low Maintenance Dual Pivot Surge Dampers & Coil Springs * 5/16" Thick Side Plates W/ Huck-Bolt Construction * Coil Springs * Heavy-Duty Tube Steel Decks W/ Herringbone Bracing * O-Ring Sealed Vibrator Mechanism W/ "Flow Through" Oil Lubrication * Carriage Bolts Used To Retain Clamp Bars * Ar Lined Feed Box W/ Ar Lined Discharge Lip * Right Hand Variable Speed Drive Standard W/ Motor Mount & Belt Guard * Hand Access On Triple Deck Screens (Spray Bar Knockouts) * Bolt On Spring Guides * Wire Cloth / Screen Media (Not Included) * Eletric Motor (Not Included) * Electrical Switch Gear (Not Included) * Operation, Parts & Maintenance Manuals * (1)-Year / 2,000-Hour Factory Warranty

More Photos:

Allis-Chalmers 6 x 20 3-Deck Incline Screen

Inventory #: SD1465

Allis-Chalmers 3-Deck Screen 6 x 20 Incline Screen with Support stand Screen is solid/ clean in good condition (30) HP Motor Needed Discharge opening at bottom of chute is 24" by 19' Screen Dims: Height:7' Width: 8'9" Length: 24' Support structure DIMS: Height: 11' 8" Width: 8' 5" Length: 21'

More Photos:

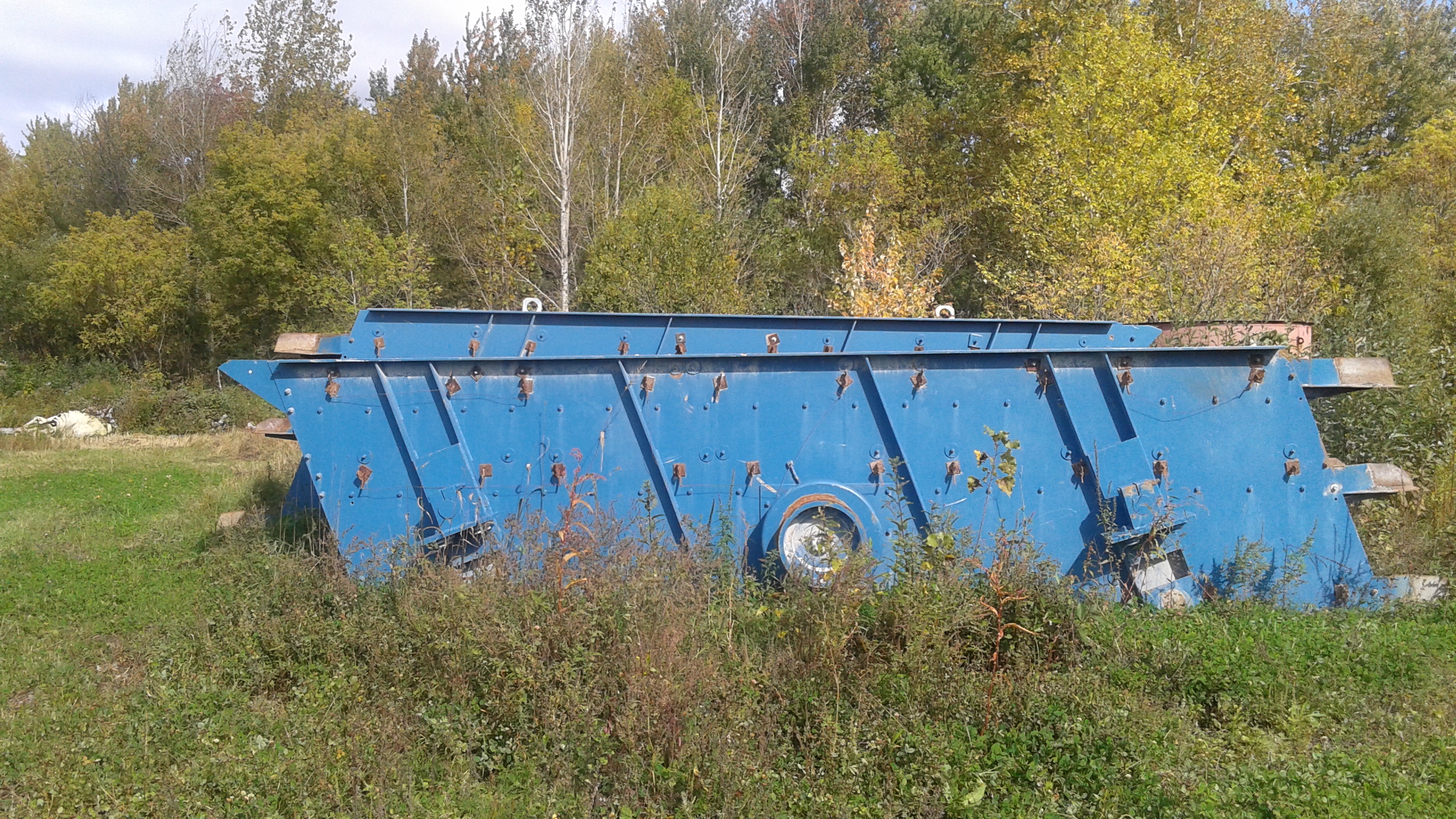

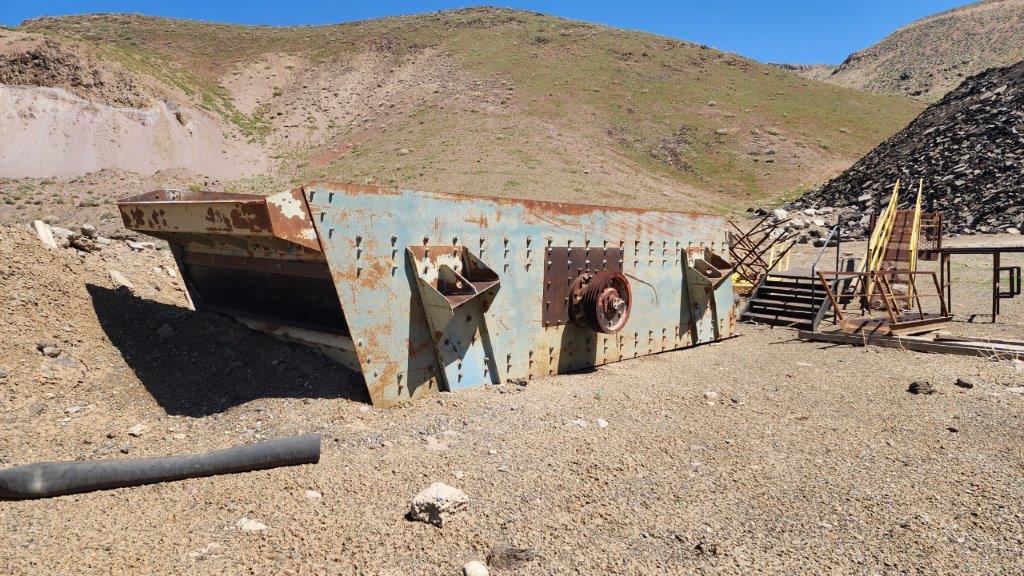

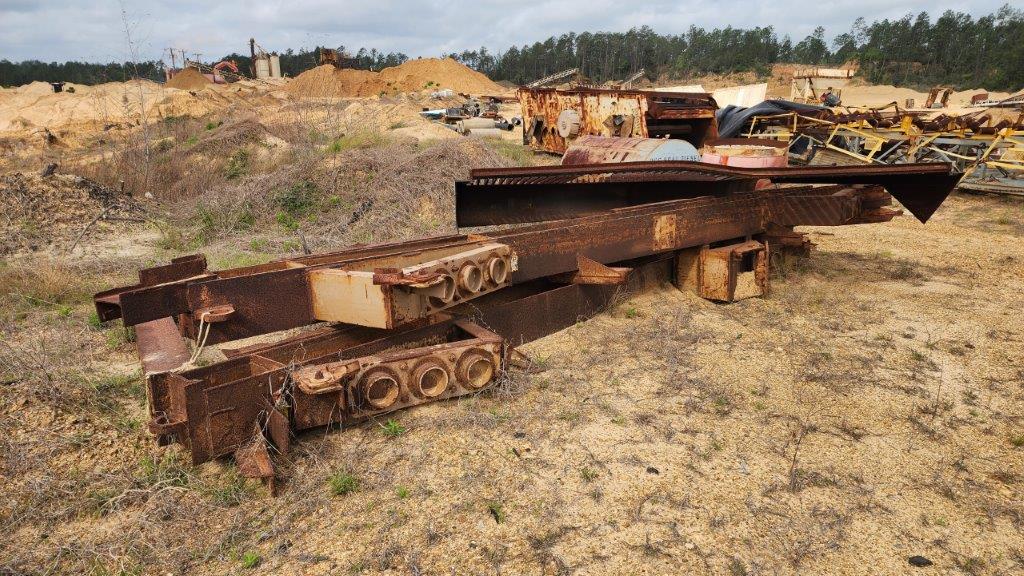

Never Used - 8' x 20' Double Screen Deck

Inventory #: SD1268

Manufactured By Birtley Industrial Equipment. This is a double-decker banana linear aggregate screen. It is 8 x 20 ft. It has never been used. It does not come with the main beam, screen media, or exciters. We can manufacture/rebuild those things for you, but the price currently is as-is.

More Photos:

6' x 20' Triple Screen Deck

Inventory #: SD1338

Trio 6' x 20' Triple Screen Deck Incline Screen with huck bolted steel frame Heavy duty crowned screen decks AR steel lined lips 2-bearing oil mechanism Springs with supports and pivoting motor base 25hp motor and shive is included No screens included

More Photos:

Stationary (6'x20') Triple Screen Deck

Inventory #: SD0824

Screen Deck 6'x20' 3 Deck Bare Screen Shaker moves Freely. No motors

More Photos:

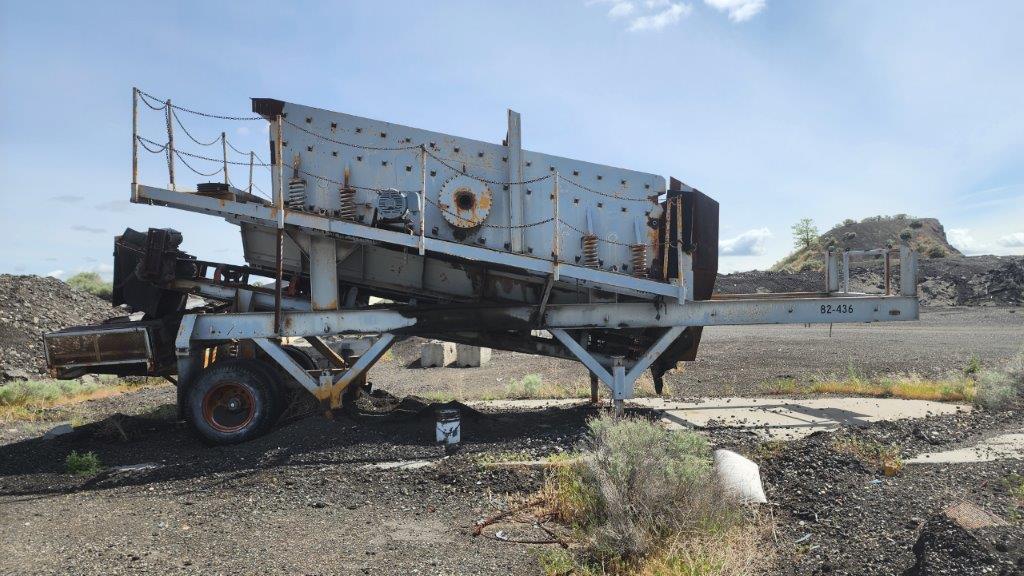

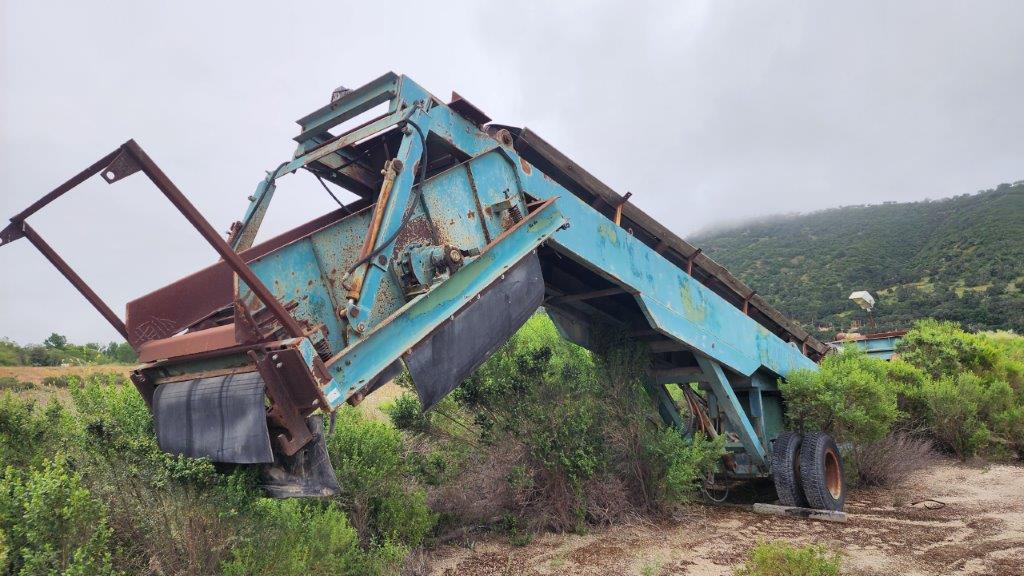

Koldberg Mobile Screen Unit

Inventory #: SD1423

Koldberg Mobile Screen Unit 2 Deck Year: 1989 Make: Koldberg (A Astec Company) Model: " 2710-7-2D The Kolberg Recovery- Screen SN: 51-2710-7-89-2D Diesel Motor 1141.3 Hours Portable Single Axle (215/75R17.5 Tire)

More Photos:

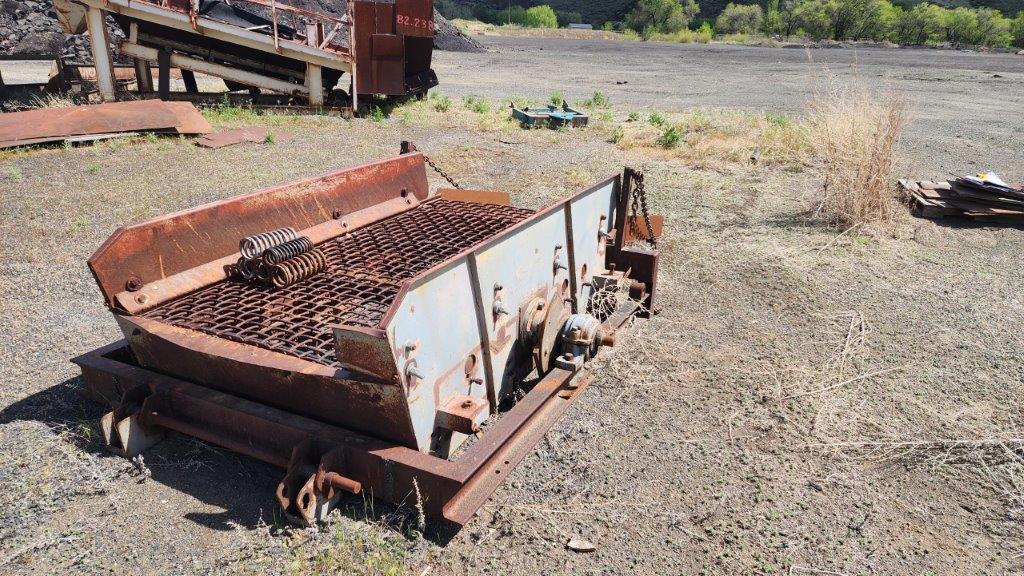

Double Deck Screen

Inventory #: SD1422

4' x 8' Screen Double Deck NO FRAME 20 HP Motor

More Photos:

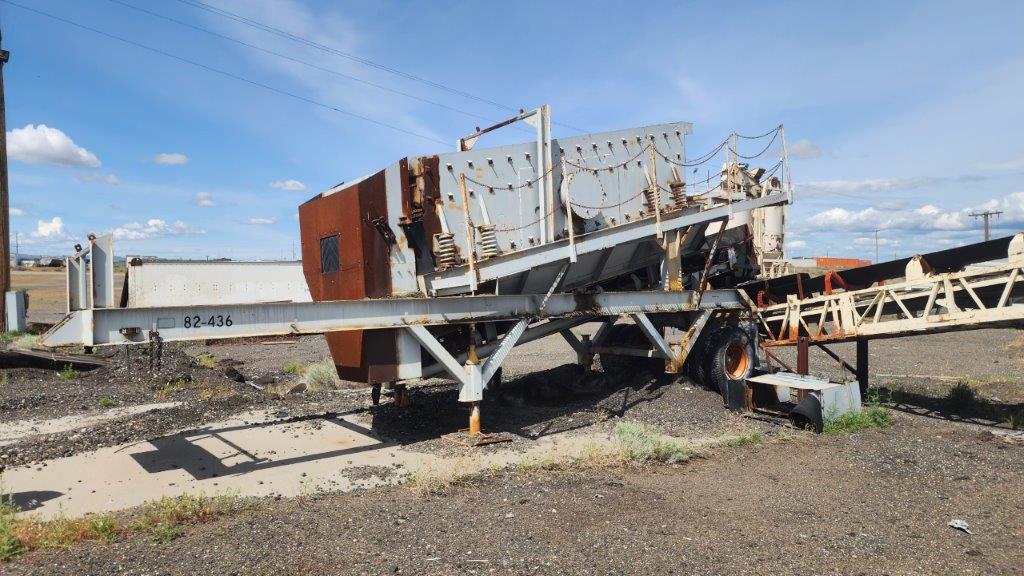

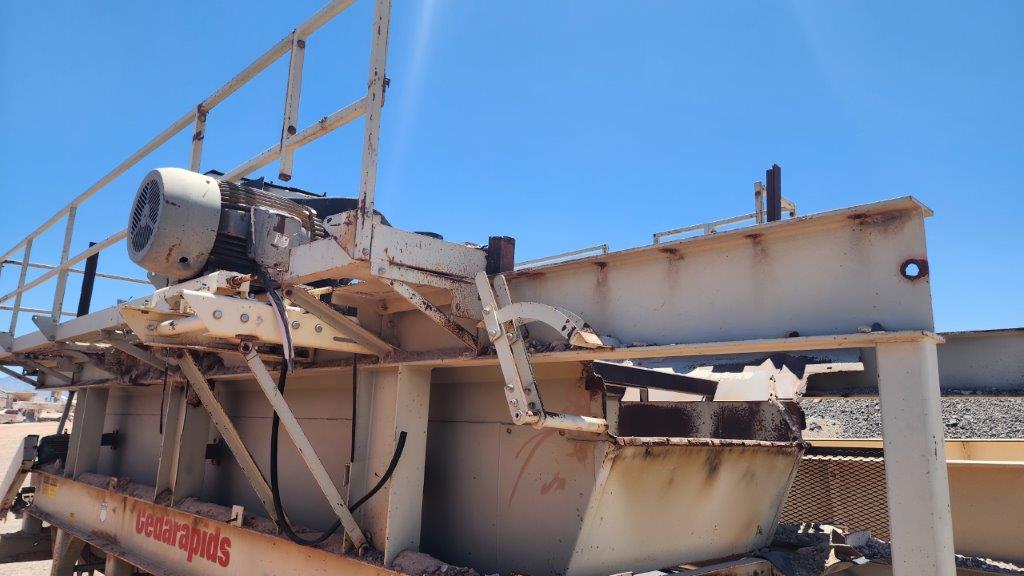

Cedarapids 5' x 12' Single Deck Screening Plant

Inventory #: SD1405

Cedarapids/Pioneer Single 5' x 12' Screening Plant Front Discharge Conveyor 30'' Conveyor

More Photos:

6' x 20' Triple Screen Deck

Inventory #: SD1358

Rebuilt 1998 EL JAY 6' X 20' Triple Deck Horizontal Screen, SN: 34A0388, with screen cloth, new paint, complete with punch outs on middle and bottom deck for spray bars (if required), buyers choice of screen cloth on top deck; 1.5" square opening mesh cloth middle deck; 1.25" square opening mesh cloth on bottom deck, painted with replacement parts The rear top guard on the rear feed end of the screen has been replaced installed all new support structure on top deck,( pictures D,E, F). 40 HP Motor will be load tested. Springs are new..

More Photos:

6' X 20' Triple Screen Deck

Inventory #: SD1340

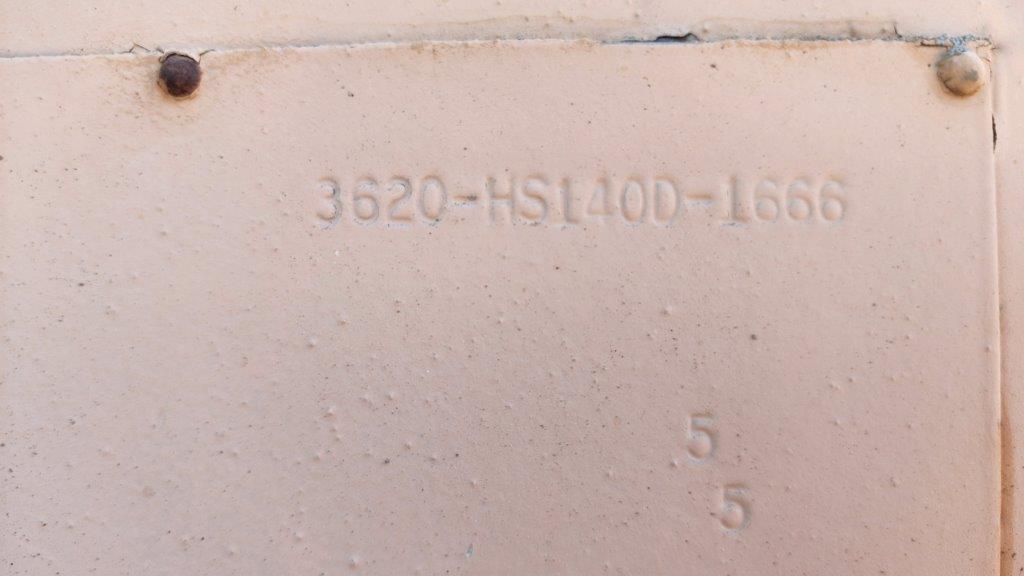

Simplicity 6’ wide x 20’ long Three Deck Horizontal Vibrating Screen Plant Overhead mounted two shaft four bearing oil lubricated vibrator assembly Electric motor, designed for V-belt drive, coil spring isolation Conventional single crown screen support decks with side tension rails. The lower (3rd) deck includes a bottom deck ball tray in 4’ sections providing a self cleaning effect in dry screening applications. Steel fabricated support structure with under screen discharge conveyor with electric drive, screen discharge chutes, S/N 3620-HS140D-1449; Date of Mfr. 1981

More Photos:

6' X 20' Triple Screen Deck

Inventory #: SD1339

Seco 6' Wide x 20' Long three deck screen Horizontal Vibrating Screen with under slung mounted two shaft four bearing oil bath lubricated vibrator assembly Gear driven Driven sheave Top and center decks are twin crowned with center hold down and side tensioned clamp rails Bottom deck designed for end tensioned screens of harp wire Type F5

More Photos:

Never Used - 6' x 16' Single Deck Screen

Inventory #: SD1269

New 6' x 16' Single Deck Horizontal Aggregate Screen. Single Deck Horizontal 6' x 16' Aggregate Screen manufactured by Birtley Industrial Equipment Corp. It has never been used. It does not come with screen media or exciters. We can manufacture/rebuild those for you, but the price is as-is.

More Photos:

Skidded (5'x14') Single Screen Deck

Inventory #: SD0711

Make: Iowa Manufacturing Company Model END-O-CON-SCREEN Decks: Single Size: 5' x 14' Incline Skid Mounted W/Stand Side Access Platform Nema Guards 10 hp Motor Has broken spring, two new springs will be provided in sale Can Be Sand Blasted and Painted For $2,500

More Photos:

5' x 12' Triple Screen Deck

Inventory #: SD1257

5' X 12' Was used in wet application Structurally Sound Price includes loading! (1) - one – Fab Tech 5’ wide x 12’ long three deck incline vibrating screen, coil spring suspension, single shaft - two roller bearing vibrator assembly, conventional single crowned side tensioned screen support decks, grease lubrication, S/N 5-12-3-117-90; Date of Mfr. 1990.

More Photos:

5' x 16' Seco Screen Deck

Inventory #: SD1223

5' x 16' Seco 4 Deck Shipping Dims: 20'1''L X 7'7''W X 8'9''H

More Photos:

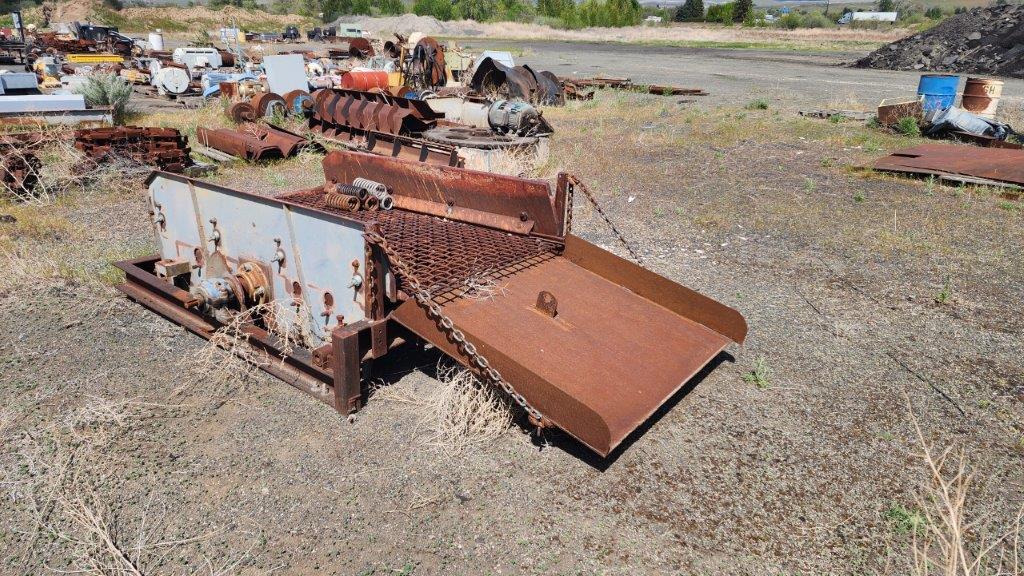

Stationary (4'x20') Vibrating Screen Feeder

Inventory #: SD0825

Hewitt-Robbins Feeder 4'.3" x 20' Vibratory Feeder SN# C70648201 Style # 52x20 VL-14

More Photos:

Stationary (5'x14') 4 Deck Screen Deck

Inventory #: SD0888

5' x 14' 4 deck enclosed screen Twin 15hp motors Walk around platform

More Photos:

Stationary (7'x20') Double Deister Screen Deck

Inventory #: SD0834

Deister Screen 7’ wide x 20’ long Two deck incline bare vibrating screen Has drive guard; coil spring isolation Duel crown screen decks for conventional wire mesh screens Single shaft two bearing oil lubricated vibrator assembly Drive guards, pivoting motor base for electric motor (no motor) Model #BHM-2720 S/N 829991 Date of Mfr: 12-1999.

More Photos:

Stationary (8'x30') Triple Diester Screen Deck

Inventory #: SD0833

Deister Screen Deck 3 Deck (No Screens) 8' x 30' Model BHM-3824-E Year 1998 (2) Shakers (1) Bad NEEDS WORK No Motors Legs

More Photos:

Stationary (5'x18') Telsmith Screen Deck

Inventory #: SD0830

Telsmith Screen 5'x 18' Bad Shaker (Has All The Pieces) Good Box

More Photos:

Stationary (5'x16') Double Screen Deck

Inventory #: SD0819

Two deck 5'x 16' Screen Has springs no frame or motor Older style gear cover means it may well be chain drive not gear?

More Photos:
