HOT OIL HEATER: An ALmix Model HC-150 helical coil type heater with 1,500,000 BTU/HR output capacity is provided to heat Purchaser’s existing AC storage tanker trucks. The fully automatic unit is complete with heat exchanger, circulating pump, burner, expansion tank, manifold and control system. The helical coiled tube heat exchanger provides for a controlled flow design of maximum thermal efficiency. The coil is schedule 40 seamless pipe close wound and welded. The coil is placed in the heater so that it can expand and contract without fatigue cracking. The last two turns are spaced approximately one inch apart to allow for thermal expansion. The burner fires down the center of the coil with the combustion gases traveling the full length of the coil. The hot gases make a return pass over the outside of the coil and exhaust through the stack at the burner end of the heater. This 12 in. diameter stack includes rain cap with screen and high temperature limit control. The shell of the heater is fabricated from 3/16" steel plate and is lined with 2" thick high temperature ceramic fiber blanket. Front and rear doors provide access to the coil. The rear door includes a sight glass for viewing the flame pattern. The heater and all components are skid mounted. The 80 gal. expansion tank is provided mounted, piped and wired to the heater shell. The expansion tank includes two lines with valves piped to the tank for purging the system during startup. The expansion tank also includes low oil cut off and sight level gauge. The low oil level control is mounted on the expansion tank and set so that the tank must be filled to the quarter full level. A glass sight gauge is furnished for visual checking. The Webster natural gasburner utilizes the lo-hi-lo firing mode. The burner includes 1/2 H.P. blower, electric spark ignition, on/off firing with automatic air control, control transformer, lo-fire switch, Fireye control flame detection system with flame failure bell, fuel pump and first out annunciator. The “first out” annunciator for trouble shooting has lights to indicate the location of a problem. Each light is connected to the interlock circuit being monitored. The following circuits are monitored:
1. low fire limit control
2. stack temperature safety limit
3. low oil level
4. heater hot oil pump motor interlock
5. high temperature oil safety limit
The system oil temperature control consists of an indicating dial control for regulating the desired temperature. Low oil cut off prevents operation of the burner until the proper oil level is achieved. A high temperature control shuts the burner off automatically in the case of high oil temperature. A high limit stack temperature control shuts off the burner automatically in the case of high stack temperature. A low pressure switch shuts off the burner automatically in the case of a drop in pressure on the input side of the coil. The oil circulating system includes one (1) circulating pump driven by a 10 H.P., 3/60/460v motor, Y-strainer, expansion tank with gauge glass assembly, thermometer and pressure relief valve.
### NEW! NEVER USED! MADE IN LATE 2022, SHIPPED 2023
### GAS TRAIN INCLUDED

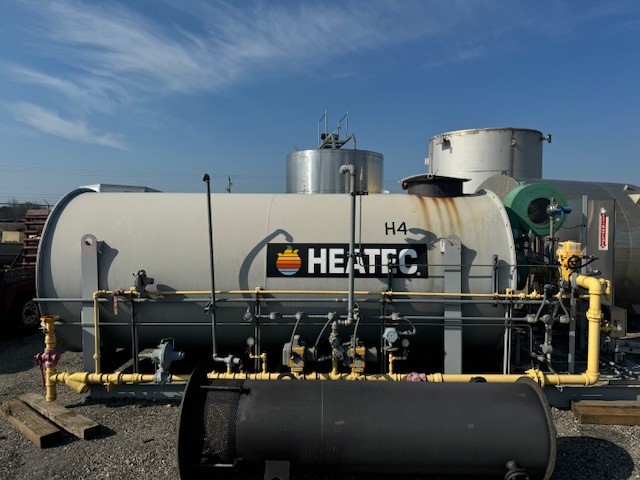

Used 5.2 MMBTU Hot Oil heater. Manufactured by Heatec. Model HCI-4010-40-G. Natural gas fired. Eclipse Winnox WX0850 burner with 15 HP Eclipse packaged-blower PRJ10055899. 15HP 3/60/230-460 volt motor. 583 sq. ft. heater Rated 800 PSIG @ -20 to 800F. Purged control panel rated for hazardous locations. Allen Bradley Panelview Plus 700 interface, high media temperature controller and high stack temperature limit. 24" X 8' stack. Skid mounted. Serial #HI10-243. National Board #1998. Built 2011. Previous use heating natural gas at a natural gas processing facility.
Make: Heatec
Model: HC-200
Combo- oil/gas
Ran on Natural Gas

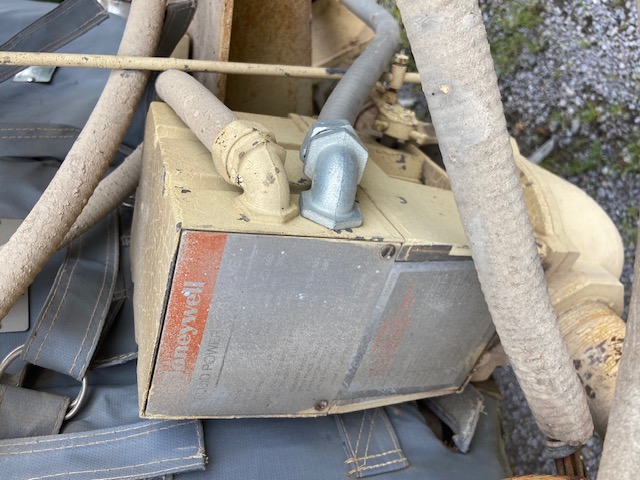

Honeywell Gas Valve

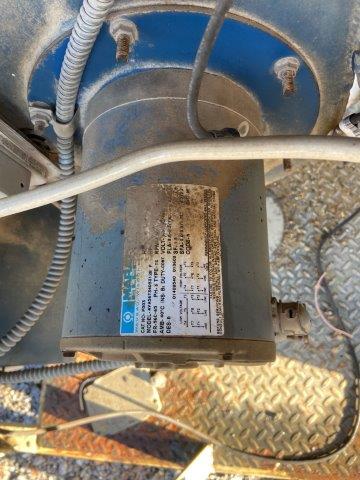

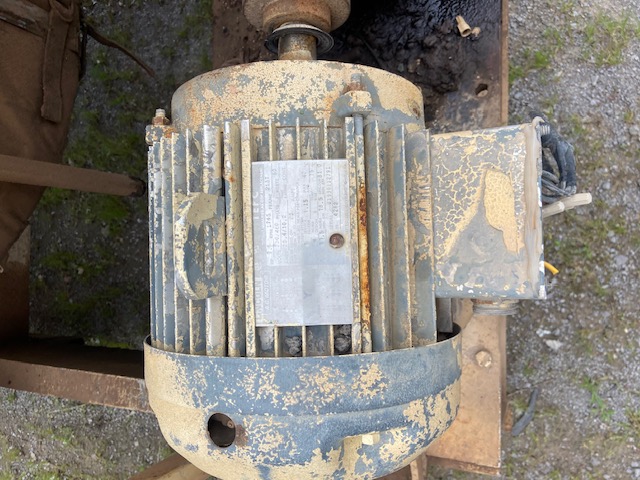

Electric Motor

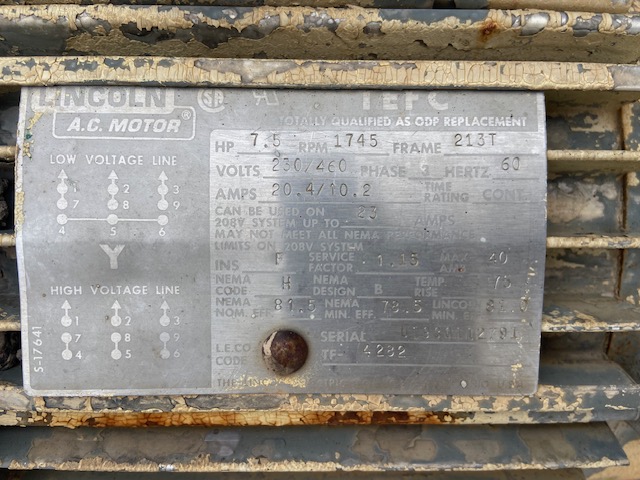

Motor Make: Lincoln
Serial: U1930112791
Volts: 230/460
HP: 7.5
Phase: 3
100 Gallon Oil Capacity
Circulating Pump Rate: 92GPM
Pump HP: 7.5
BTU: 2,000,000
Burner Make: PowerFlame
Model: C2-OP
SN: 37820003

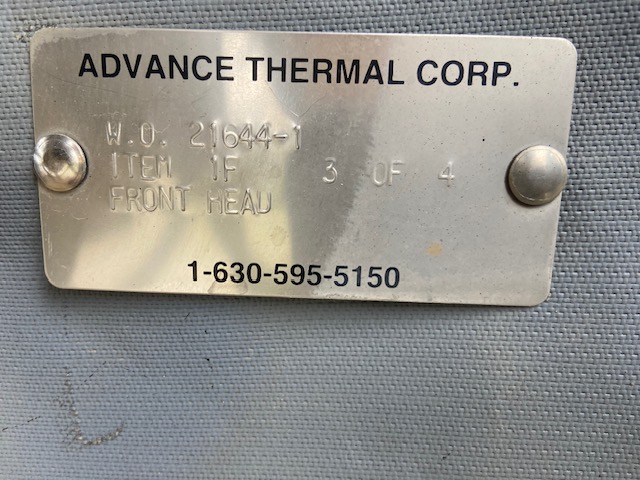

Advance Thermal Corp Skin for Tank and Lines
Complete with Controls
Skid Mounted
DOES NOT HAVE FAN OR FAN MOTOR FOR BURNER

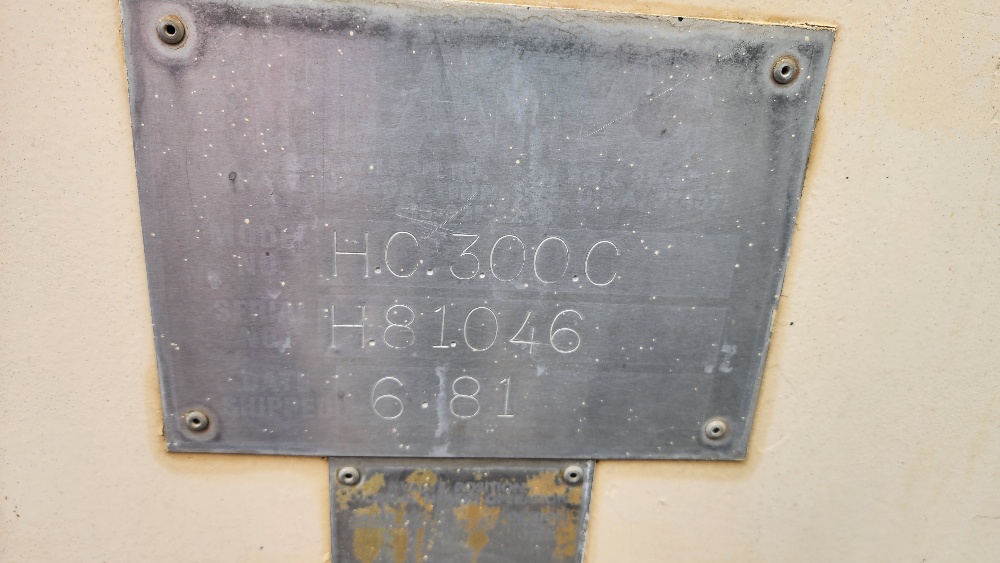

Make: Heatec
Model: HC300C
SN: H81046
Year: 1981
Fuel Source (Combo Oil/Gas)
Has Gas Train
Has Fuel Pump and Filter

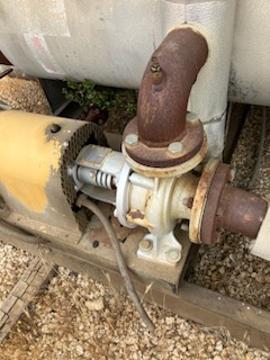

Circulating Pump
Updated Fire Eye
Expansion Tank

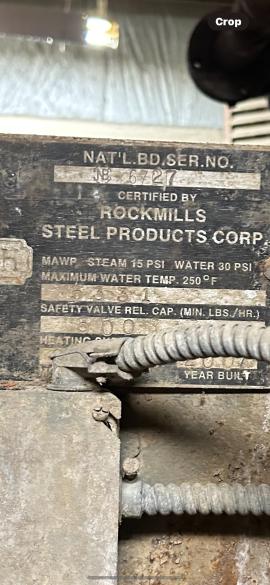

Make:
SN: JNB 6727
Max Water Temp: 5331
Safety Valve Rel. Cap: 500
Year: 2007

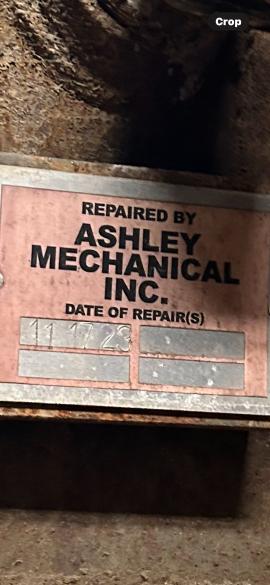

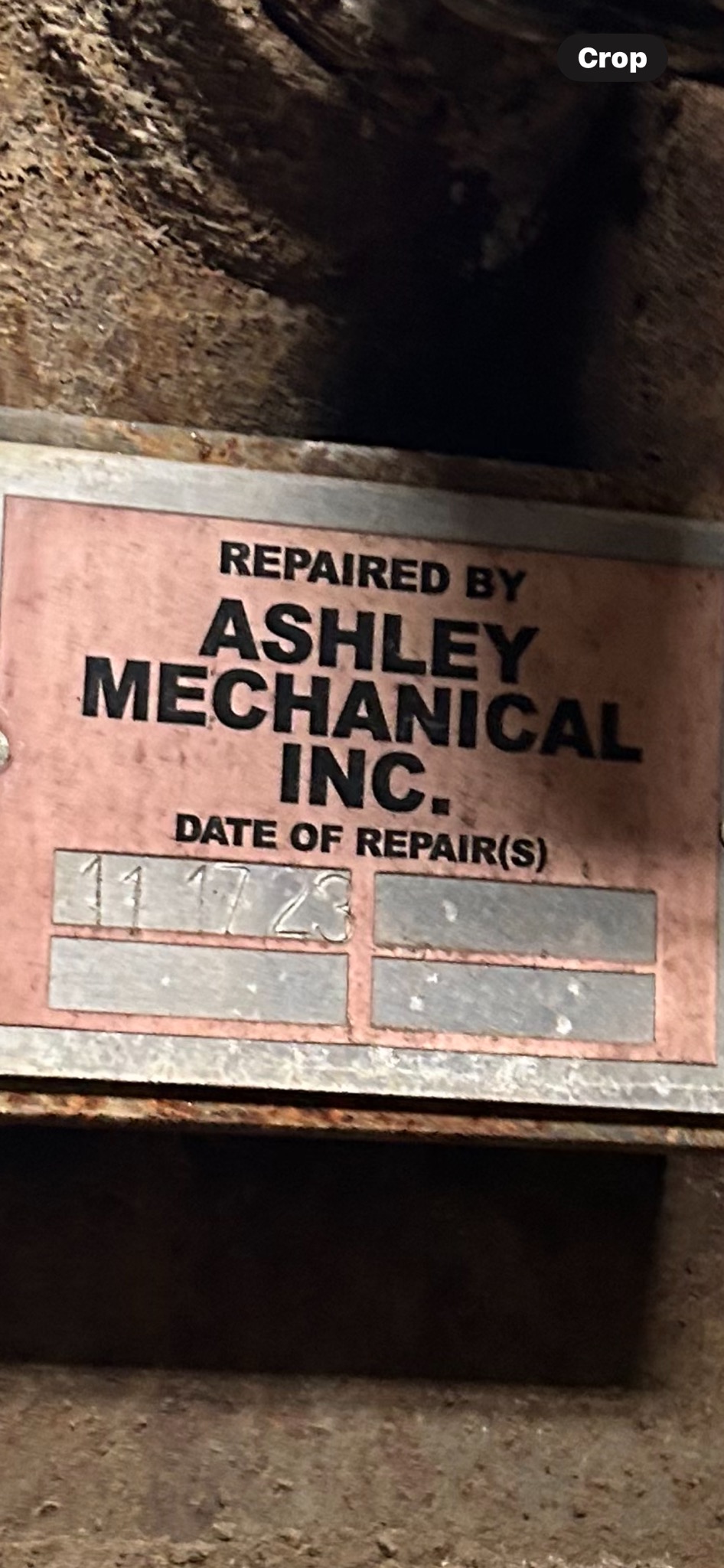

Repaired 11/17/2023 by Ashley Mechanical Inc.
Powerflame Natural Gas/Fuel Oil Burner
Condition Notes: Has leak that will need to be welded. Used until April 2024. Was set up as a steam boiler for hot water for a concrete plant.

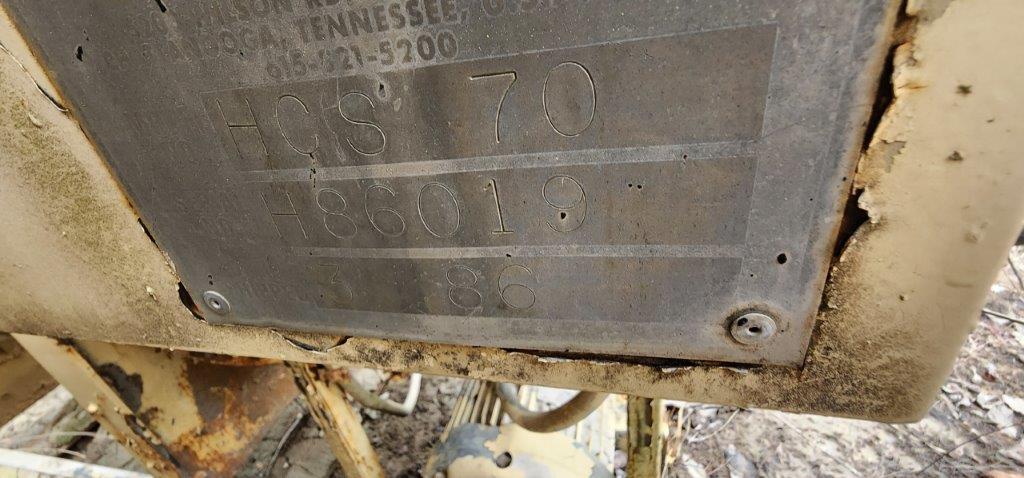

Heatec Heater 700,000mbtu
HCS-70
SN: HOO-058
Year: 04-00
Powerflame burner, Model C1-GO-12
Fire Eye, Digital Temp Controllers, Updated Siemens Breakers and Starters
Combo Hot Oil Heater
Honeywell Gas Valve
Diesel Pump Skid, 10hp
Disconnected and ready to load on buyer's trailer.

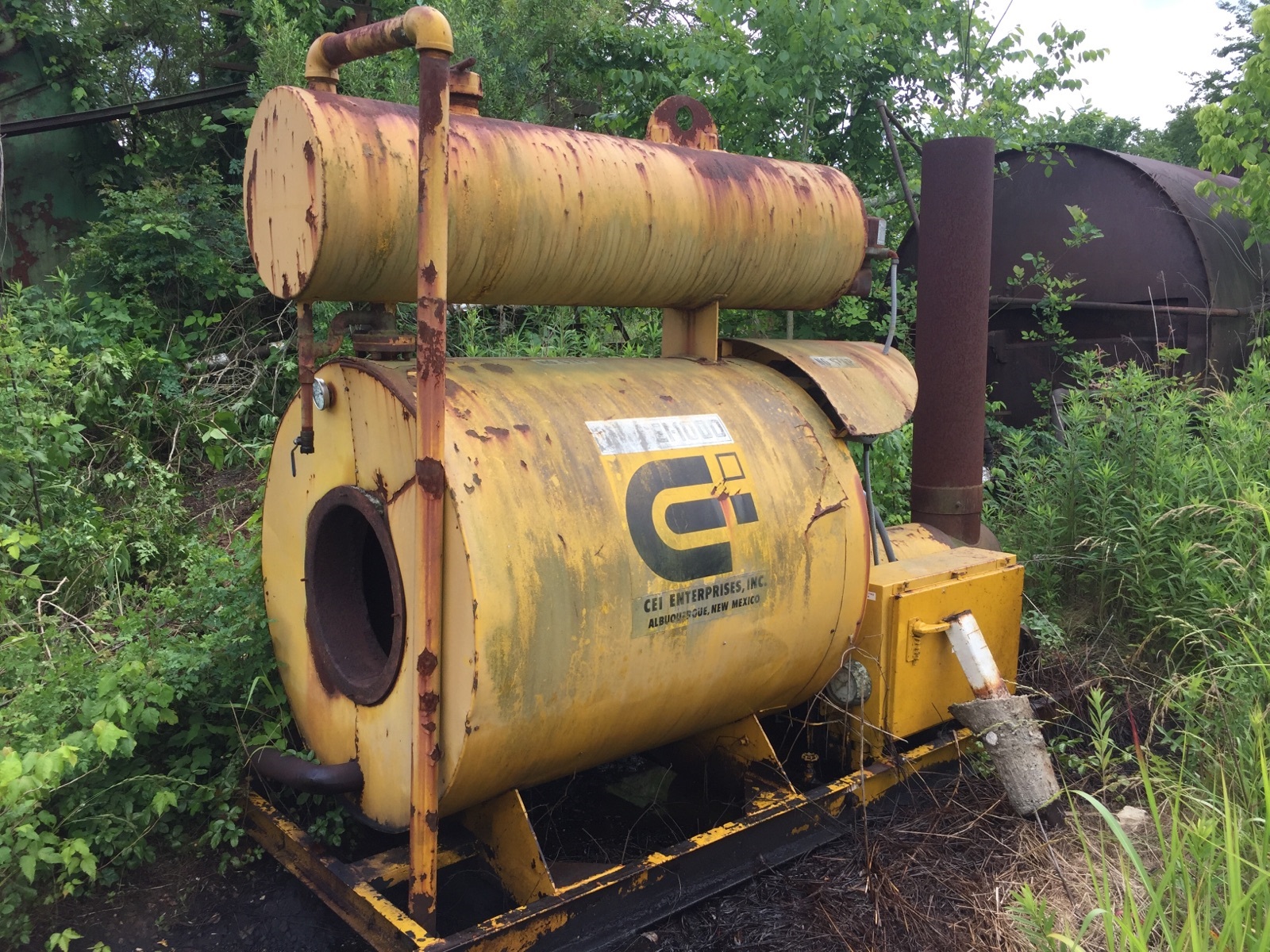

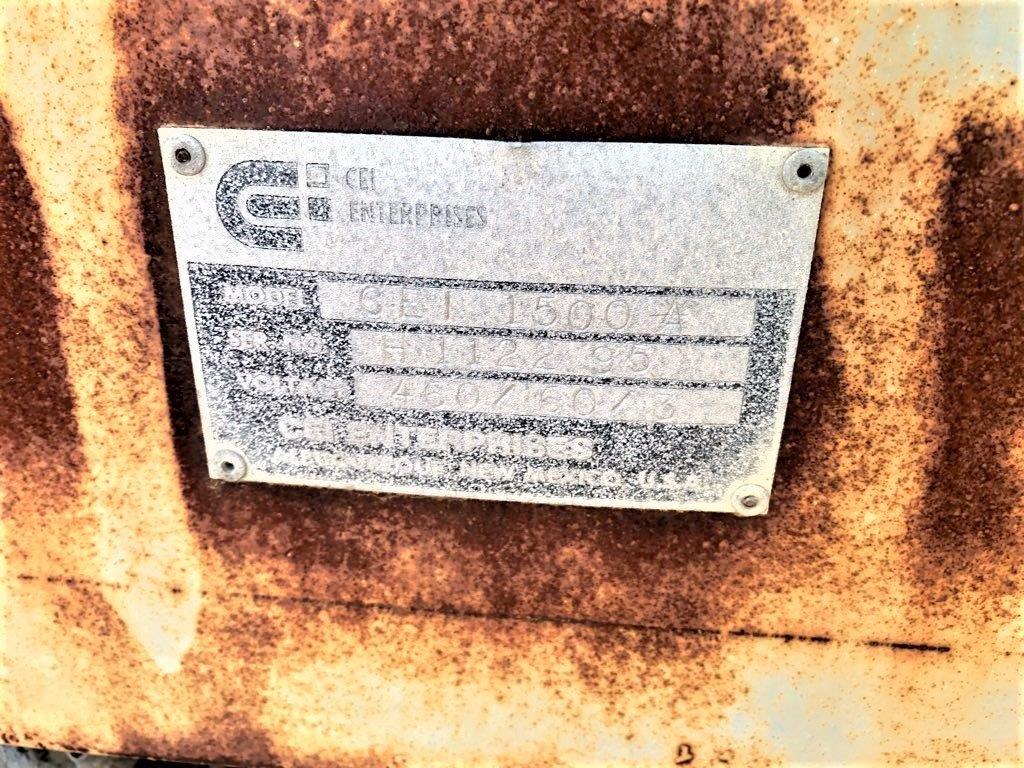

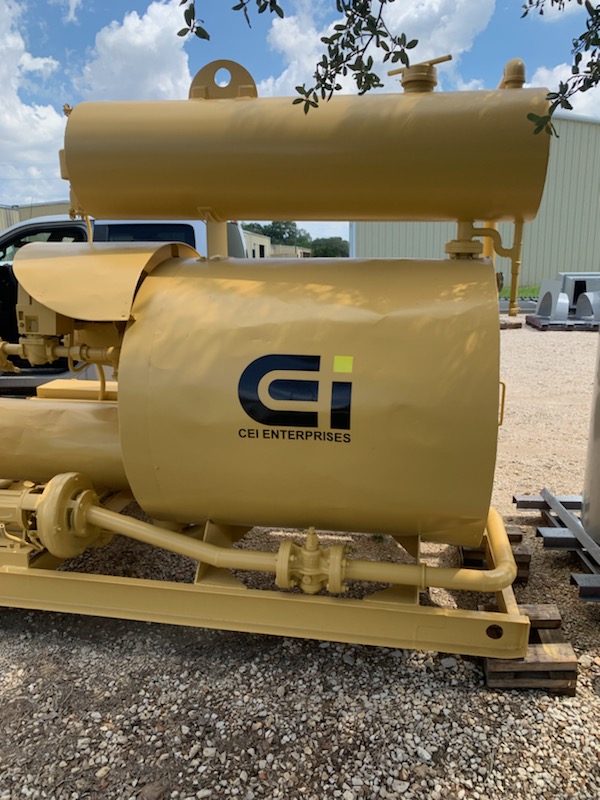

Make: CEI
Model# 1500-A
SN# H112/95
Year# 1995
Fuel Source Single Fuel (Nat Gas)
This heater has a large Expansion Tank, And a Heat Recapture Box, with
Nat Gas Train and hot oil circulation system. This heater has been kept
as a back up system for a west coast company to go into service at a
moments notice.

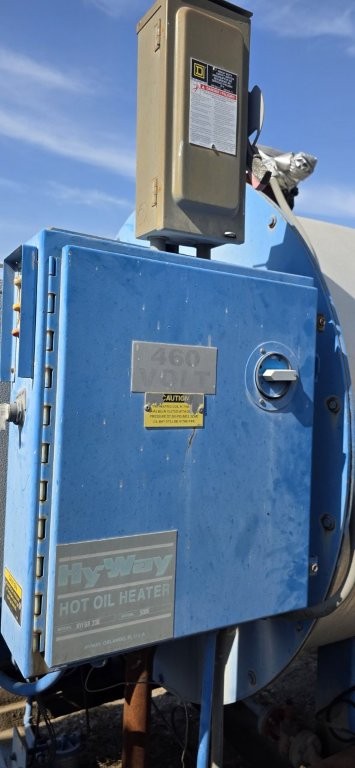

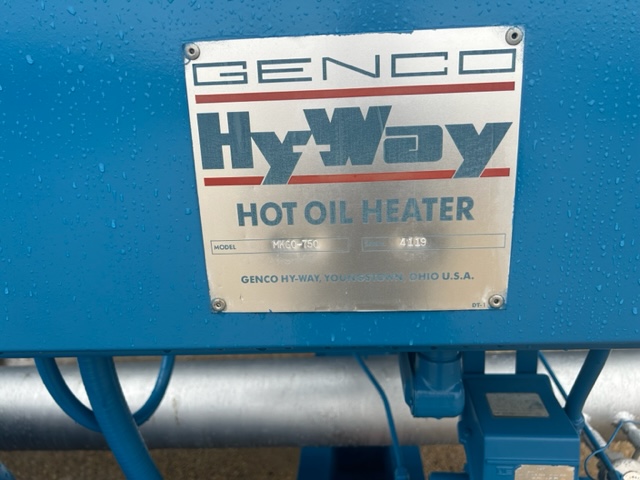

Hy-Way MKGO-750
SN: 4119
7.5 MMBTU gas/oil thermal fluid heater
Completely rebuilt
Stack economize
500 gallon expansion tank
**Portable frame does not go with sale, owner used to move while on sites**
PX120 Heater
This heater is rated for up to 125 PSI @ 650 deg f.
The heater will net out 12.0 MMBtu/Hr.
Manufacture time approx 14 weeks.
CALL FOR PRICE
Heater
1.5 MBTU

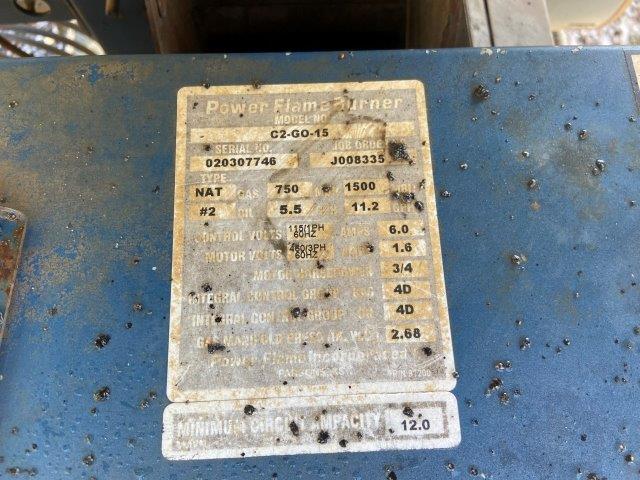

Powerflame burner
Model#: C2-GO-15
SR#: 020307746
Dual fuel (diesel/gas)
Partial gas train and fuel pump
Skid mounted
2’x 5’ expansion tank
Circulation pump
10hp motor

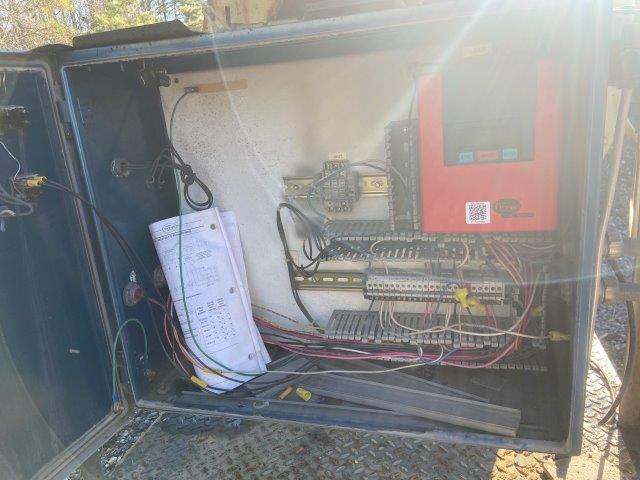

NEMA control cabinet with fire eye
Parlow temp controls
Used 20 MMBTU/Hr Hot Oil Boiler. Manufactured by Sigma Thermal. Model HC2-17.5-H-SF.
5861kW. 2064 Sq Ft Heat surface. 400F @ 52PSIG. 350059 lb/hr mass flow. Media:
Chemtherm 550. Serial #J12012.

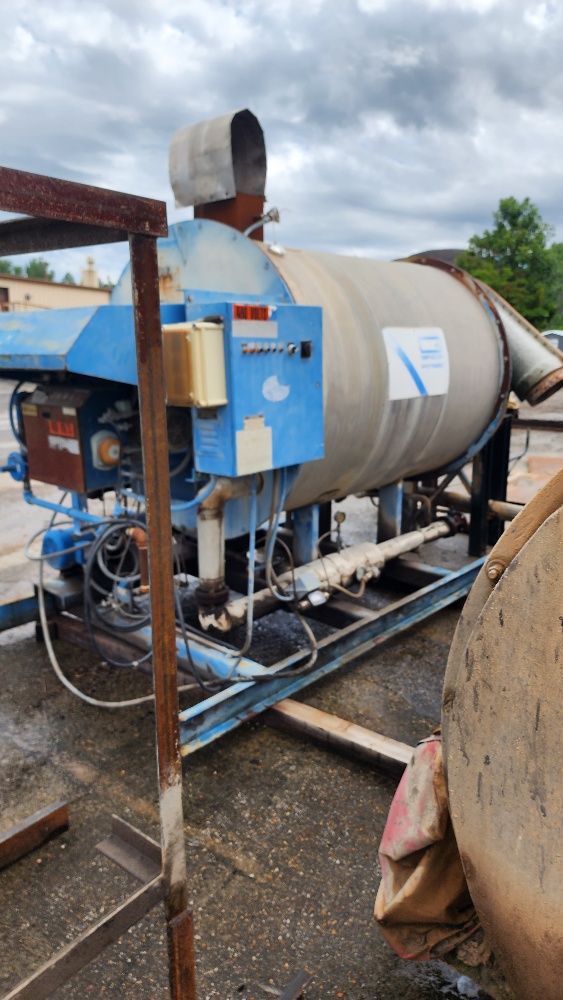

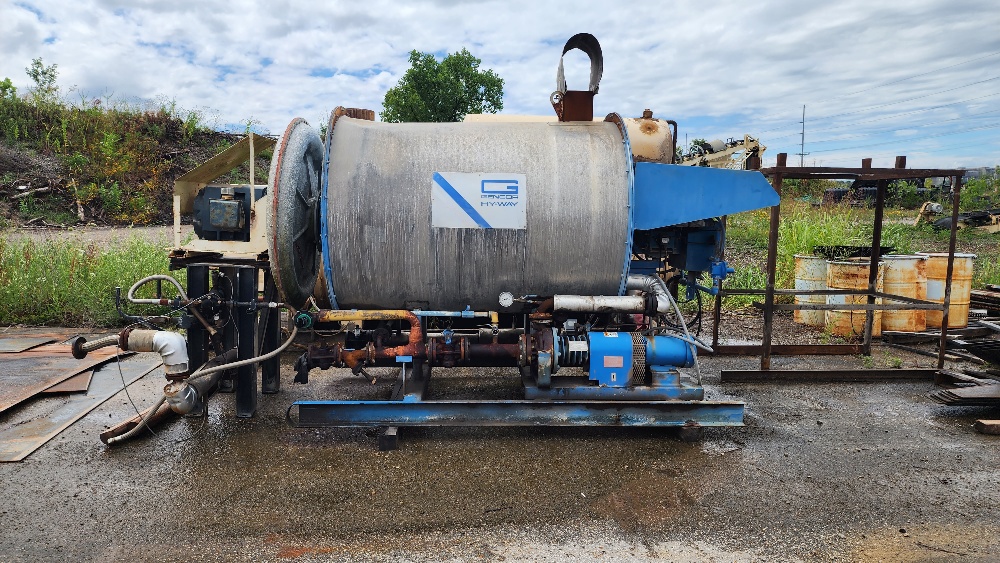

Make: Gencor/Hyway

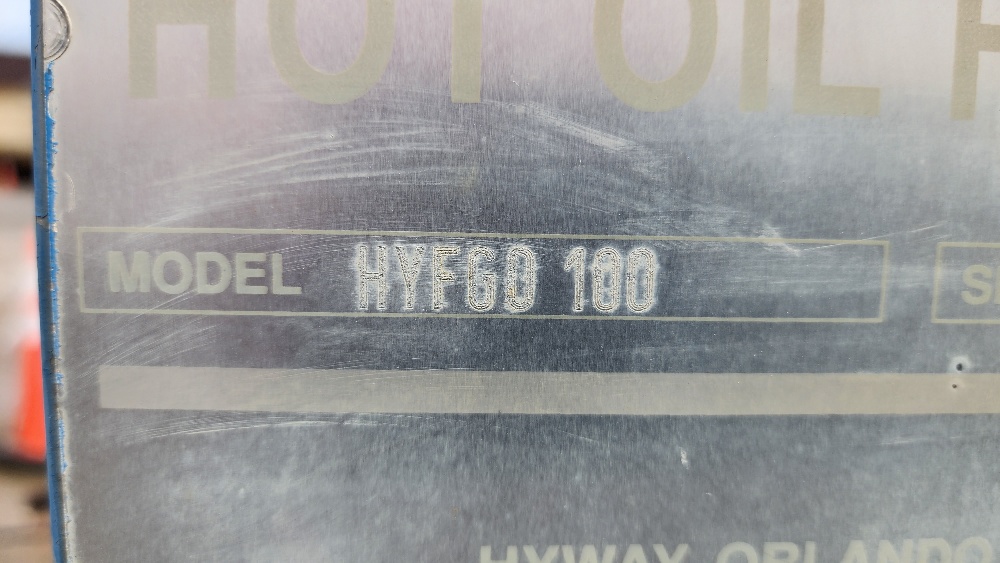

Model: HYFGO 100
SN: 5009
Circulating Pump Package
Combo Burner
(Oil/Gas)
Partial Gas Trane
Fuel Pump And Filter
No Exspantion Tank
Unit has coking in the coils

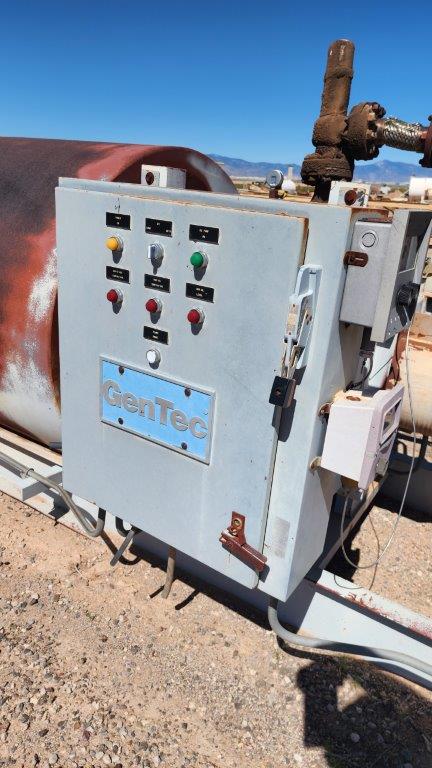

Gentec Hot Oil Heater
1.2 MBTU
Power Flame Burner Model C1-GO-12
SN# 059050034
OIL/GAS
Honeywell Gas Valve / Webster Fuel Pump

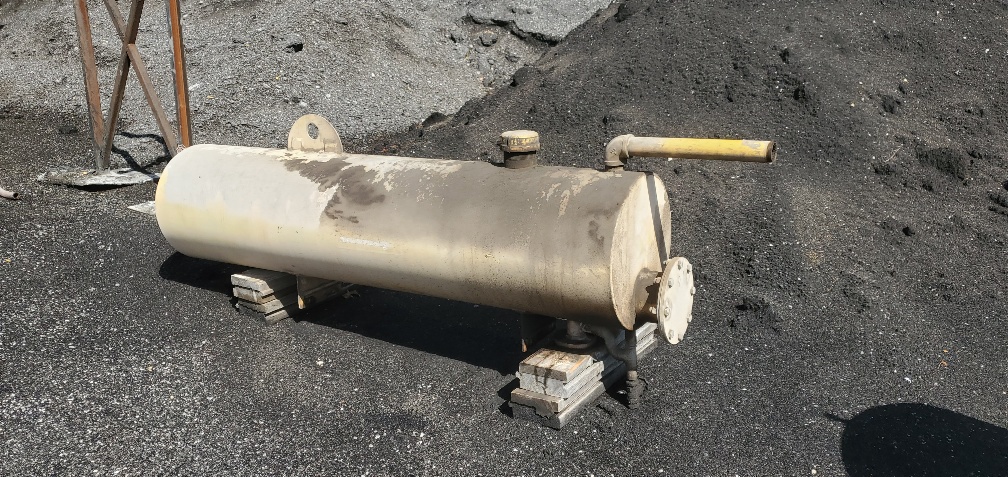

Expansion Tank
Hot Oil Circulating Pump and Motor
Approximate Shipping Dims 6’6” w x 20’ long x8’4” tall
Hot Oil Heater
Model# CEI-3000C
SR# C98-041
Year 1998
3 MBTU
Combo Fuel (Oil/Gas) Has Gas Train and Fuel Pump
Missing Fire Eye
15hp Motor On Circulating Pump
Used 11mbtu Heatec Hot Oil Heater
Model: HCI-8010-50-G
SN: HI17-094
Date: 09-17
6" Lines
300psi valves
Natural gas valves
control pack
heat exchange
Never Been Installed
CM9-G-30 Power Flame Burner, Natural Gas
Has expansion tank
Purchased New for Approx $2.5-3million
MISSING PUMP PACKAGE

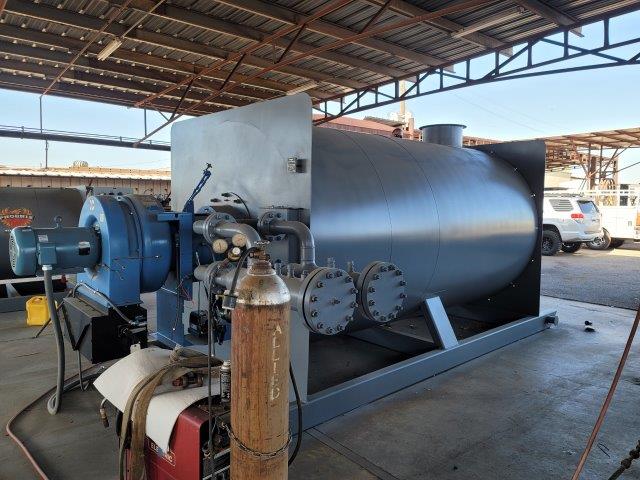

One Phoenix Thermal oil heater; model PX-100, maximum design temperature of 550°F.
Double Helical coil design with heatmizer fins for improved heat extraction from air stream.
The unit will be complete and ready to fire after connecting to the electric, fuel, and hot oil circulation piping. The coil is designed according to ASME for 550°F @ 125 psi MAWP. The coils are Schedule 40 SA-106B pipe. This unit comes with a reconditioned burner with a two year warranty on all burner parts.
Includes the following specs:
• 6" inlet/outlet nozzles - ANSI 300# SA 105 WNRF flanges.
• ASME designed coils = 125 psi @ 550°F.
• Double 3” helical coils. (Sch. 40 SA-106B Seamless pipe).
• The heater shall have high temperature refractory install in the turn-around area of the heater.
• Shell and front/back plates to be 304 SS 5/16" steel wrapped with 2" thick high temperature insulation covered with a galvanized steel skin.
• The heater shall be equipped with a 2" diameter sight glass (quartz) port equipped with a cooling connection located at the rear of the unit for an unobstructed view of the flame.
• The heater shall be equipped with a 20" (minimum) manway located at the rear door for internal inspection of the unit.
• The heater shall be equipped with sampling and instrumentation ports to be located on the stack and at locations before and after the convection section.
• All electrical conduit material shall be rigid aluminum.
Controls
Controls and control panels to meet NEMA 4 requirements and includes the following:
• UL Listed NEMA 4 enclosures.
• TEFC burner blower motor.
• Honeywell high oil temperature limit control.
• Love Controls TCS-4010 high stack temperature control.
• 1 - Stack dual thermocouple.
• Square D 500SV1B Step-down control transformer for 120V control power.
• Numbered terminal blocks and enclosed wire raceways.
• Alarm horn mounted to the control panel.
• Integrated shutdown permissive.
• Control Relays.
• Full set of dry contacts for alarms and statuses for customer use.
• Push/Pull emergency stop button located on control panel.
Locally mounted instruments:
Heater Inlet Piping:
• 1 –pressure switch mounted between the heater inlet and outlet for 500 GPM flowrate.
• 1 - Inlet pressure gauge with shut off cock.
• 1 - Inlet thermometer with thermowell.
• 1 – Inlet thermocouple. With thermowell.
Heater Outlet Piping:
• 1 - Outlet pressure gauge with shut off cock.
• 1 - Outlet thermometer with thermowell.
• 1 - Outlet dual thermocouple with thermowell.
• 1 – Outlet thermocouple with thermowell for circuit coil #1
• 1 – Outlet thermocouple with thermowell for circuit coil #2
• 1 –Flanged pressure relief valve (located on the heater outlet manifold).
Pilot Fuel Train (Natural Gas):
Pilot fuel train designed to meet typical NFPA-87 / NEC requirements. Pilot fuel train controls to meet NEMA 4 requirements. The pilot fuel train will be constructed of carbon steel threaded connections. The pilot fuel train shall include the following:
• 1 – Pilot fuel pressure regulator.
• 2 - Automatic safety shut off valve.
• 1 – Solenoid vent valve.
• 2 - Manual shut off valves.
• 1 - Pressure gauge with isolation valve.
Main Fuel Train (Natural Gas):
Main fuel train designed to meet typical NFPA-87 / NEC requirements. Main fuel train controls to meet NEMA 4 requirements. The main fuel train will be constructed of carbon steel threaded connections.
The main fuel train shall include the following:
• 1 – Main fuel pressure regulator.
• 1 - Carbon steel strainer.
• 2 - Manual shut off valves.
• 2 - safety shut off valves with proof of closure switches.
• 1 – Solenoid vent valve.
• 1 – Low gas pressure switch with manual reset switch.
• 1 –High gas pressure switch with manual reset switch.
• 2 - Pressure gauges.
**CALL FOR PRICE. QUOTES ARE GOOD FOR 7 DAYS!**
Proposal for one PX-200 Hot Oil Heater:
One NEW Thermal oil heater; model PX-200, max design temp of 550°F.
Double Helical coil design with heatmizer fins for improved heat extraction from air stream.
Natural gas power burner with full modulation rated at 25.2 Mmbtu/hr. The unit will be complete and
ready to fire after connecting to the electric, fuel, and hot oil circulation piping. The coil is designed and
stamped according to ASME for 125 psi MAWP. The coils are SA-106 seamless pipe.
Heater maximum output: 20.0 Mmbtu/hr. Based on supply/return ?T of 100°F and a hot oil flow rate of
600-gpm.
More Information Available.
Manufacturing Time 12-14 Weeks
*Pricing and manufacturing time as of 11-22-22. Pricing and Manufacturing time is subject to change. A new quote will more than likely need to be provided if request is more than 30 days from pricing previous pricing date.*
**Make**: CEI
**Output**: 1mbtu
**Year**: late 80s model
**Natural Gas**
**Other**:
* Ray burner should also be able to burn diesel
* It has a Peerless pump

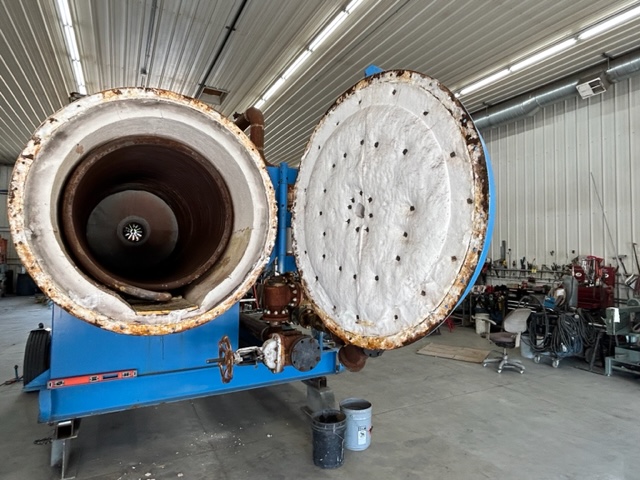

The boiler comes on trailer complete with a Low NoX FGR burner and includes a stub stack and economizer. The unit will pass a hydro and have included $10,000 worth of spares that we would include. We would make available our technician to do a 4 day training/ maintenance course with the new owner.
Serial Number: 0-3673
Tag: 7630-CS
Serial Number: 0-3674
Tag: 5808-DR
Vin Numbers for Trailers On File
* Capable of heating up to 1000 gallons per hour (averages 600-1000gals per hour)
* Heated via hot oil
* Insulated preheater
* Oil to oil heater- heats fuel oil
* Comes ready to accept inch and a half oil lines and inch and a half hot oil lines
* Available to ship within 3 to 4 weeks of order
CALL ASI WITH ANY QUESTIONS!
Heatec Pre Heater
Job # H08-055
480 V 3 PH 60 HZ
MAx Current AMPS: 450
(Heating Source "Electric")
Nema Encloser with Electrical Equipment
10 HP Pump Source
