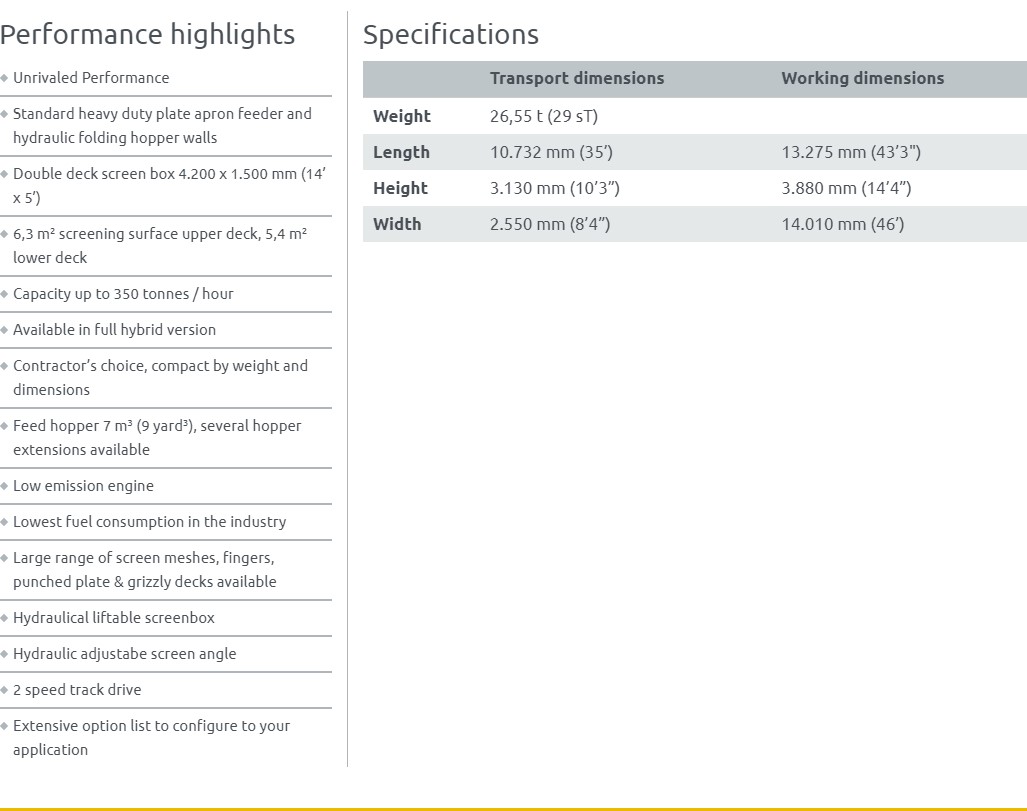

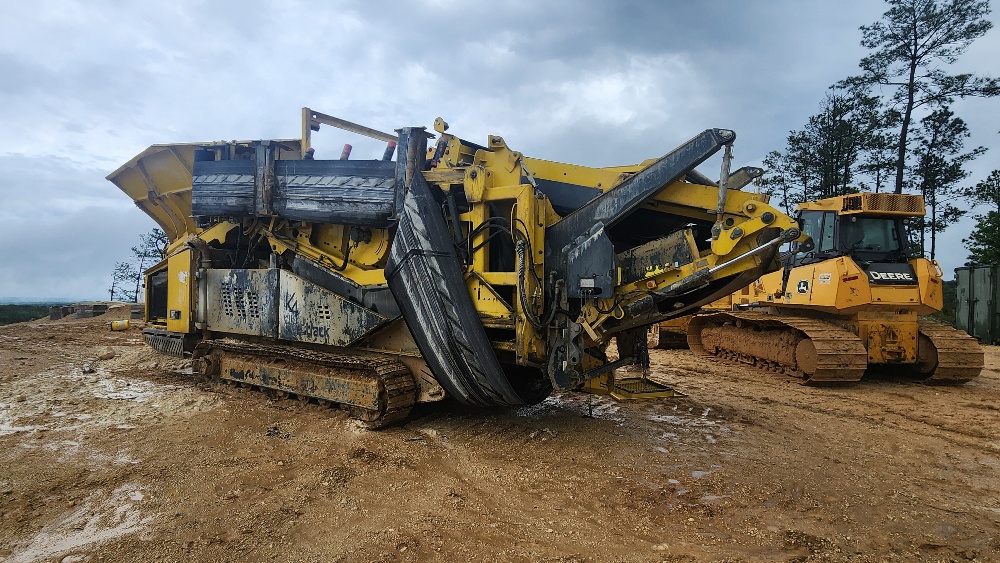

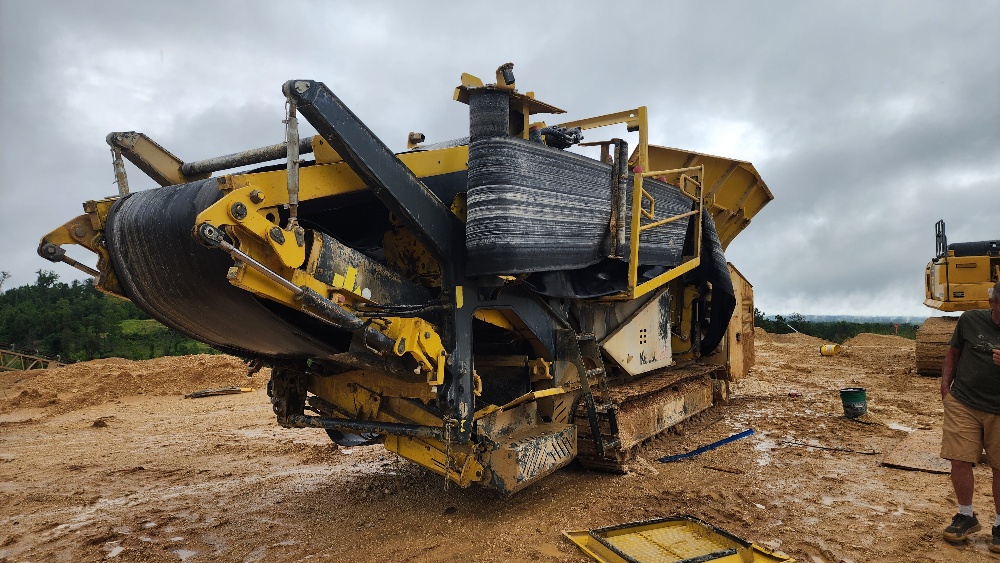

**Make**: Keestrack

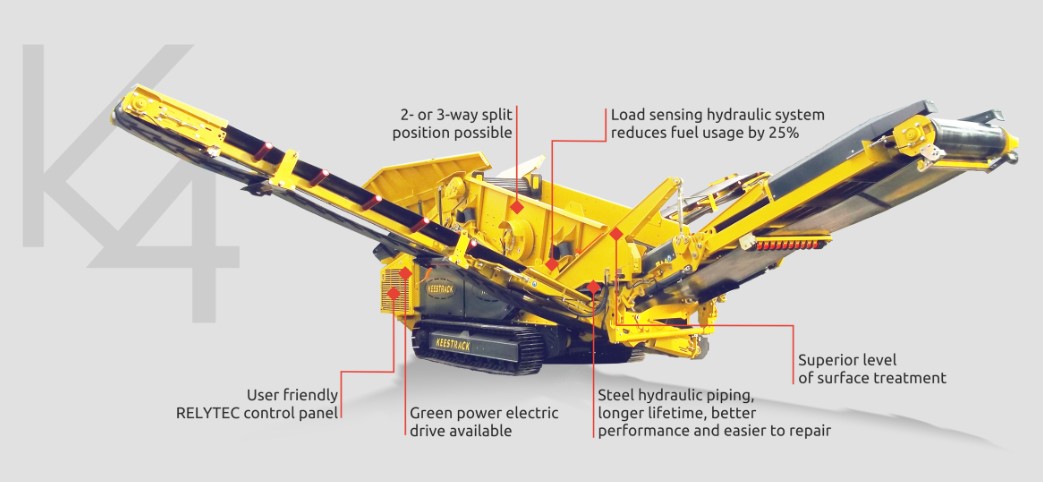

**Model:** K4 Novum Screener
**Serial Number**: 21-N1035
**Year**: 3/2021
**Power:** 90KW
**Hours:** 3049
**Capacity:** Up To 350 Tons
**Screen Box**: 4200mm L x 1500mm W

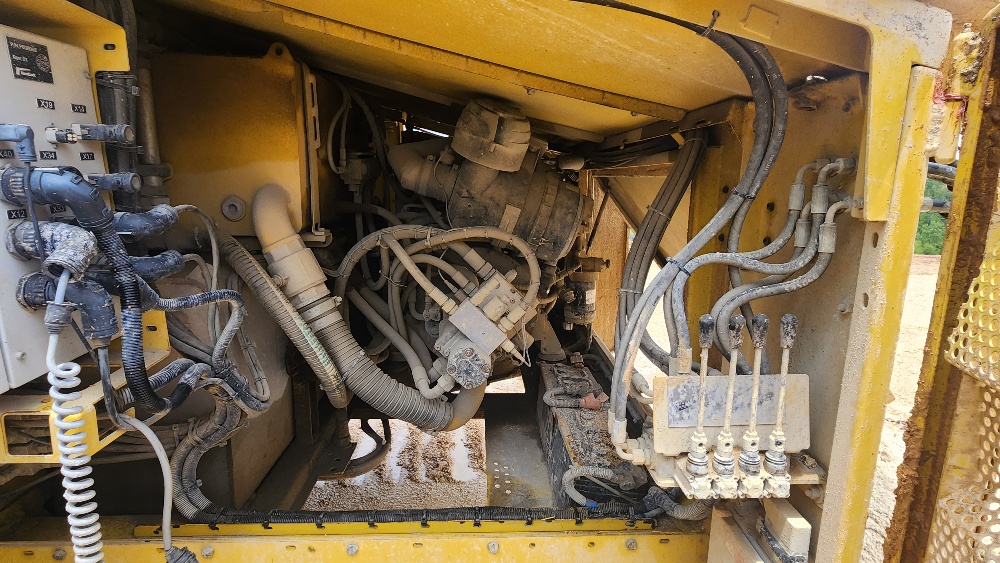

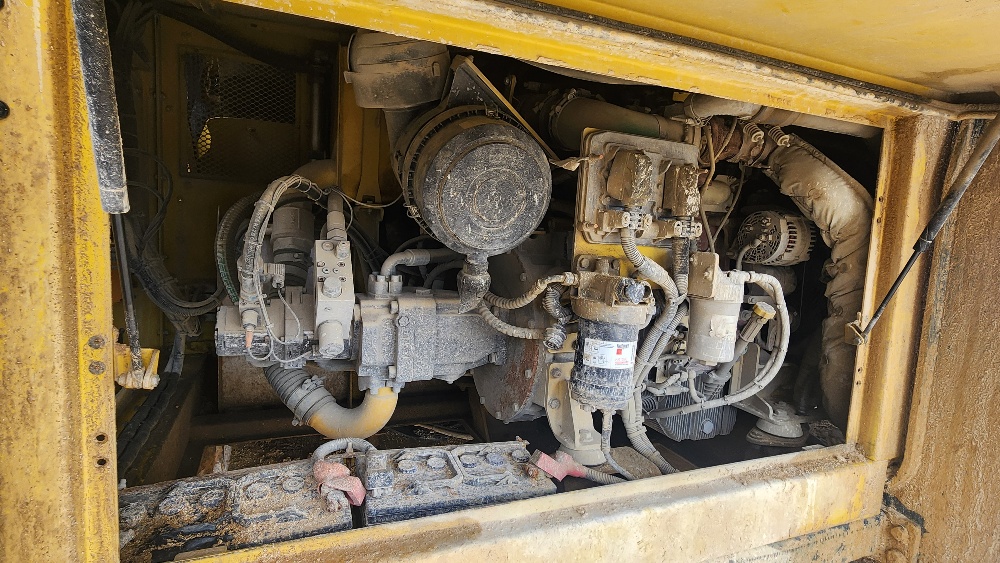

**Motor Make**: Cummings
**Application**:
* Pre-screening/scalping
* Screening behind or before a crusher
* Top soil
* Seperation of "sticky"aggregate
* Construction and demolition waste
* Sand and gravel
* Quarry and mining
* Coal
* Wood
* Recycling landfill
* And others
**Condition Notes from Owner:**

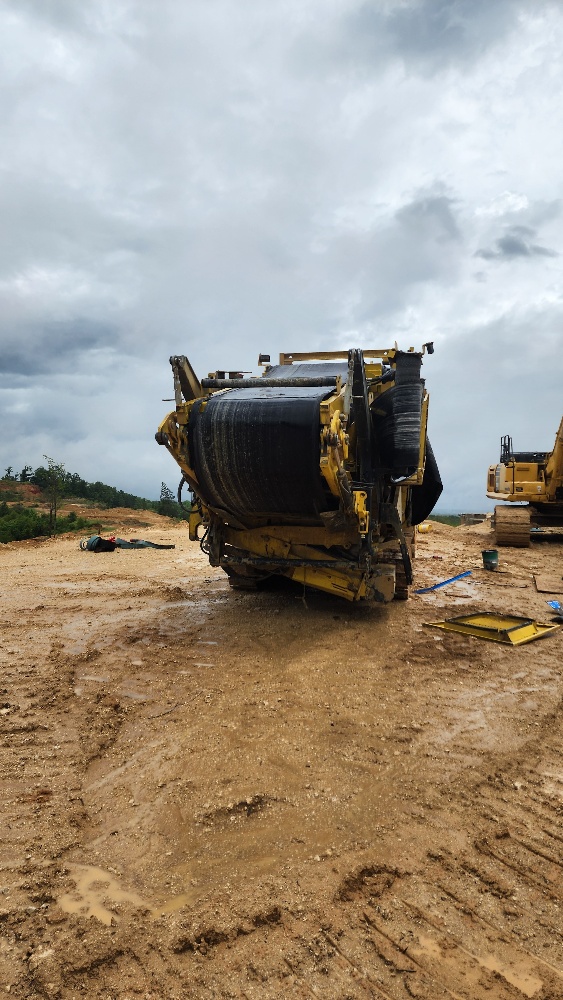

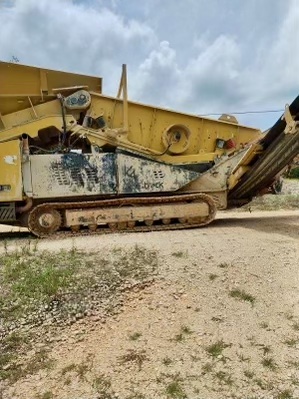

* Unit Was Folded Up and Challenging to Inspect

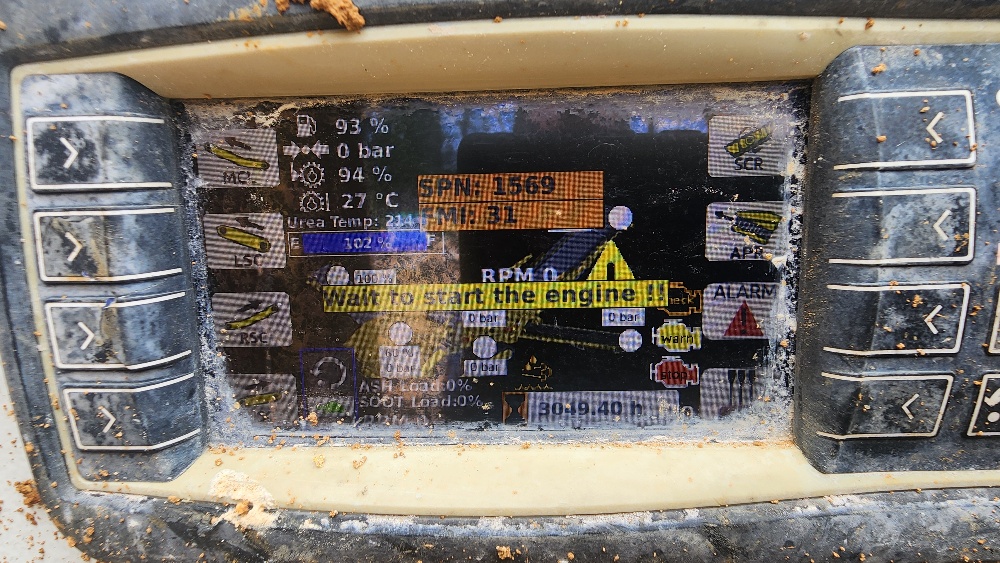

* Def Pump Out. One Is Currently Being Ordered and will be included.
* Some of the rollers need replacing

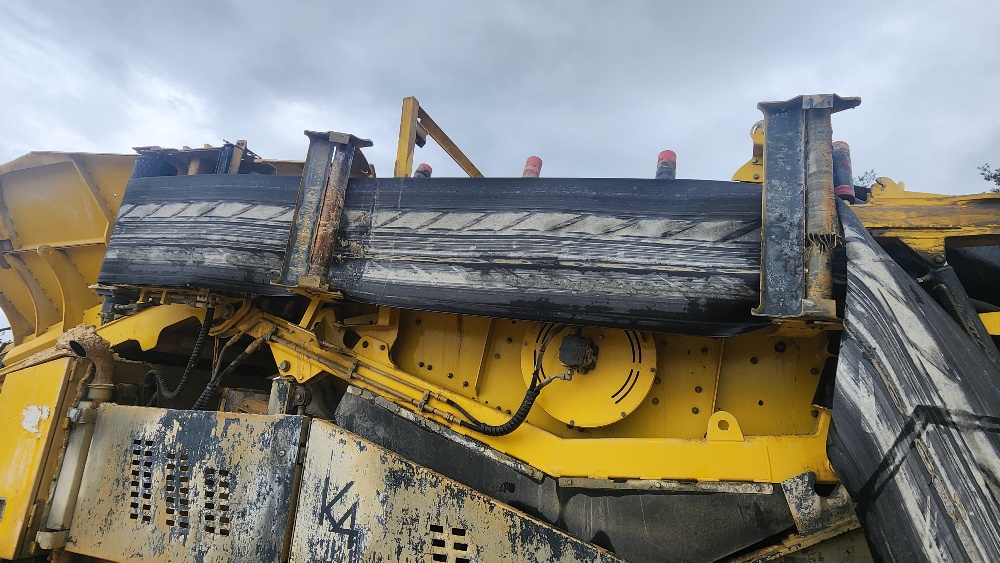

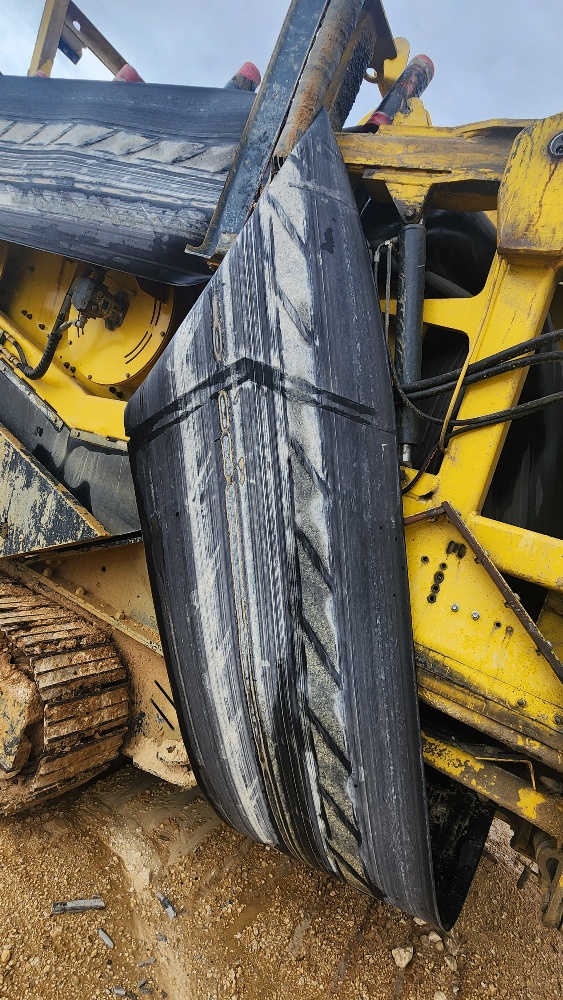

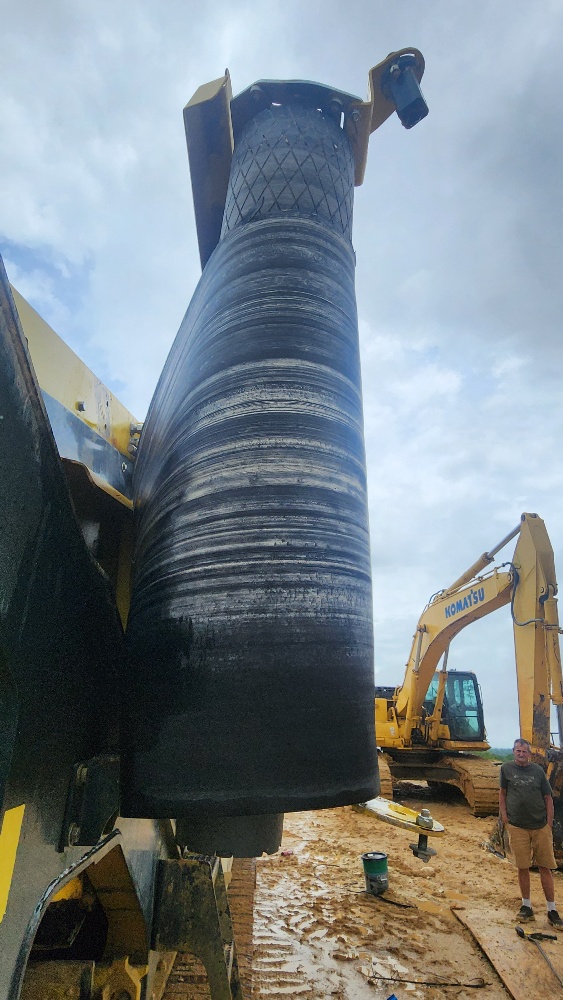

* Belting condition poor

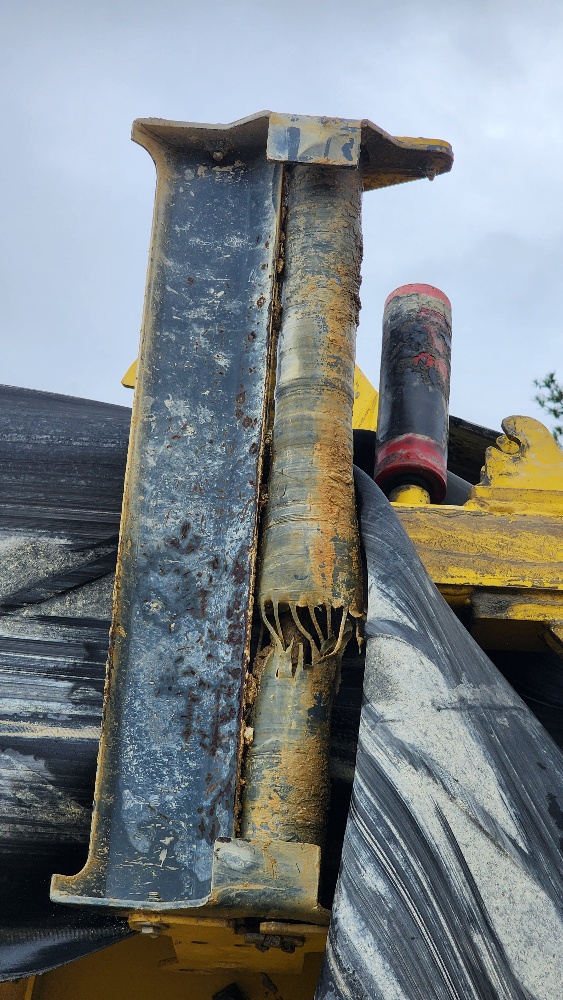

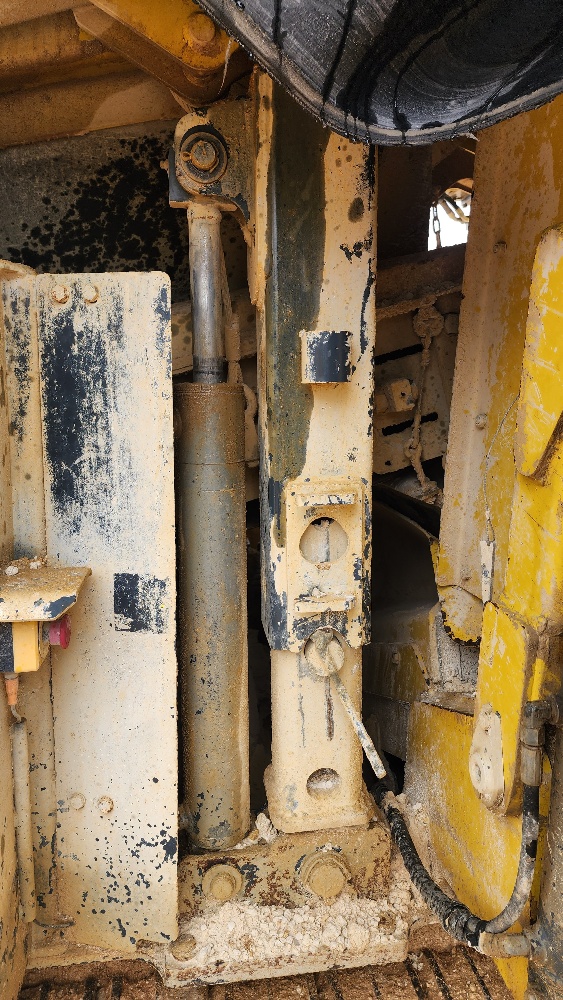

* A few of the Hydraulic Rams were leaking

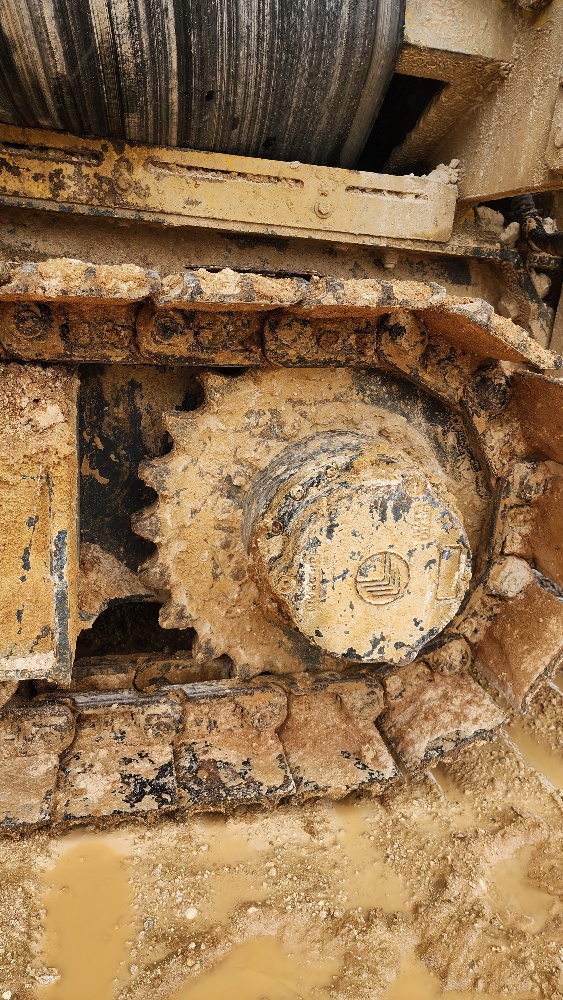

* Tracks looked fair
* Sheet Metal Very Rough Condition
* Unit needs to be cleaned for better inspection and folded out
* The DEF pump was replaced in June, and the machine is back operational. While running, it was open and cleaned.

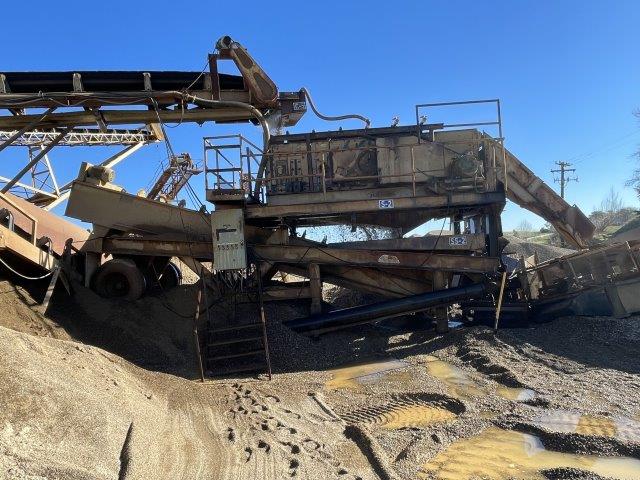

McCloskey S190 Screen
**Year**: 2008
**Track Screen**
**Hours**: 4183
**Serial**: SA9000S1908M066339
### More Info:
* 5'x 20' Two Deck Screen (Extra Screens)
* Caterpillar Motor
* Hydraulically Run Unit
* Rebuilt motor
* (New turbo, new head, new pistons rings and bearings) Approx hours 500 since rebuild ($25K cost)
* Belts are poor condition

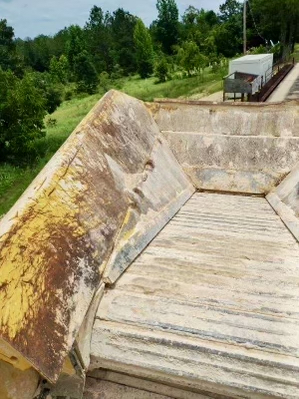

* Hopper has been refined and could be Re-Done
* New slide cylinder
Features

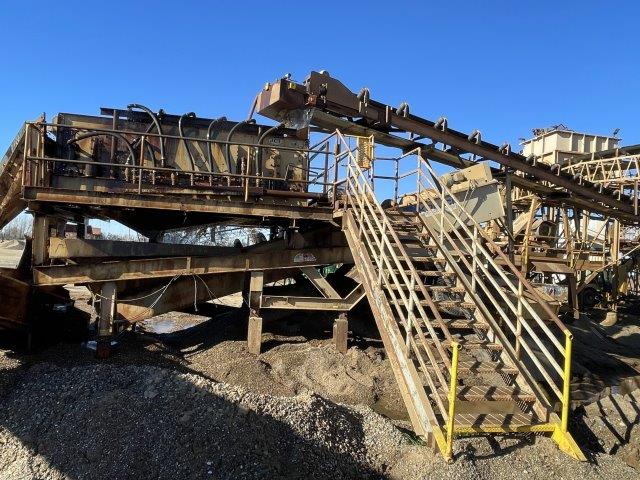

20′ x 5′ heavy duty high energy 2 bearing rinser screenbox.
CAT C4.4 131Hp engine.
Integrated hydraulic folding stockpiling conveyors.
Fast on site setup time – 10 minutes.
Recommended flow and pressure – 4100 to 6100 lpm (1100 to 1600 us gal/min)/2 bar (30 psi) at manifold.
Easily converted to dry screen mode.
8 independently controlled spray bars on each deck.
Extra coupling facility to run additional equipment such as McCloskey sand screws and stackers.
Hydraulic catch box – allows user to easily lift and lower the catch box.
Large screen deck – 20’ x 5’ top & middle deck, 18’ x 5’ bottom deck.
Tech Specs
Engine: CAT C4.4 131Hp
Transport Height: 3.45m
Transport Length: 18.2m (15’ Hopper)/17.54m (12’ Hopper)
Transport Width (3 deck): 500m conveyor – 3.06m/600m conveyor – 3.22m
Weight (3 deck tracked): 36,000kg
Stockpile Height Side Conveyor: 5.1m
Stockpile Height Auxillary Conveyor (3 deck tracked): 4.7m
Screenbox Dimensions: 20’ x 5’ (6100mm x 1520mm)
### More Photos Available, upon request

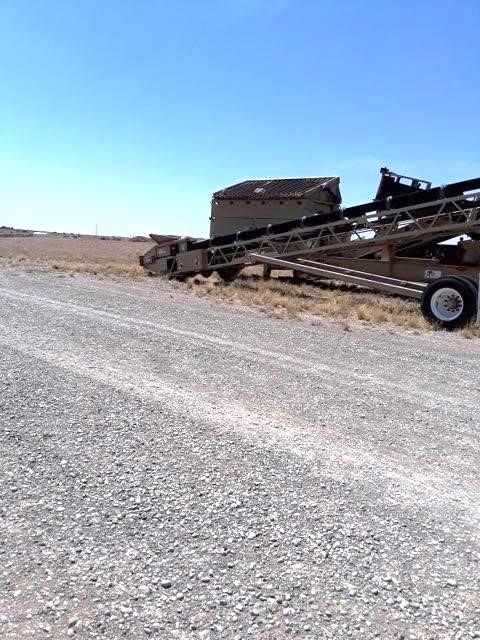

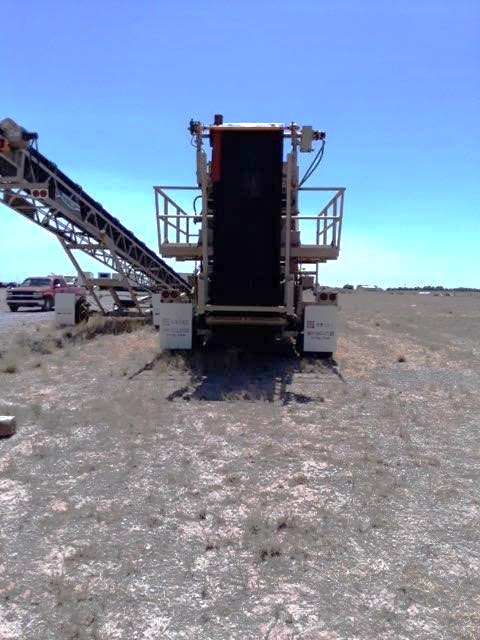

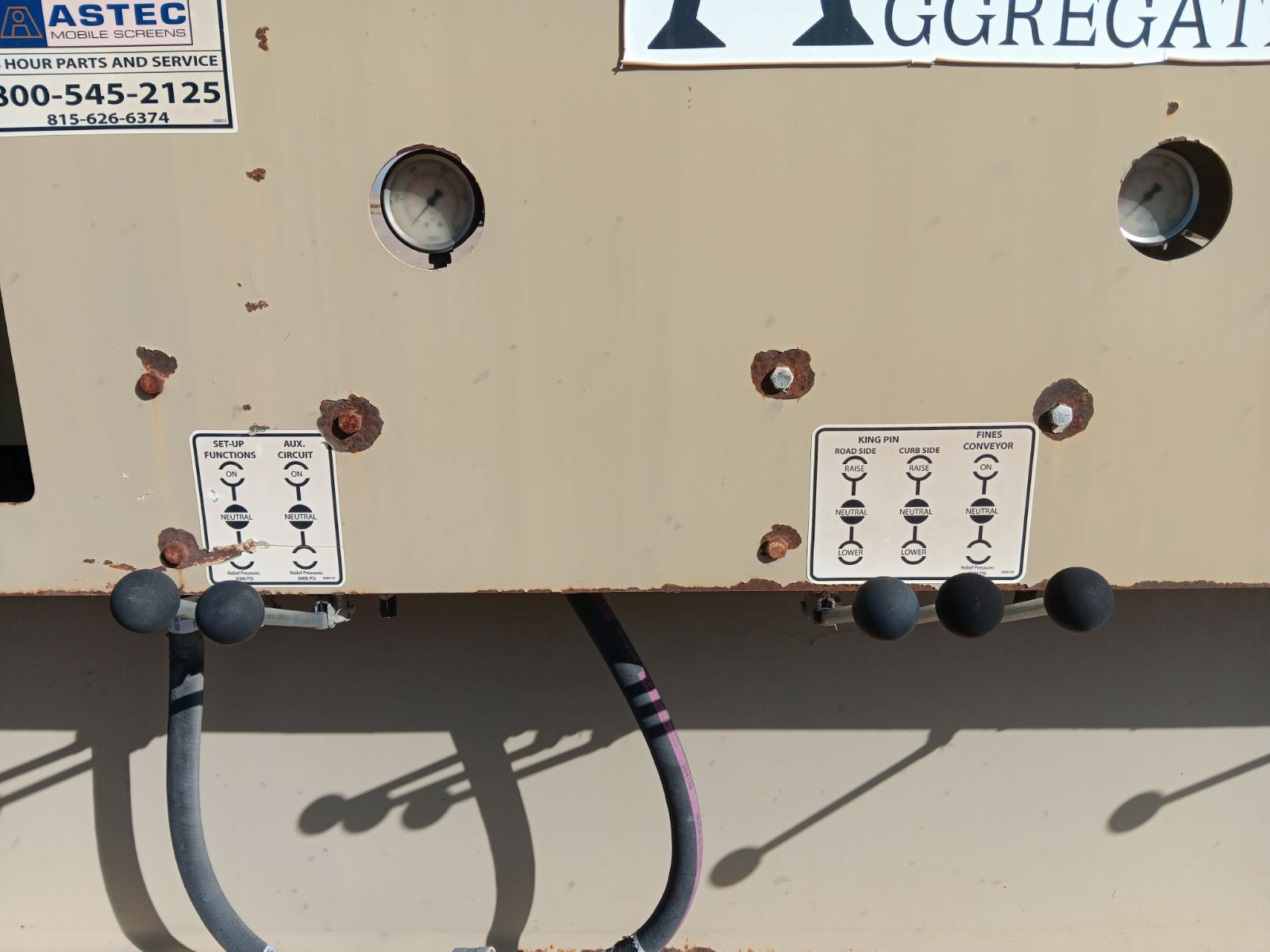

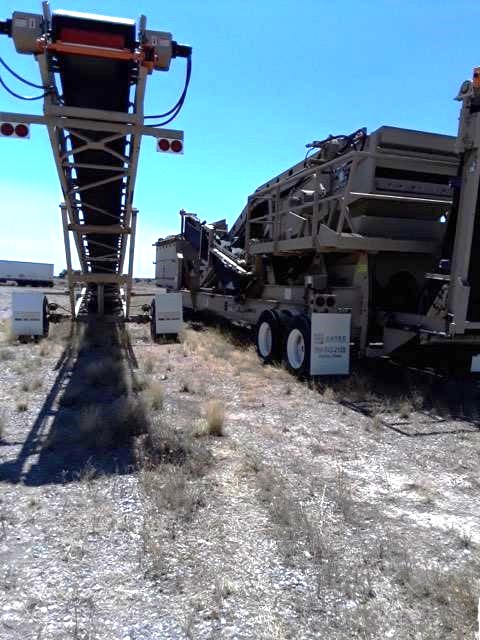

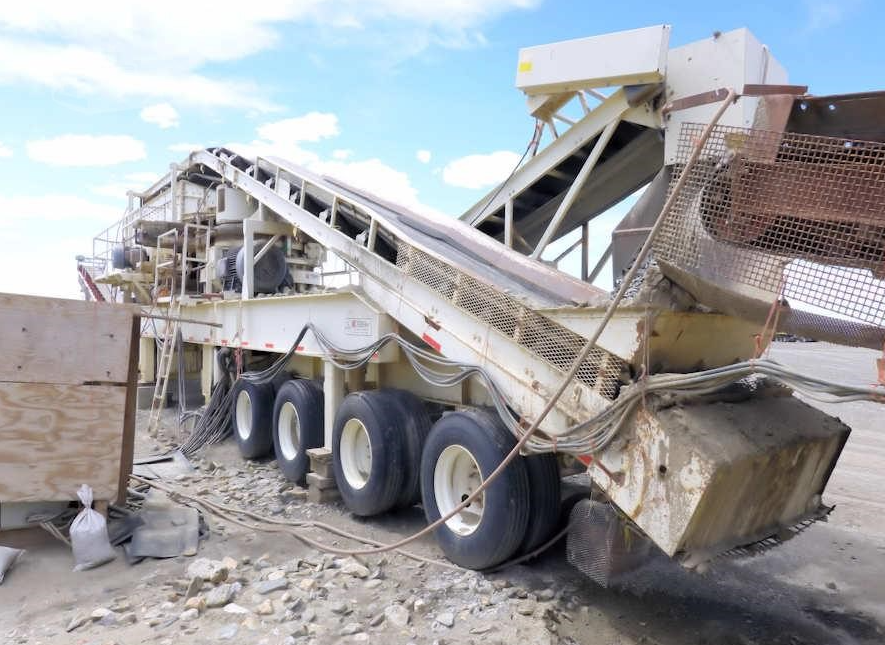

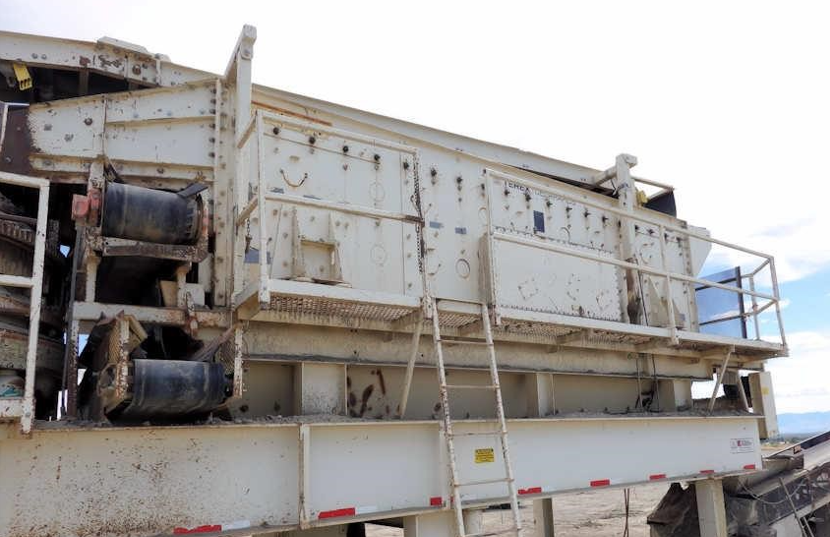

**Astec Fold N' Go 2512K, rated at 350TPH
Portable Screening Plant**

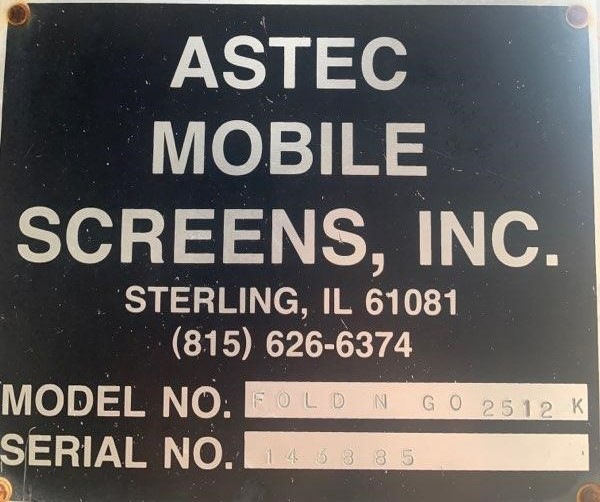

**Make:** Astec
**Year (of Screen):** 2014
**Model:** FOLD N GO 2512K , 5 x 12 screen
**Serial:** 146885
**Lifetime Tons:** approx. 500 hours
**Condition:** Like new

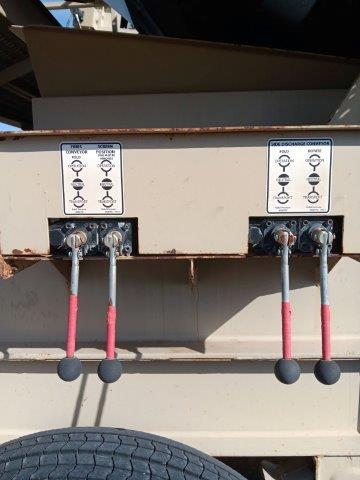

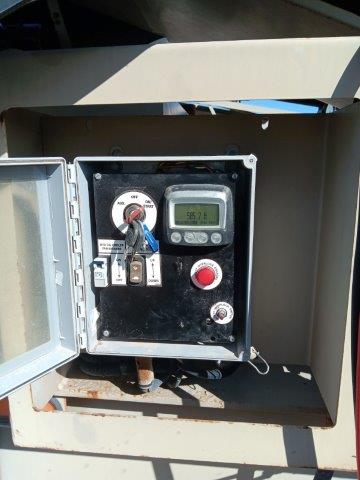

Screen comes with remote

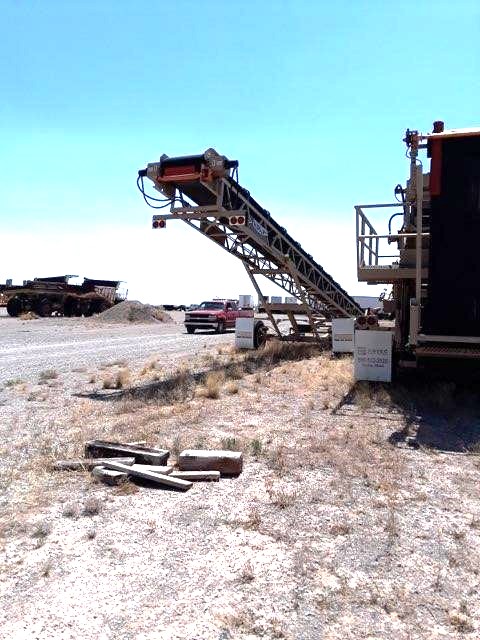

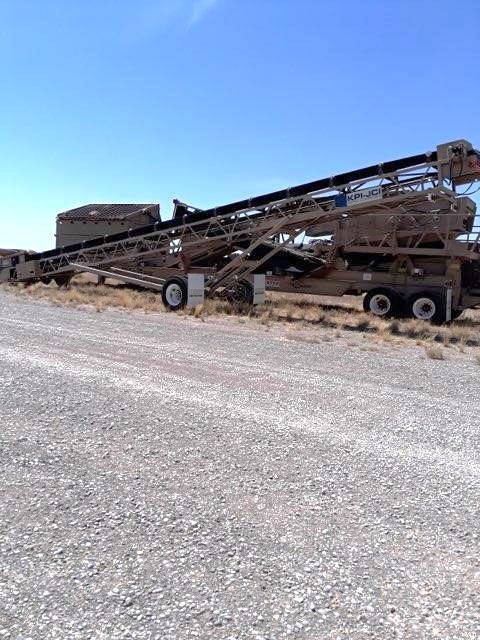

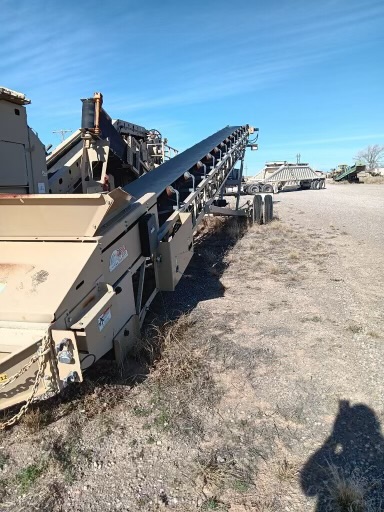

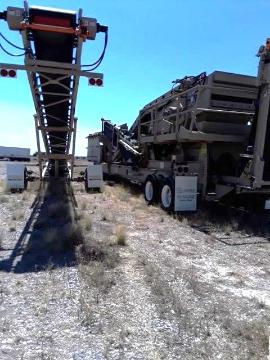

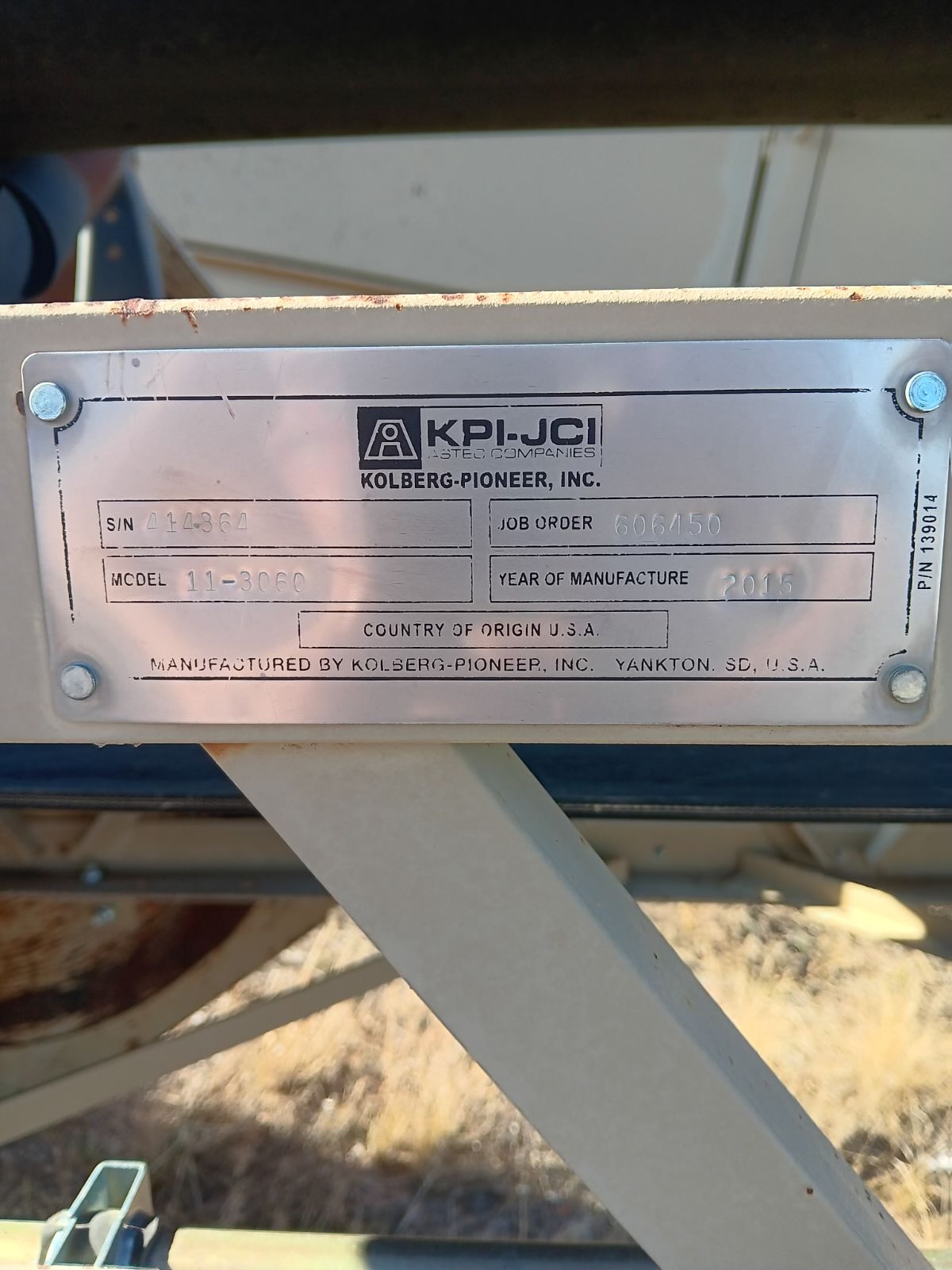

**THIS SCREEN COMES WITH A PORTABLE ASTEC 2015 "KPI-JCI" SINGLE AXLE (has Fifth wheel and pintle hitch) DELIVERY CONVEYOR 30" X 60', Model- 11-3060, SN 414364 (THIS IS A $50,000 OPTION INCLUDED WITH THIS PLANT)
**
**
**Other Info:**

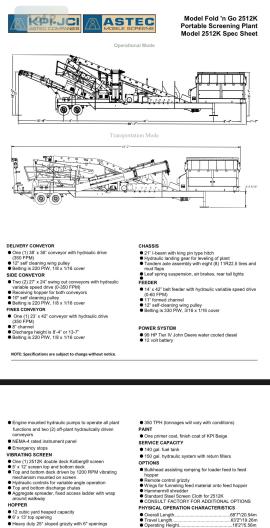

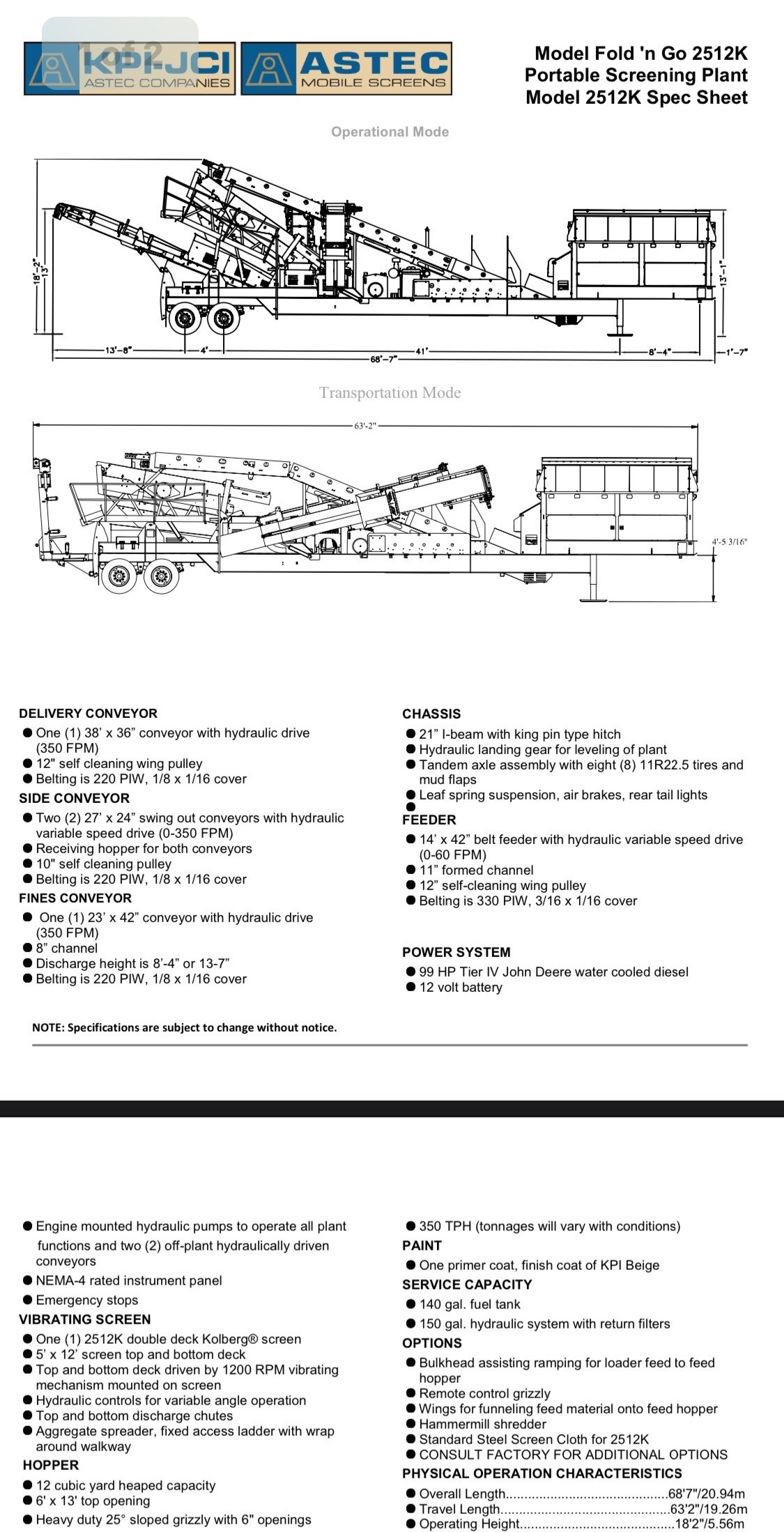

* See photos for full spec sheet
* Recently had new tires installed, unit is road ready per the owner. Road-readiness should always be checked by buyer PRIOR to purchase
