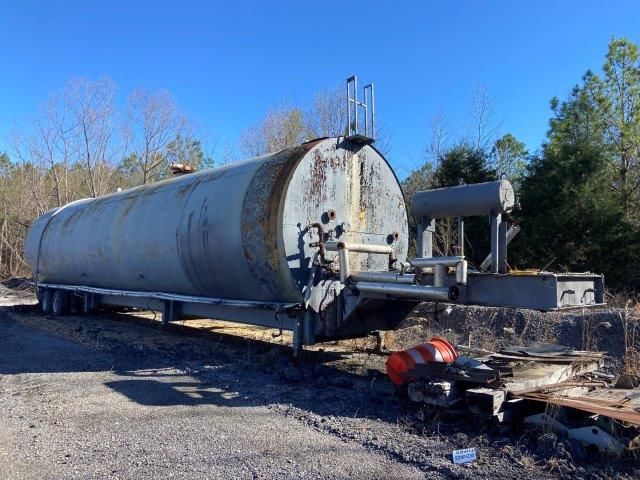

**Make**: CEI **Size:** 30,000 Gallons **Portability:** Relocateable/ Portable (relocateable, but can be turned to portabl with new axles for additional $15,000) **Heating** Indirect "Coiled" **Other Info:** * Shipping Dims: 11'6"T x 9'6"W x 80'6"L * Length includes 8' for Metering Pump and 13'6" for HOH. 3'3" Asphalt in Bottom of Tank. * Weight approx 85-90,000lbs * Hot Oil Heater needs electrical work * Unloading pump on unit, missing motor. * Oil Heater is Believed to be 1.5 million BTU 3'3" Asphalt in Bottom of tank **As Always, Freight/ Loading is on Buyer!**

30,000 Gallon A.C. Tank Direct Fired 3" Offloading Pump No fuel tanks included Some build up

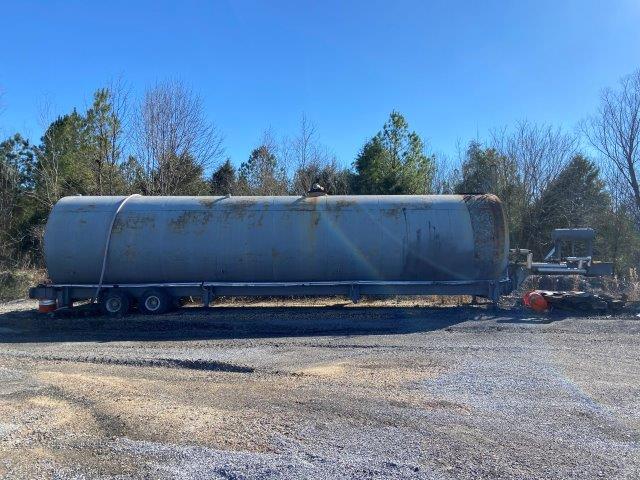

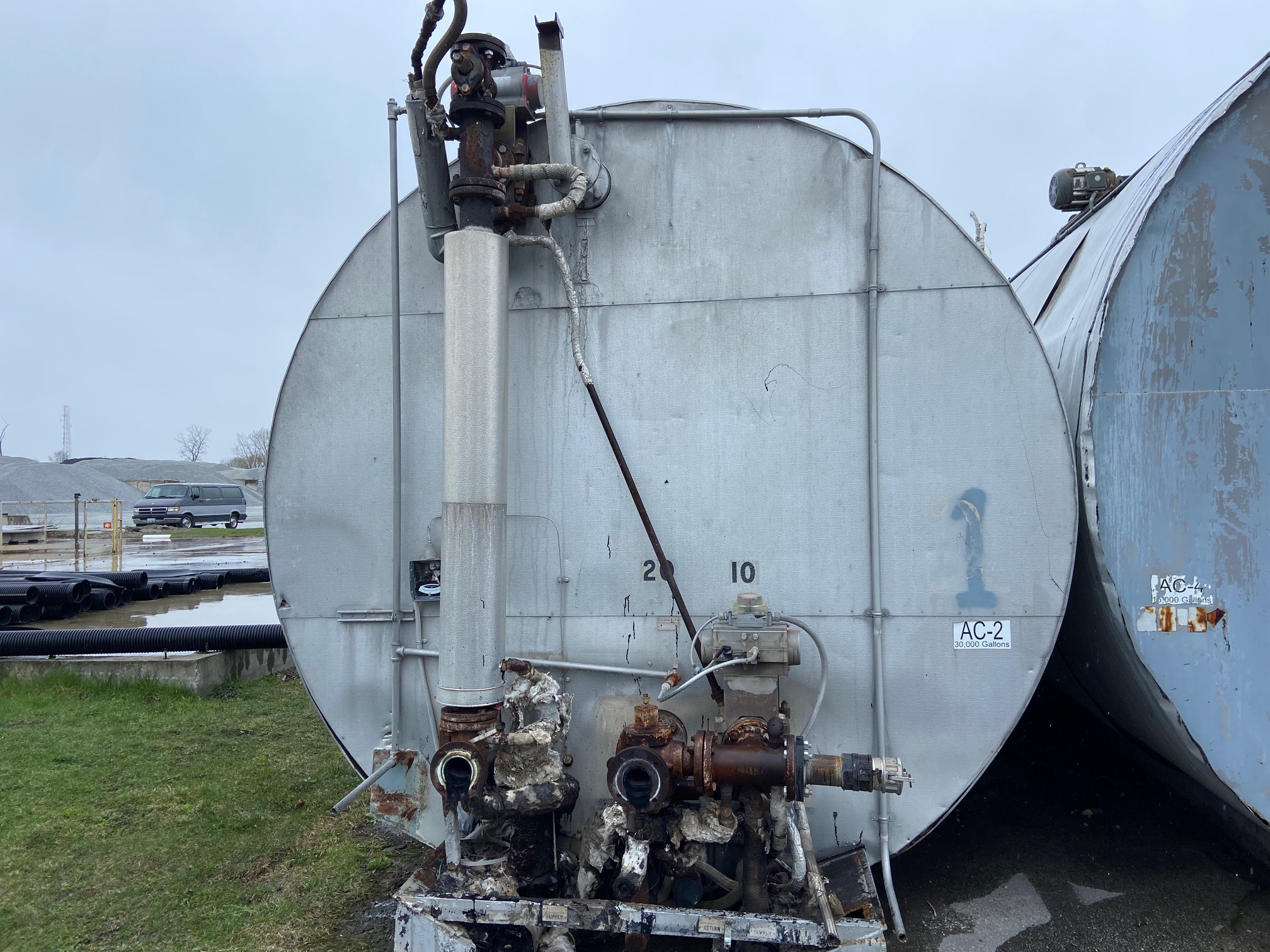

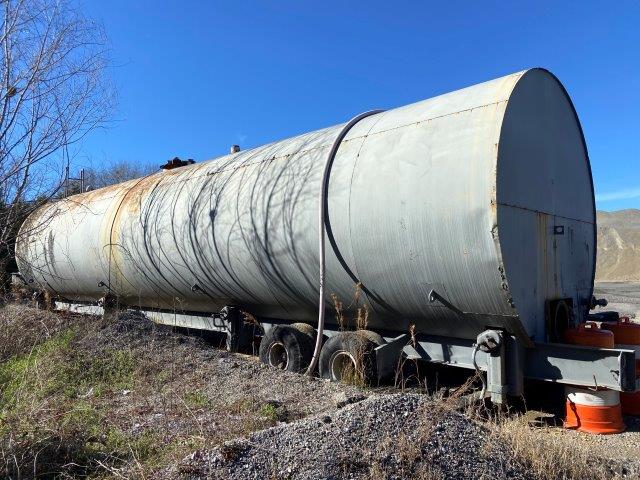

**Make:** Childers **Size:** 30,000 gallon **Portable:** Yes, 2 axles **Heating** Indirect "Coiled" **Other Info:** * Split compartment 10/20 * some skin issues * Condition: good **Shipping Dimensions**: (Measurements of trailer & tank) * Pin to front 3ft 1.5'' * Pin to back 76ft 9'' * Tank width 10ft * Tank height 13ft 9'' * Overall length 79ft 10.5'' ### NO HEATER INCLUDED

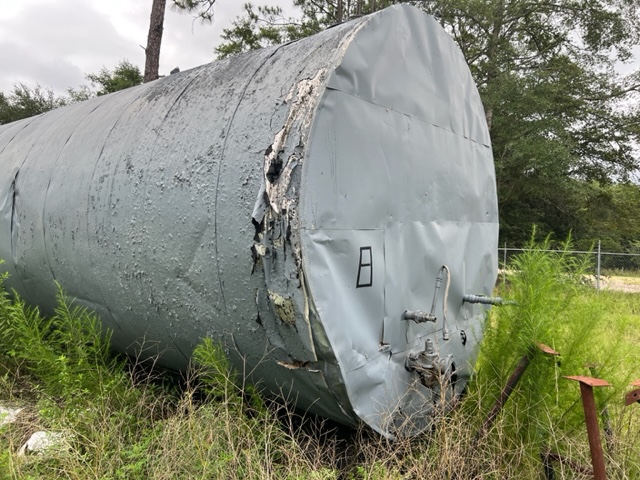

**Make**: N/A (2) Direct fire AC Tanks **Size**: both 20,000 Gallons **Portability**: Skid Mounted **Interior**: Light Coking W/ Scavenger Coils **Heating** Direct Fired "Coiled" **Other Info:** * Both Running on Gas * Tank A Dims: 136"W x 12'H x 35'6"L, Weighs 60,000lbs * Tanks B Dims: 34'L x 12'6"H x 136"W. Weighs 52,000lbs **Price is $23,500.00 EACH OBO**

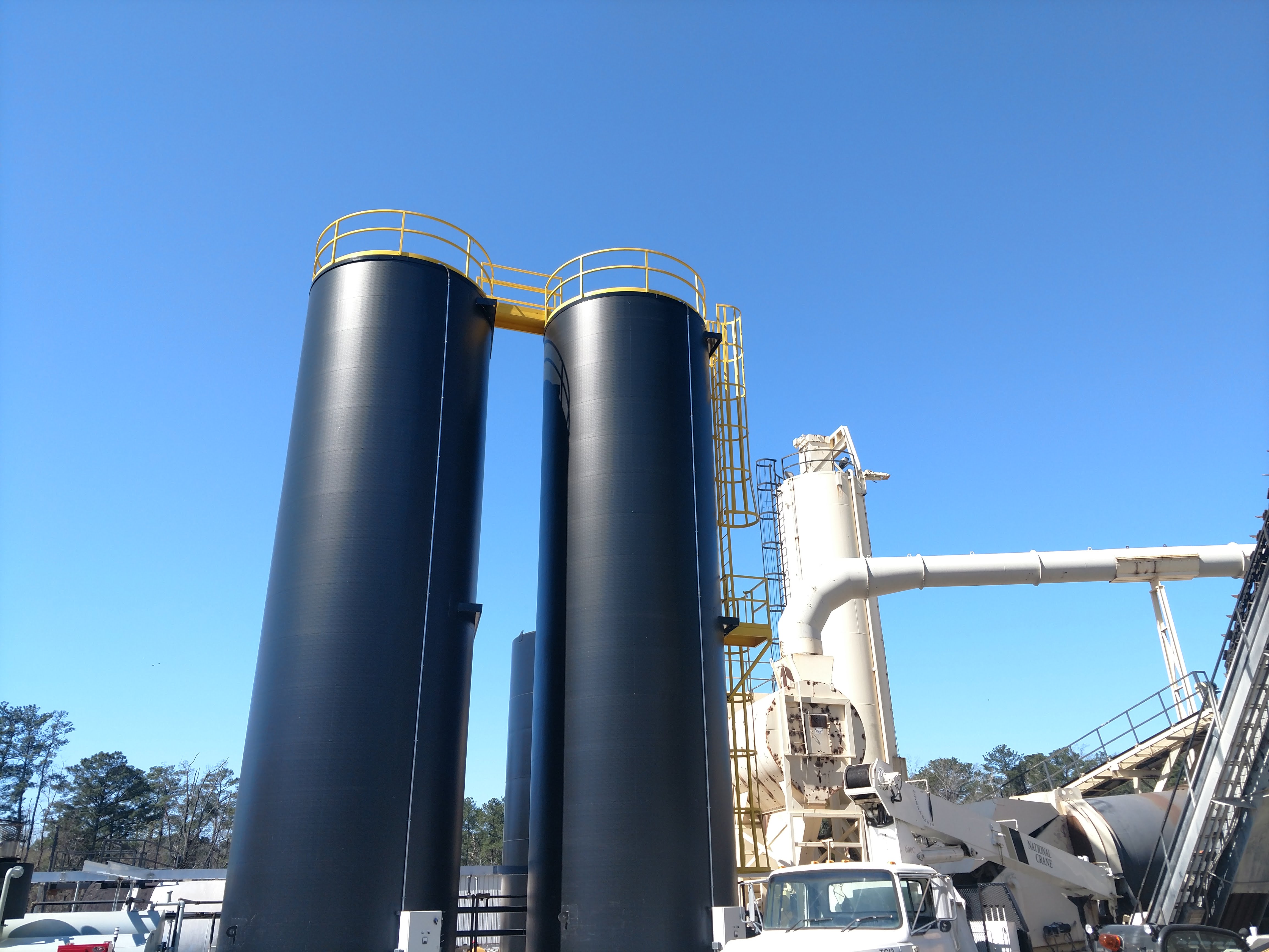

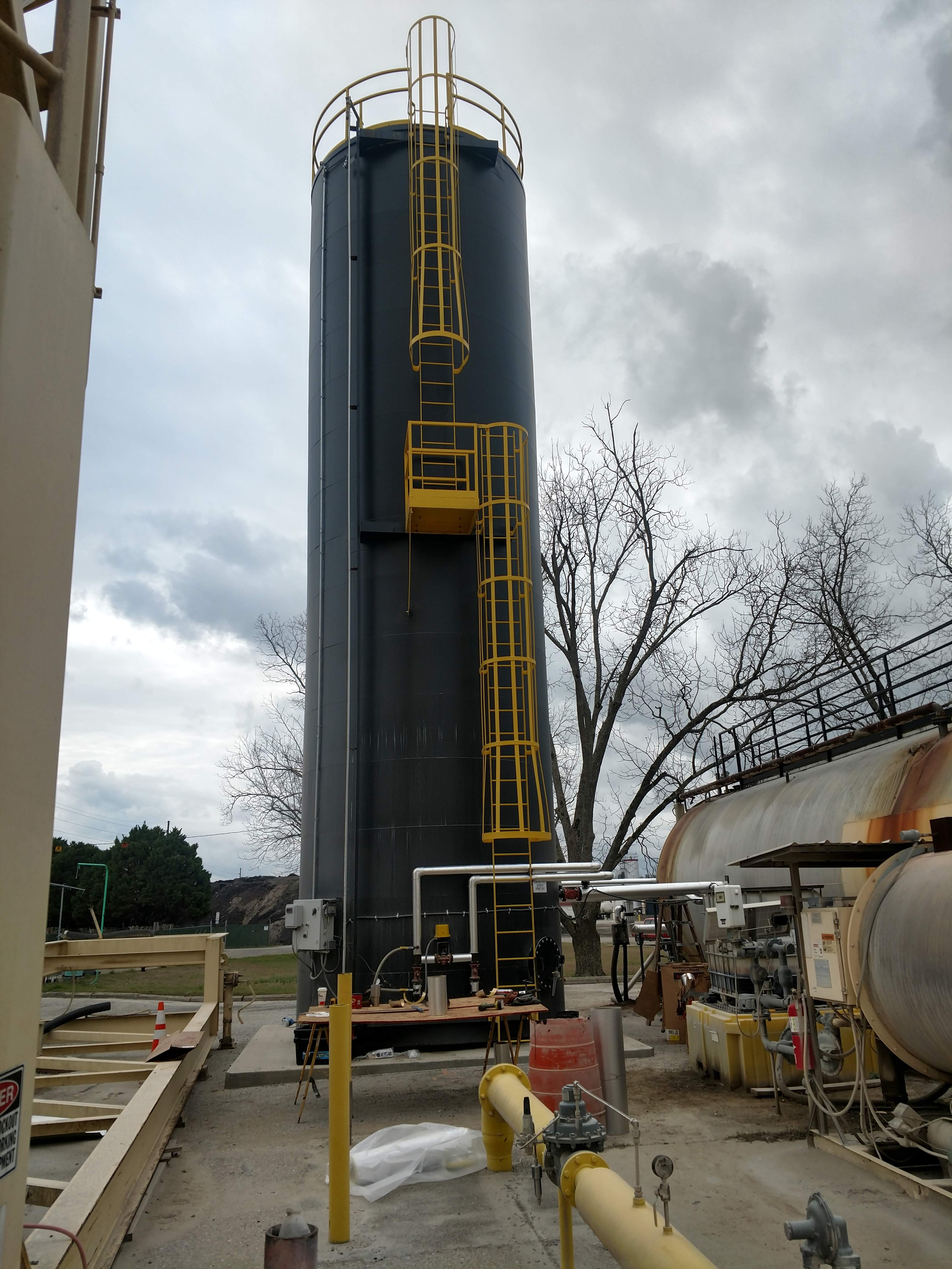

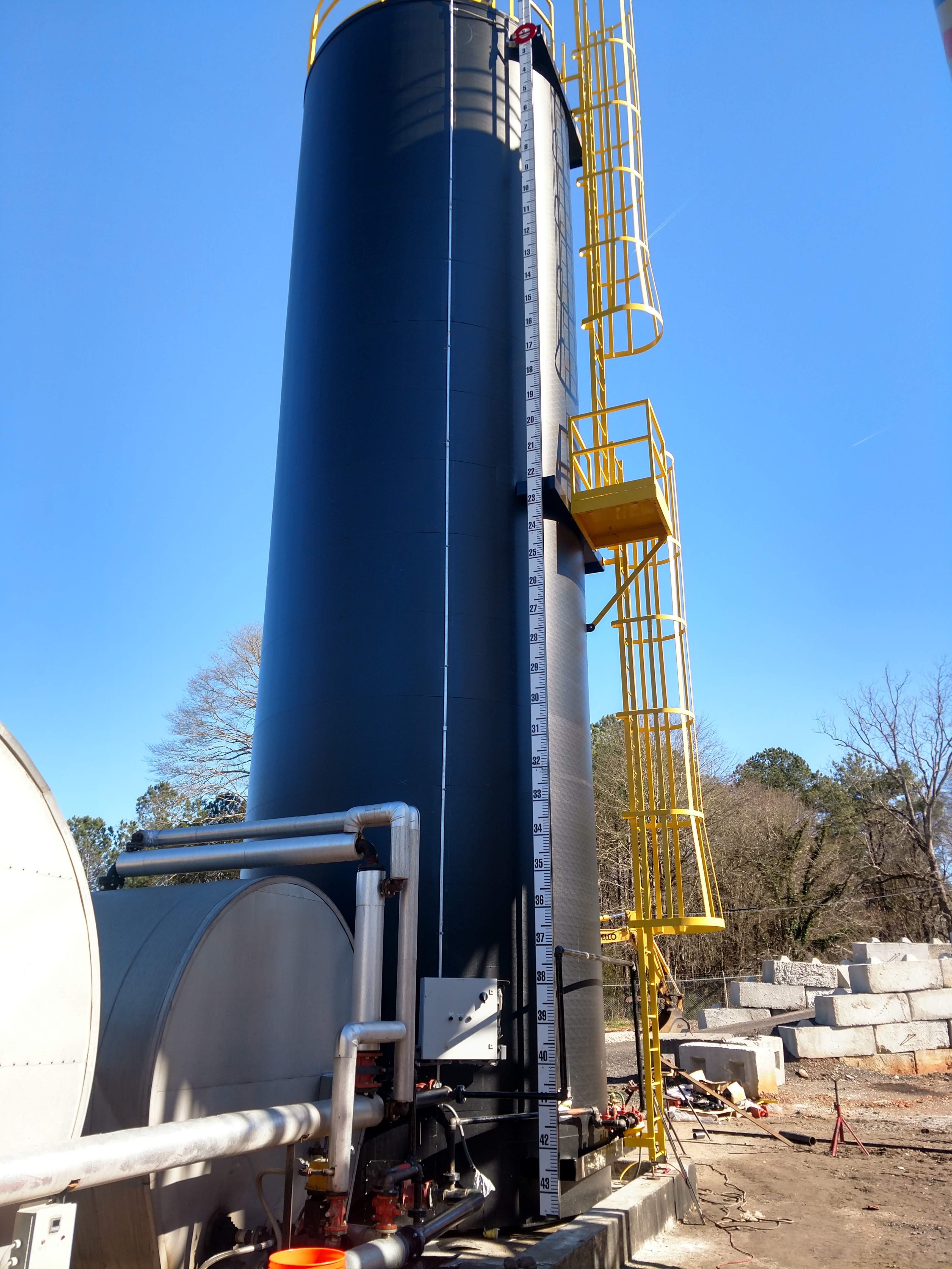

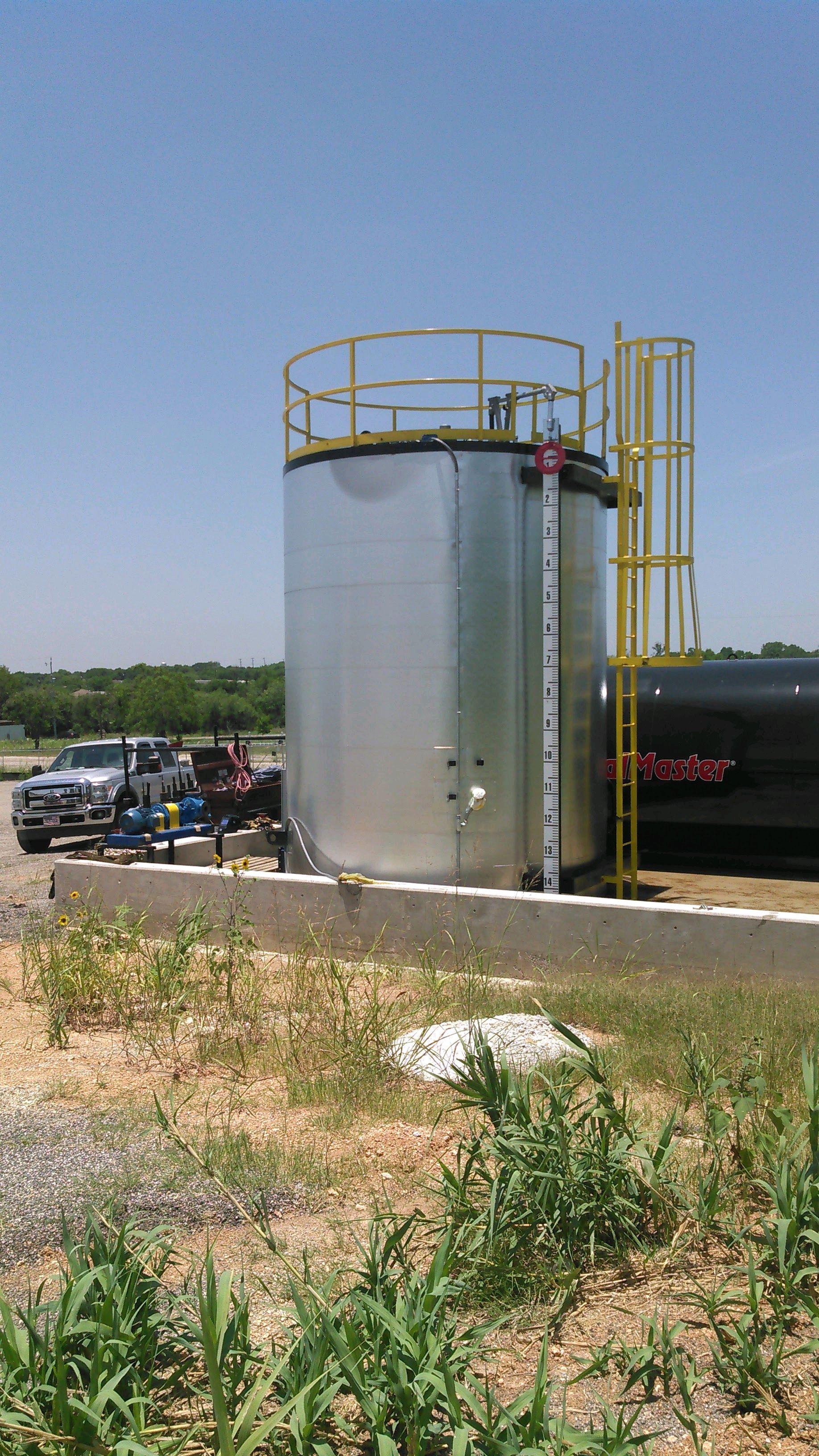

**Vertical Asphalt Tank** **Heat source**: Electrically heated **Size**: 20,000 Gallons **Specs**: constructed of 1/4" plate and will have Electric 52kw elements in bottom of tank **Standard features**: * 18" Manway on top * 24" Diameter manway on bottom for clean out * Caged ladder on top * Bolt on handrail around top with toe plate * Gauge board level indicator * Tank thermometer in drywell * 4" Vent and overflow line * 3" Fill line with valve * 3" Supply line with valve * 3" Return line with valve * 6" Fiberglass insulation on top 3" on bottom * 6" Fiberglass unsulation on sidewalls * Aluminum jacket covering .032 thickness * Tank is equipped with high and low limit switches to deviate hot oil when tank is empty and also sound an alarm or cut off asphalt unloading pump when tank is full * Tank is completely prewired to bottom of tank * Tank is equipped with an alarm on mixer motor, if overloads trip an alarm will sound * Sampling valve **15-30k GALLON TANKS AVAILABLE- HORIZONTAL OR VERTICAL!** **Other Info**: The Mixer will be right angle euro drive helical bevel speed reducer flange mounted. 45rpm mixer with 10hp motor. Tank will be equipped with 3 sidewall baffles to prevent certrifige effect on mixing Photos are of recently made tanks that are similar 6-8 weeks lead time (may vary) *Also available is piping/ insulation installation to incorporate tank into your project. 40+ years with tanks and Heatec references* **Terms**: 40% down payment 60% due @ shipment

18,000 Gallon Coiled Skid Mounted

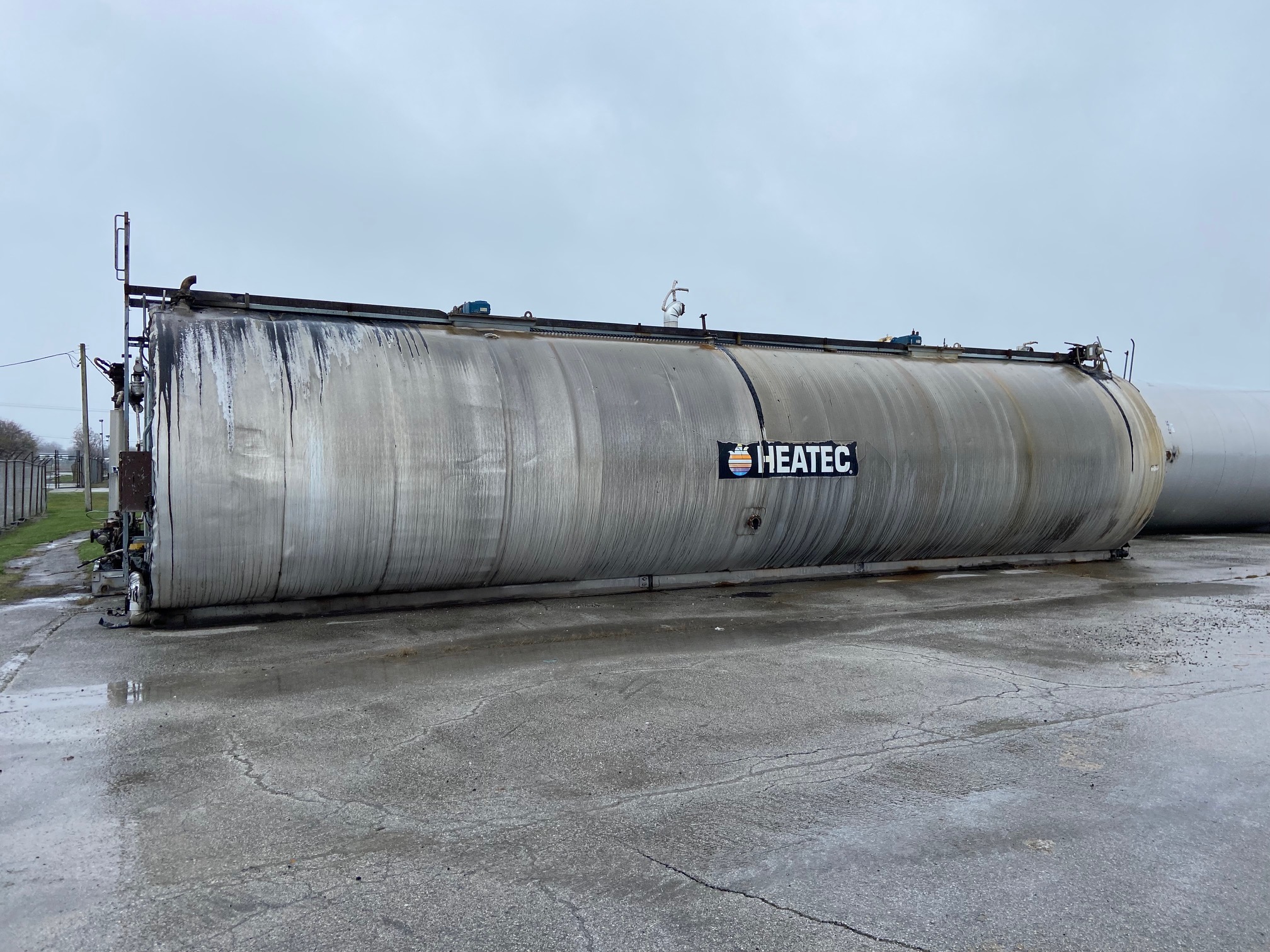

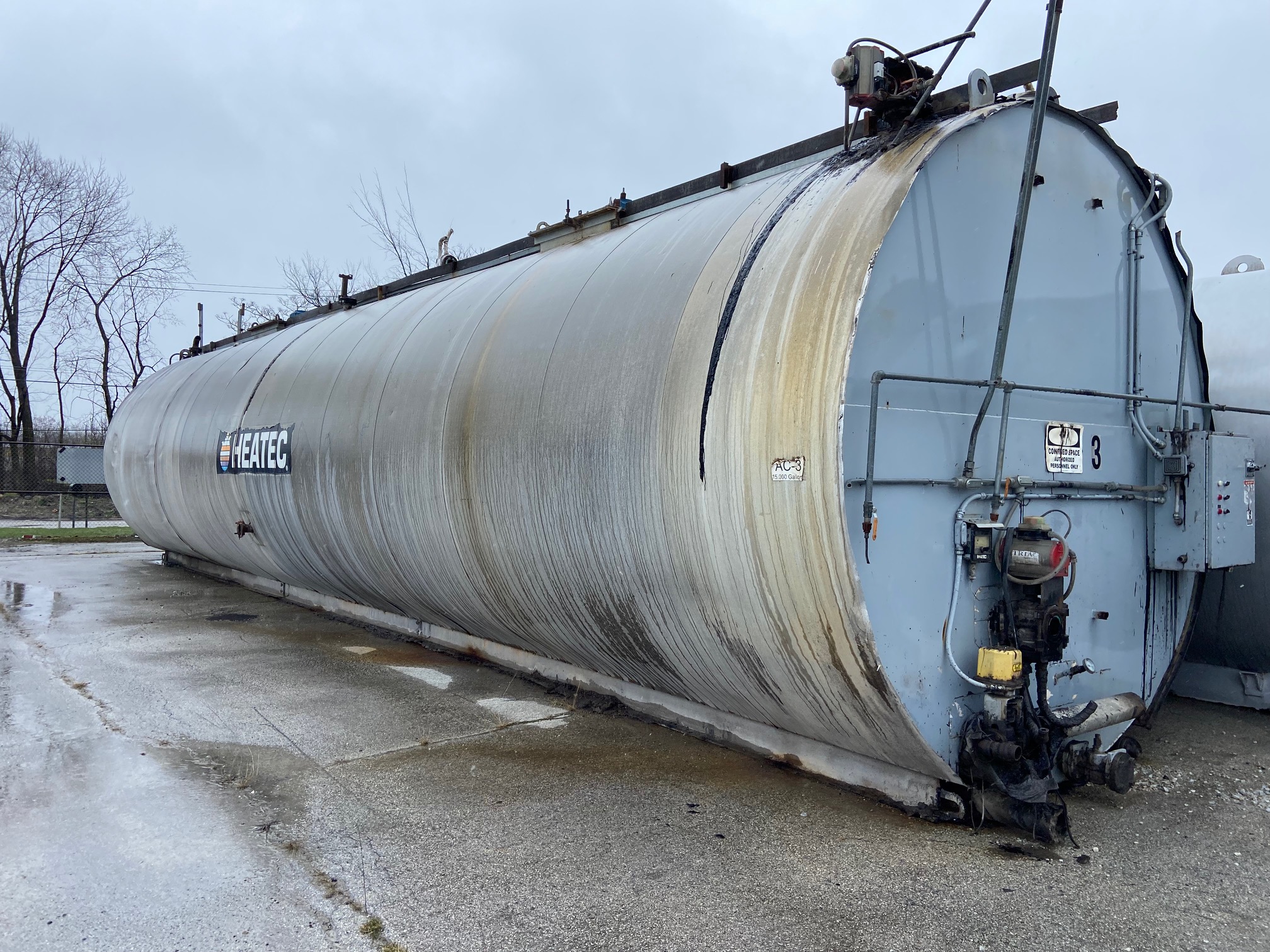

**Make**: Heatec **Size**: 30,000 Gallons **Heat Source**: Coiled Reduced Price! **Other Info**: * New insulation * New coils * New valves * Completely redone, clean inside * 12" Wide, 12' 6" Tall, 54' Long **LOADING ONTO BUYER'S TRUCK IS INCLUDED**

This is a skid mounted Gencor 30,000 gallon single compartment direct fired tank. The model is 30DTSGO, serial #244. The unit has two small tears on one side. It includes an asphalt unloading pump with all plumbing. The burner was removed when the plant was removed from service. There is some build up material near the access door but the side walls and bottom are clearly visible. With a new burner this could make an excellent storage tank. It is 55’ overall length and 11’6” tall.

This liquid asphalt tank is 30,000 gallons Heatec HOA 30, H89 193, 11/89. Direct Fired The Burner assembly is mounted. Scavenger Coils /Expansion Tank. Nema Control Box Mounted on Side. Unit has one small tear on the side but overall appears in good condition. The unit is 55’ overall length and is 11’6” tall. There are lifting eyes and one manhole access. Skid Mounted Tank is clean (Low Build up)

**Make**: CEI **Size**: 24,000 Gallon Electrically Heated

**Make:** Seller (electric asphalt tank) **Size**: 20,000 Gallons **Portability:** Skid Mounted **Interior:** Emptyied as Much as Possible **Heating** Electric "4 Heating Elements" **Other Info:** * 460/3/60 * 55KW * Access Ladder * Good Skin Asphalt tank measurements 11' 9" high 11' 3" wide 43' 4" long Weight 47.000 lbs Local crane quote to load out $1,450.00

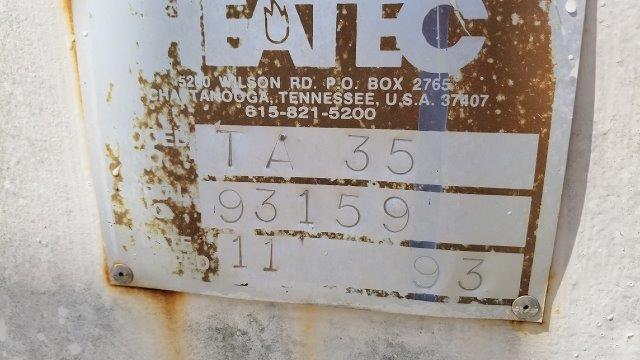

Heatec A.C. Tank Model TA 35 (SN# 93159) Year 1993 35,000 Gallon Split Compartment 20/15 Coiled Tank Insulated and Skinned Some coking

**Make:** N/A (Skidded AC Tank) **Size**: 30,000 Gallon Skidded **Interioir:** Scome Coking Emptied as Much as Possible **Heating** Indirect "Coiled" **Other Info:** * Some Cocking and Materials Inside * Tank Still Connected * Ladders Not Included * Split compartment * Dims: 58'L x 12'T x 10.5'W

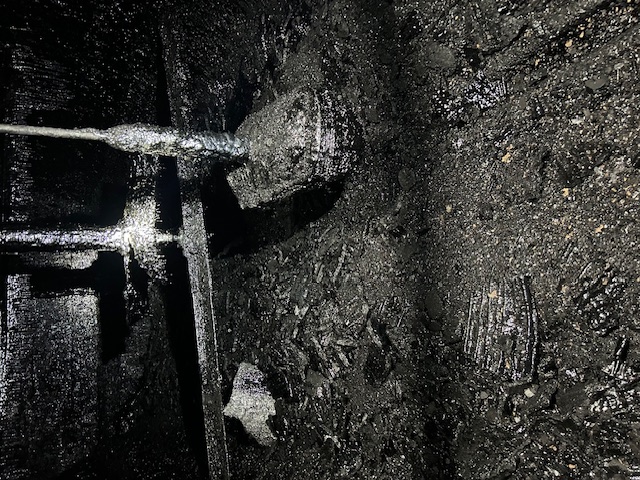

**Make:** N/A (Skid Mounted AC Tank) **Size:** 30,000 Gallon **Portability:** Skid Mounted **Interior:** 2' of Material Inside **Heating** Indirect "Coiled" **Other Info**: * Ladders Not Included * Tank Still Connected * Single Agitator * Agitator Must be Removed Prior To Shipping to Meet 12' * Dims: 48'L x 10'W x 12'T

**Make:** Heatec **Size:** 30,000 Gallons **Portability:** Portable- Unit Has Twin Axles, but No Tires or Rims **Interior:** Emptied as Much as Possable **Heating** Indirect "Coiled" **Other Info:** * No Heater * 2 Pump Meter * Storage for Fuel or Anti Strip * Dims: 64'L x 13"3'T x 12'W

**Make:** Oil Reserve Tank **Size:** 16' x 10' **Portability:** Lifting Eyes **Interior:** Empty as can be **More Info:** * 4in. Outlet on Bottom * Not Heated Just a Reserve Tank **MAKE OFFER**

**Make:** Aesco **Size:** 20,000 Gallon **Portability:** Skid Mounted **Interior:** We are Told Unit is "As empty as it can be." **Heating** Direct Fired "OIL" **Other Info:** * Direct Fired * Shipping Dims: 10'w x 38'L x 11'5" T

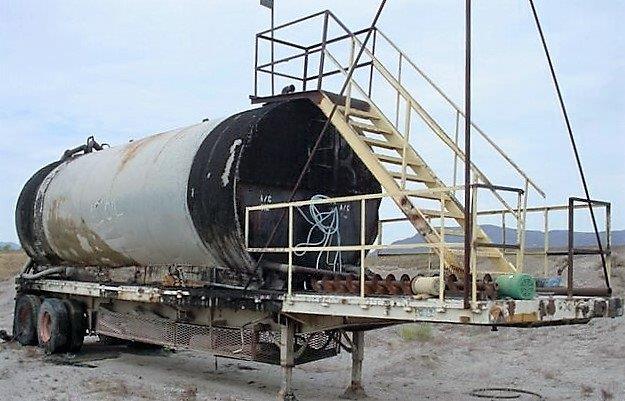

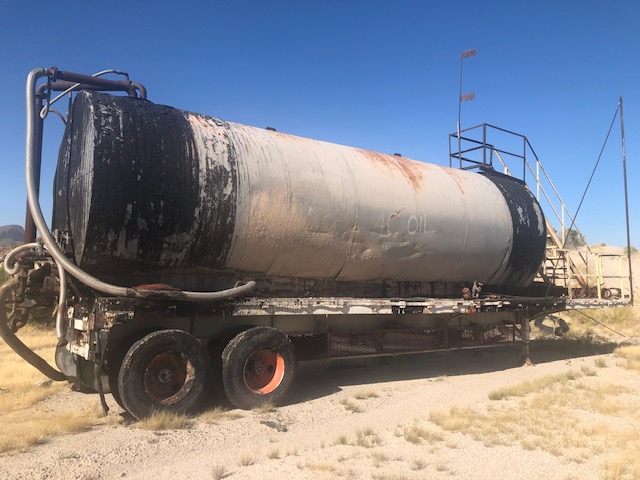

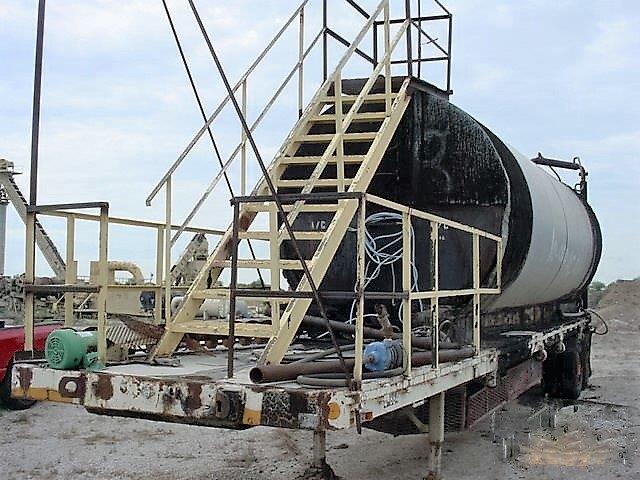

**Make:** N/A (Coiled AC Tank) **Size:** 10,000 Gallon **Portability:** Portable (Skid Mounted onto a Flatbed Truck) **Interioir:** Some Coking **Heating** Indirect "Coiled" **Other Info:** * Ladder to Top * Miscellaneous Equipment basket Mounted Under Trailer * Tandem Axle

**Make:** N/A (Direct Fire Tank) **Size:** 30,000 Gallon **Portability**: Skidded **Interioir:** Insulation and Skinning in Good Condition/ Empty as far as can be. **Heating** Direct Fired " With Scavenger Coil's" **Other Info:** * Newer Burner (Combo Fuel Currently Set Up on Nat Gas with Gas Train) * Hot Oil Scavenger System (Coiled) * Hot Oil Expatiation System with Tank and Circulating Pump Package (rebuilt pump) * In-Use 60 Days Ago * Tank Dims: 63.5'L x 11.5' t x 11'1" W, Weighs Approx 60,000lbs

**Make:** Gencor **Model:** 2 ETS **Size:** 2,000 Gallons (each) **Portability**: Skidded (4" Wide Skids) **Interior:** Emptied as Much as Possable **Heating** Electricly Heated **Other Info:** * S/N's: 691-692-693 * Shipping Dims: 6' Diameter x 13' Long * Top Fill Ports * Top Wide Walk Ways and Stairway * Individual Electric Panels Price(EACH):........$13,500.00 Price(All THREE):...$35,000.00 (Take-Down/ Loading approx $3,000.00 additional)

**Make:** N/A (Coiled A.C. Tank) **Size:** 20,000 Gallon **Portability:** Skid Mounted **Interior:** Empty (as far as it can go) **Heating** Indirect "Coiled" **Other Info:** * Light Cocking * Rear Ladder * Unloading Pump

22,000 Gallon Dims: 11' Diameter x 31'6"L **Heating** Direct Fired

**Make:** N/A (Coiled Tank) **Size:** 18,000 Gallons **Portability:** Portable **Interior:** some Coking **Heating** Indirect "Coiled" **Other Info**: * 2" Pump skid * Was Part of the ADM Plant

**Make:** N/A **Size**: 10,000 gallon **Portability:** Skid mounted **Interior**:Clean with some light scalling **Heating** Indirect "Coiled" **Other Info:** * Clean on Inside * Coiled **Dimensions**: * 11’4’’ x 25’8’’

**Make**: N/A (New AC Tank) **Size:** 40,000 Liter, approx. 10,000 Gallons **Portability:** Designed to Fit into Shipping Container **Interior:** Inside Steel is ASTM A36 or Equivalent **Heating** Indirect "Coiled" **Other Info:** * Outside is Colored Steel Sheet and Material is A36 or Equivalent * Insulation Layer is 50mm (2") of Rock Wool Material Between Inside Steel and Outside Steel Cover * All of Piping is ASTM grade Steel Boiler Tube or Equivalent * Floating Level Gauge at One Side of the Wall * Leaking Test on Hot Oil Heating Tubes Inside of the Tank * One Ladder Outside and omne Ladder Inside Included Approx. 10-14 week delivery time

**Make:** RDCI (Vertical Crystalizer Tank) **Size**: 20,000 Gallons **Portability:** Stationary, Vertical, Cone Bottom **Interior:** Cleaned out **Other Info**: Agitation: HEAVY DUTY 20/10 HP VERTICAL AGITATION W/ MULTIPLE BLADES Outlet: 4" OUTLET Alcove: S.S. ALCOVE CIP: CIP/VENT/OVERFLOW LINES (2) SPRAY BALLS Refridgeration: 320 SQ FT OF 150 PSI COLDWALL (2- 160 SQ FT ZONES) Dims: APPROX 150.75" DIA x 30' HIGH

**Make:** 1977 Butler 7,200 Gallon Asphalt Tank Trailers **Size:** 7,200 Gallon **Portability:** Tandem Axle Trailer with Spring Suspension. Center Fill Port and Rail Access. **Other Info:** Multiple Available, Price is (PER) Unit.

Emulsion tank Inquire for more info

Astec built this skid-mounted anti-strip tank system. It has a storage capacity of ~1500 gallons and it includes are pumps and plumbing. It is model number HFP-100R, serial #H05-077and it was manufactured 03-05.

This is a vertical skid mounted anti-strip tank 6’ diameter, and 8’ tall. The skid is 9” long. It includes the 2.5 hp Baldor motor and plumbing with valves. There is a ladder to the top access door.

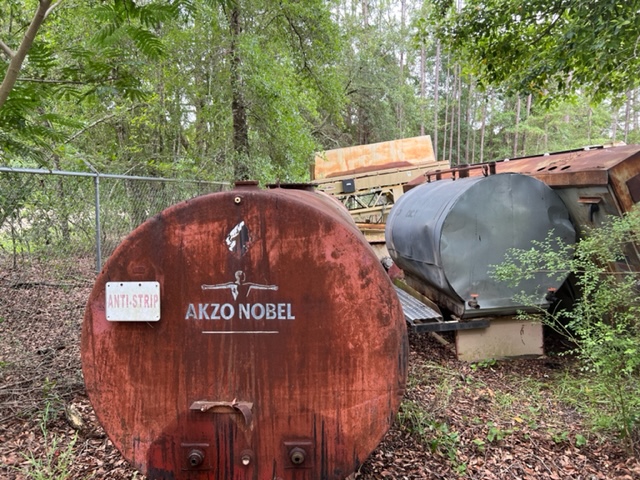

**Make:** N/A (Anti-Strip) **Size:** 1,000 Gallon

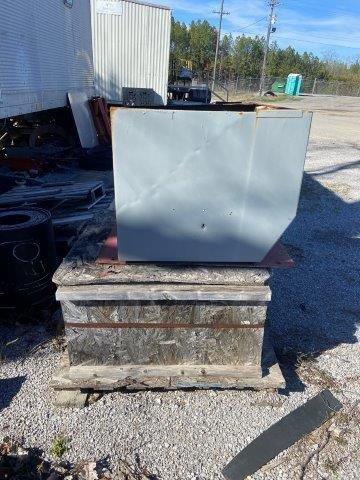

**Make**: N/A (Anti-Strip) **Size**: Approx. 250 Gallon **Portability**: Skidded **Interior**: Insulated and Skinned **Other Info:** 18" Side Walk platform Coiled Tank with Level Indicator, No Pump Shipping dims: 79" Long, 48" Tall, 52" Wide

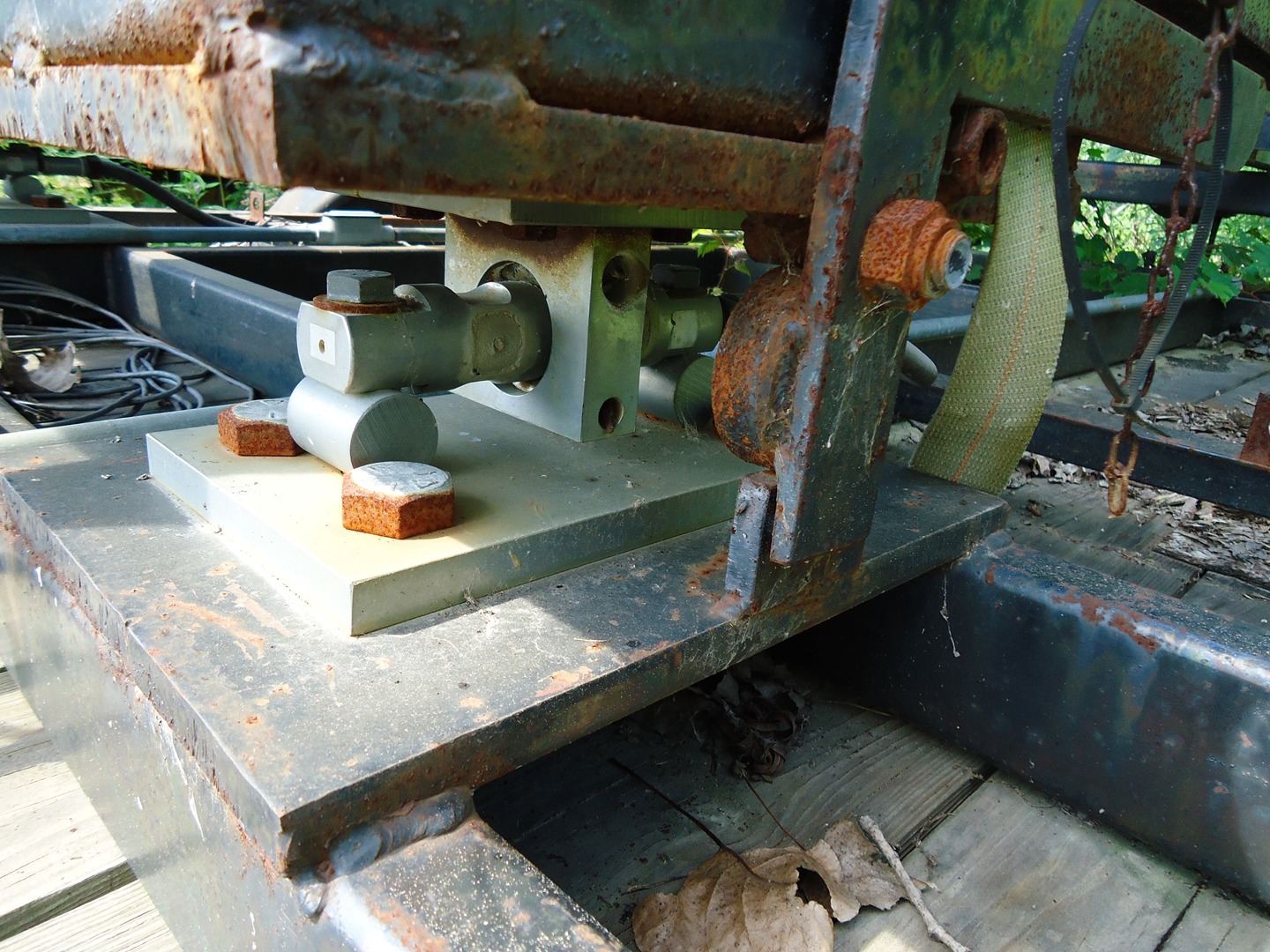

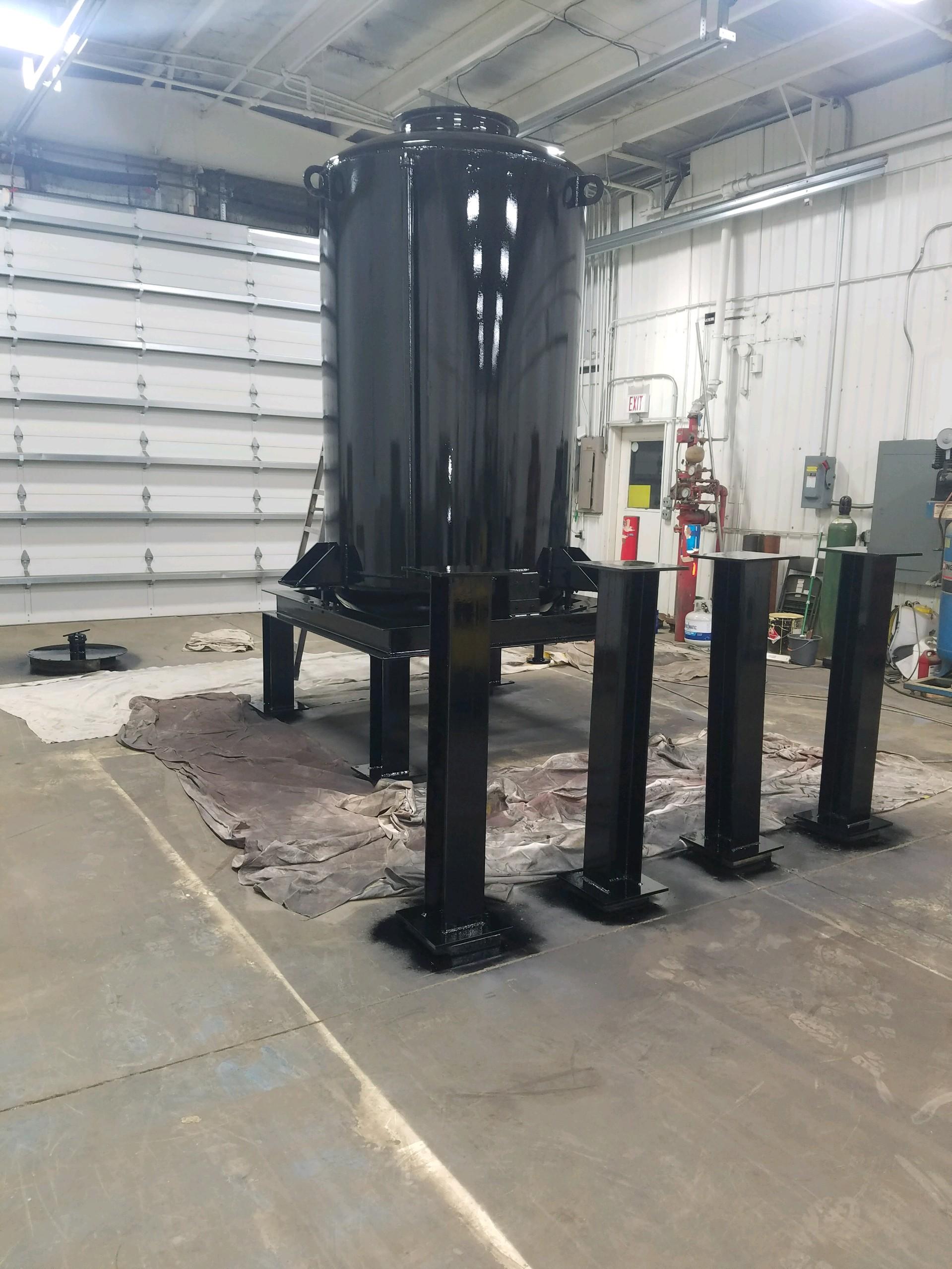

**Make**: N/A (Calibration Tank) **Size:** 1,000 Gallon (Tank General Dims: 60" Diameter x 84" Tall = 1028 Gallons) **Portability:** Low Profile Design For Easier Mounting on a Portable Chassis **Other Info**: * 3 Rice Lake Beam Style Load Cells and Summing Board * 2” Hot Oil Inlet/Outlet * 3” Supply Line (acts as return also) * 3” Overflow Vent Line * ¼” A36 Plate * 20” Legs to Grade, Below Frame * Sloped base for easier draining * Calibration mounts on sides * No valves or scale heads included Painted customer color choice **Trailer not included but can be purchased for additional $**

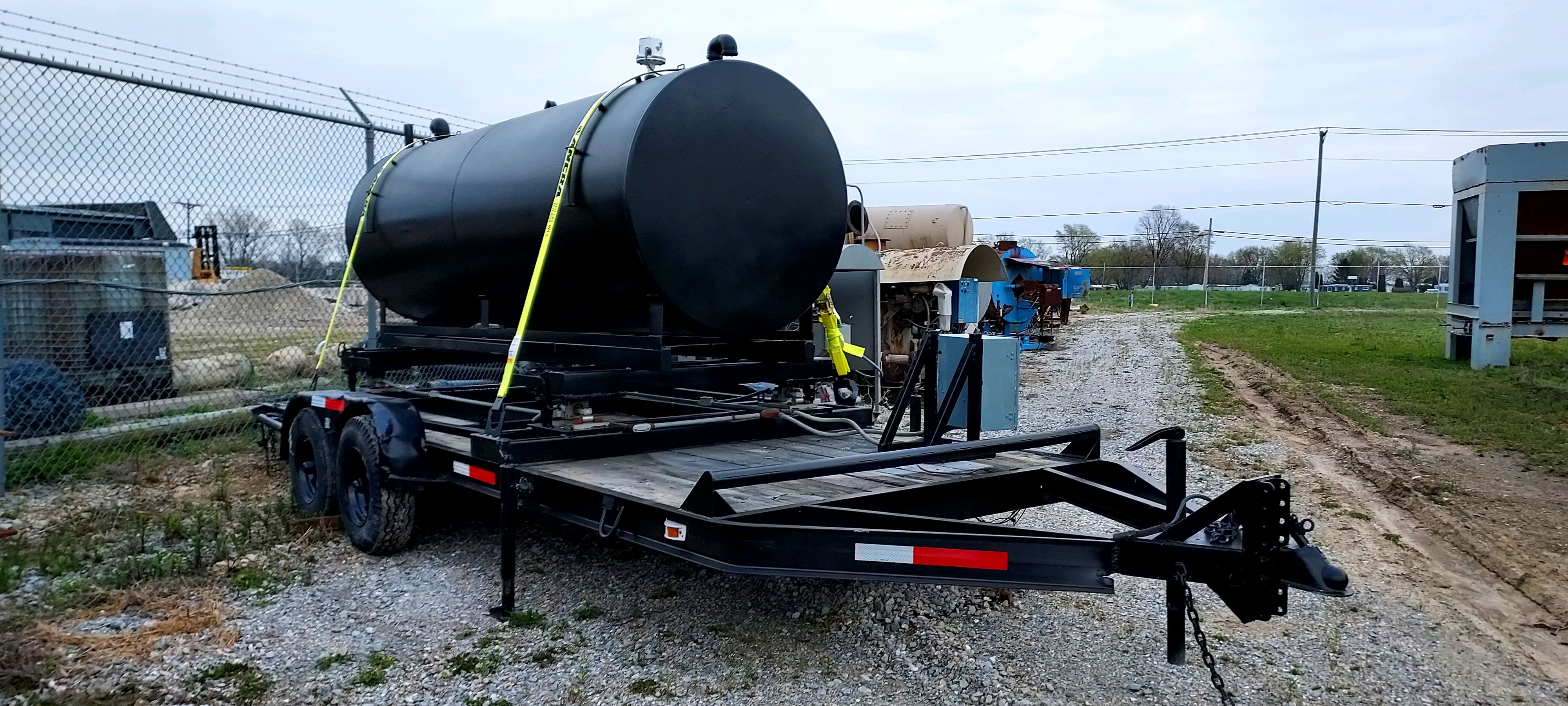

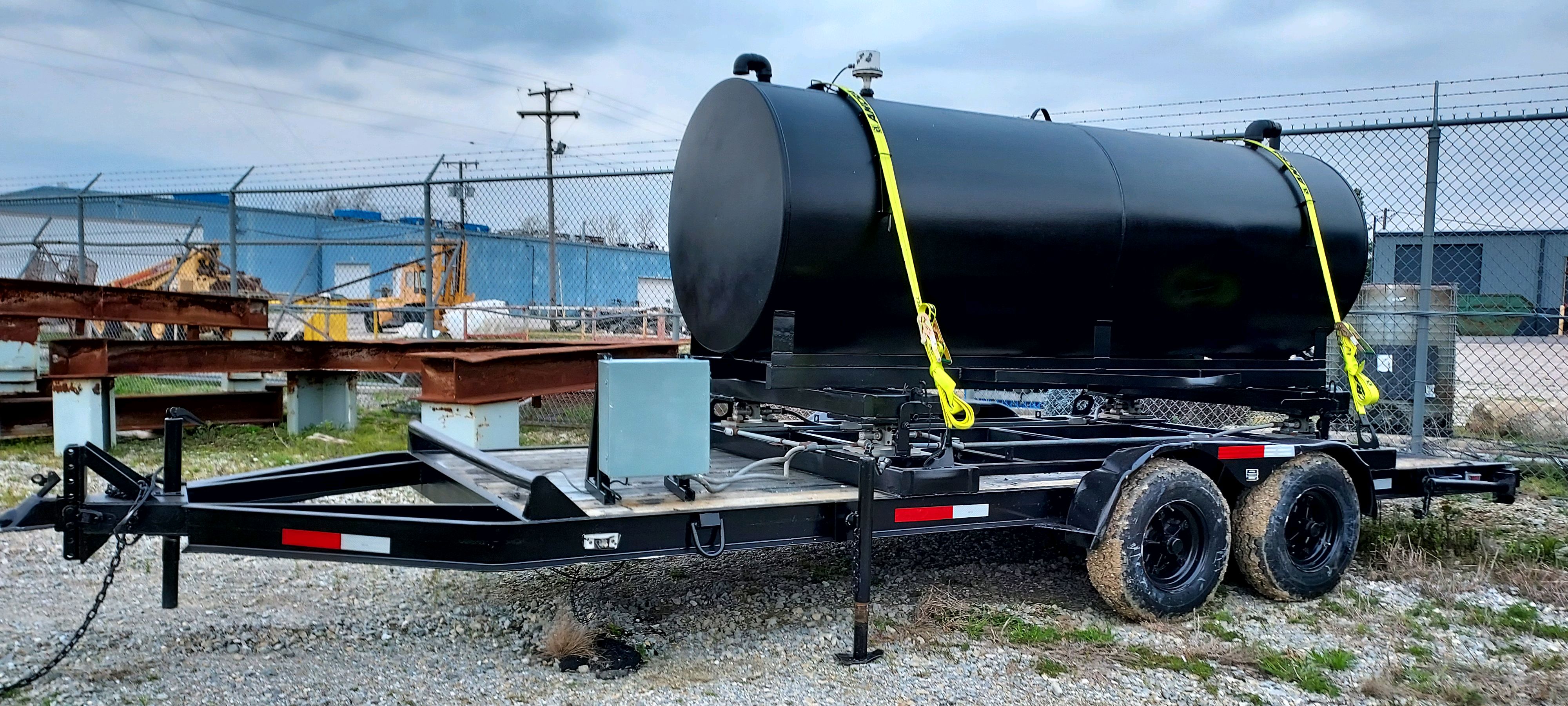

**Make**: N/A (Calibration Tank) **Size**: 1,000 gallon **Portability**: Heavy Duty Trailer **Other Info:** * 4' Wide x 12' Long Tank * 3 Load Cell Design * Summing Board * High Limit Indicator

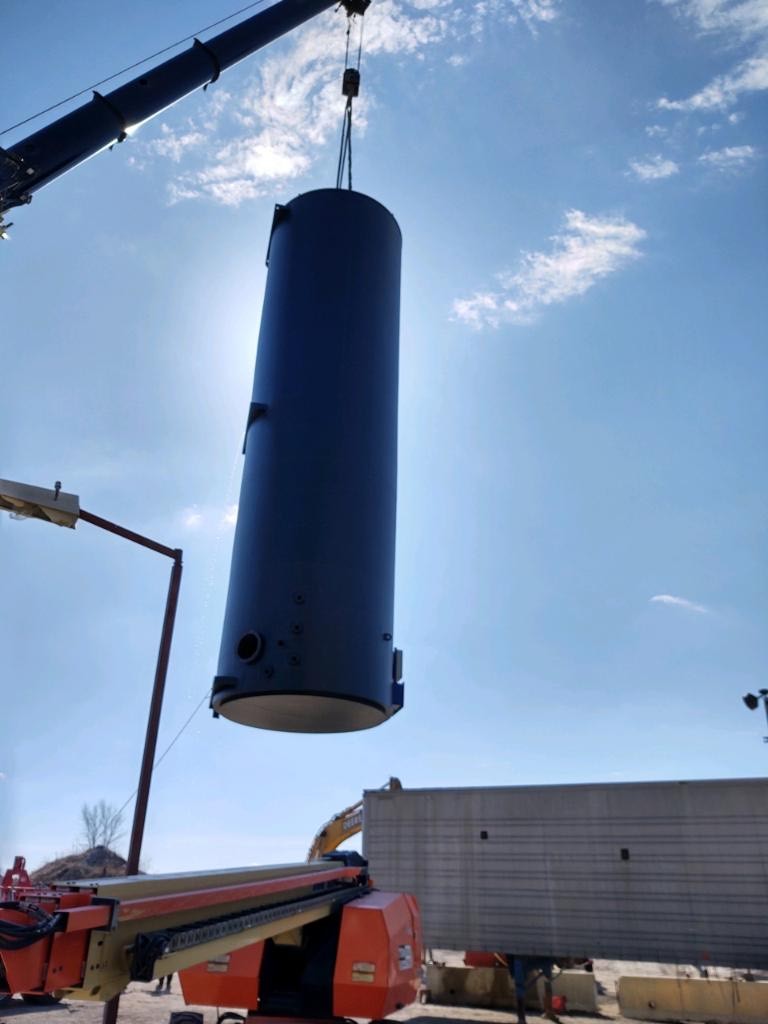

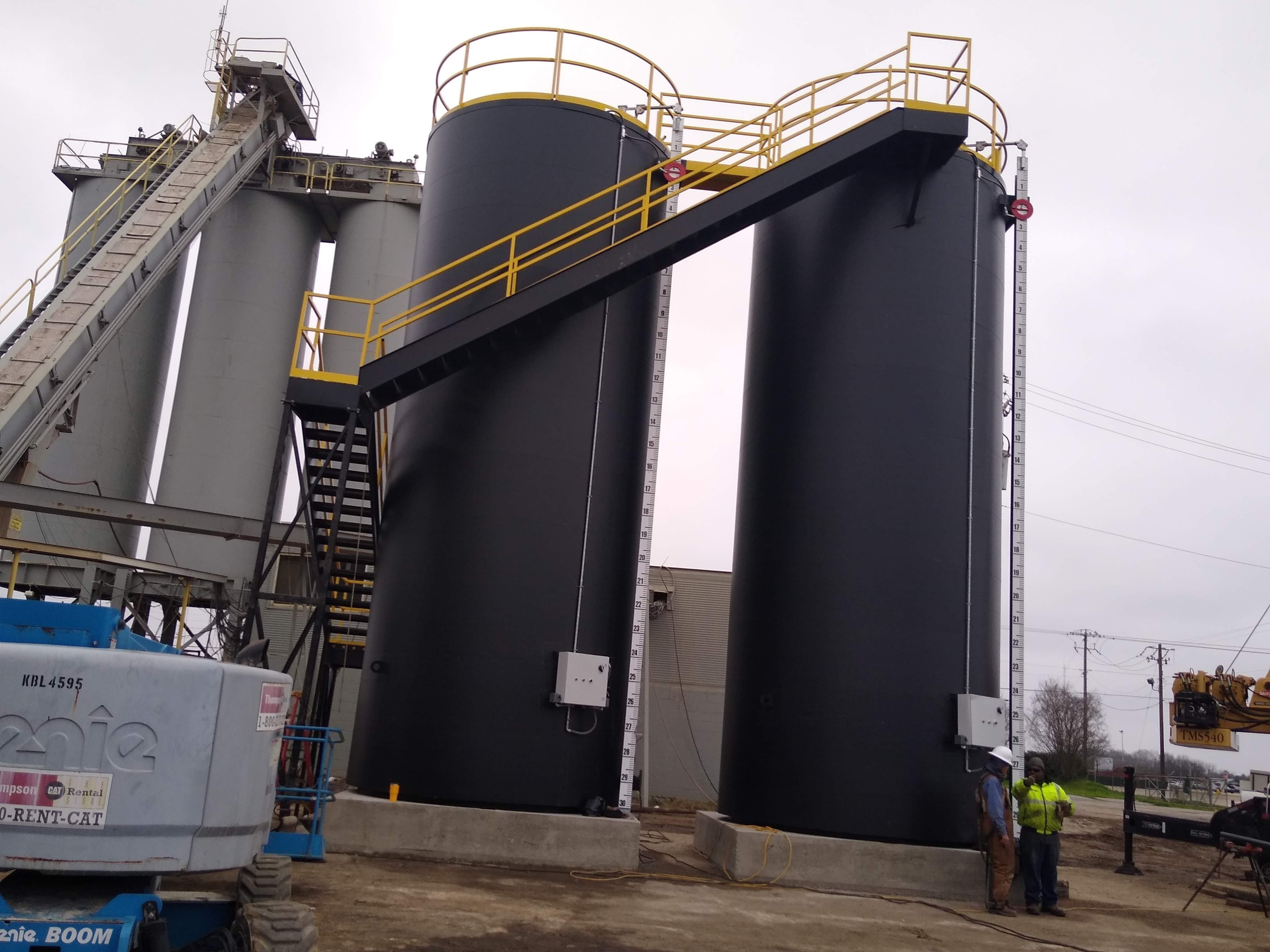

**Units were inspected by ASInc on 12/9** **Tank #1- 20,000 Gallon Vertical Tank** • This will all fit on a flatbed • tank dims 11’ x 28’ • Shipping dems 13’ x 28’. Approx 45,000lbs • Owner thinks early 2000 tanks, make unknown • Has 8 - 3” heating element tubes, no scavenger coils • 3” lines • Float gauge • 2’ manhole • Lifting eyes • Some coking and minor skin issues • Process Heat control panel and heating elements. Plate tag attached in photo • Sn#- U-4812210.546-3 **Tank #2- 20,000 Gallon Vertical AC Tank** • Tank #2: • Tank 2- tank dems 11’ x 28’ • Shipping dems 13’ x 28’. Approx 45,000lbs • has 4 rows of 2” scavenger coils • Has material build up covering electric heating tubes and skin issues on bottom • Owner thinks early 2000 tanks, make unknown • Has 8 - 3” heating element tubes • 3” lines • Float gauge • 2’ manhole • Lifting eyes • Some coking and minor skin issues • Process Heat control panel and heating elements. Plate tag attached in photo • Sn#- U-48122104 **Other**: • Viking unloading pump • 15hp • 3” lines • Misc jacketed piping • Expansion tank • This will all fit on a flatbed **Additional $7,500.00 cost to dismantle and load the AC Tanks onto buyer's trucks**

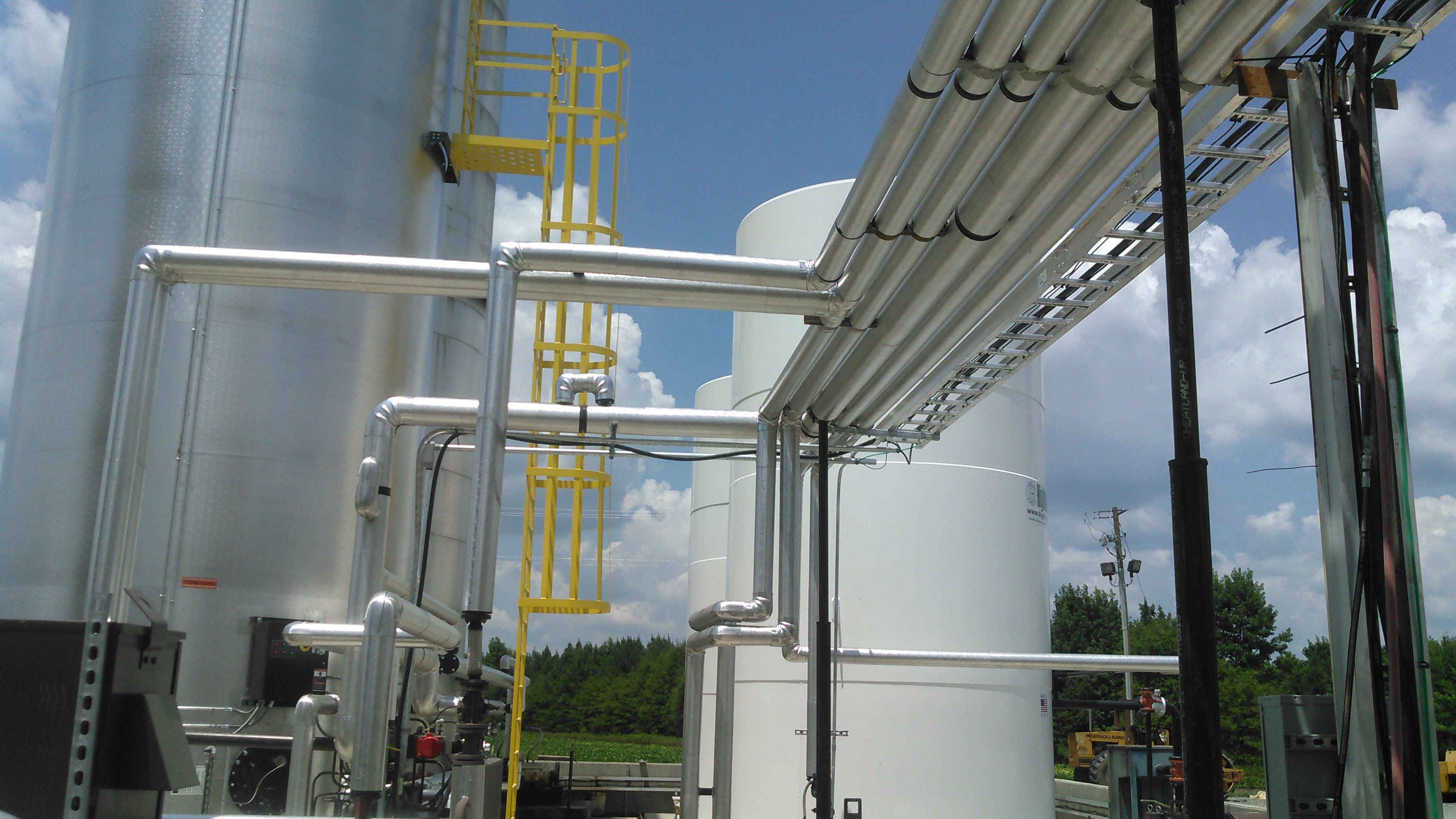

**Size:** 20,000 Gallons **Vertical:** Yes **Heating** Indirect "Coiled" **Other info:** * Stainless Steel, tank dems 12' x 24' * Insulated and Skinned * Spotless Coils, 1 tank has 1 row of coils, 2nd tank has 3 rows of coils * No Level Indicators * No Pump * Some skin issues * Lifting eyes * Not API 650 stanard * Top cover and railings come off to expose lifting eyes * tank shipping dims 12' x 14' w, 2 top covers with railings * Disconected and ready for load out * Note 1 tank has pin holes in bottom from sitting directly on concrete with no liner. **CALL OR EMAIL FOR PRICE**

20,000 Gallon Vertical Coiled, 1 row of coils Stainless Steel Will never corrode! Non insulated On the ground and ready for loadout

**Year**: 2008 **Model**: 1400 Barrel **Capacit**y: Approx 16500 Gallons **Other**: * 400 Barrel * Skid Mounted * Vertical Frac/tack Tank * Round * Skid mounted for easy jobsite drop off * Has ladder access to top * Made to stand after drop

8000 Gallon Refrigerated Vertical Tank Inventory #: ACT1462 VT-266-01 APV 8,000 Gallon Refrigerated Vertical Silo Type Storage Tank Refrigerated Reconditioned Stainless Steel Was being used for cooling, but can be made for heating, (Hot Oil) S/N D3762 D3764 STAINLESS STEEL ALCOVE NO AGITATION 3" INLET, 2.5" OUTLET, NEW CIP/VENT/OVERFLOW LINES SPRAY DEVICE, 48 SQ. FT. OF 50 PSI COLD / HOT WALL PREVIOUSLY USED WITH CHILLED WATER/GLYCOL APPROX. 10'6" DIA X 216" H. (NOTE: BOTTOM 50% OFF OF INTERIOR SHELL, 2B FINISH WITH POLISHED WELDS, TOP 50% #4 SANITARY FINISH) USED, RECONDITIONED NOTES • 14GA. SS INNER LINER. • 12GA. PAINTED CARBON STEEL EXTERIOR W/ 10GA. BAND. • 3” INSULATION. • DIMPLE JACKET COMPATIBLE WITH WATER, GLYCOL, OIL.. .
