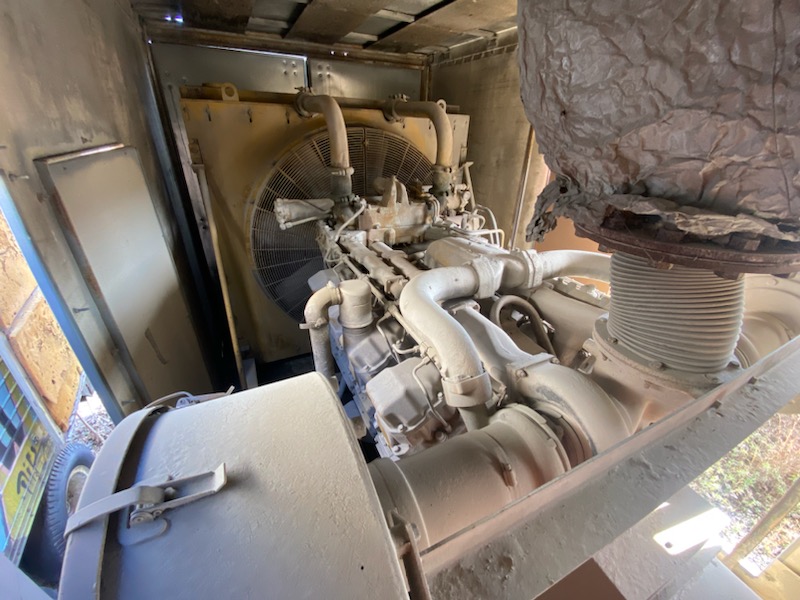

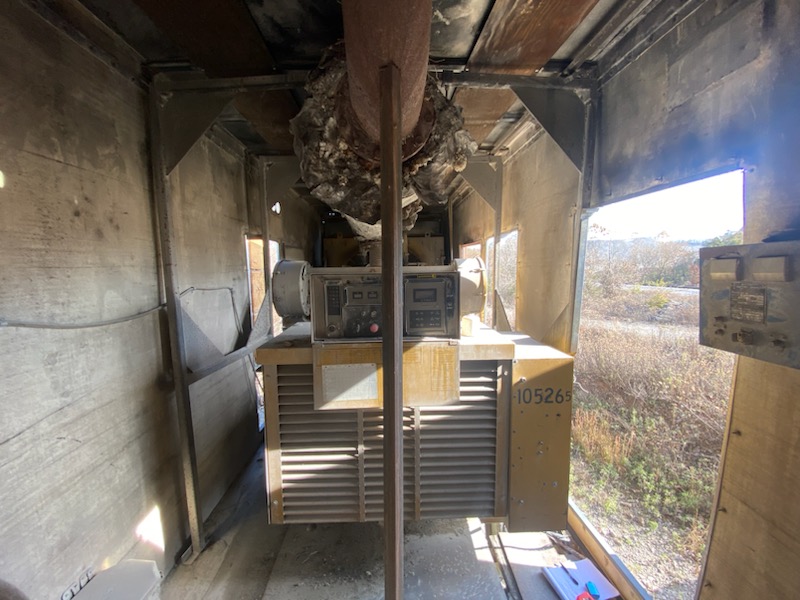

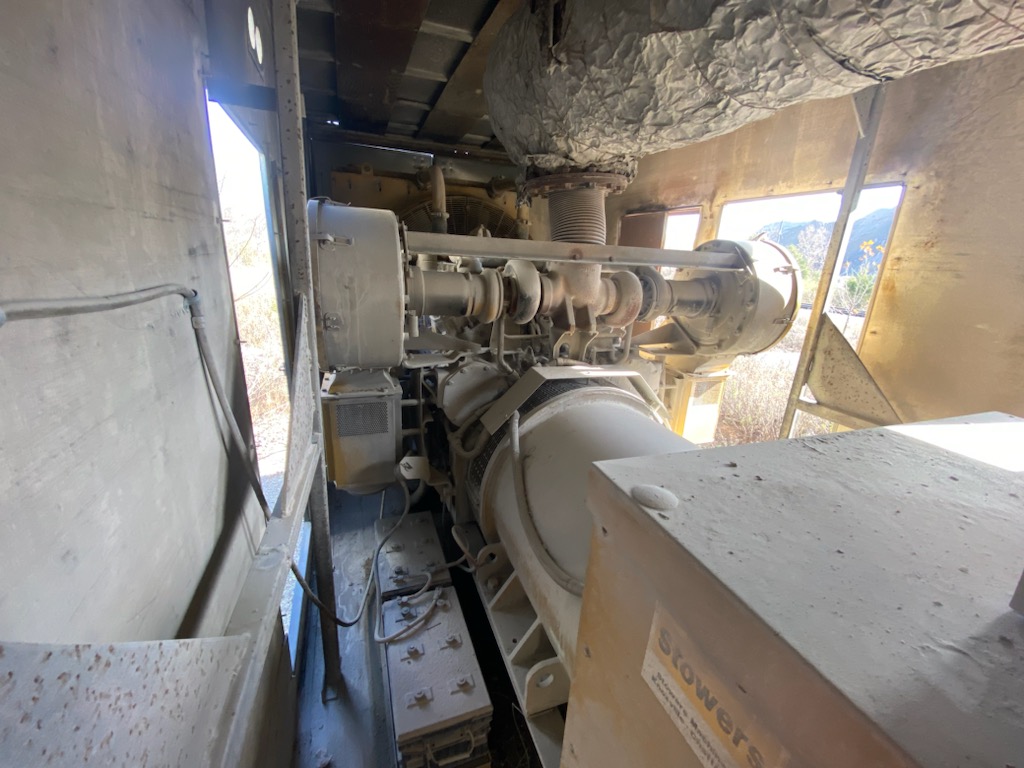

750 k.v.a.
900 k.v.a. surge
v 12 Detroit engine

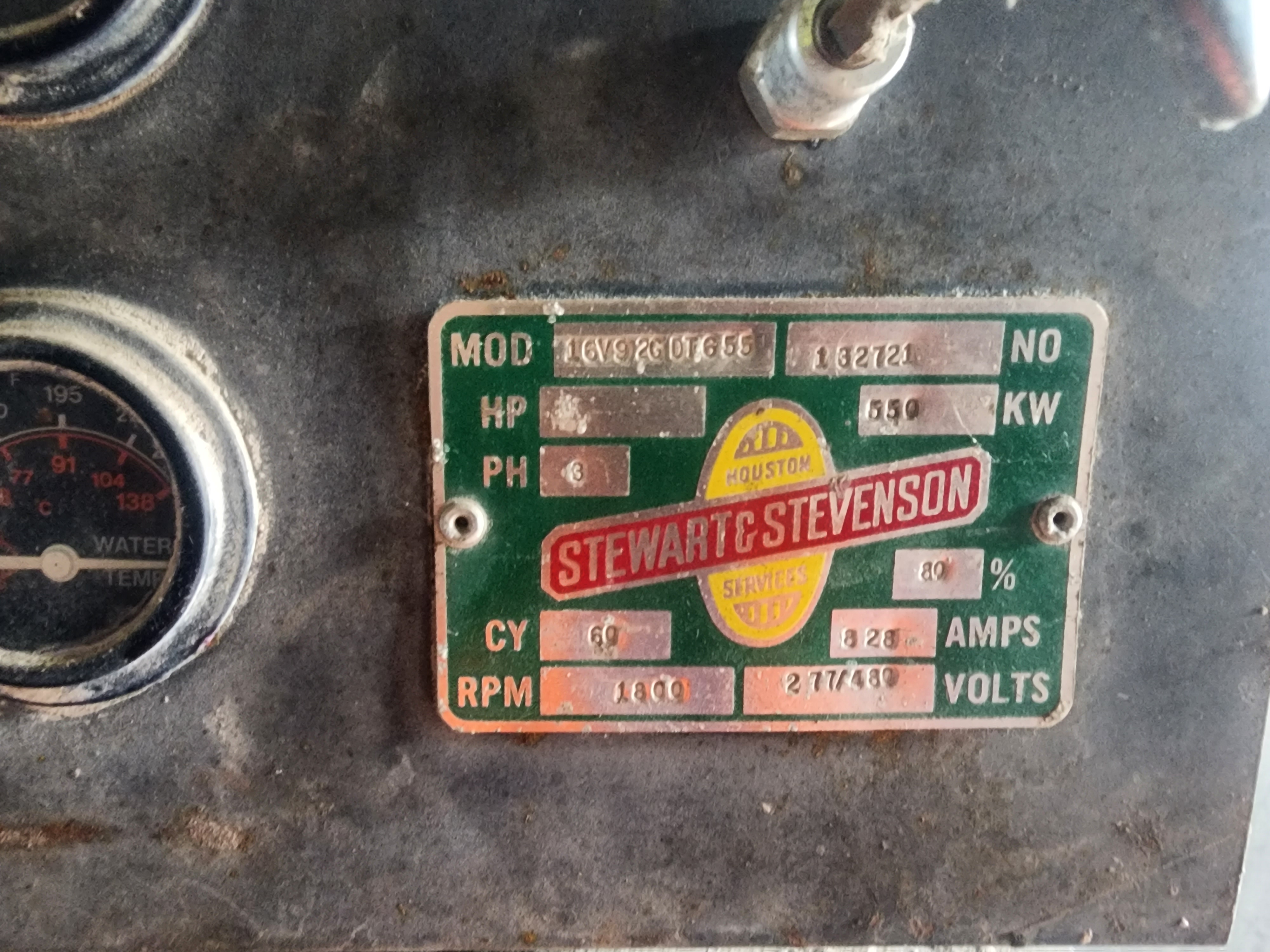

Make: Steward & Stevenson
* Model: 16V92GDT655
* Serial Number: 132721
* KW: 550
* PH: 3
* Amps: 828
* RPM: 1800
* Volts: 277/480
Hours When Taken Offline:
* Offline in 2009
* Hours: 5368

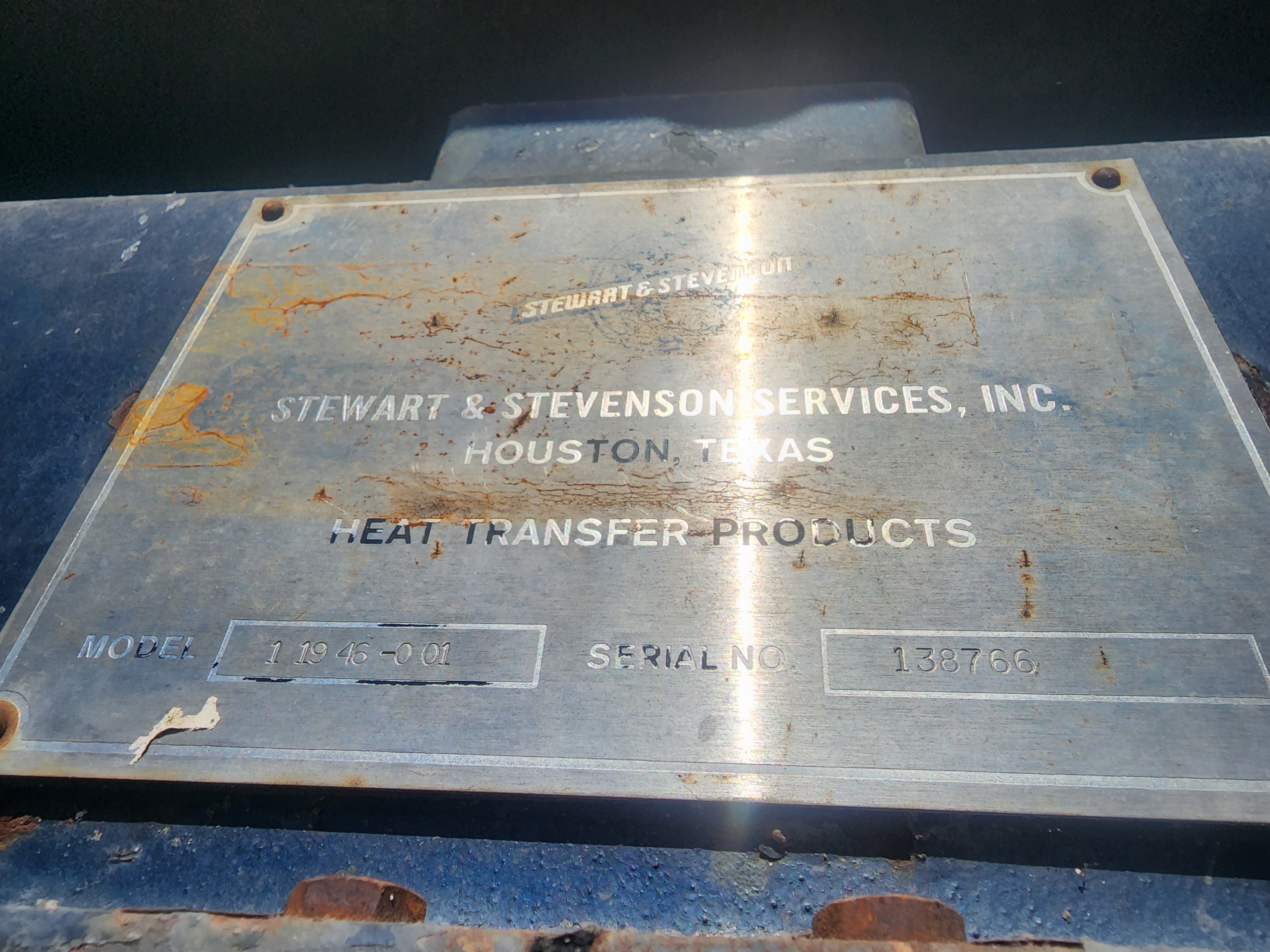

Heat Transfer:
* Make: Stewart & Stevenson
* Model: 1 19 46-001
* Serial Number: 138766

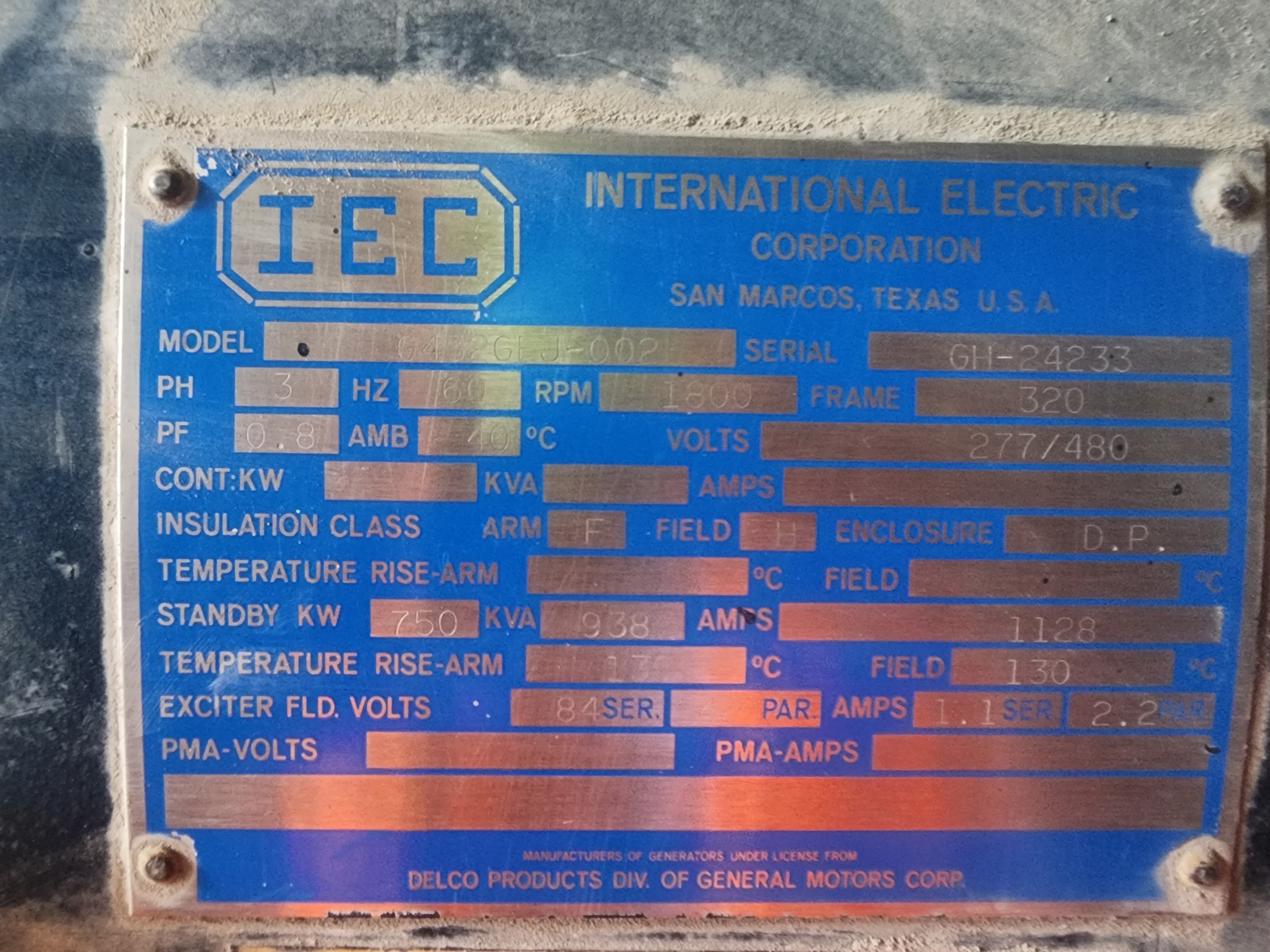

Motor Info:
* Make: International Electric Corp
* Model: G432G1-J-002
* Serial Number: GH-24233
* PH: 3
* HZ: 60
* RPM: 1800
* Frame: 320
* Volts: 277-480

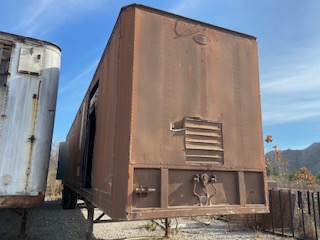

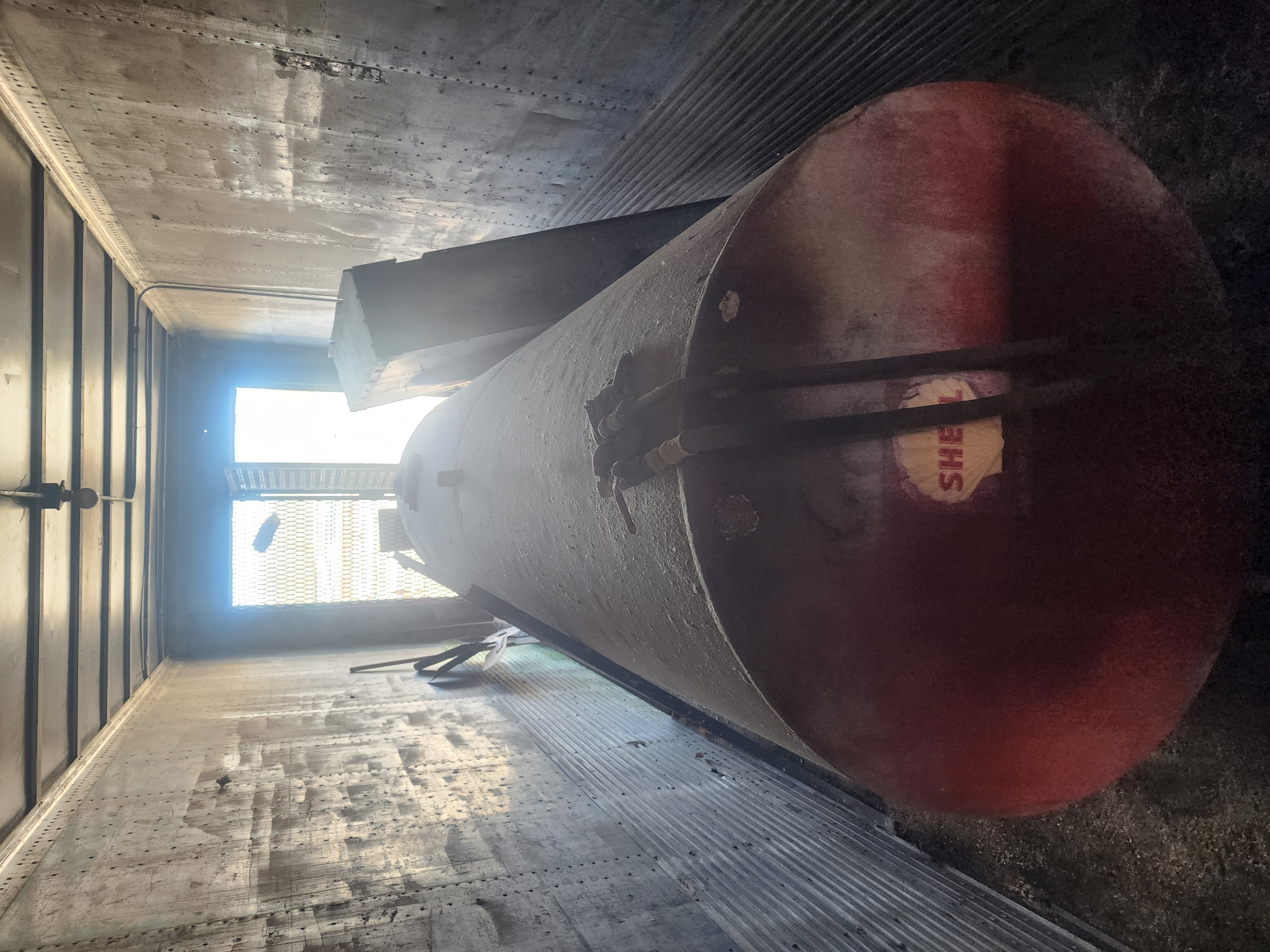

Added Fuel Tank In Trailer

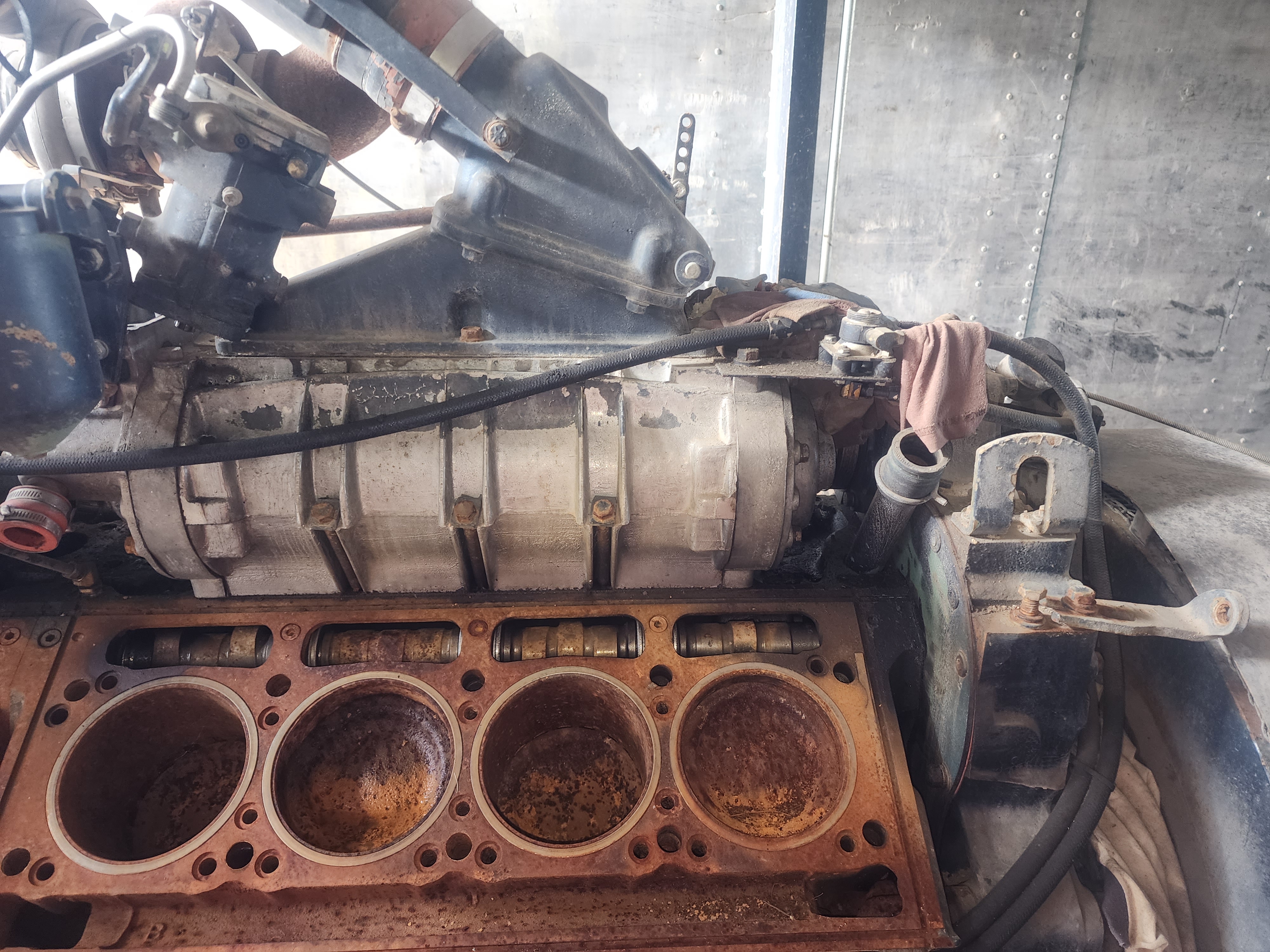

NEEDS SOME WORK ON THE ENGINE
Owner Notes: Unit was being cleaning, but during cleaning there was a hole blown in the radiator

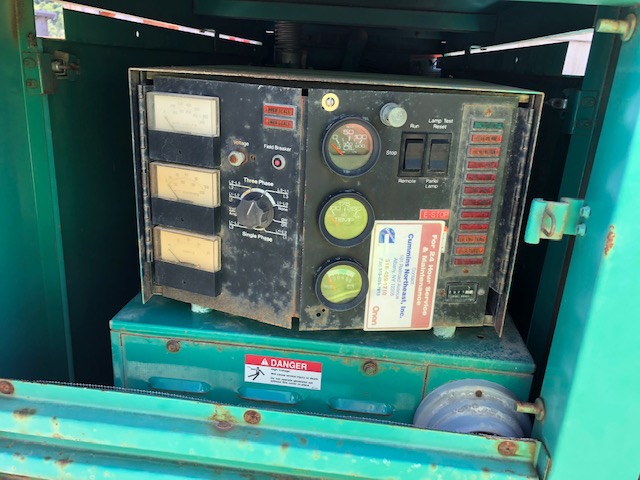

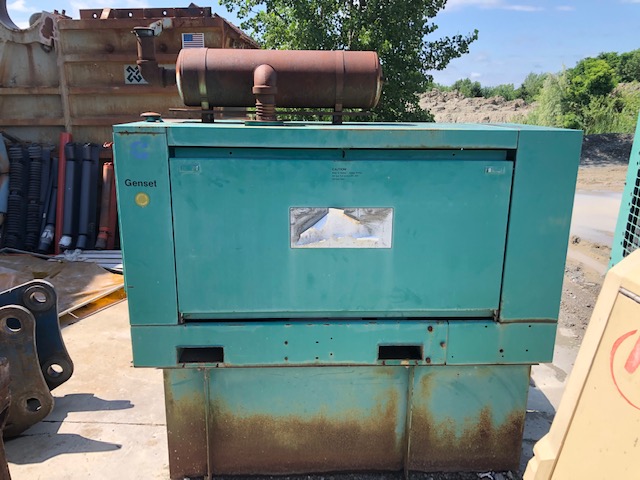

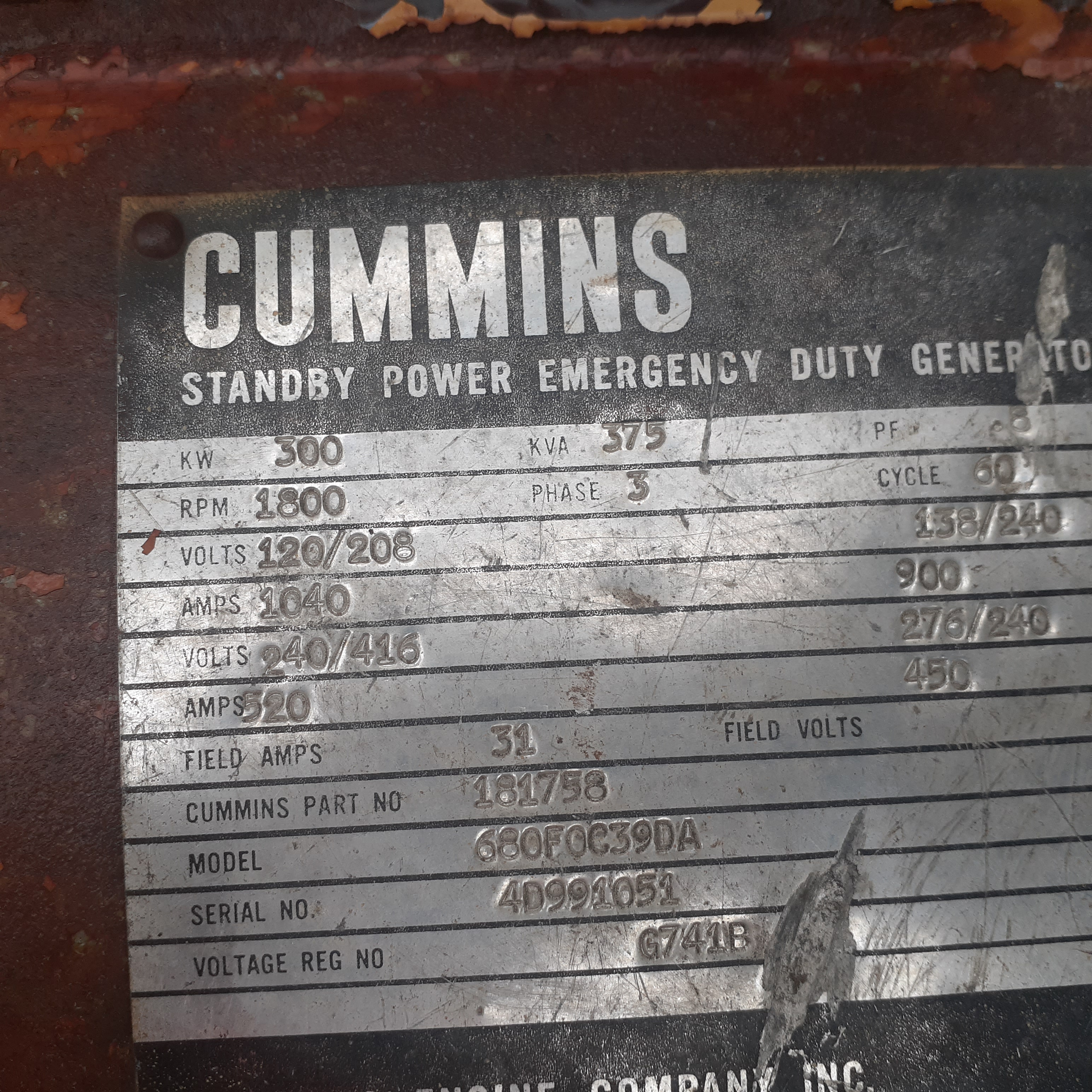

**Cummins Generator**
**Model #**: 680F0C39DA
**Serial #**: 4D991051
**Other Info**:
* Phase 3
* Owner can run it anytime
* Zoom in on plate to get specs

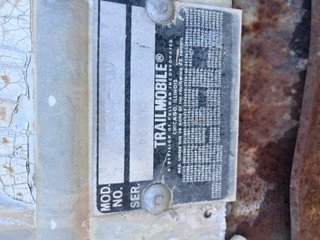

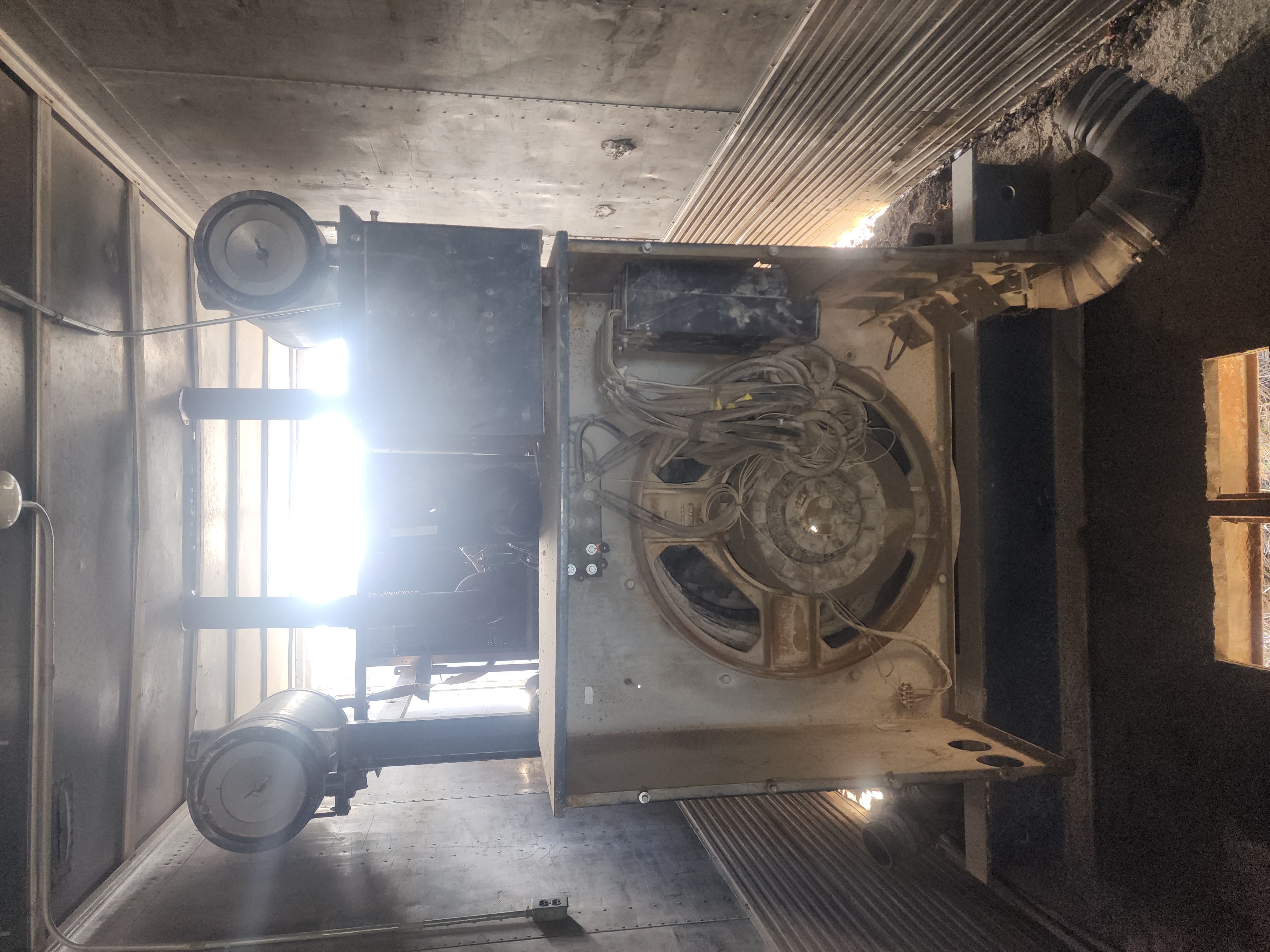

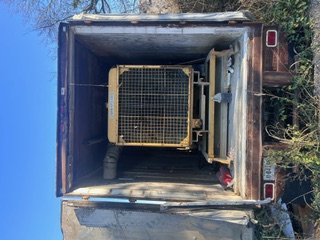

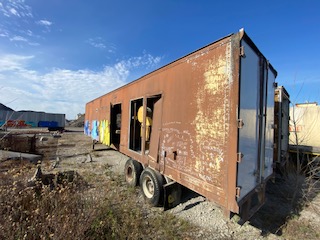

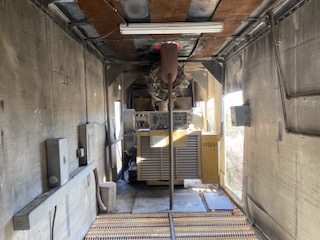

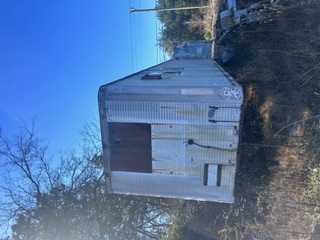

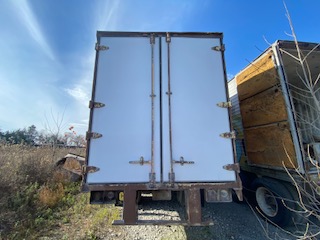

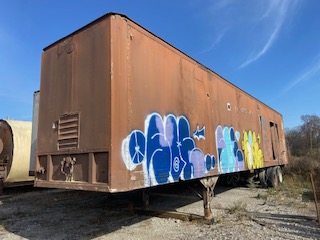

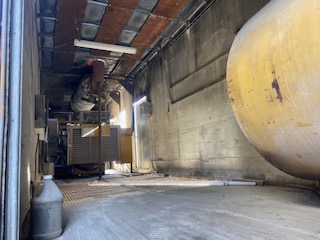

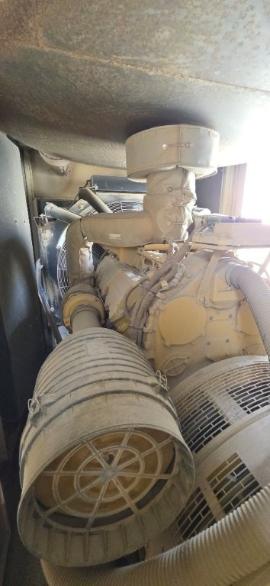

1 trailer with 2 generators
Military surplus
approx 250KW each
1995's model
Generators: 1 has 3000 hours 1 has 300 hours
They both run
Cummings motors
Portability good

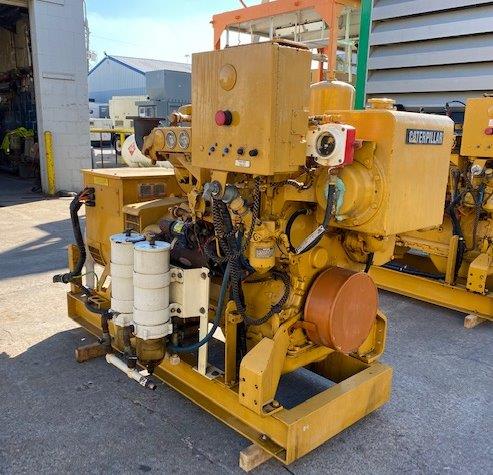

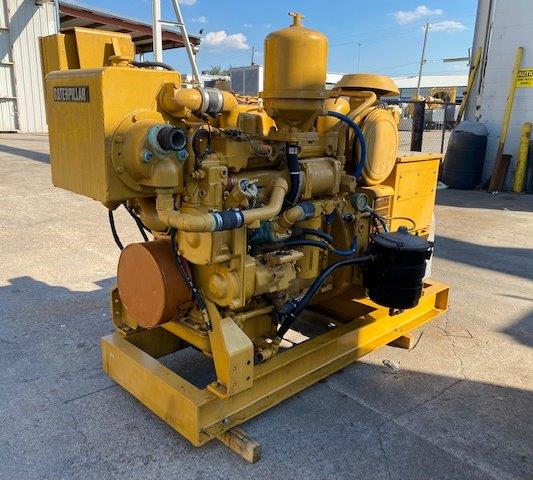

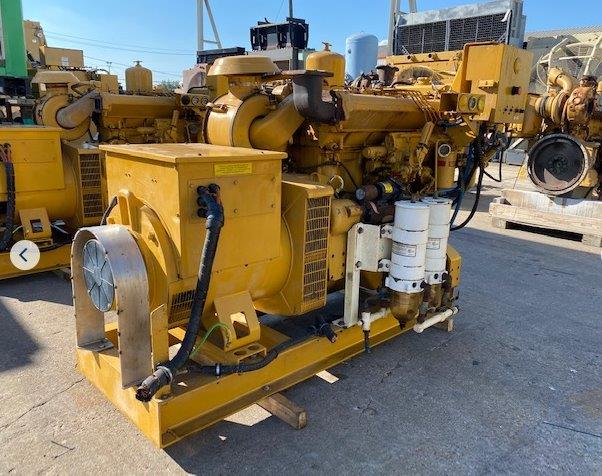

Caterpillar 3304 60KW Diesel Generator Set
Generator Set Type: Marine
Engine Model: 3304
Fuel Type: Diesel
Voltage: 240/416
Model: 3304
Panel: None
Frequency: 50 Cycles/Hz
Phase: Three Phase
Brand Caterpillar
Model 3304
Serial Number 83Z04249
Manufacture Date 1988
Fuel Type Diesel
Governor Hydromechanical
Engine Arrangement 1W3884
Air Cleaner Dry Type
Starter 24 Volt Electric Starter
Alternator None
Cooling Keel Cooled
Tier Rating No Tier Rating
RPM 1500
Horsepower 84
Well maintained 3304 marine generator set from a Navy Vessel. Oversized generator end rated 80 kW (100 kVA) continuous 50 Hz. Unit can be converted to 1800 RPM 60 Hz 480V. Output will be approximately 75 kW 60 Hz.

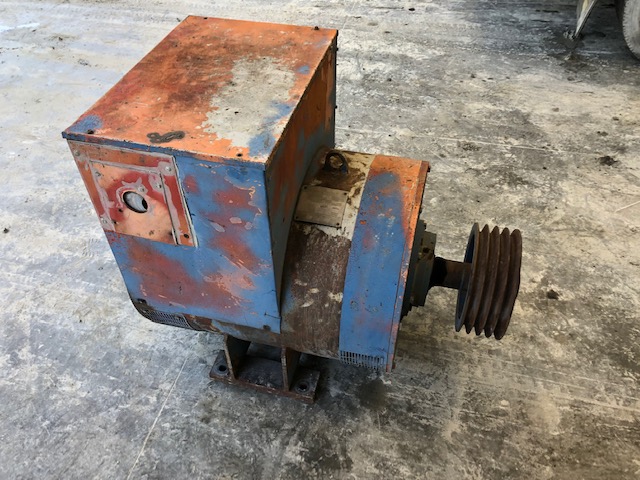

Generator
Brand Leroy Somer
KW 60
kVA 75
Rating Continuous
Enclosure None
Volts 240/416
Amps 104
Phase Three Phase
Power Factor 0.8
Cycles/HZ 50 Cycles/Hz
Excitation Brushless
PMG No
RPM 1500
Dimensions
Length 78
Width 44
Height 56
Weight 4000

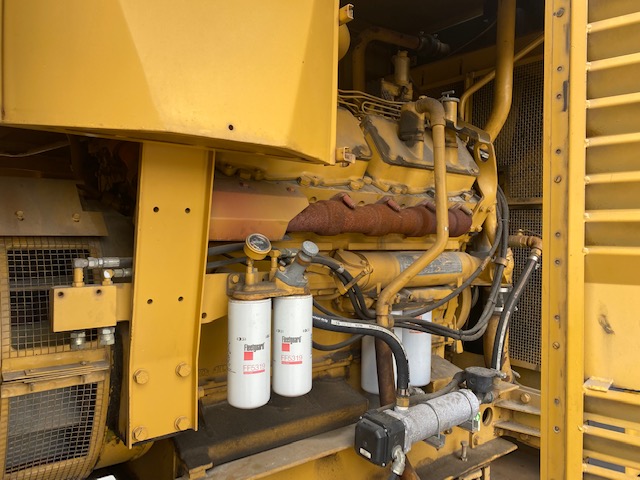

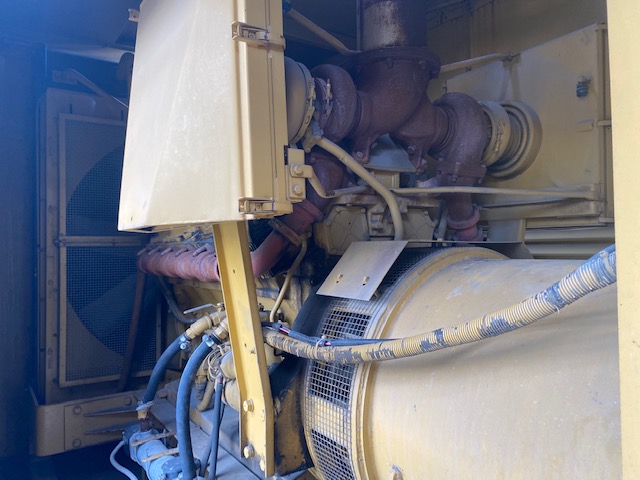

Generator Set Type: Stand-By
Engine Model: 3412
Fuel Type: Diesel
Voltage: 277/480
Model: 3412

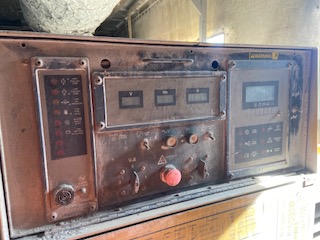

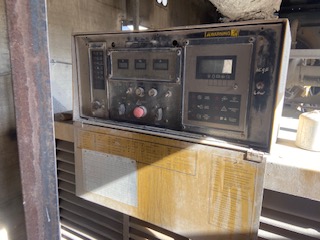

Panel: with Autostart and Safety Shutdowns
Batteries: Yes
Hours: 622 Since New
Frequency: 60 Cycles/Hz
Phase: Three Phase

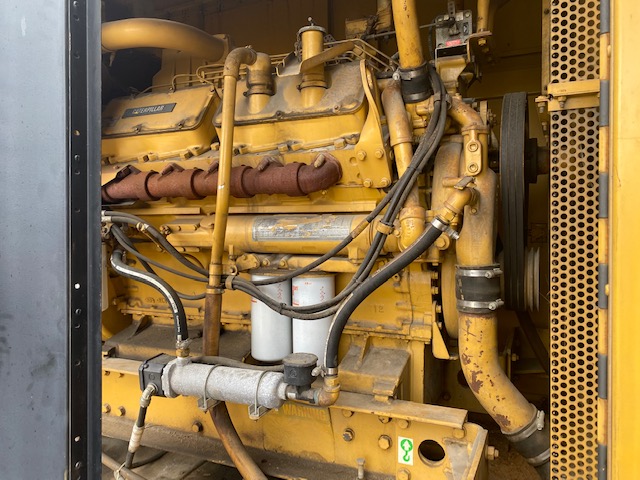

Engine
Brand Caterpillar
Model 3412
Serial Number 81Z10556
Manufacture Date 1990
Fuel Type Diesel
Governor Hydromechanical
Engine Arrangement 7W7170
Air Cleaner Dry Type
Starter 24 Volt Electric Starter
Alternator None
Cooling Radiator Cooled
Tier Rating No Tier Rating
RPM 1800
Horsepower 890
Generator
Brand Caterpillar
KW 600
kVA 750
Rating Stand By
Enclosure Weatherproof Enclosure
Volts 277/480
Amps 902
Phase Three Phase
Power Factor 0.8
Breaker Size 600
Cycles/HZ 60 Cycles/Hz
Excitation Brushless
PMG No
RPM 1800
Package
Hours 622 Since New
Generator Set Type Stand-By
Brand Caterpillar
Generator Model SR4
Fuel Tank Size 1000
Panel with Autostart and Safety Shutdowns
Batteries Yes
Battery Charger Yes
Block Heater Yes
Muffler Yes
