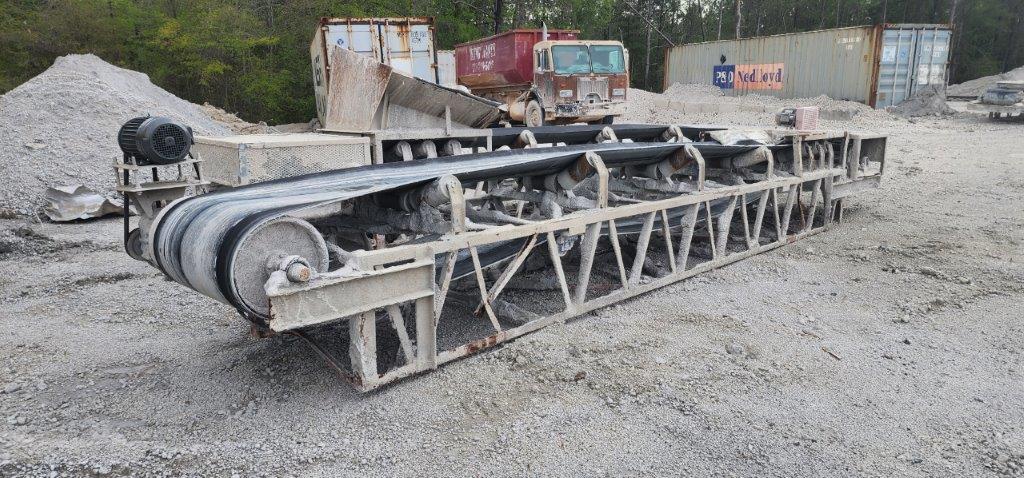

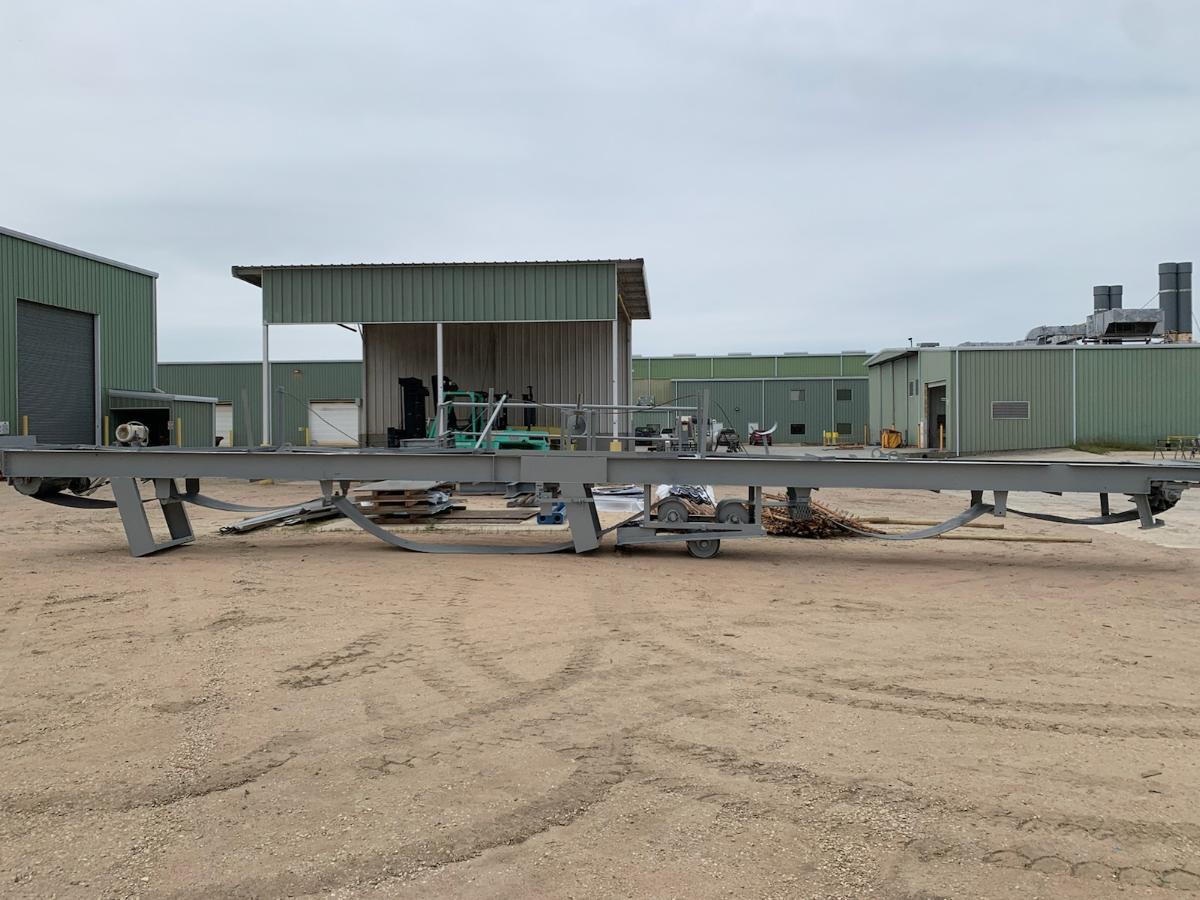

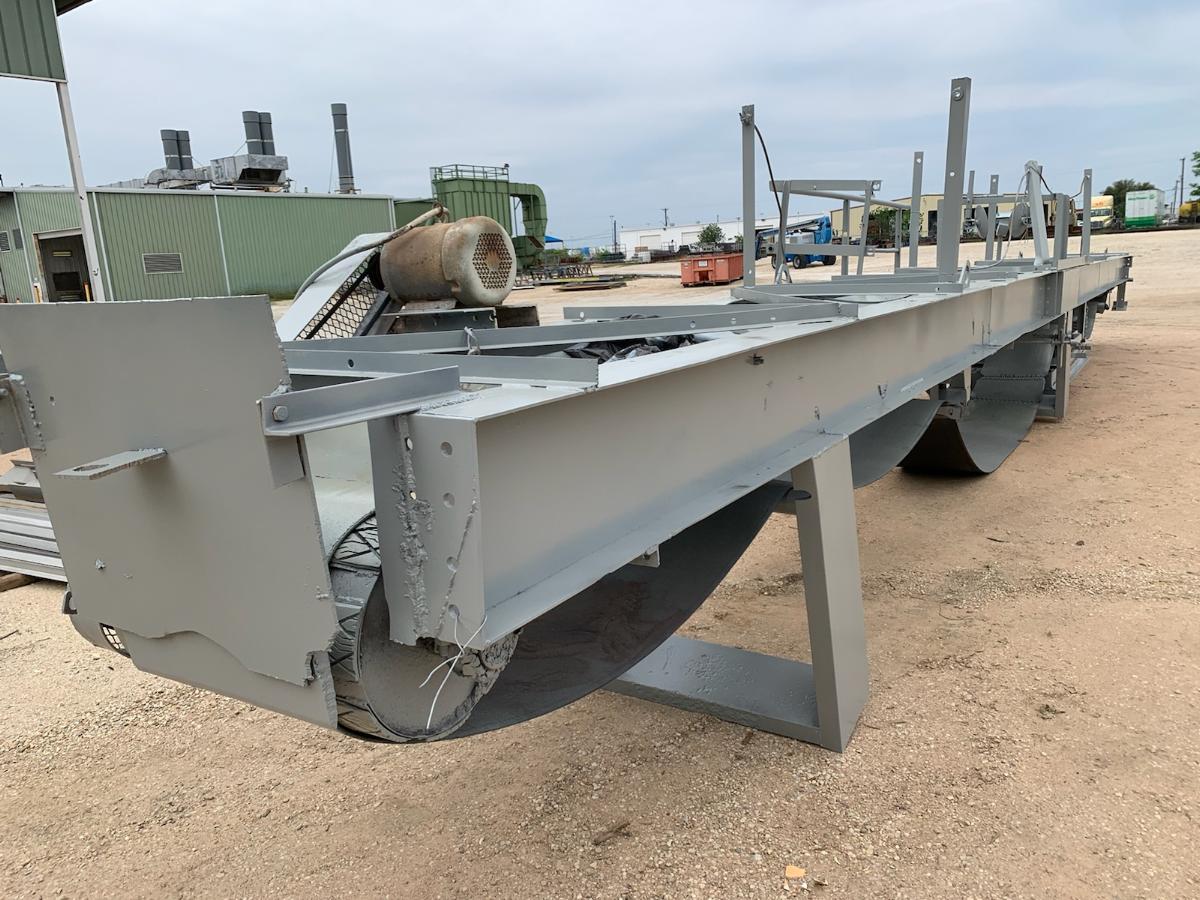

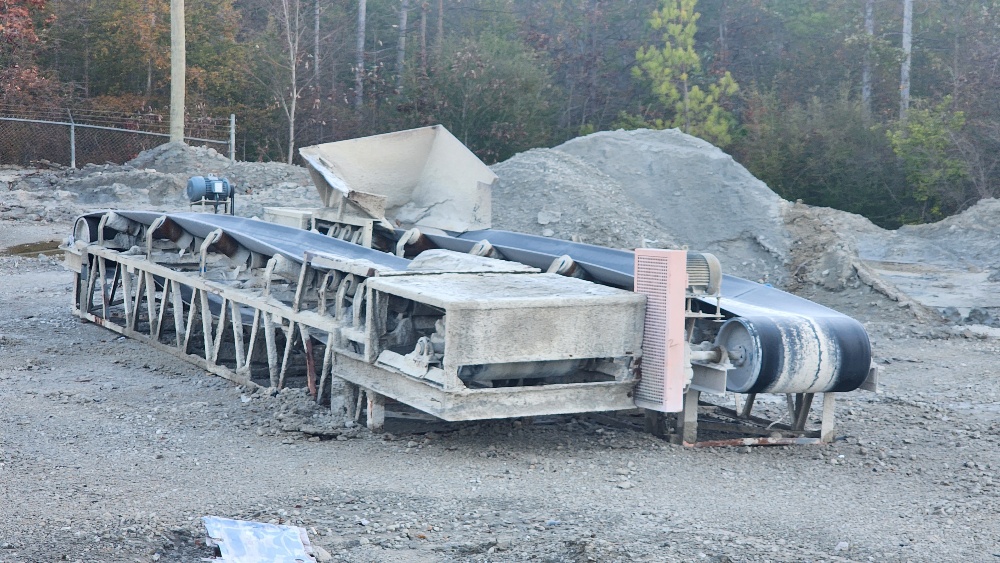

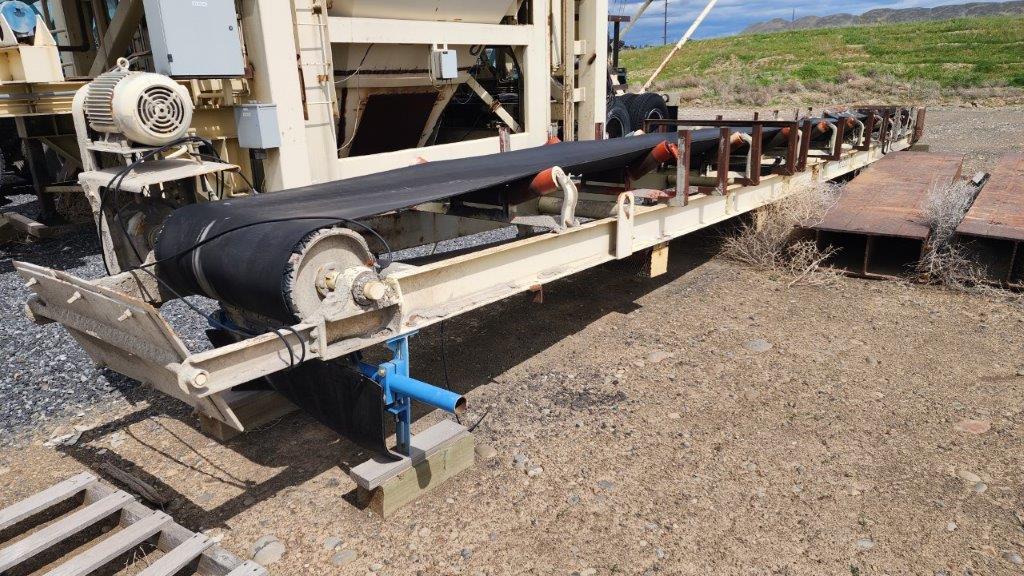

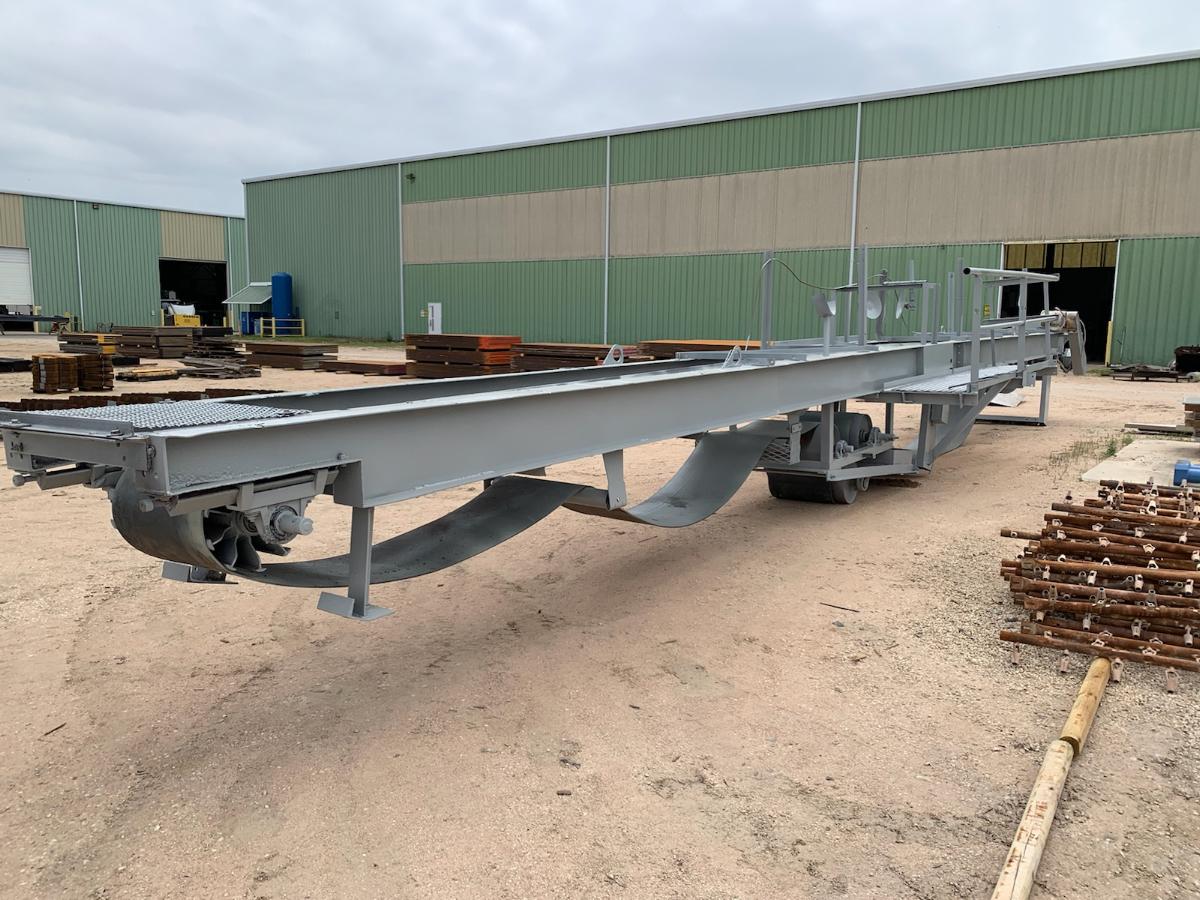

This is a channel frame belt scale conveyor built by Belt Way.
The belt is 30” wide and the unit is a nominal 70’ long.
The channel frame is 42” wide and the overall width is 60”.
There are legs to grade and a Belt Way belt scale is mounted.
The unit is currently folded over itself, to provide easy load out and easy reerection.
This is a NICE & Clean heavy duty unit.

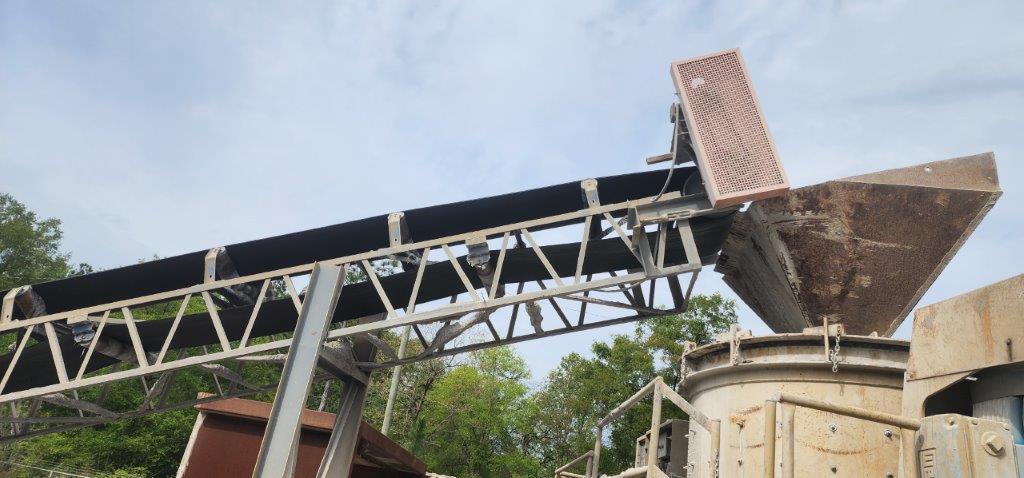

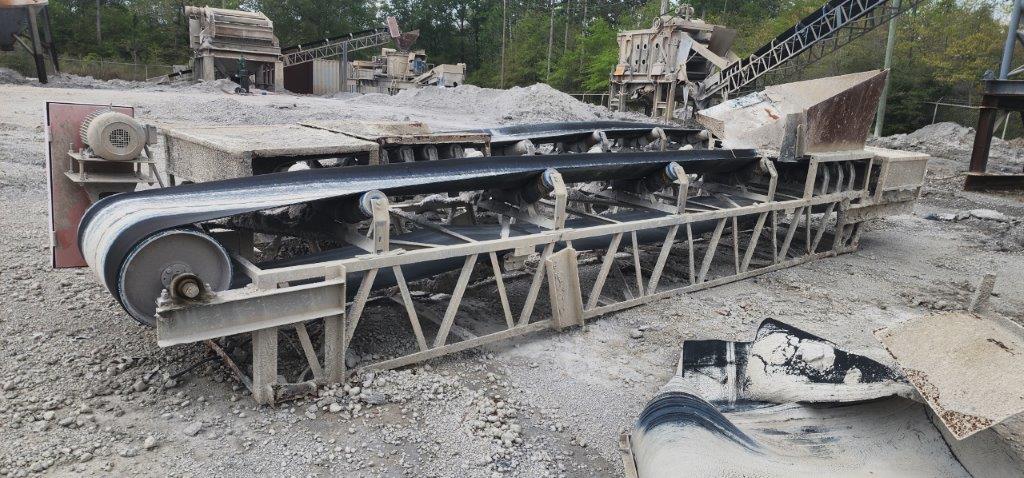

This super heavy duty truss frame 30” belt scale conveyor is nominally 46’ long. It includes a Systems Equipment belt scale and a gravity take-up with legs to grade. It is currently operating and appears to be in very good condition. It was removed from service 2/1/21 and is ready for load out

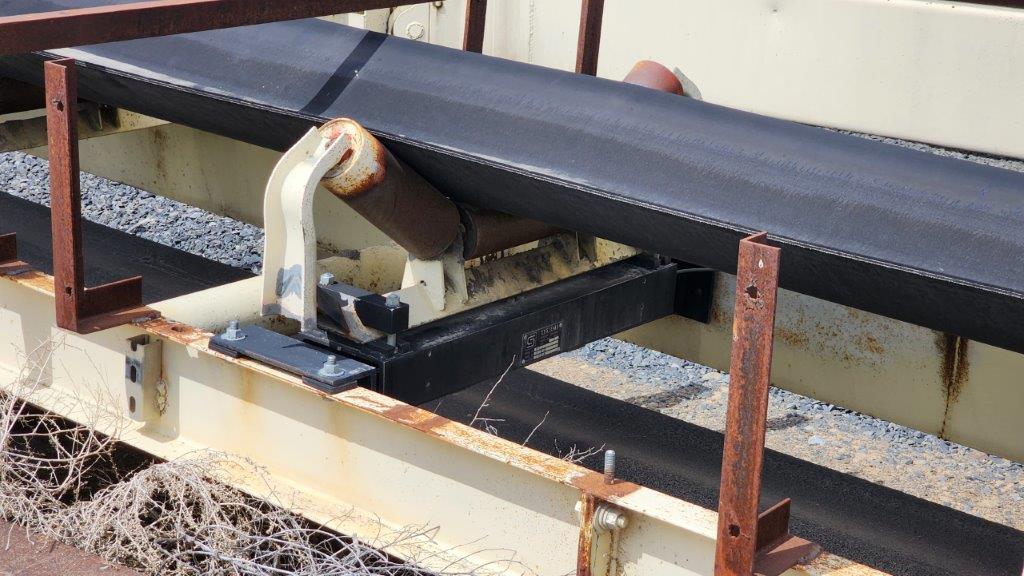

Systems equipment belt scale with gravity take up - very nice

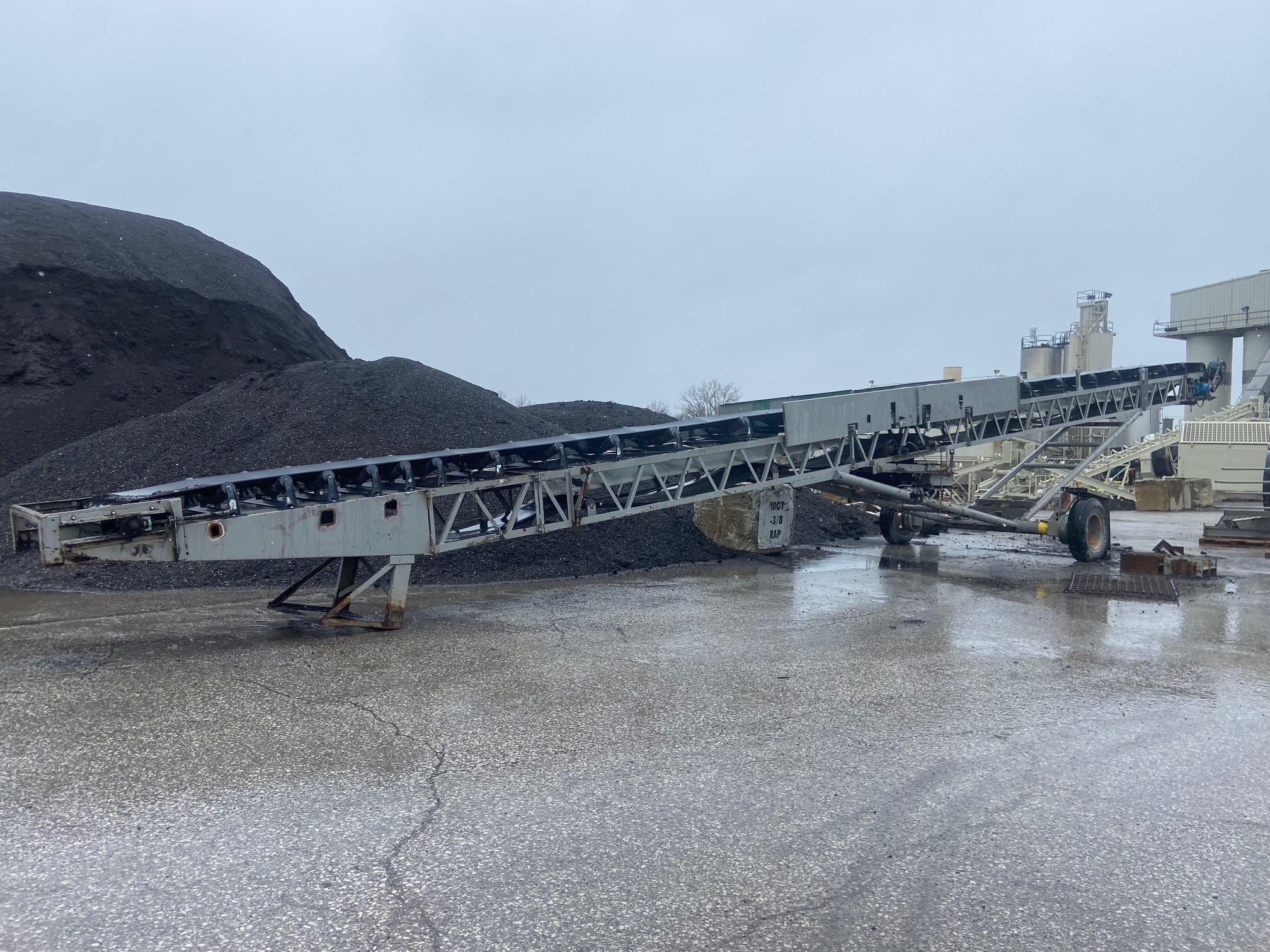

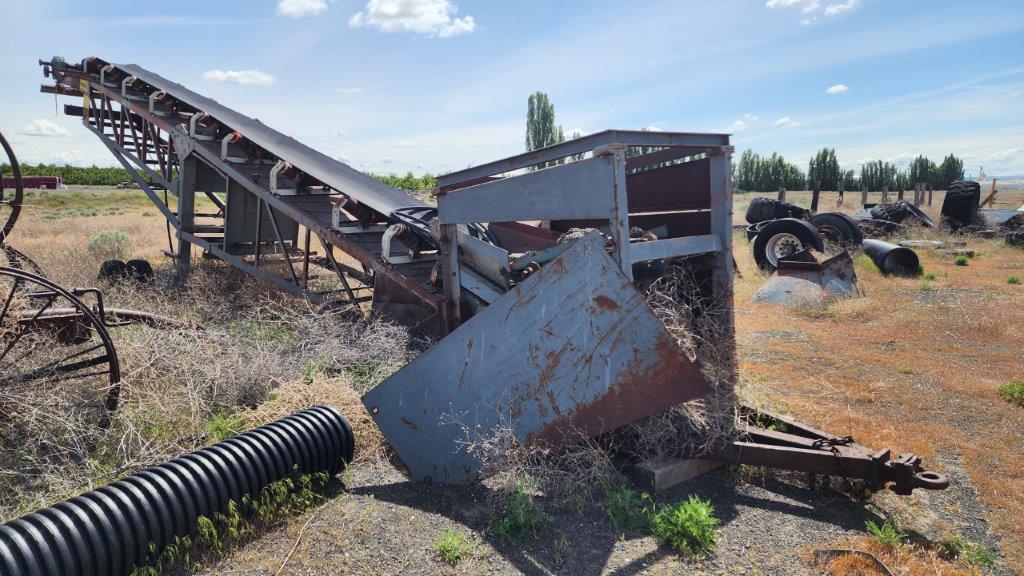

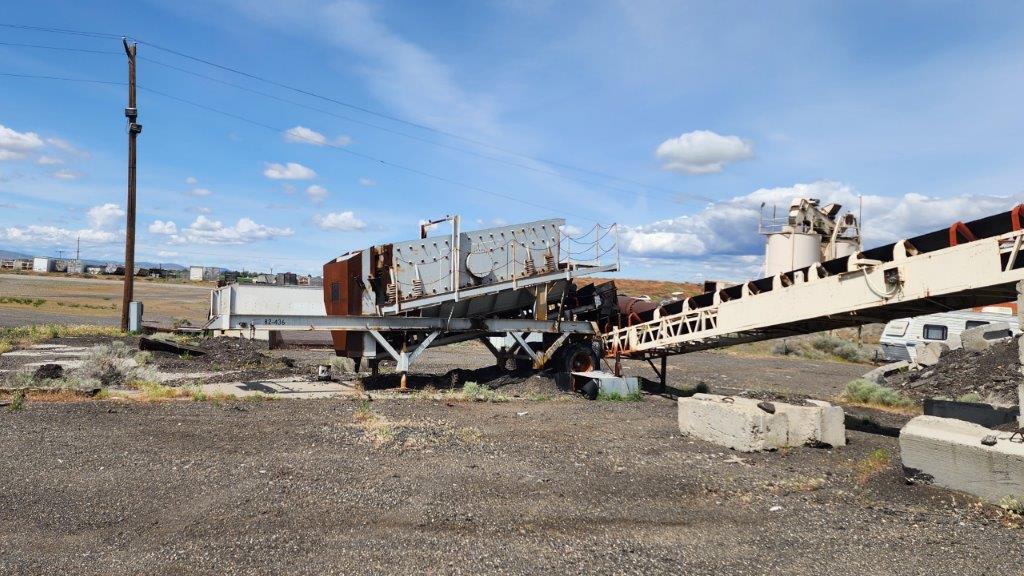

**Make:** Kolberg Conveyor (KPI-JCI "ASTEC")
**Size**: 36'' x 25'
**Portable (Pintle Hitch)**
* Tandem Axle
* Hydraulic Drive Package
* Lattice Conveyor with 36" Belt
* PPI Belt Cleaners
* 25' long Receiving Bulkhead Swing Platform with Counter Weights
* Has Books And Manuals On Board.
* Very Good Condition.
* Cost New was approx. $66,000.00.
Belt Scale Conveyor

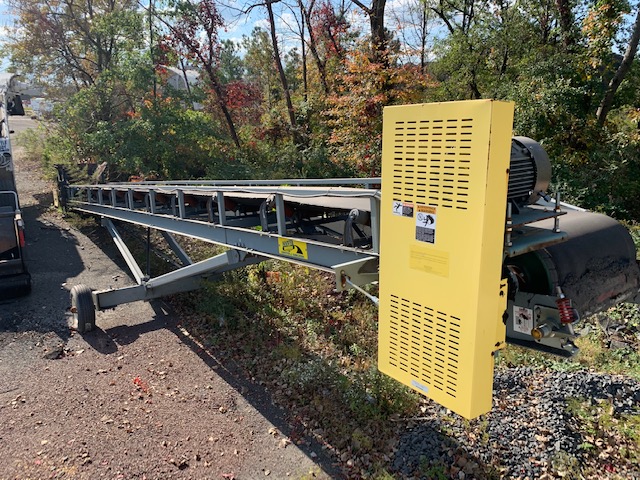

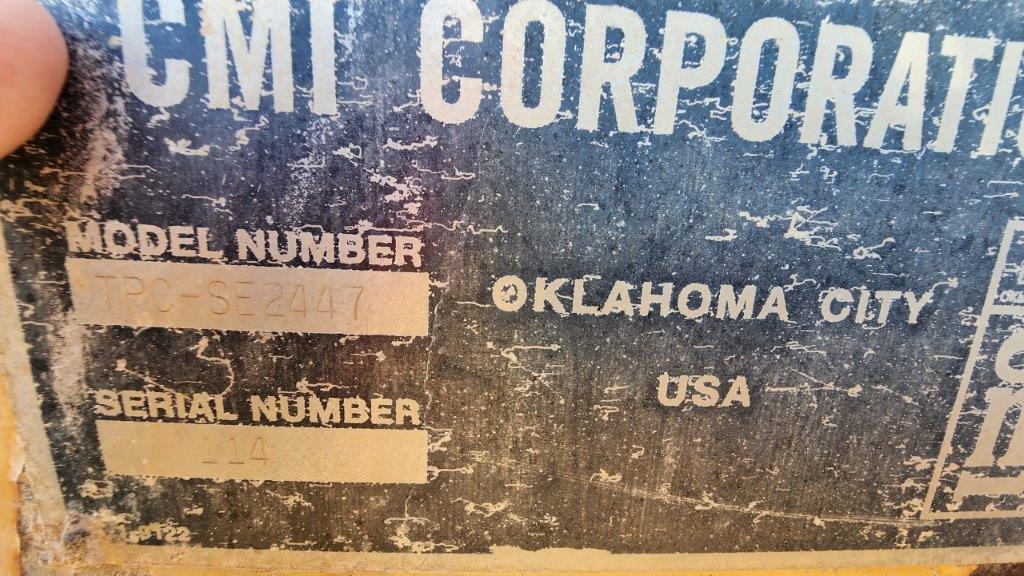

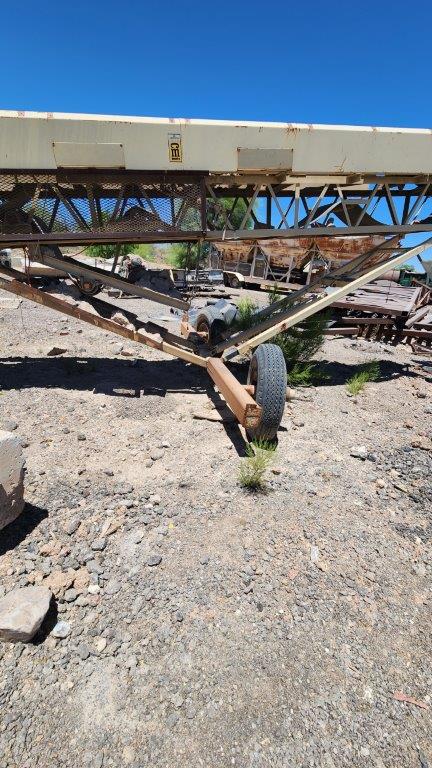

This is a CMI portable belt scale conveyor with a 24” wide belt.
It was designed as a heavy duty truss frame.
It uses a single axle transport system.
The unit is nominal 52’ shaft to shaft and 55’ overall.

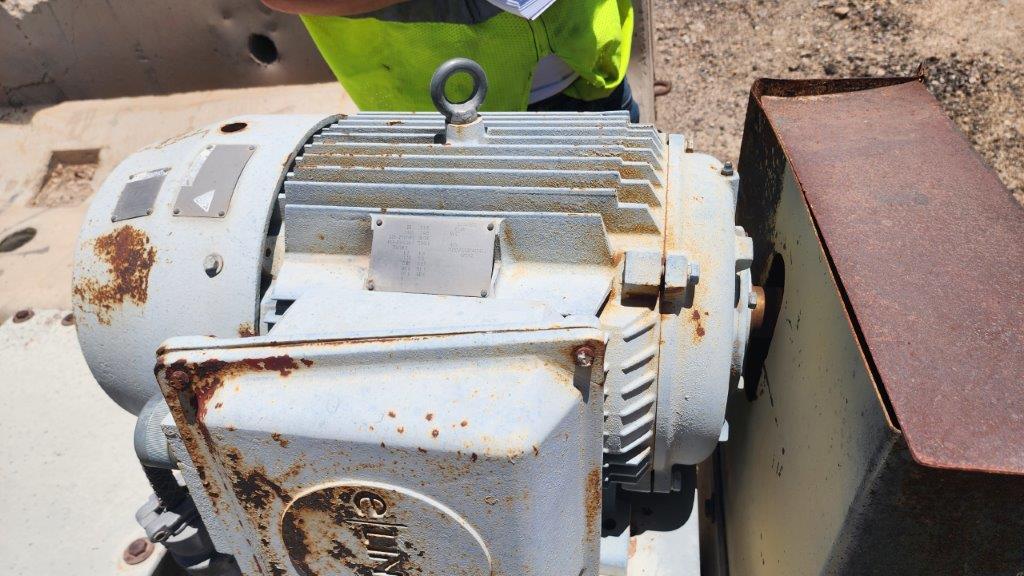

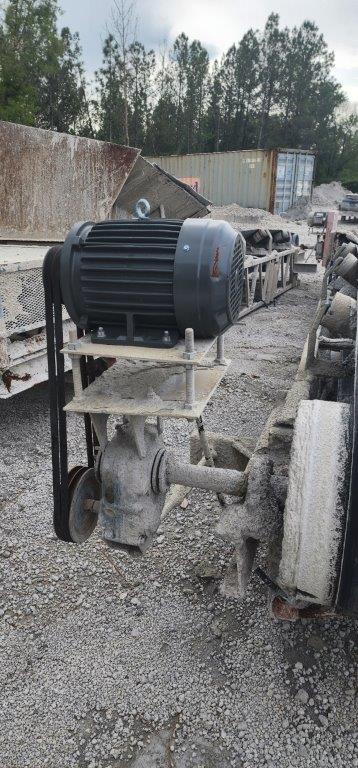

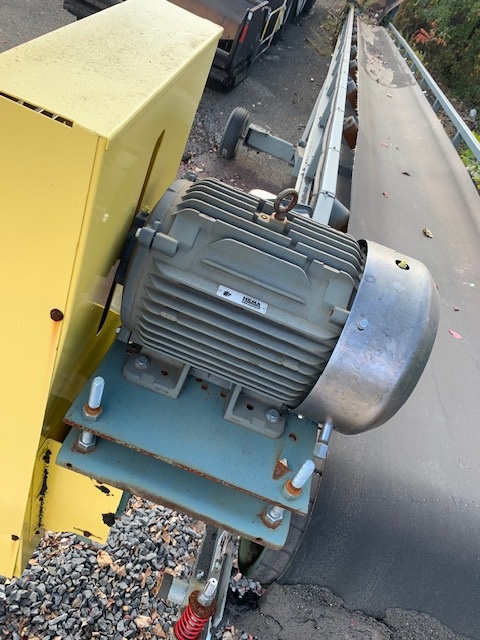

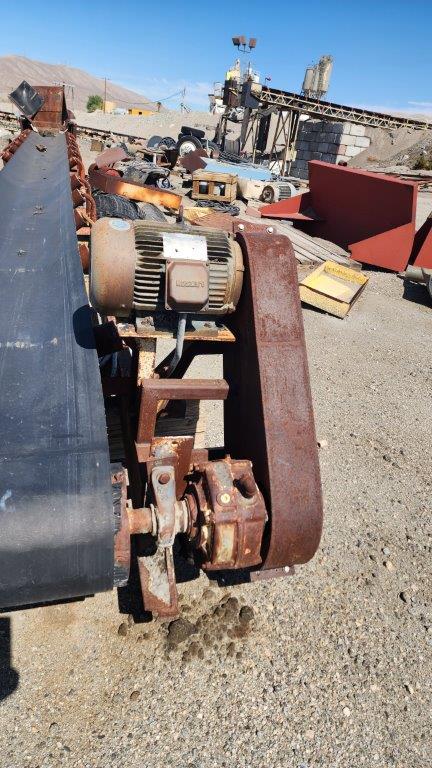

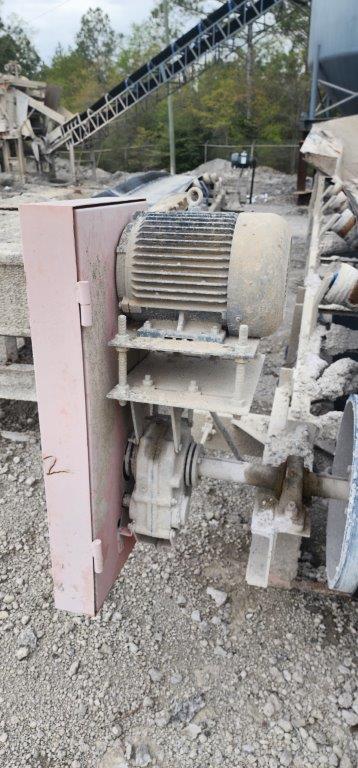

It uses a 10 hp motor with a Dodge TXT 5B gearbox.
There is a Ramsey belt scale and a gravity take up system mounted.
The unit was working when removed from operation.
It will require some TLC to bring it back up to standard.

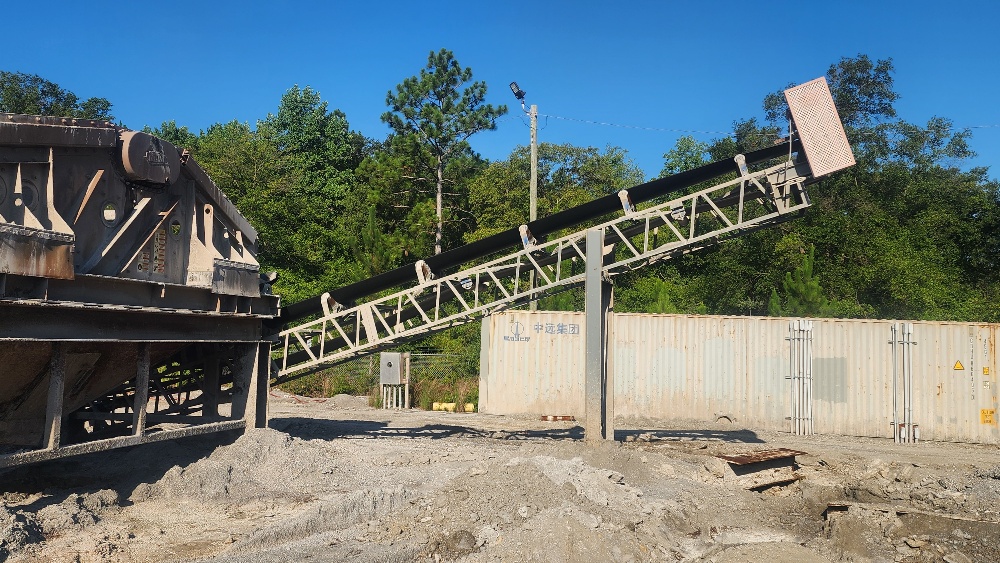

**Make**: Truss Frame Conveyer
**Size:** 30" x 130'
**Motor**: 20hp drive
* Legs to grade
* Safety guards
* Conveyer has been recently moved, is currently dissasembled
* Was transported on (1) load on a step deck
