Astec Control House:
10' x 40' Control House
Bi -Level With Controls in Upper Level and Starters Below
Square D Starters are in 4 Cabinets in the Lower Level

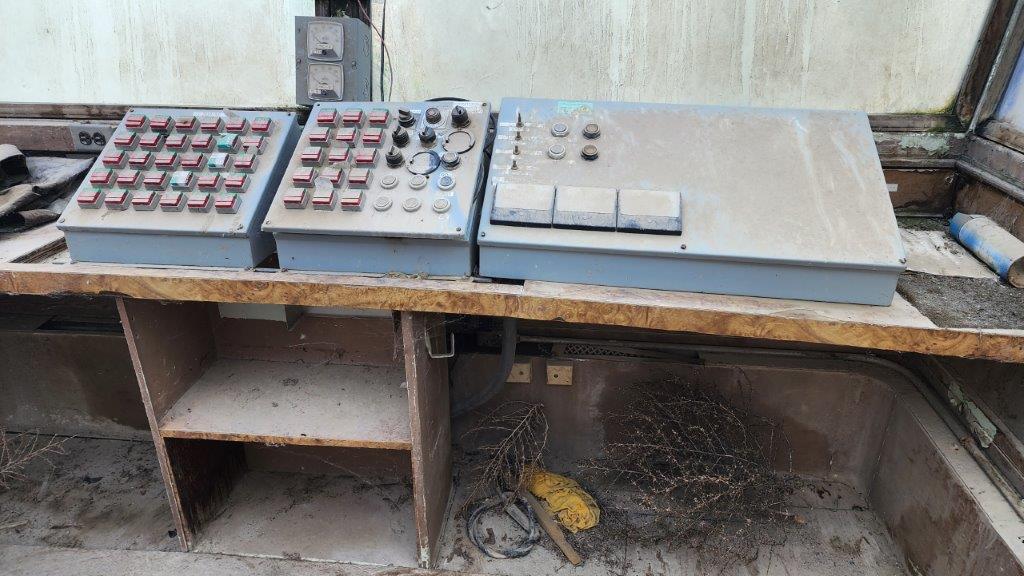

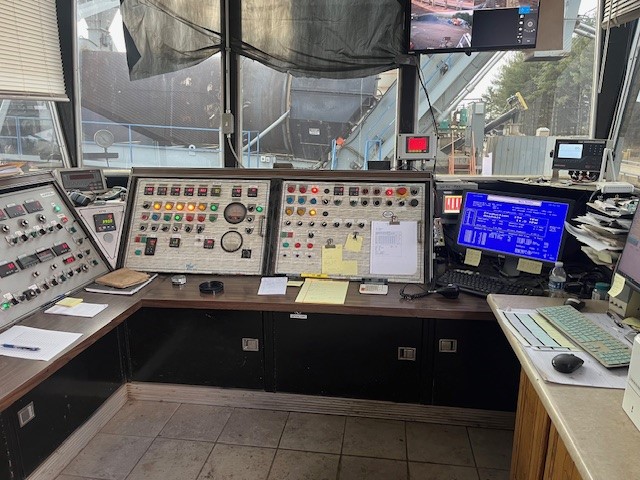

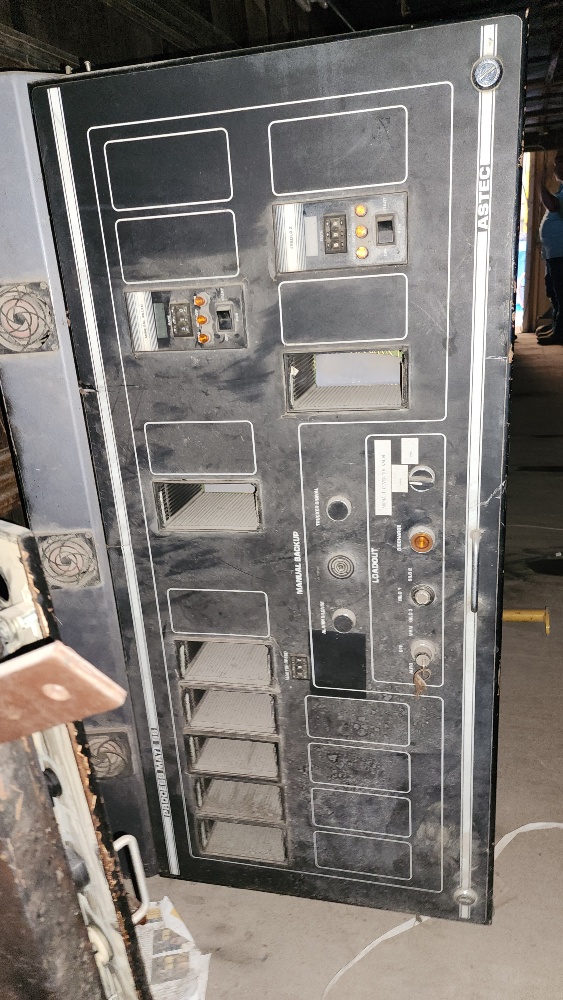

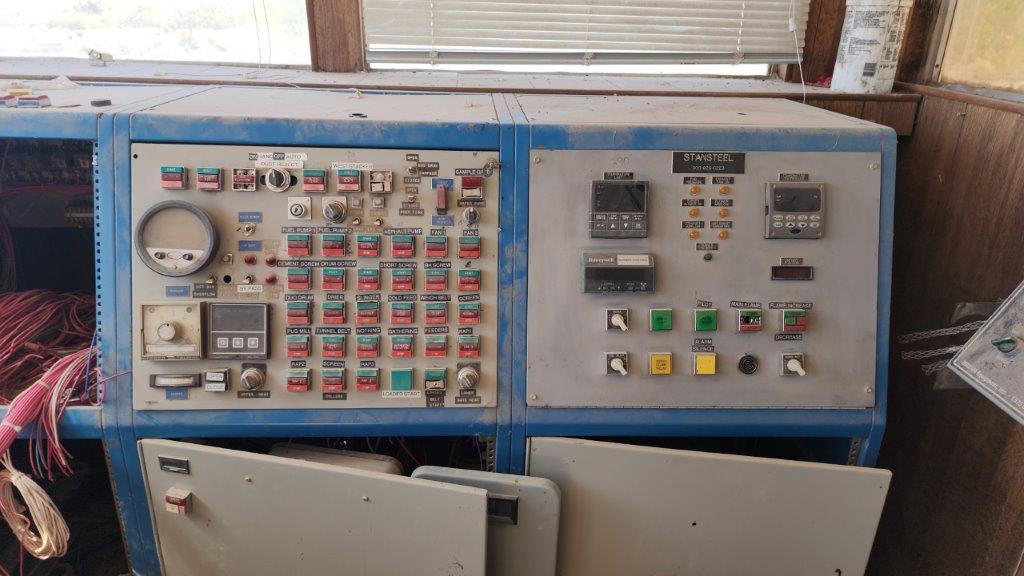

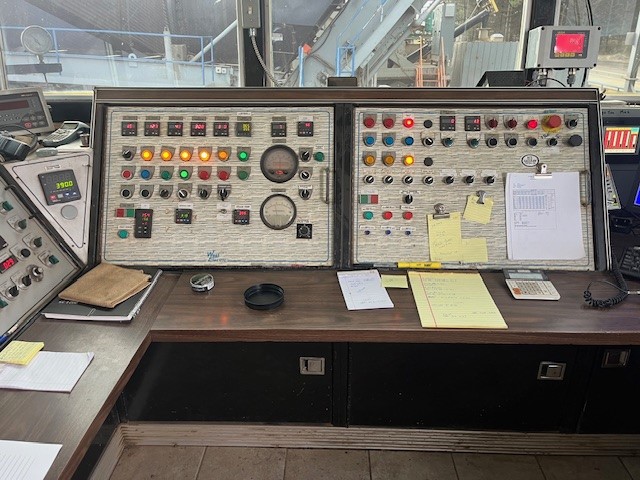

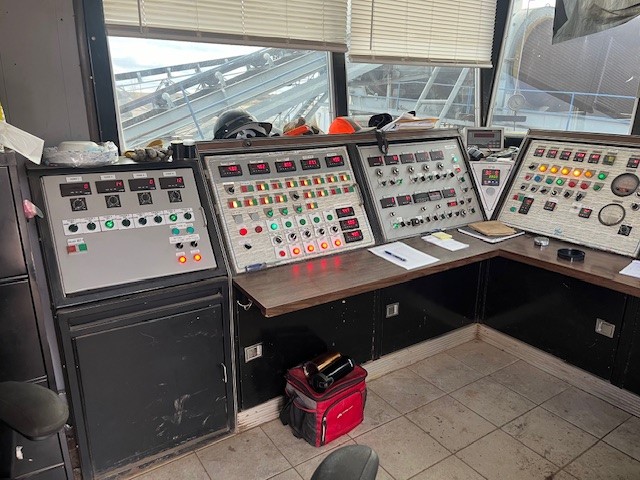

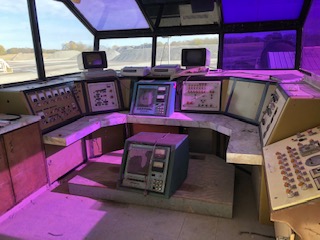

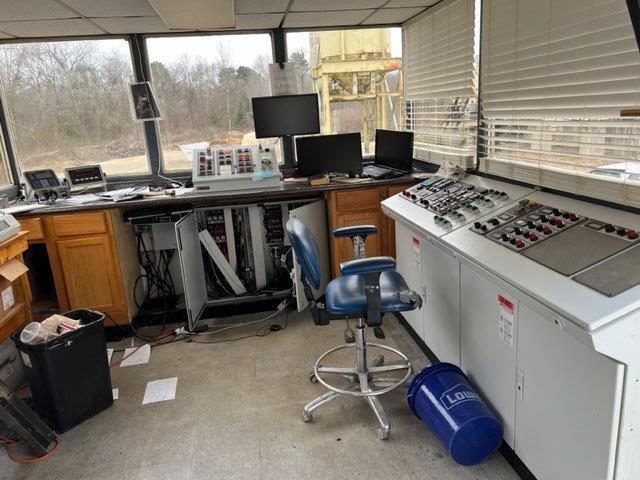

The Upper Control Area Has Push Button Panels (Drum Plant)
The plant was running EZ Blend Mixing and EZ Loader Plant Control
Systems (Removed for Safe Keeping)

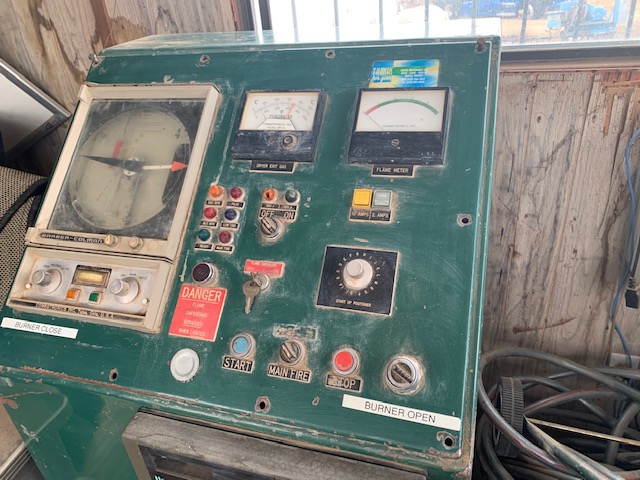

Updated Gencor 3D Burner Controls
There are 3 Heat and Air Units on the Control House
**Structure**:
* Unit has Tires and is Road Ready
* Was Running a 200tph Drum Plant
* Owner Purchased NEW Equipment to Replace
* The 15’ long x 8’ wide control house

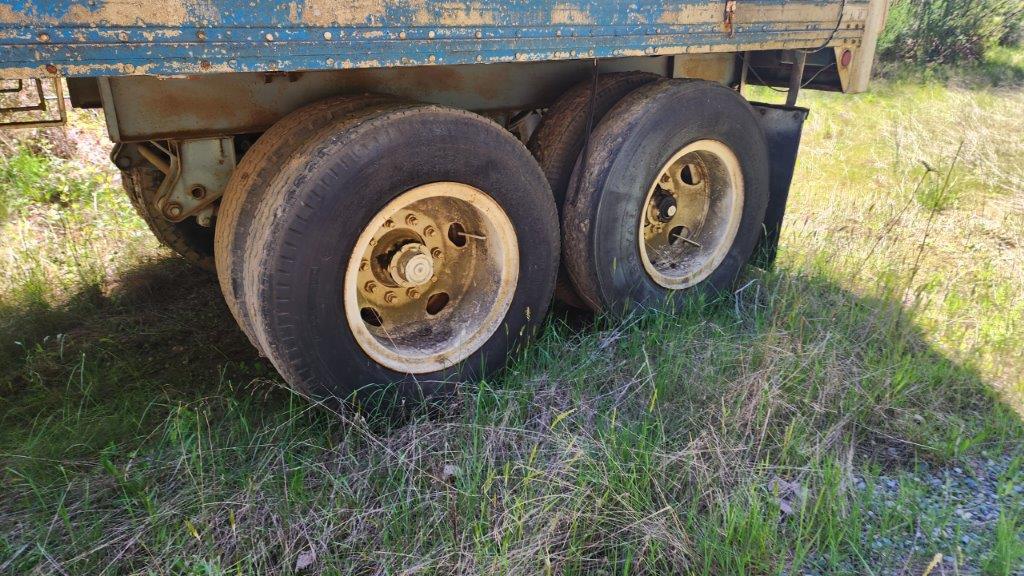

* Axles with new tires
* Ball hitch
* Windows on three sides at operator’s end
* Insulated new air conditioner provided upon purchase.
* All starters and breakers are located in the control house to keep away from elements.
* Ample fluorescent lighting provided with wall plug for operator convenience.

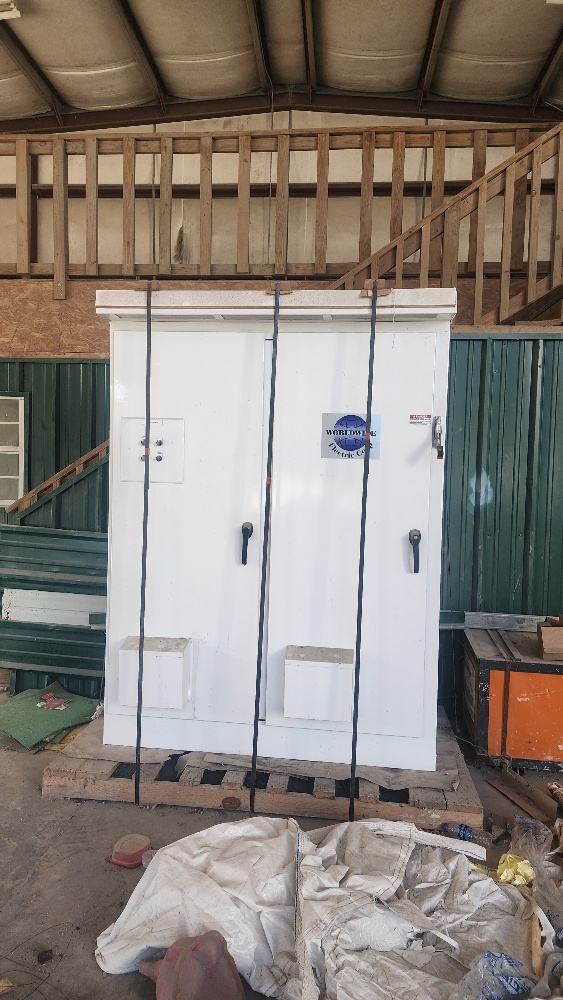

* There is an option to put the MCC panel mounted outside control house in a weather tite enclosure or to put MCC in a separate room.

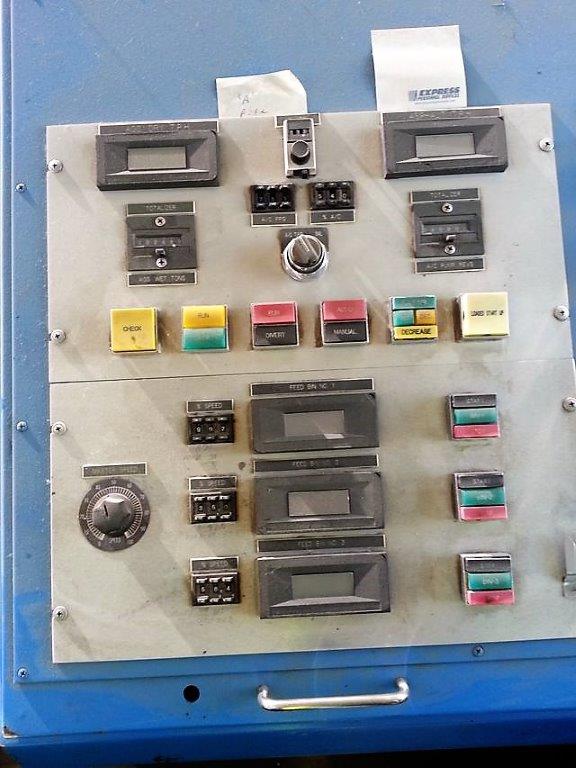

**EZ-BLEND CONTROLS**:
* NEMA RATED top quality Controls (circuit breakers, starters, overloads) have manual start-stop selector switches conveniently located in the proper start-up sequence and interlocked to insure safe operation. The burner controls, start-stop panel and silo load out panel are all conveniently grouped for central one-man operation. Cold feed bin controls allow for precise mix proportions. The Hauck burner controls have high temperature compensation, alarm controller for motor status, indicating lights, flame supervision with ultraviolet sensors, manual backup to computers, and damper control. EZ-Blend controls aggregate maximizer, conveyor belt scale controls, automatic weigh bridge included. Ton per Hour (TPH) of liquid asphalt and aggregate listed. Operator controls moisture compensation. Baghouse and damper controls included. Mix formulas stored. Better fuel efficiency and burner operation comes from the damper on the stack side of the exhaust fan remotely controlled via actuator in the control house. J-type thermocouple wire is provided for the mix, air temperature and liquid asphalt thermocouples for precise temperature indication. All controls and electronics mounted in NEMA rated enclosures.

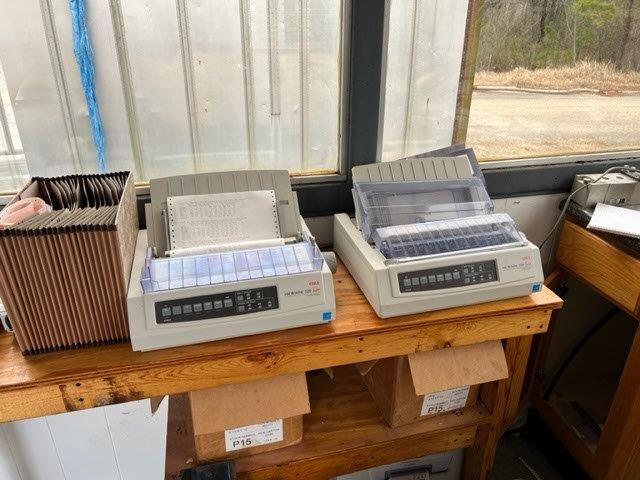

* Unit has a ticket printer and chute
**EZ-LOADER**:
* Silo Truck Loadout System meets all handbook 44 & NTEP requirements. The EZ-Loader is a customer and user friendly weighing of the hot mix software allowing for single screen loading of previously recorded customer names, jobs and trucks. The system stores your last 5,000 delivery tickets. For rapid display or reprinting. Customized management information summaries or 38 different formats for management reports. System is fully interchangeable with metric and USA standard weight units. This systems allows owner to maximize asphalt plant efficiency in sales efficiency of sold materials. Box of tickets, and printer included with installation.

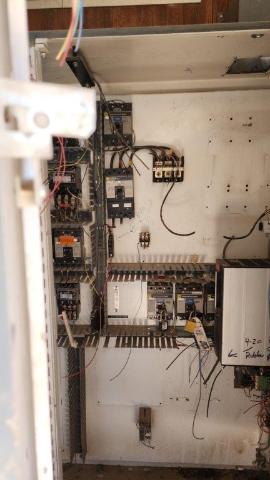

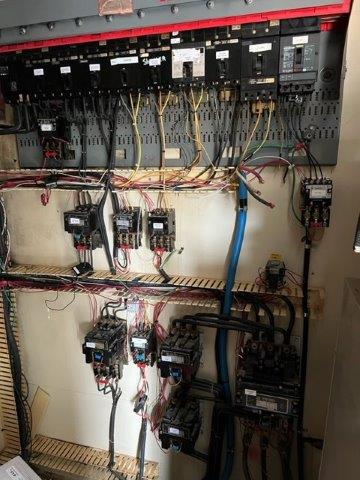

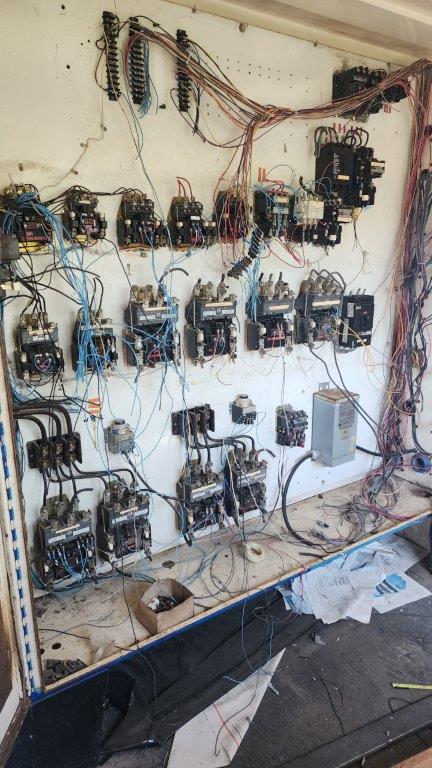

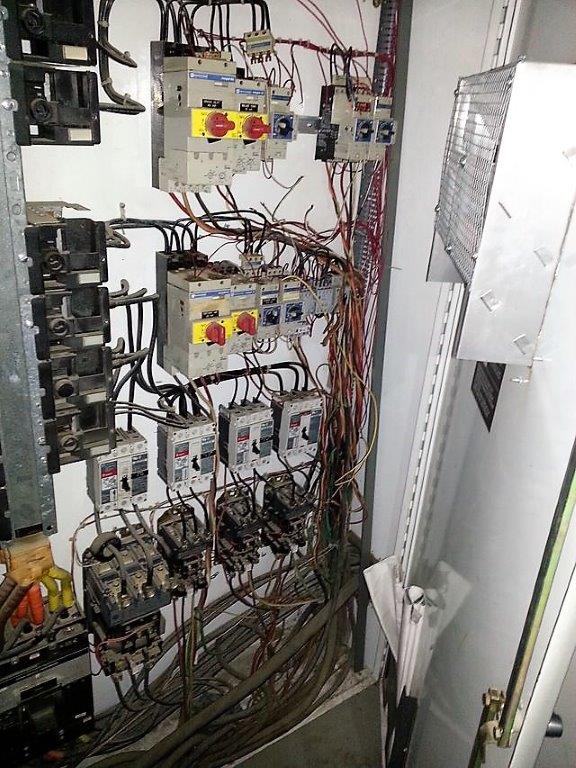

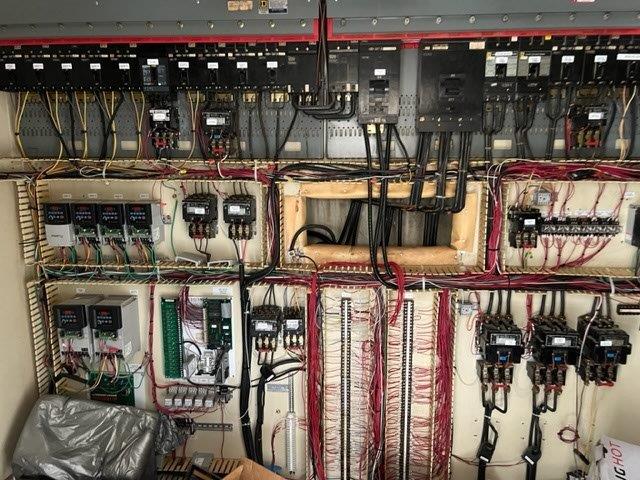

FYI- Heres what owner believes is in his CH . There is a mix of VFD (Variable Frequency Drive), Nema and IEC style starters in the enclosure. The range of starters is from 3 HP up to 200 HP. We have electricians (Master and Journeyman) on our staff and we can customize the electronics to fit your exact needs.
You can go with a one size larger starter for a motor (for instance a 200 HP starter for 150 HP motor)
1.5HP 2
2 HP 1
6 x 5HP VFDs (like a soft start but changes speed of motor for production)
3 x 5 HP regular starters (across line)
10 HP 4
15 HP 1
25 HP 4
40 HP 1
100 HP 2
200 HP 1
80 amp breaker 2

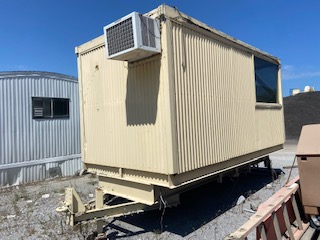

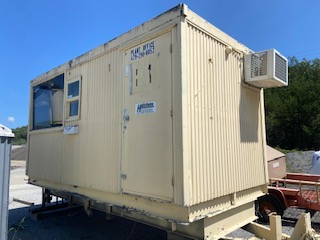

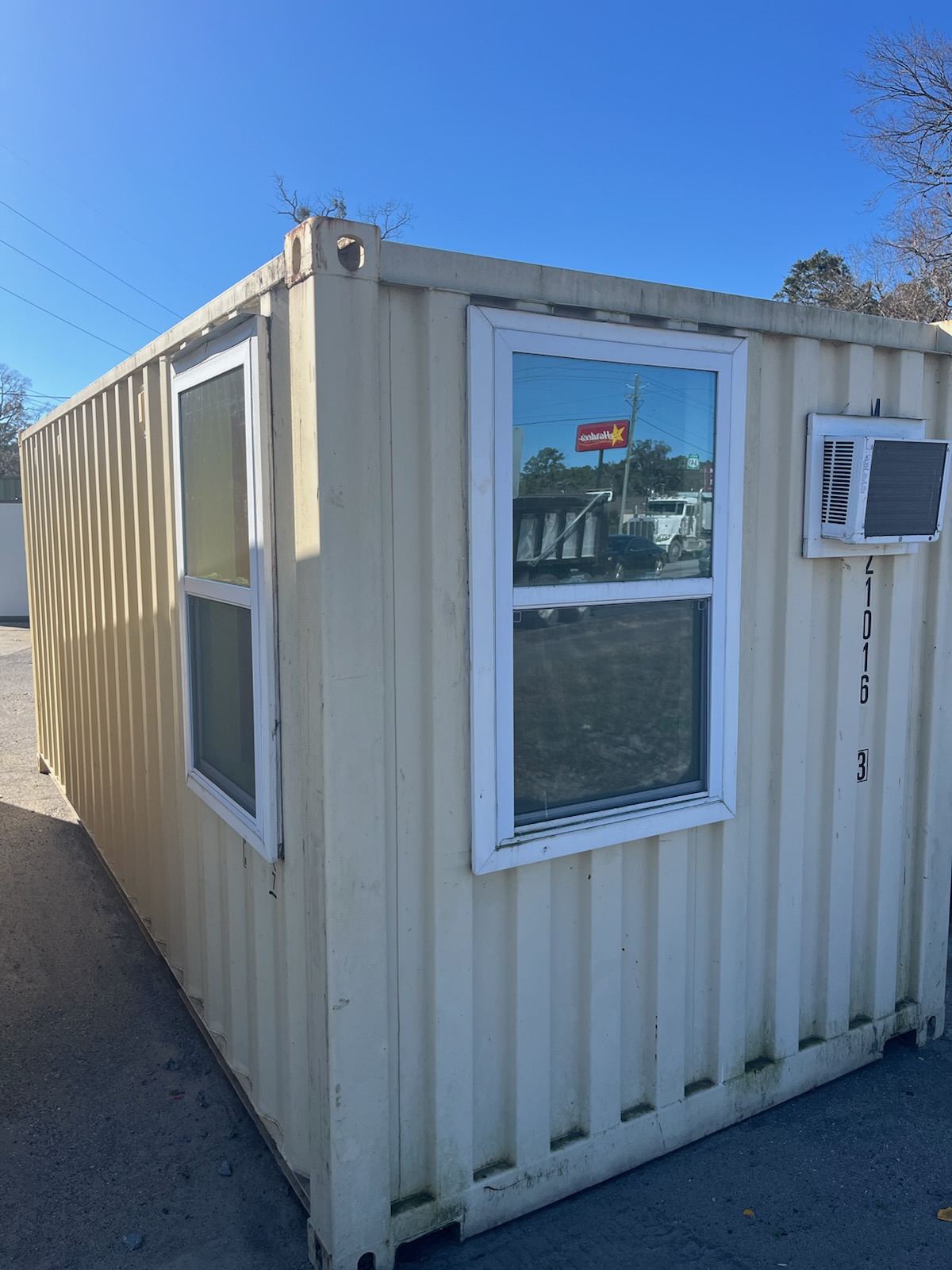

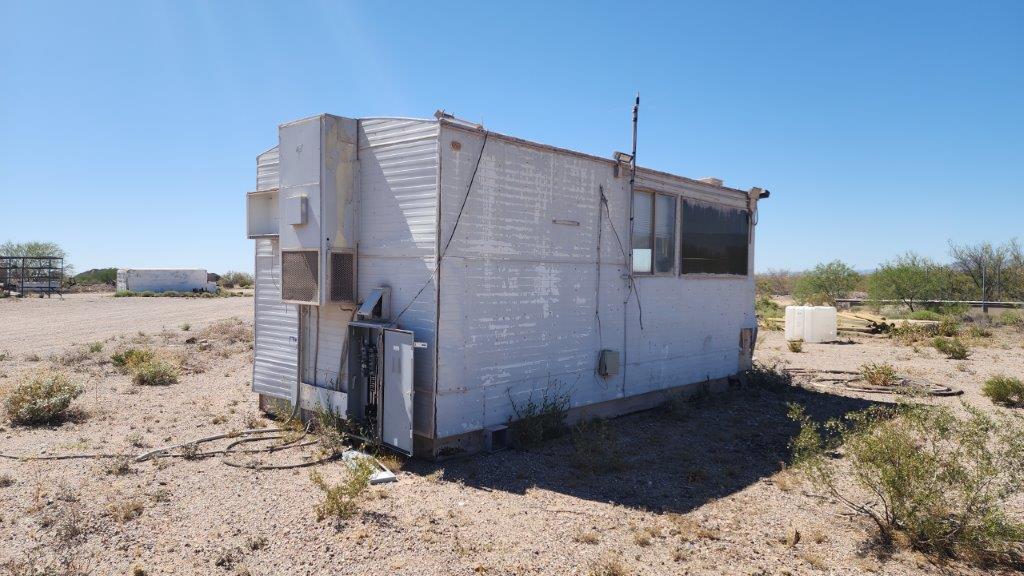

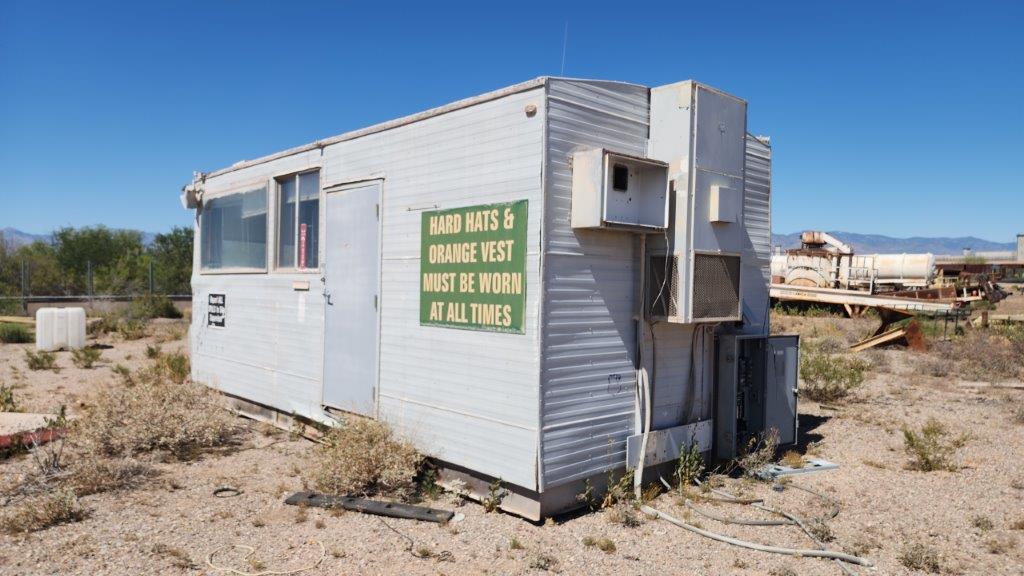

8' x 20 Control House (Elevated Roof), Window Air, Single Axle with Pentel Hitch, Manual Controls, Gencor Burner Controls, Baghouse Controls, Cold Feed Controls, COMPUTERS ?, No Starters with Miscl Wire. The House has Broken Windows and is 280 Degree

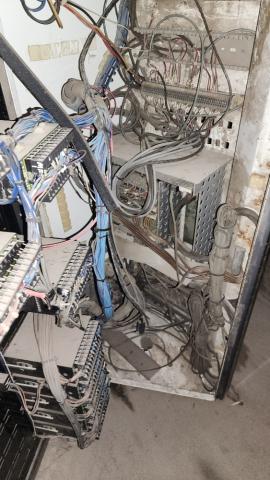

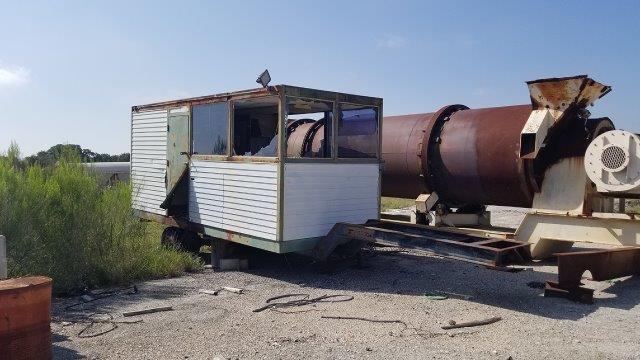

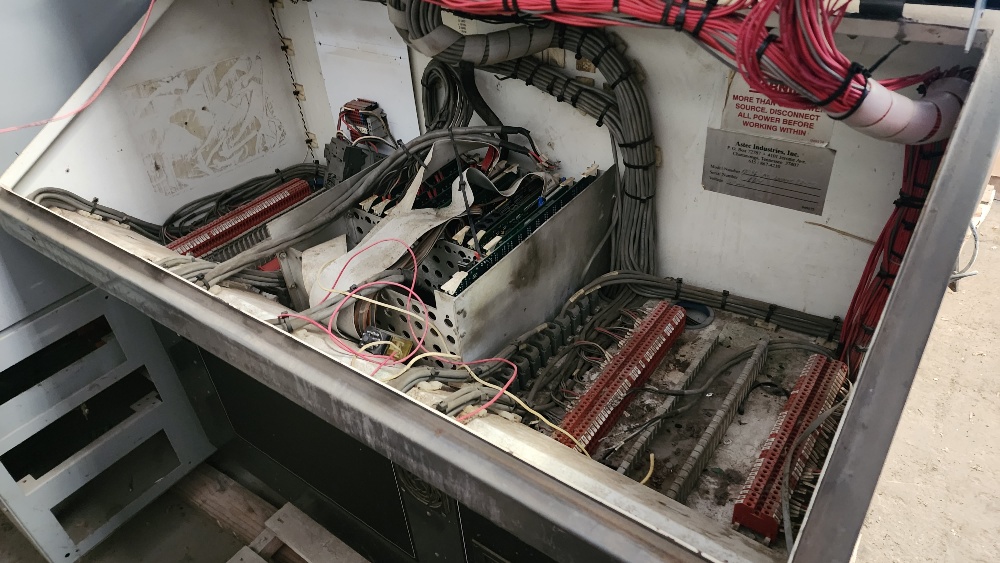

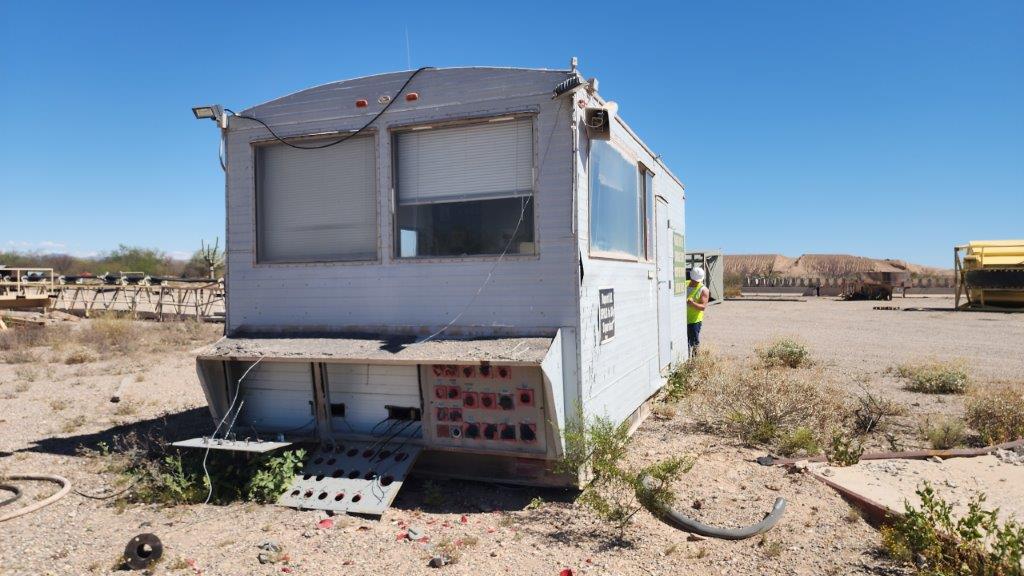

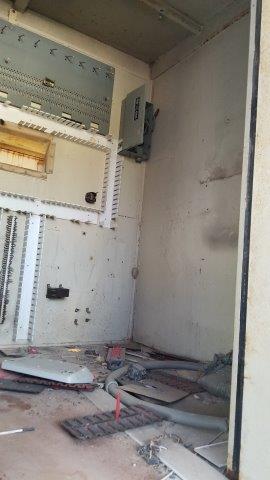

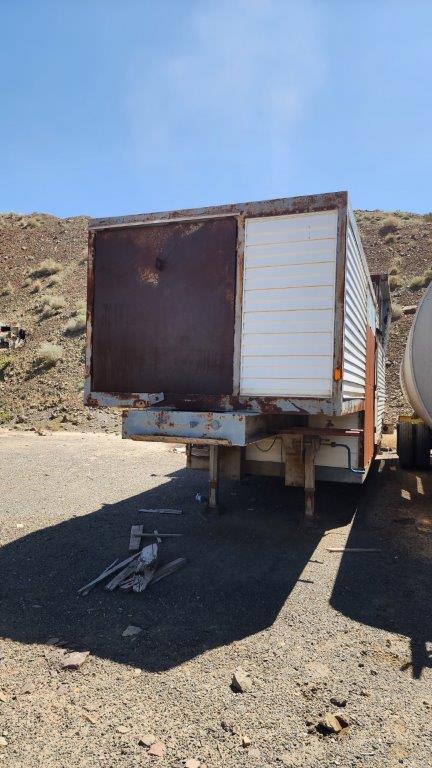

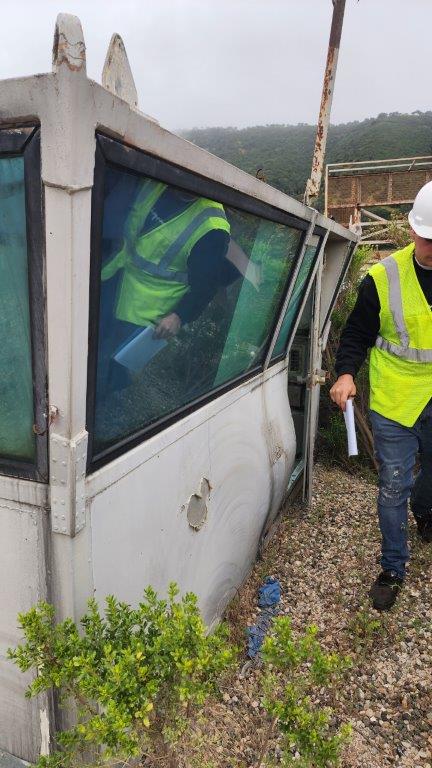

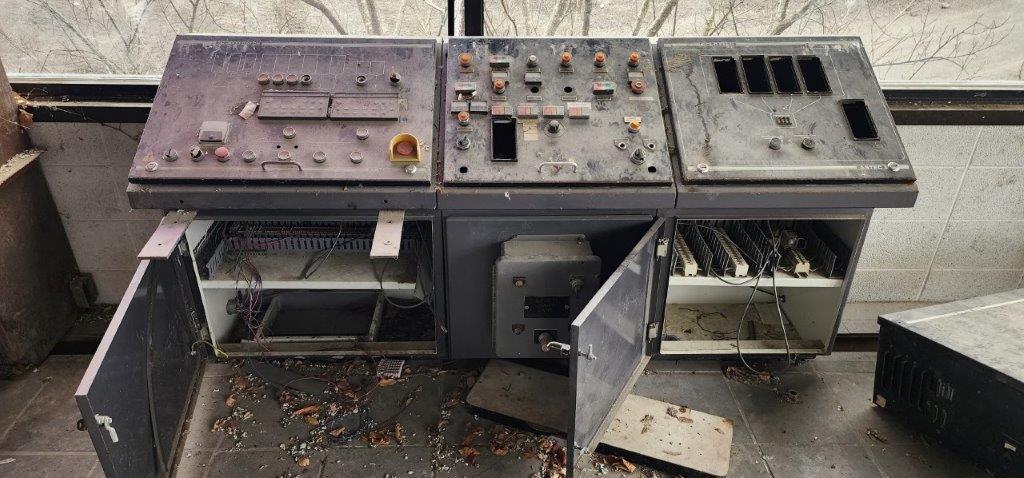

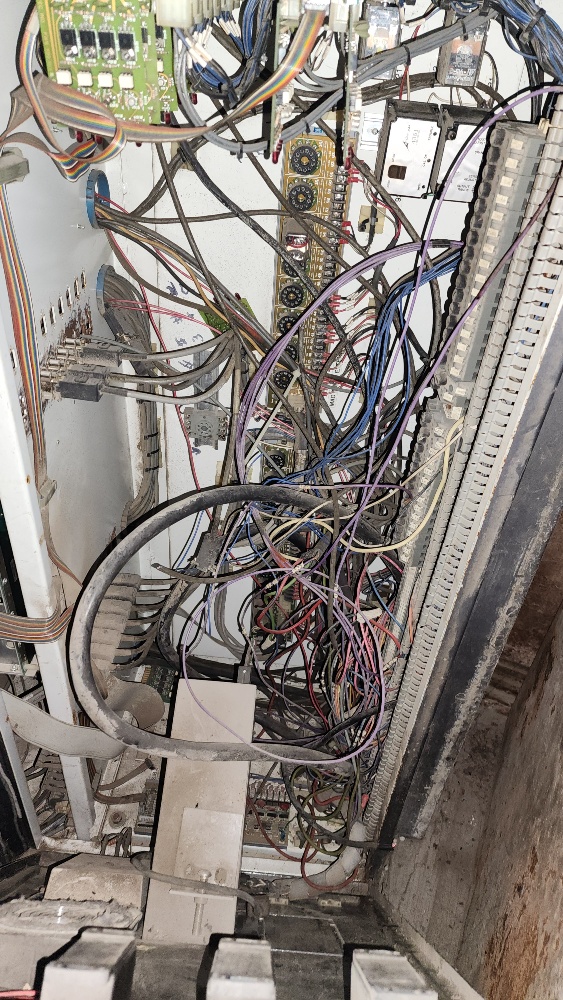

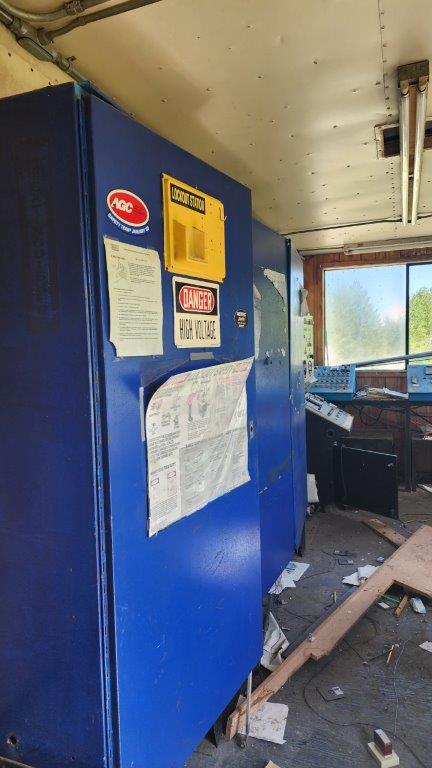

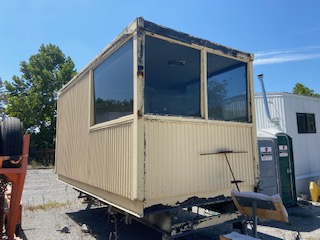

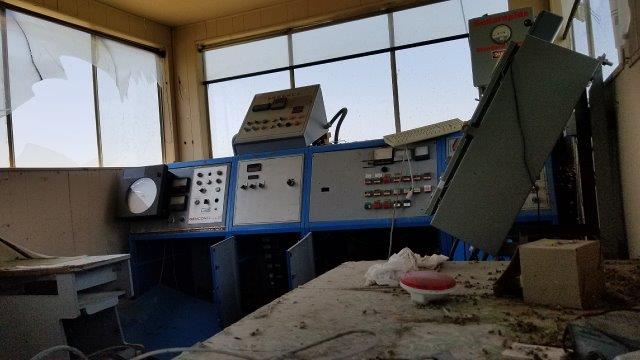

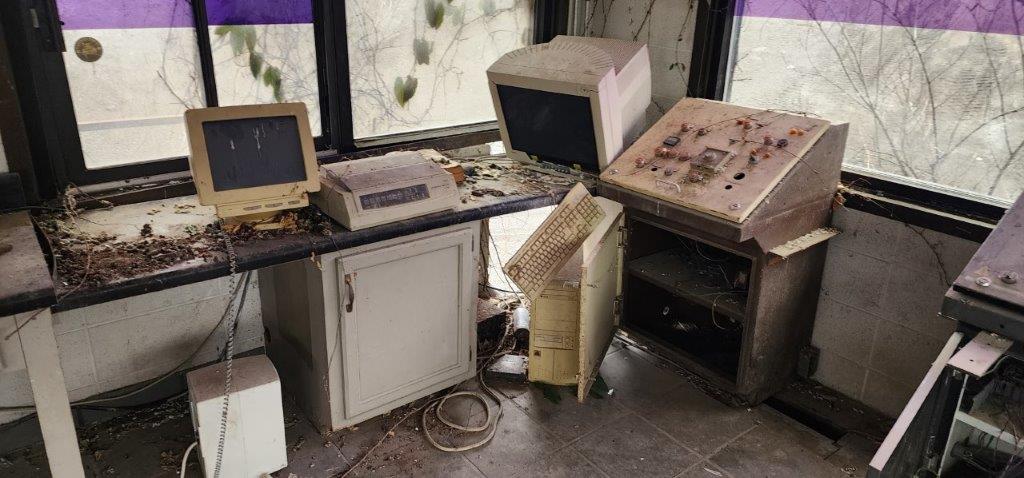

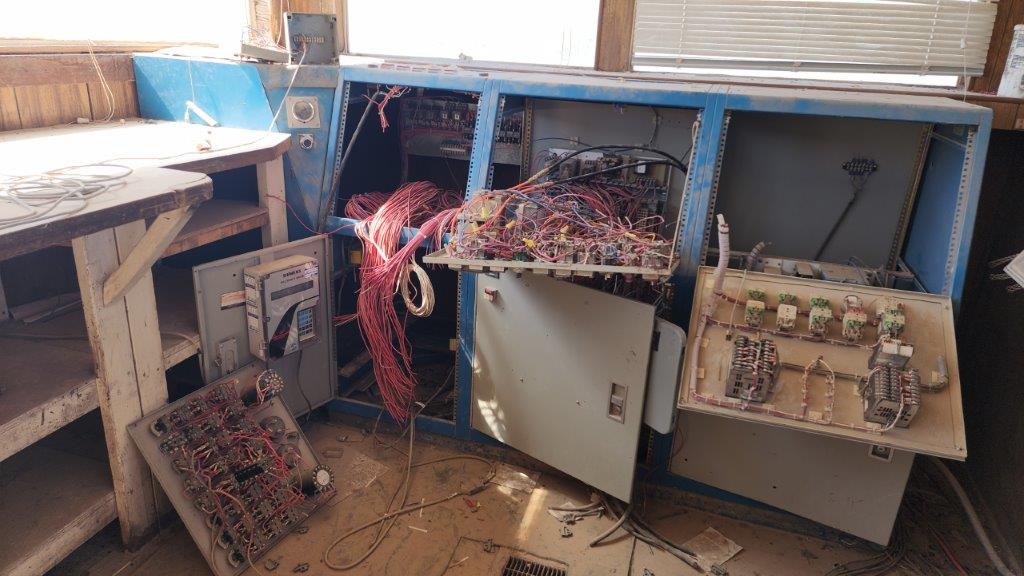

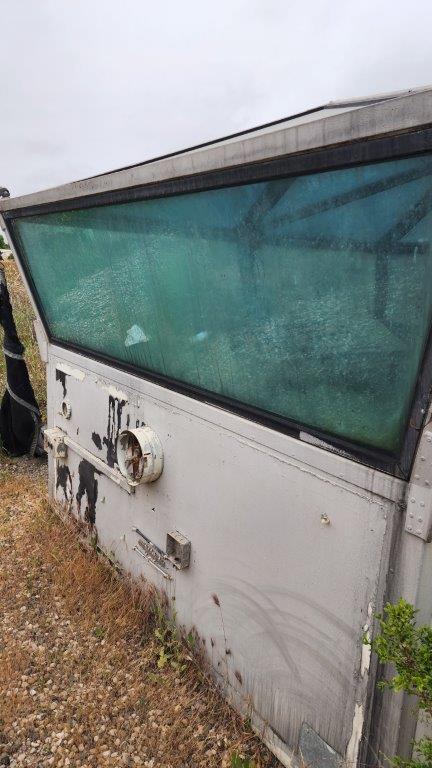

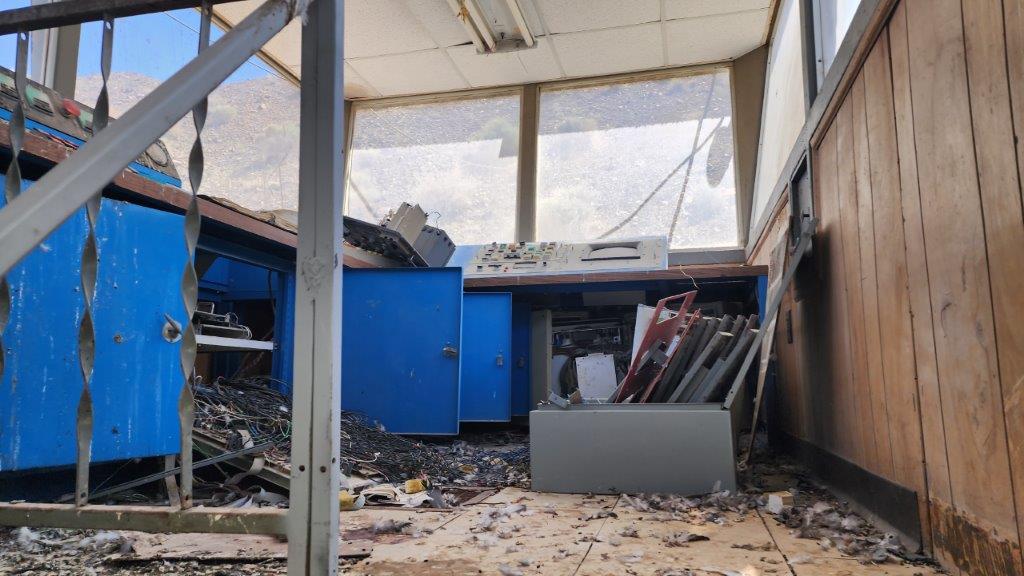

Portable Control House (Destroyed Window's Broken Out Controls Trashed)
Good Portable Frame Single Axle, Steel Frame

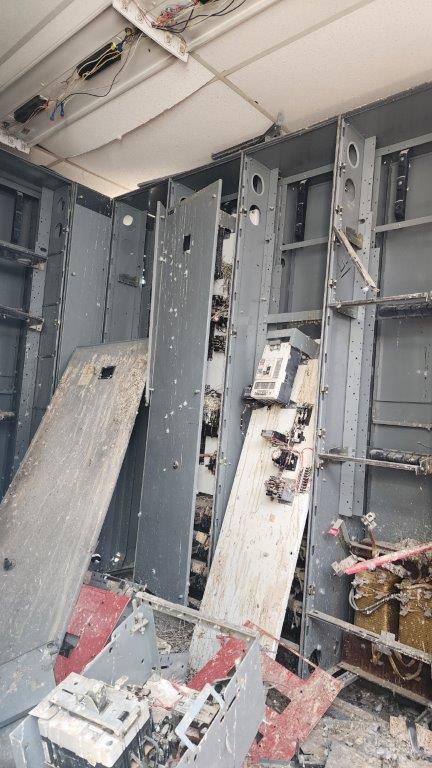

VERY VANDALIZED, DECENT SHELL WITH SOME WORK. BRING OFFERS
**Includes**:
* EZ Blend drum control
* EZ loader system (previously used on stationary silo drive thru with 4 silos)

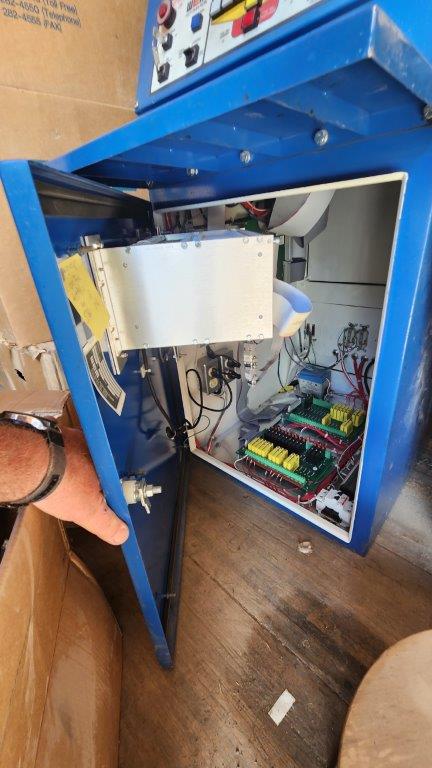

* Manual start stop station with Hauck BCS3000 imbedded in the cabinet

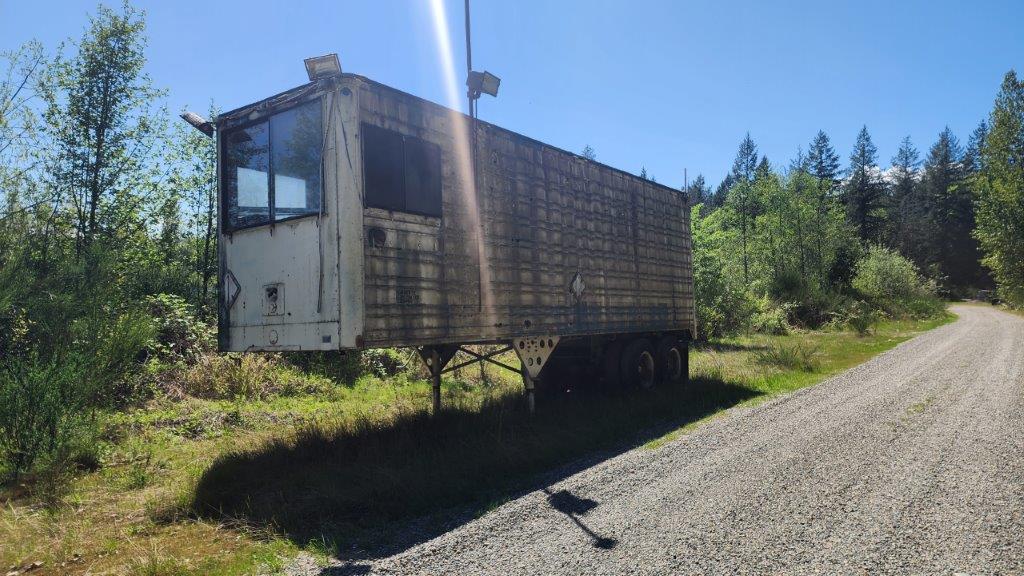

**Size**: 8' x 40'
**Portable**
**Structure**:
* The control house is in good condition.

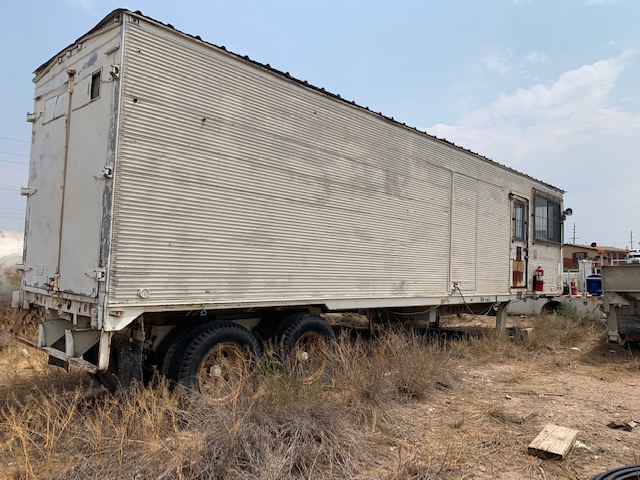

* Box van trailer with 280 degree windows.
* Control House was on a 150tph Drum Plant
* The control house contains most of all the original books for the plant.
* Windows

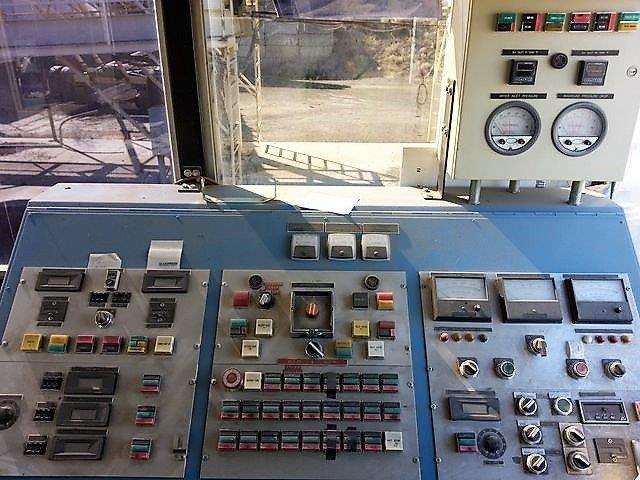

**Controls**:
* Auto Burner Controls

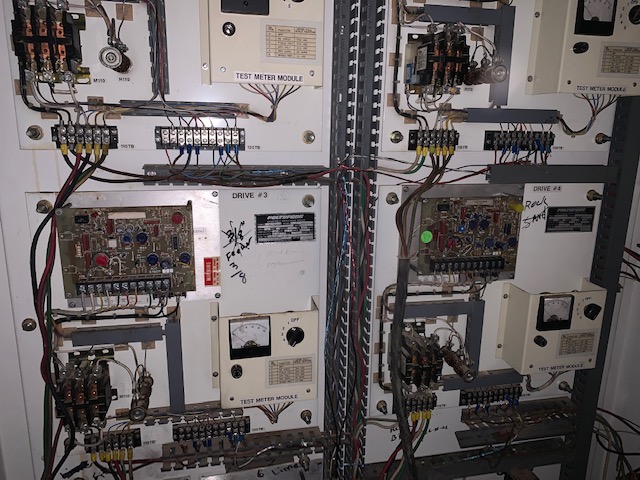

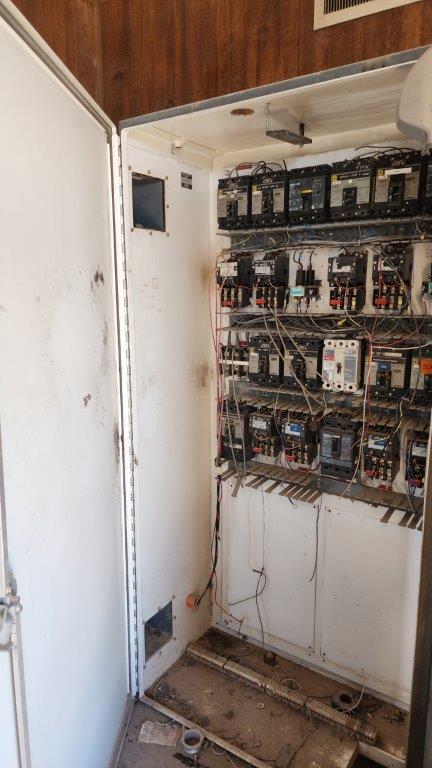

* Motor Starters (Soft Start on the Scrubber Fan)
* Easy Blend Computer Controls
* Above Ground Wire
* The controls are complete with a later model set of computer controls.
* The motor starters are original to the plant but in good functional condition
**Make**: Gencor
**Mode**l: SL-300
**Control Info**:
* Gencor Computer Batching Controls

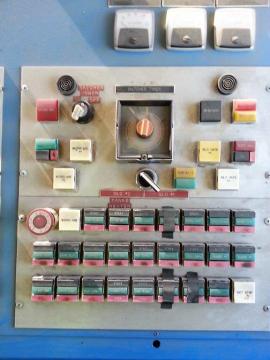

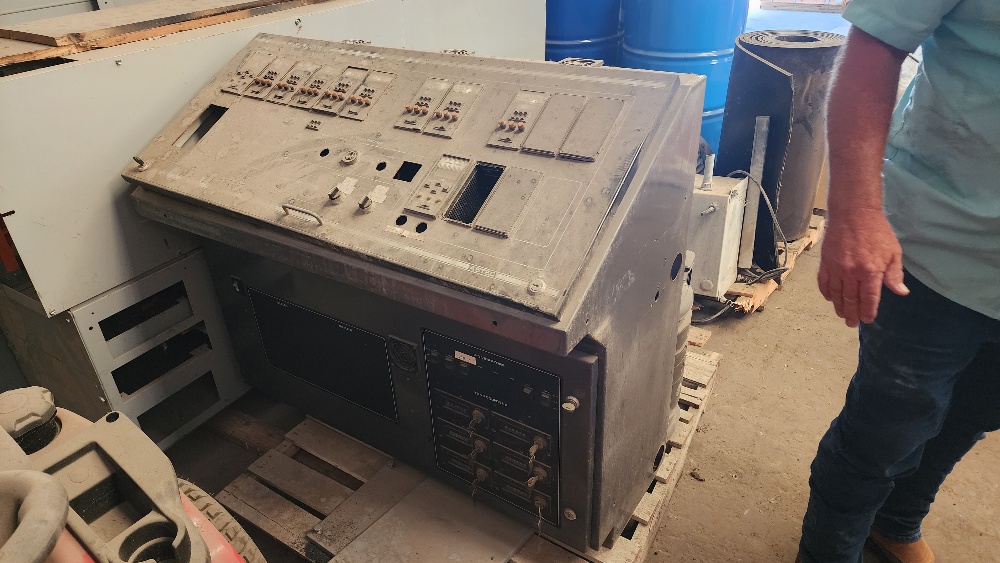

* Model SL-300 (In Cabinet) Gencor Manual Batching controls
* Model SP-100 (In Cabinet) Full Manual Controls To operate "UP TO"
* 5 Agg Bins Hot Bins
* Mineral Filler
* Recycle
* 2 A.C.
* 4 Cold Feed
* Up to 3 Asphalt Storage Silo's
* Up To 2 Transfer Slats
* One Main Slat
* Tower Flop Chute

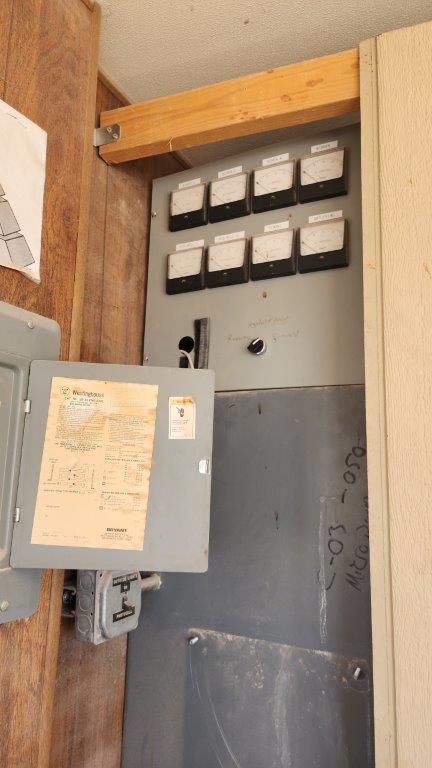

* AMP Meters
* Gencor Gen III Burner Controls
* Monitors and printers
* M.C. Starters to run Motors
* No baghouse starter/brakers included
* ANY AND ALL MANUALS
* All equipment disconnected and stored

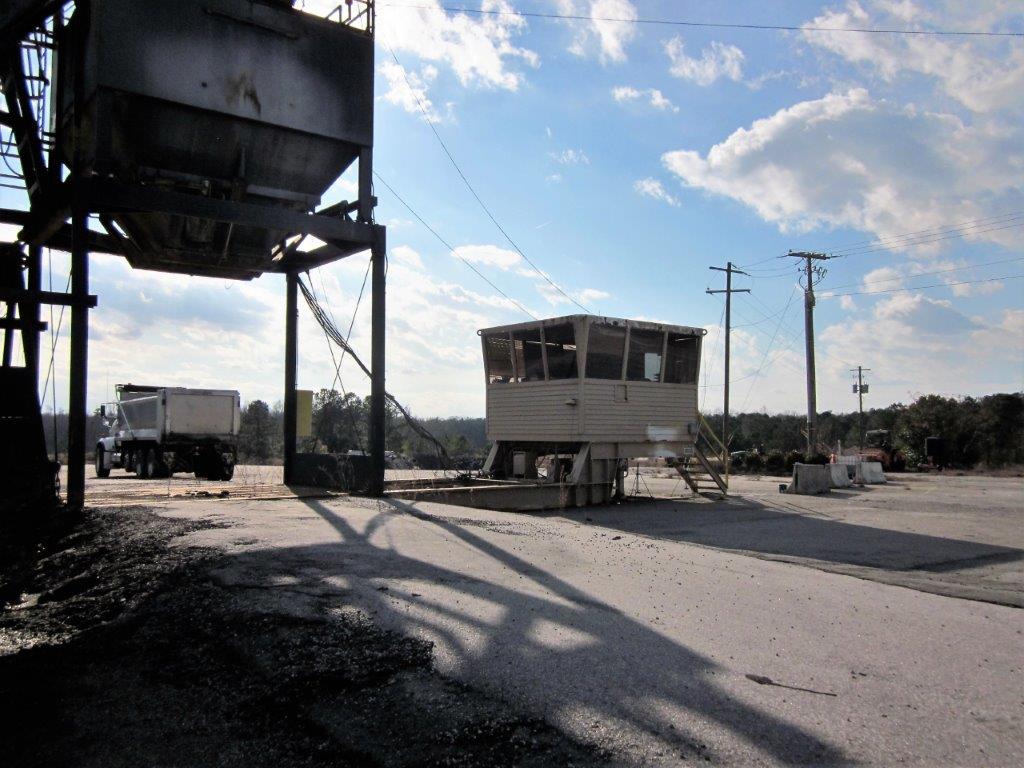

**Size**: 8' x 20'
**Stationary
280 Degree View**
**Structure**:
* Air and Heat Unit
* This plant was set up to 400 TPH CMI plant with 400 tph Slat, 70,000 ACFM Baghouse, 3 Cold Feed, 1 Rap Feeder, 2 A.C. Tanks
* M.C. Center
**Controls**:
* Aesco Madsen Control System
* Burner Controls
* 3 Cold feed Bin Controls
* 1 Rap Bin
* 2 Silo Load Out
* A.C. Controls

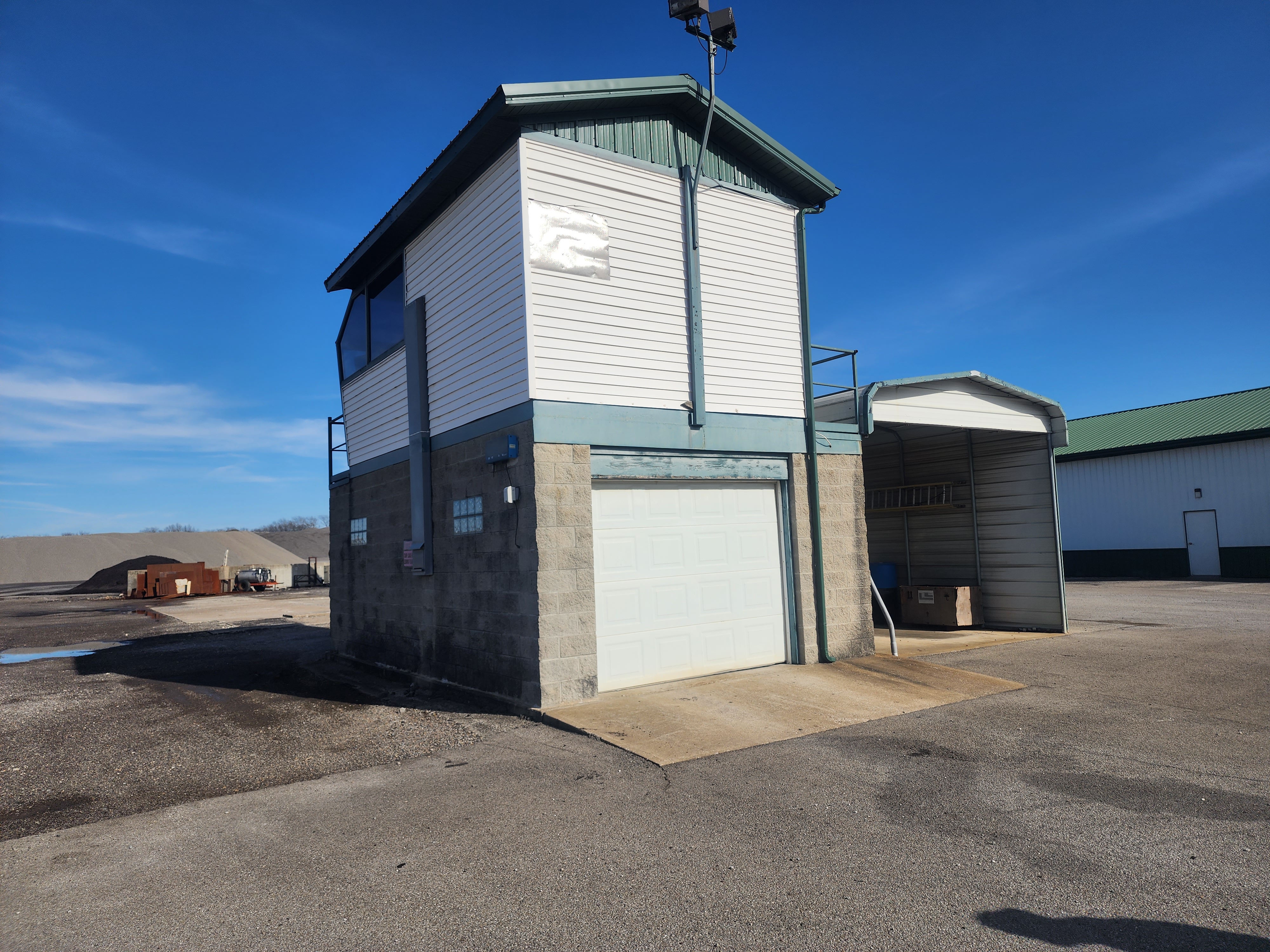

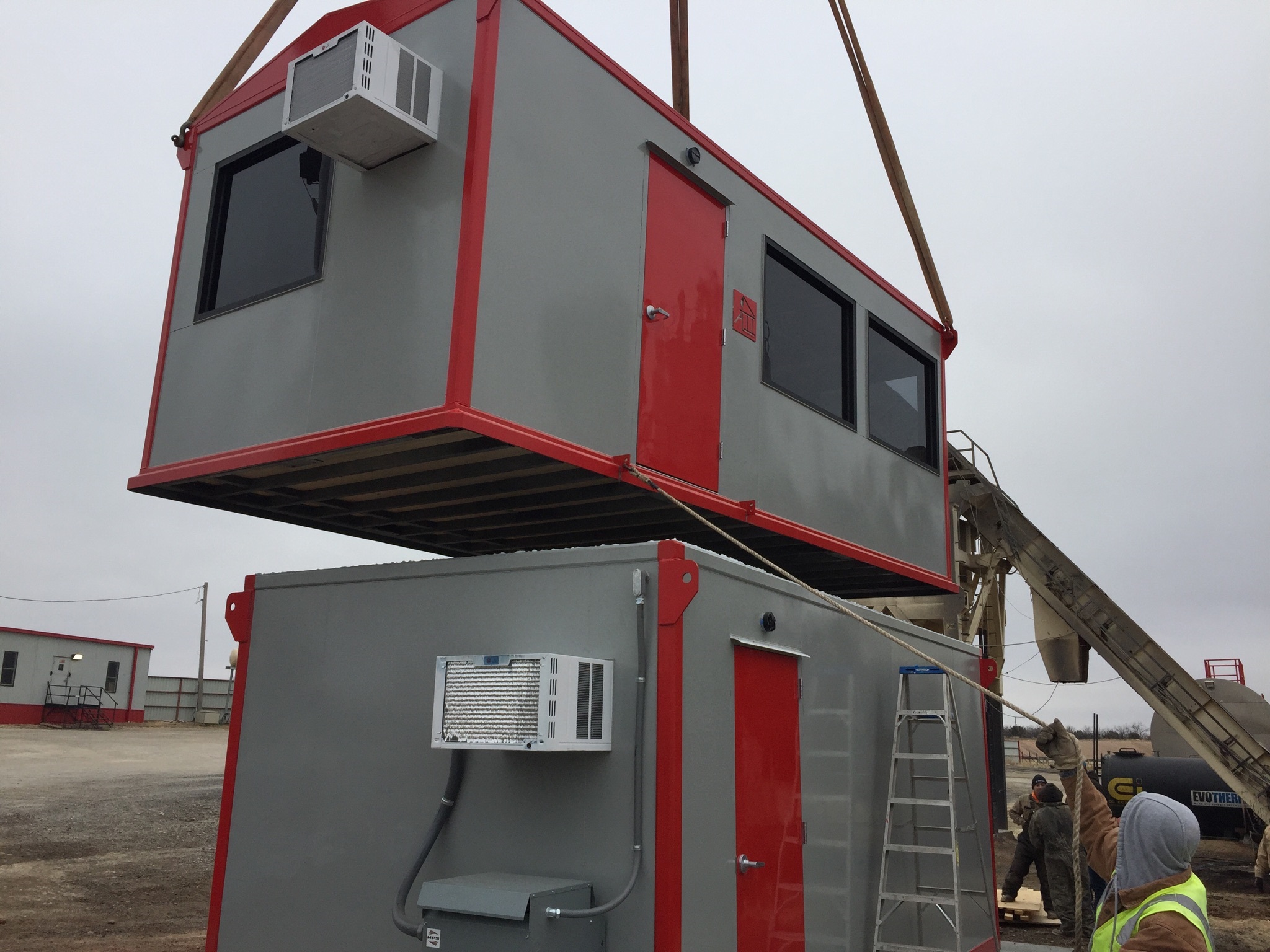

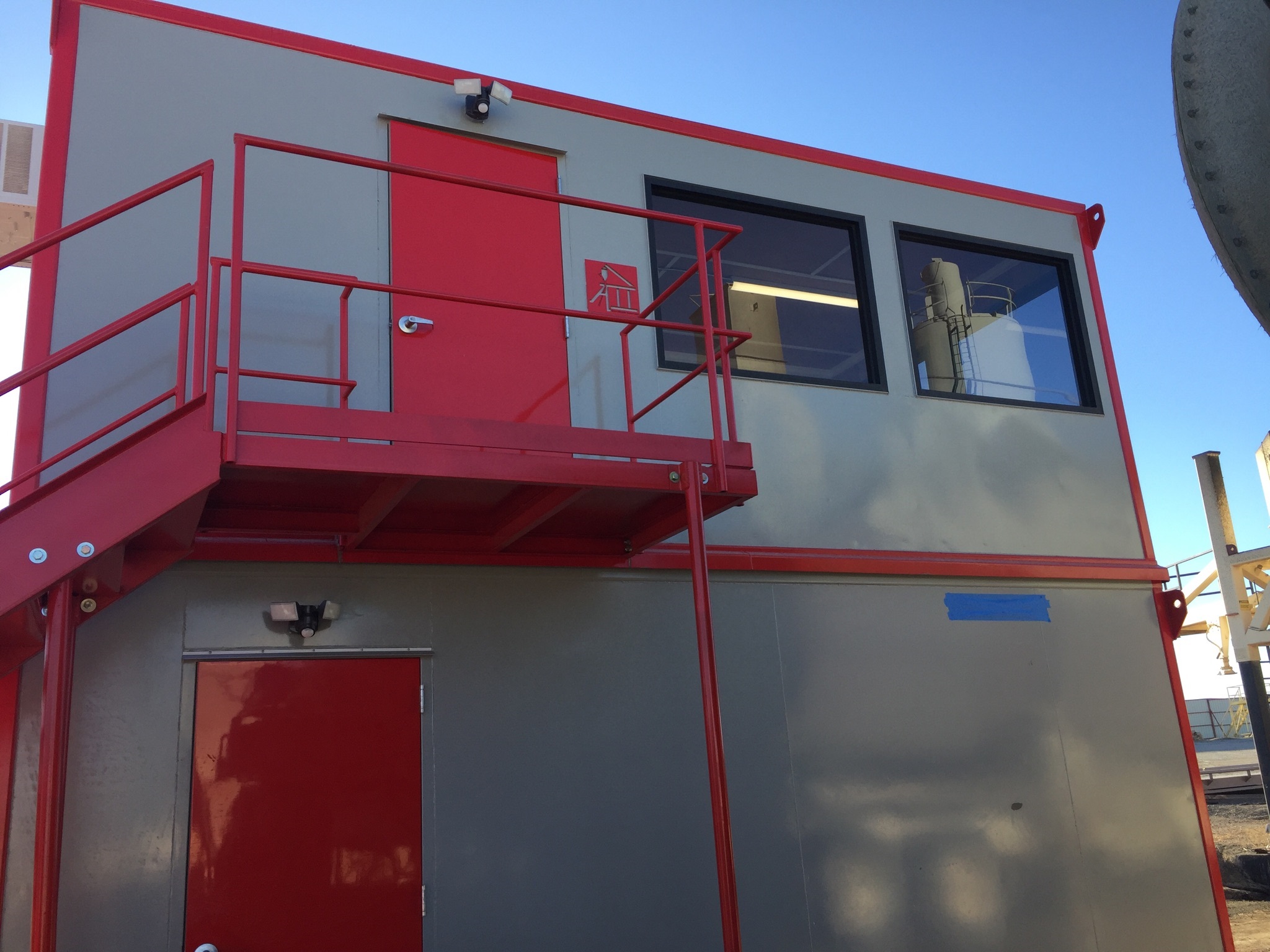

**Sections**: TWO
* Each section made of 2 x 3 steel tube framing with all corners made of 4" x 4" steel tubing [except the 4"x6" tubing on corner touching concrete pad.
* 2 levels bolted together and bottom anchored and welded to foundation
* 12 gauge steel 100% welded 360 degrees on both levels
* 3" insulation walls/ 6" insulation ceiling/ 3/4" plywood internally on all walls
* Stairs and Platform. Air/heat unit.
**Top**:
* Size: 21ft long x 10ft wide x 20 1/2 ft tall
* 7 tempered glass store front style windows 10 1/2 ft tall
* top floor having additional 1/4 office style paneling
**Bottom**:
* 9 1/2ft tall top section
*Can also quote for Portable units and units including Computer Controls! (Additional Cost)*
**Make**: CMI

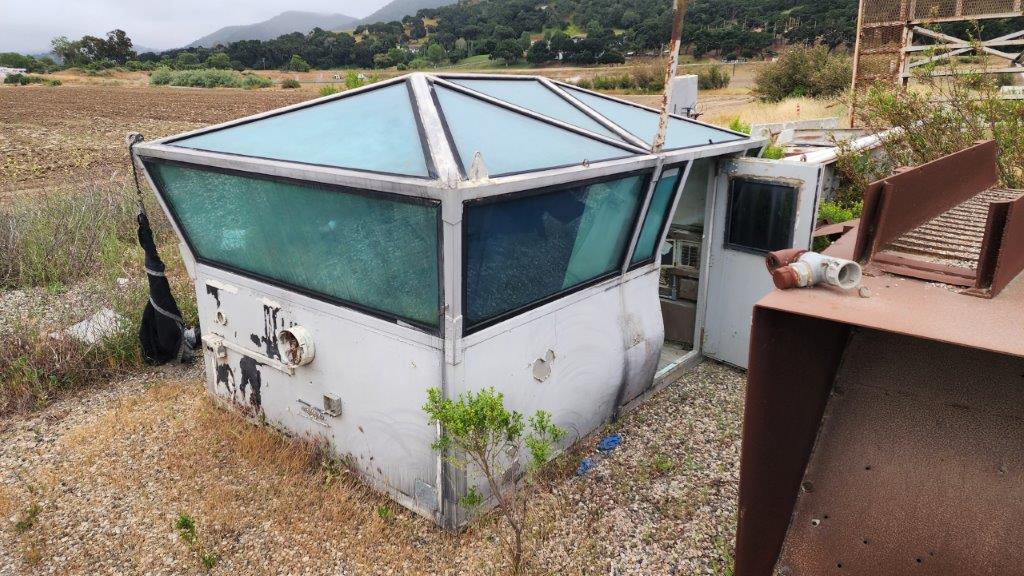

**Size**: 25' x 14' x 12'
**Stationary**
**280 Degree**
**Other**:
* 2 room
* No motors or starters
* Carrier AC unit
* Seltec batch plant controls
* Load out controls
* Gen11 Burner controls
* Still erected
**Dimensions**:
* 25'L x 14' with added roof(12' if removed),12' tall

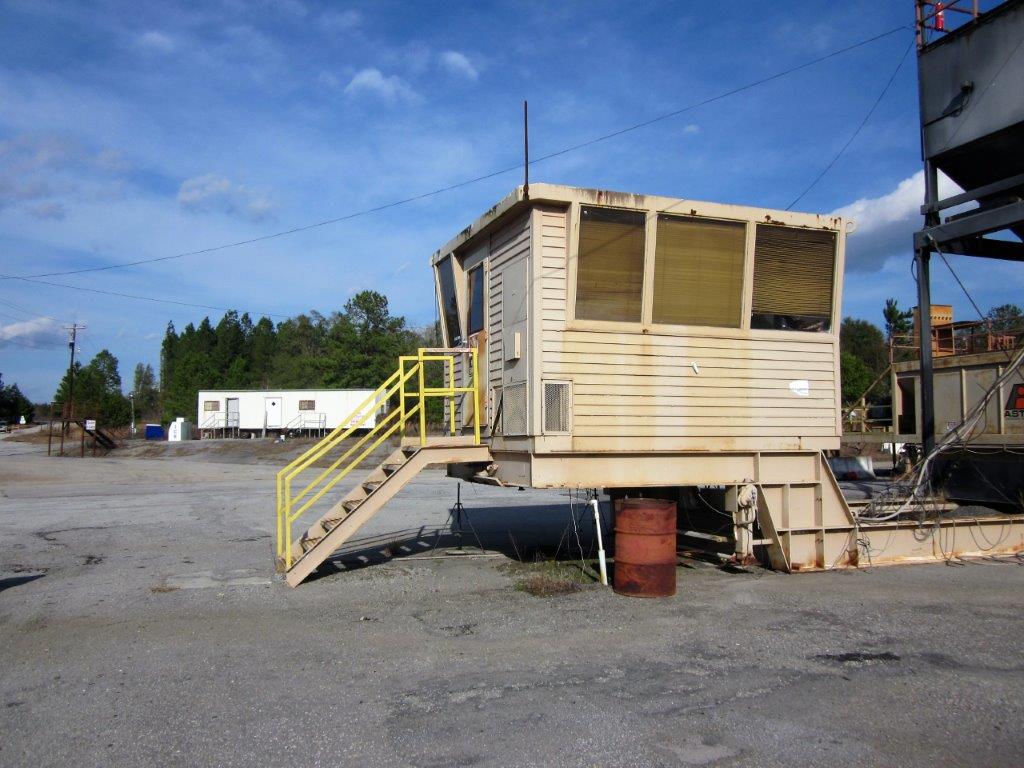

**Brand**: Astec
**Size**: 10' x 12'
**Portable**
**Other**:

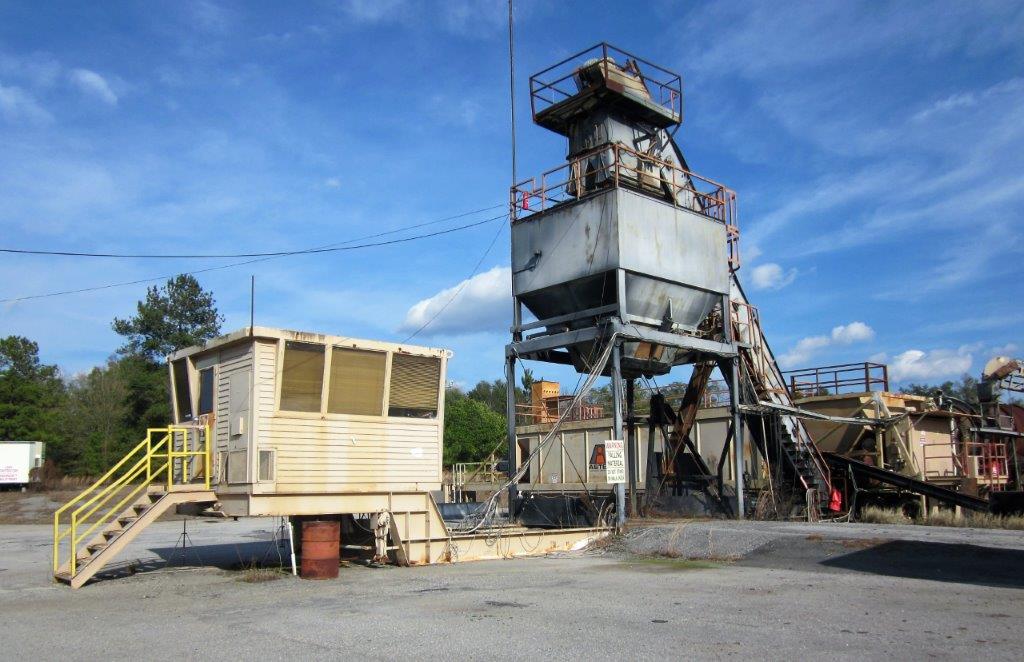

The Astec 10’ x 12’ control house is mounted on the same portable framework as the self-erecting 70-ton capacity hopper, no controls included.
*BUYER IS RESPONSIBLE FOR REMOVING CONTROL HOUSE FROM SEB.*

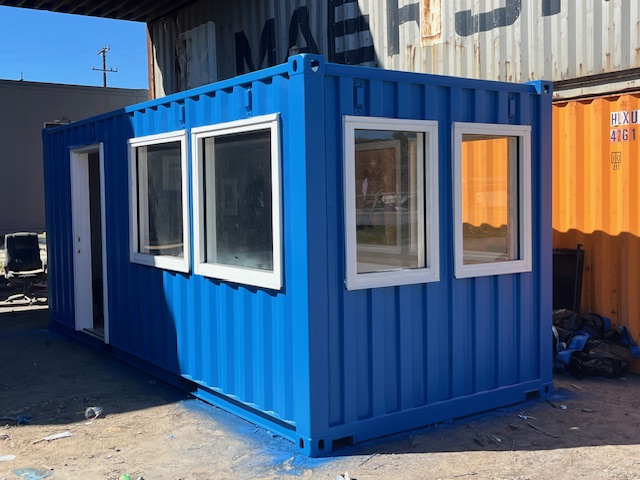

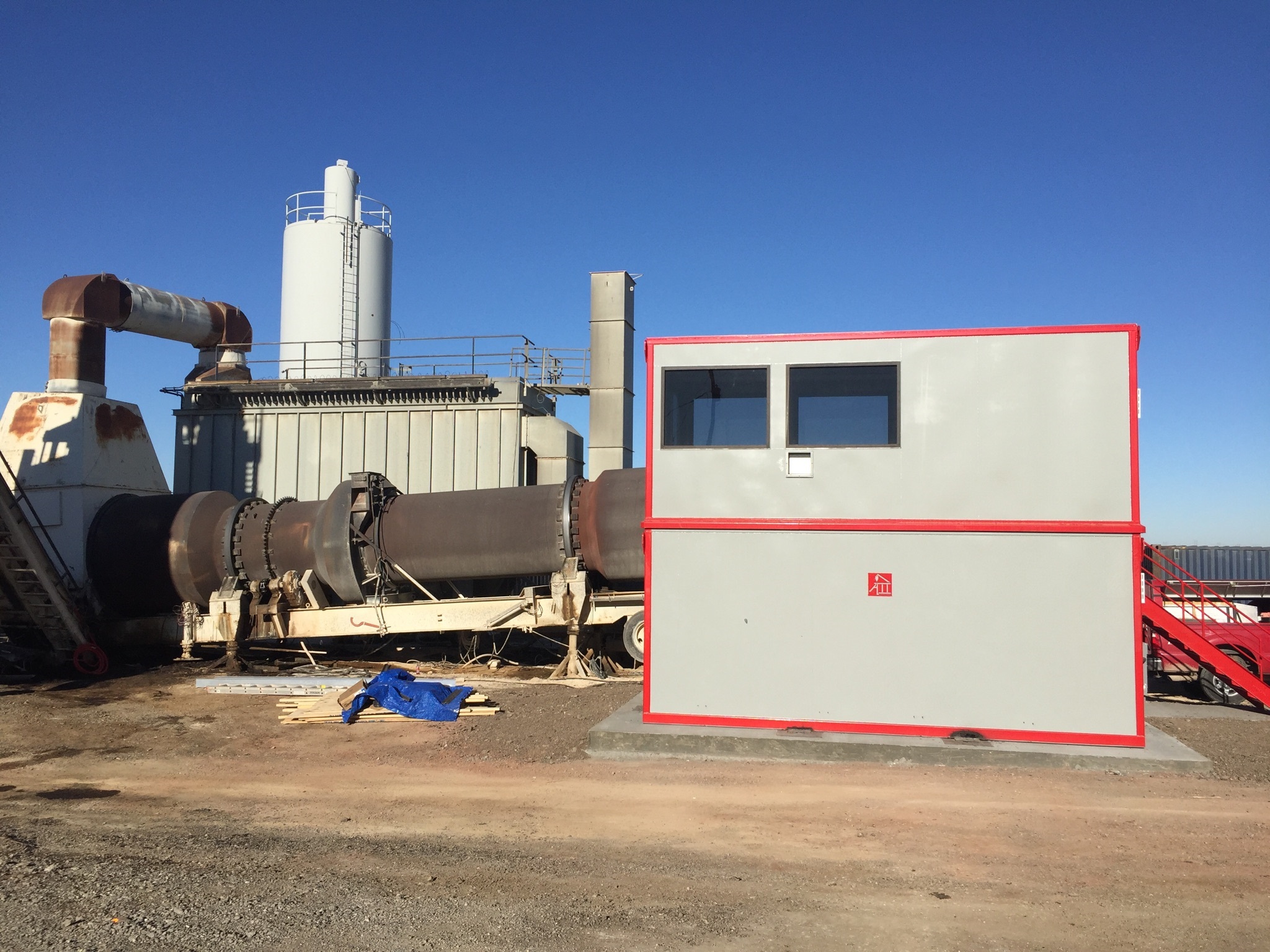

**Repaired and Ready To Go!**
Can be painted any color desired
Inside can be finished as desired

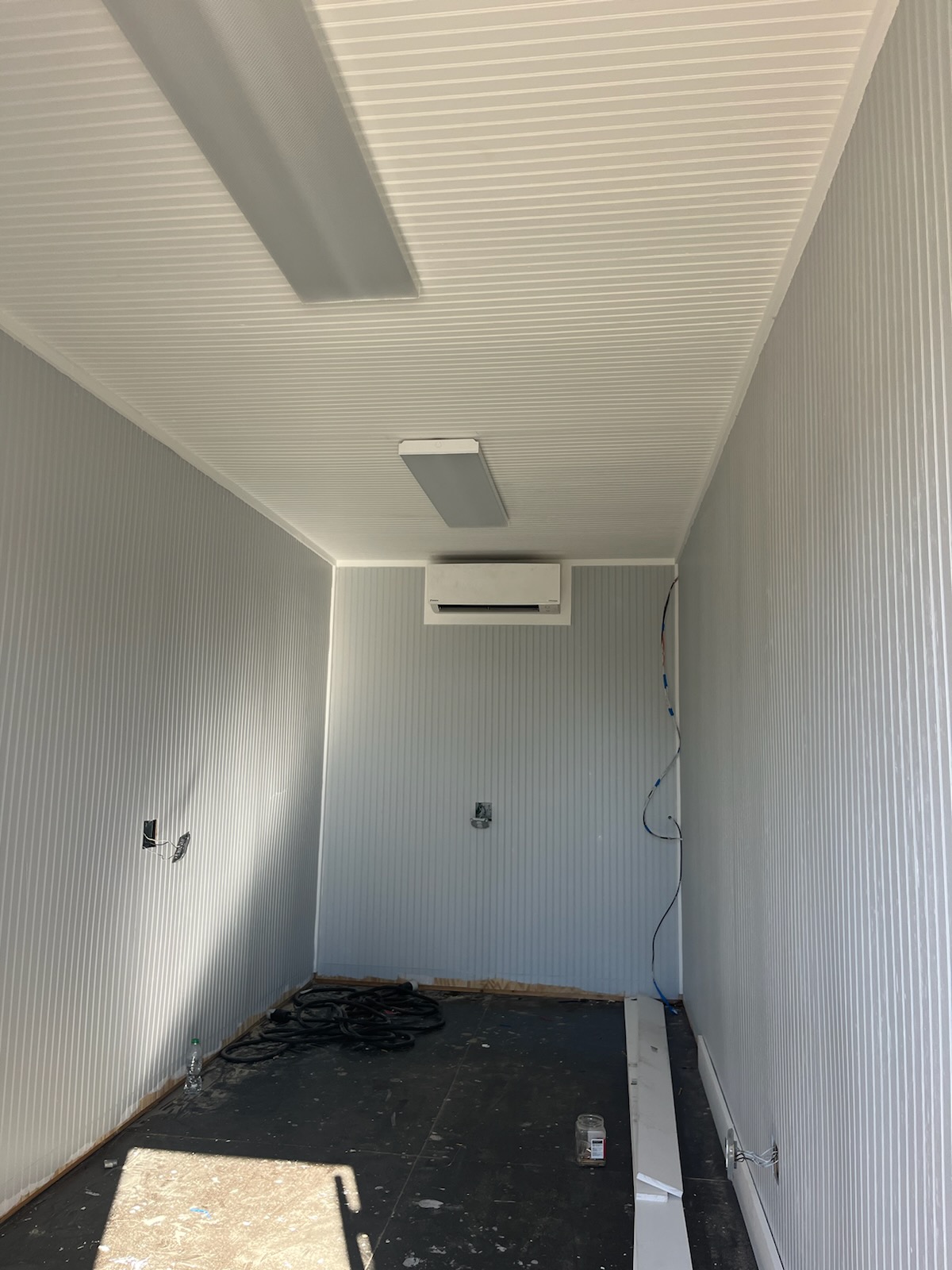

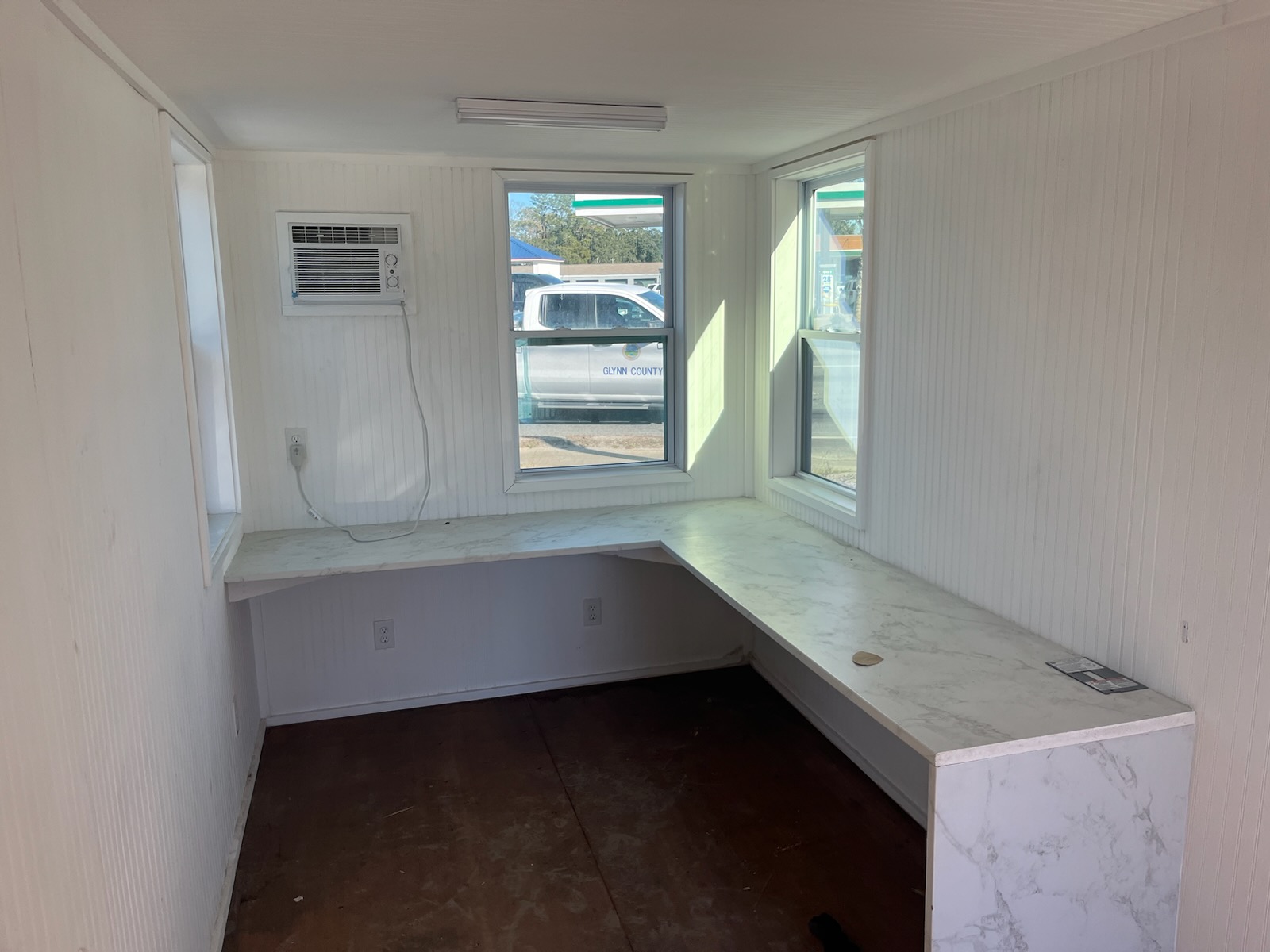

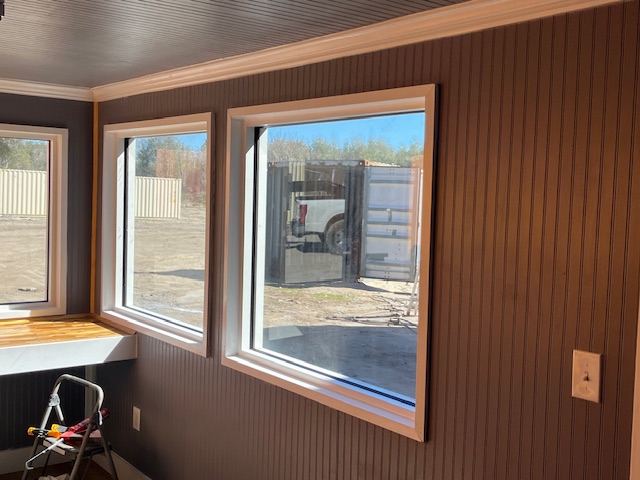

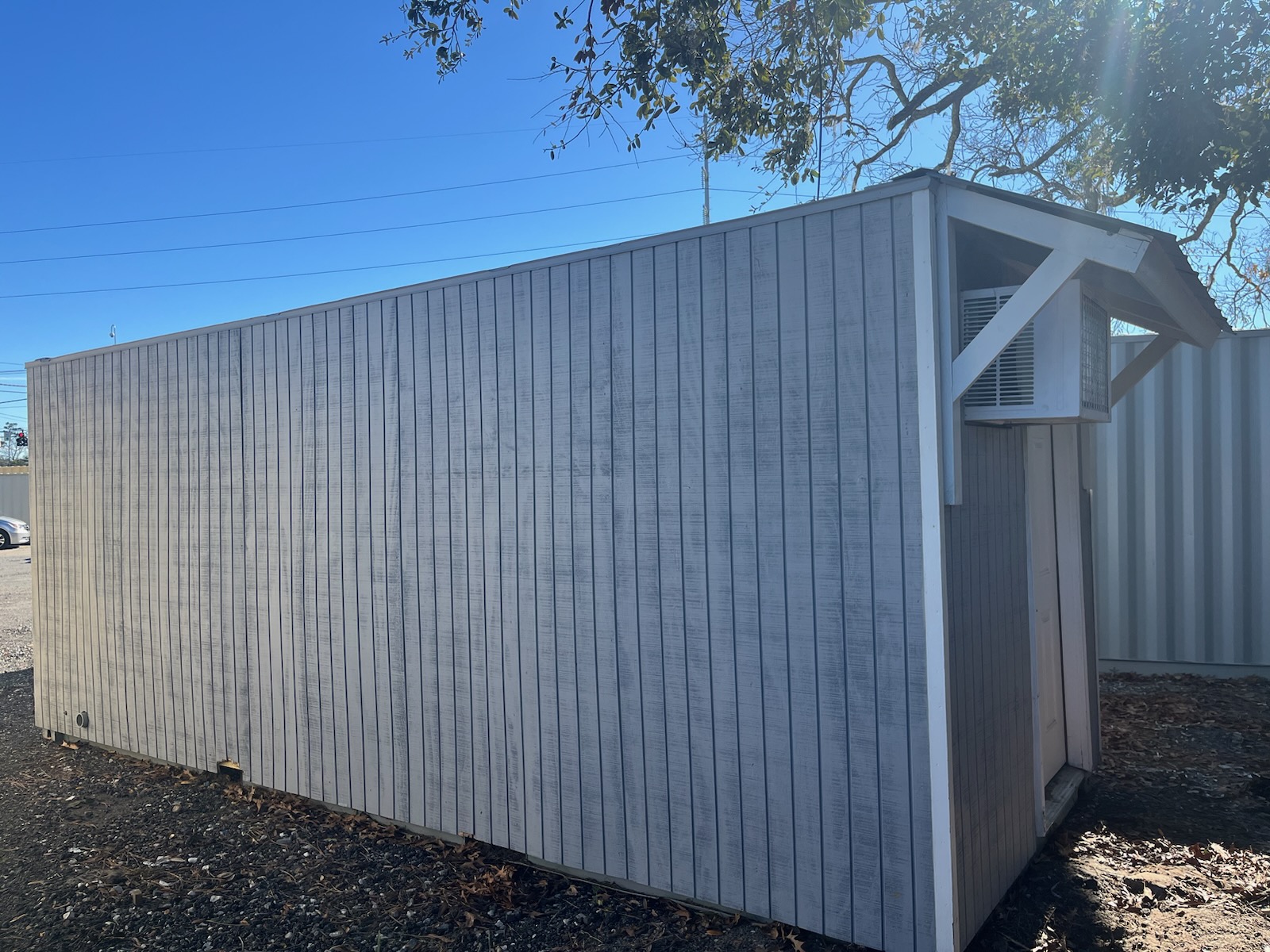

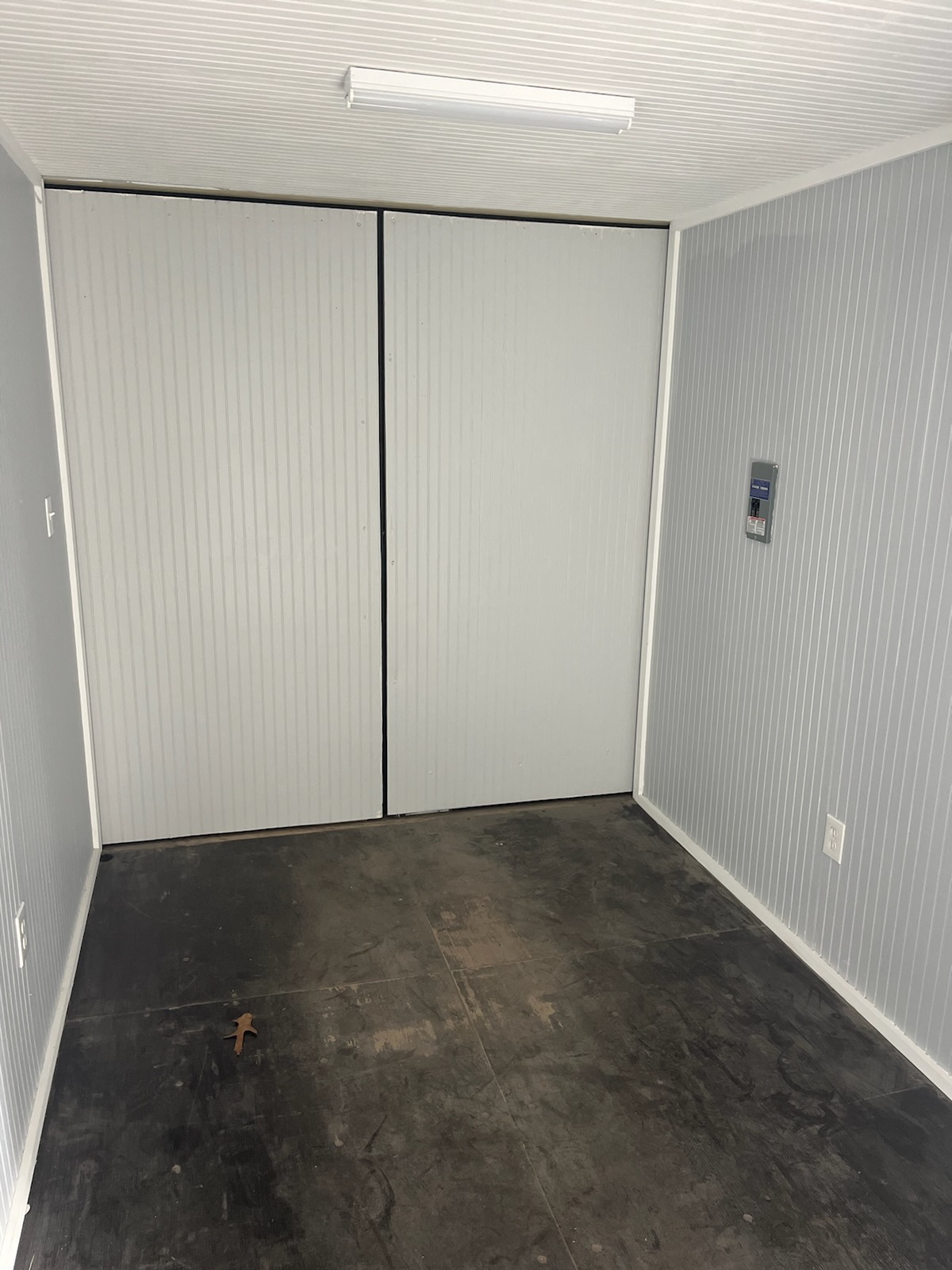

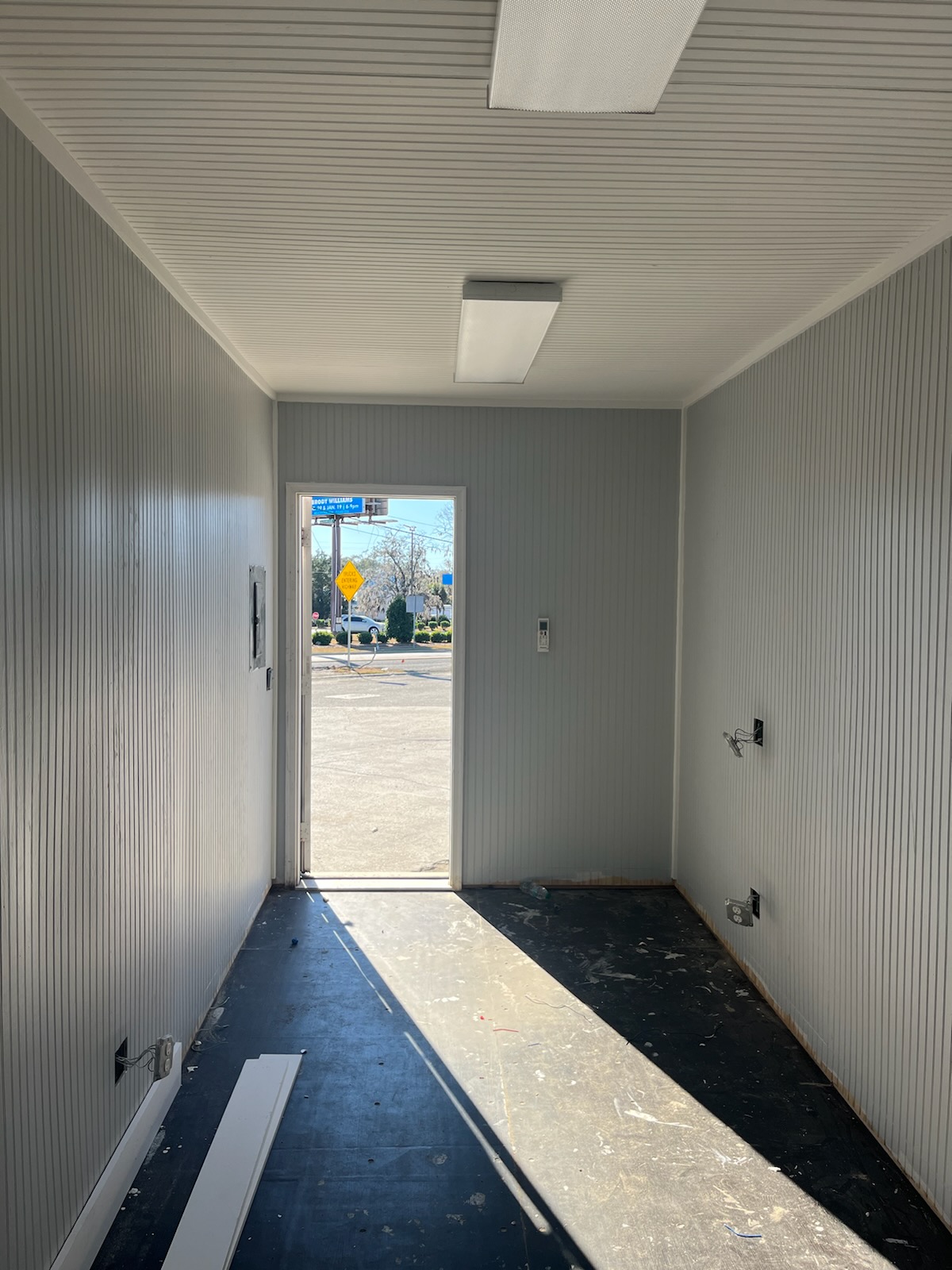

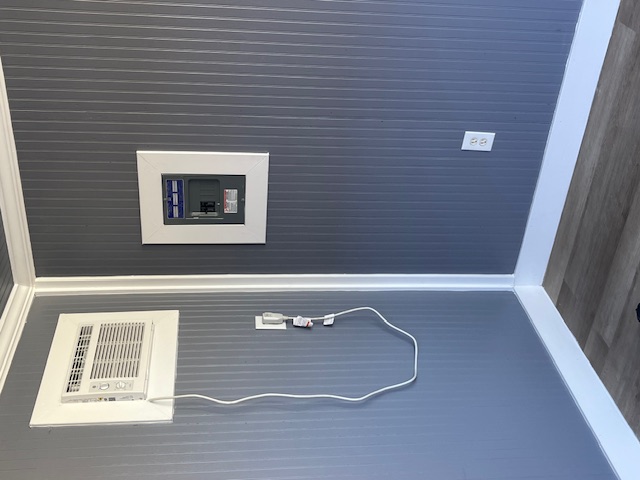

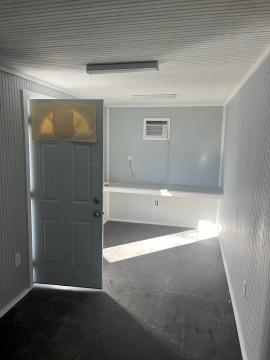

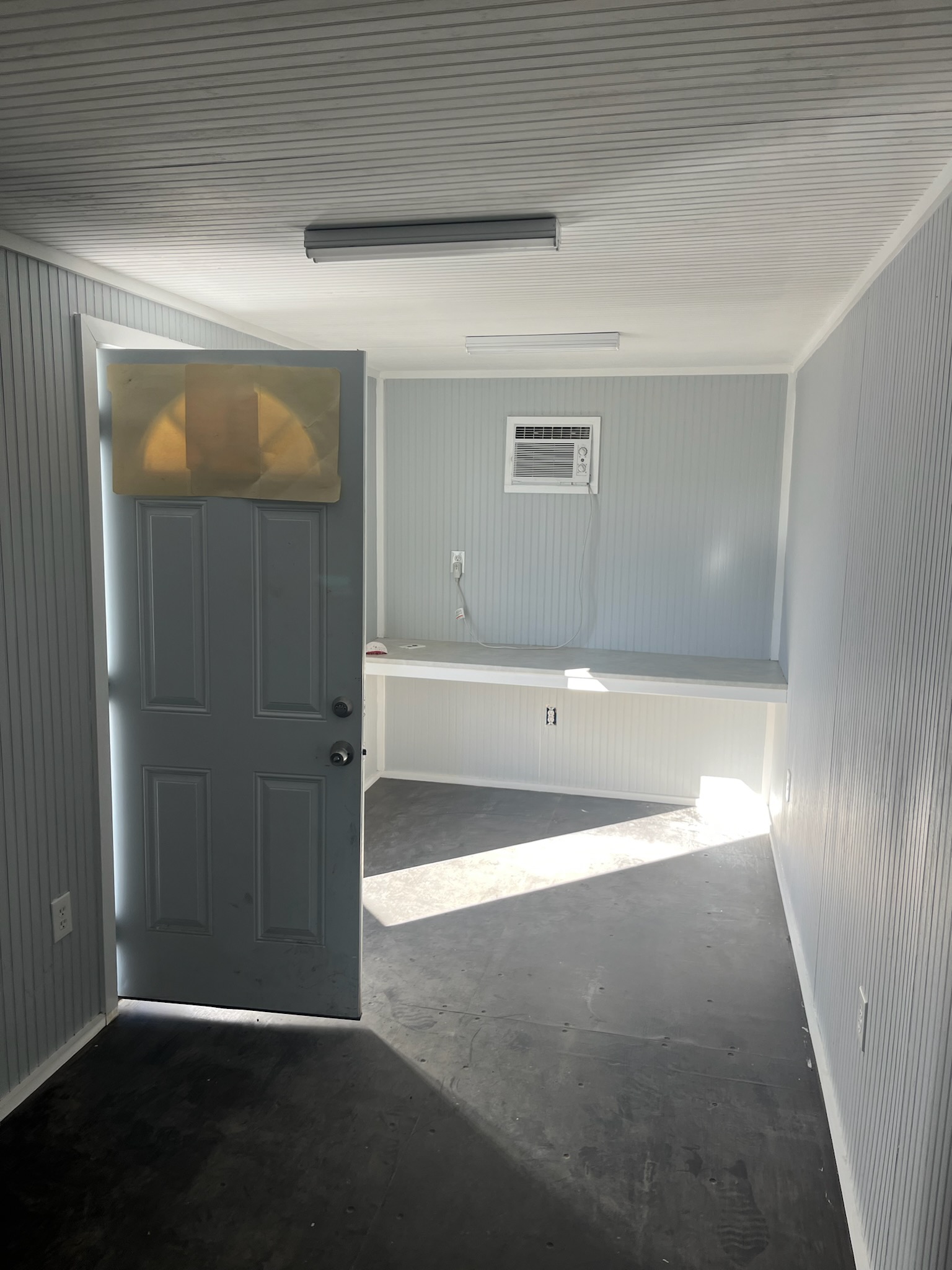

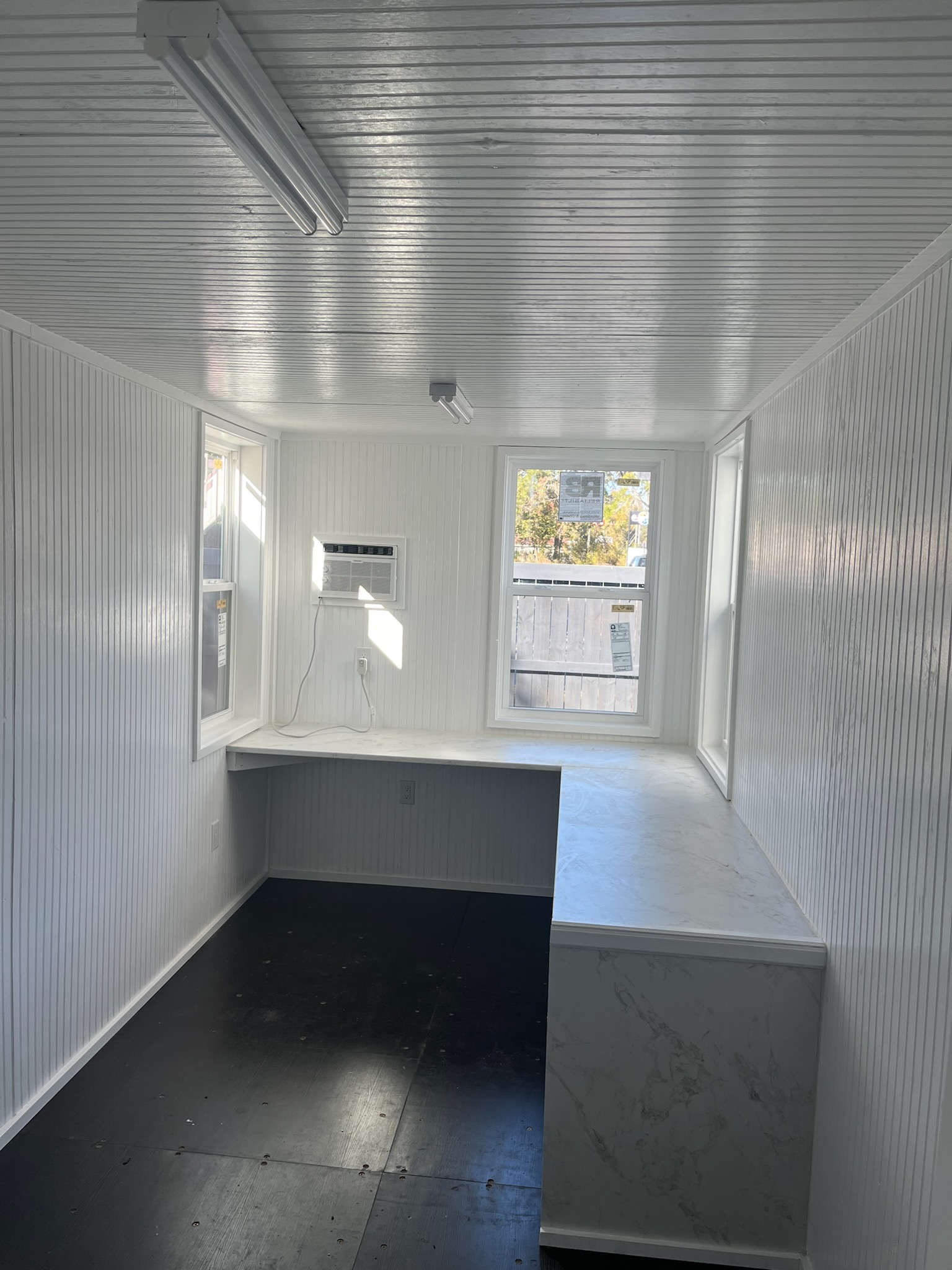

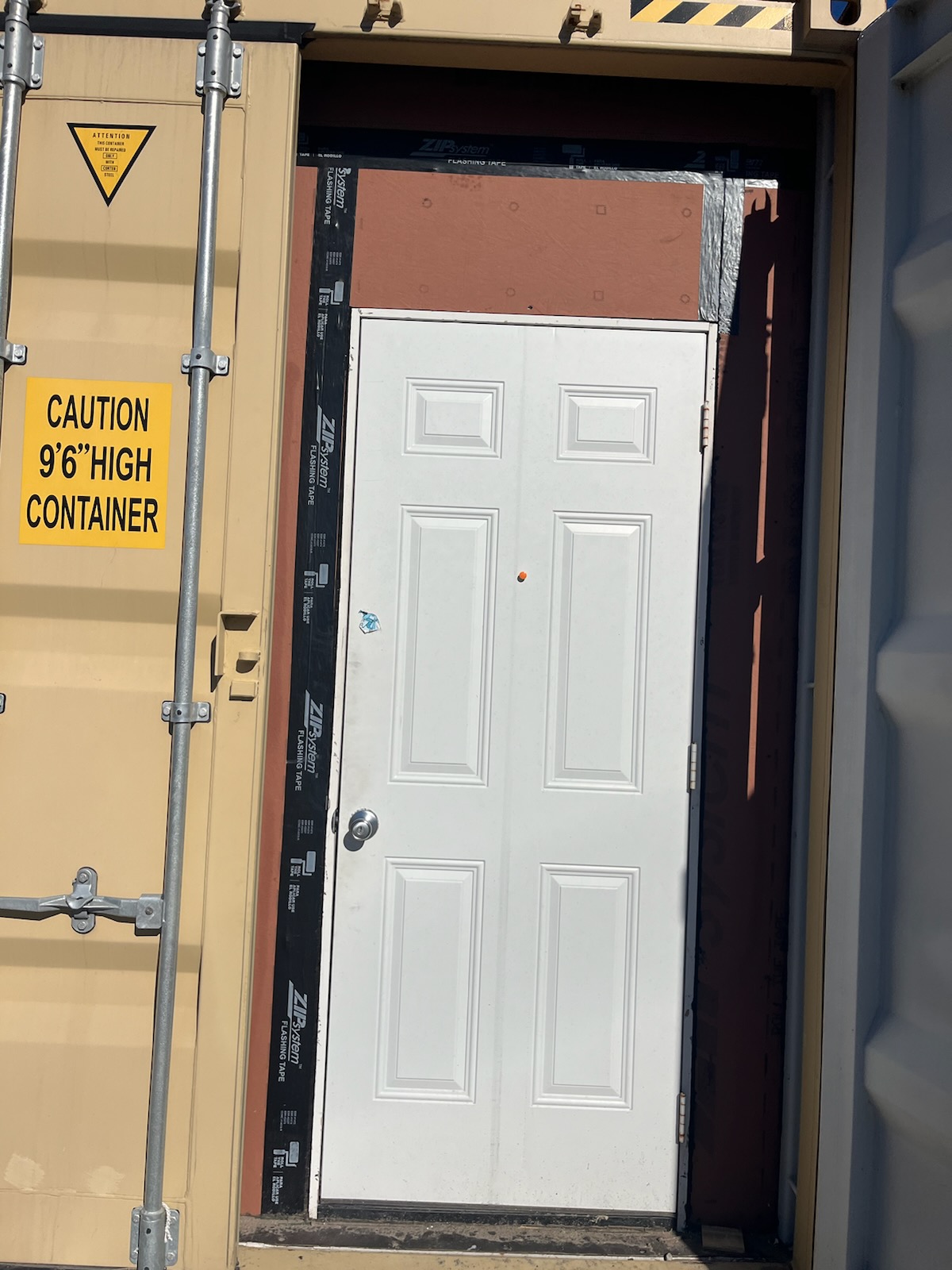

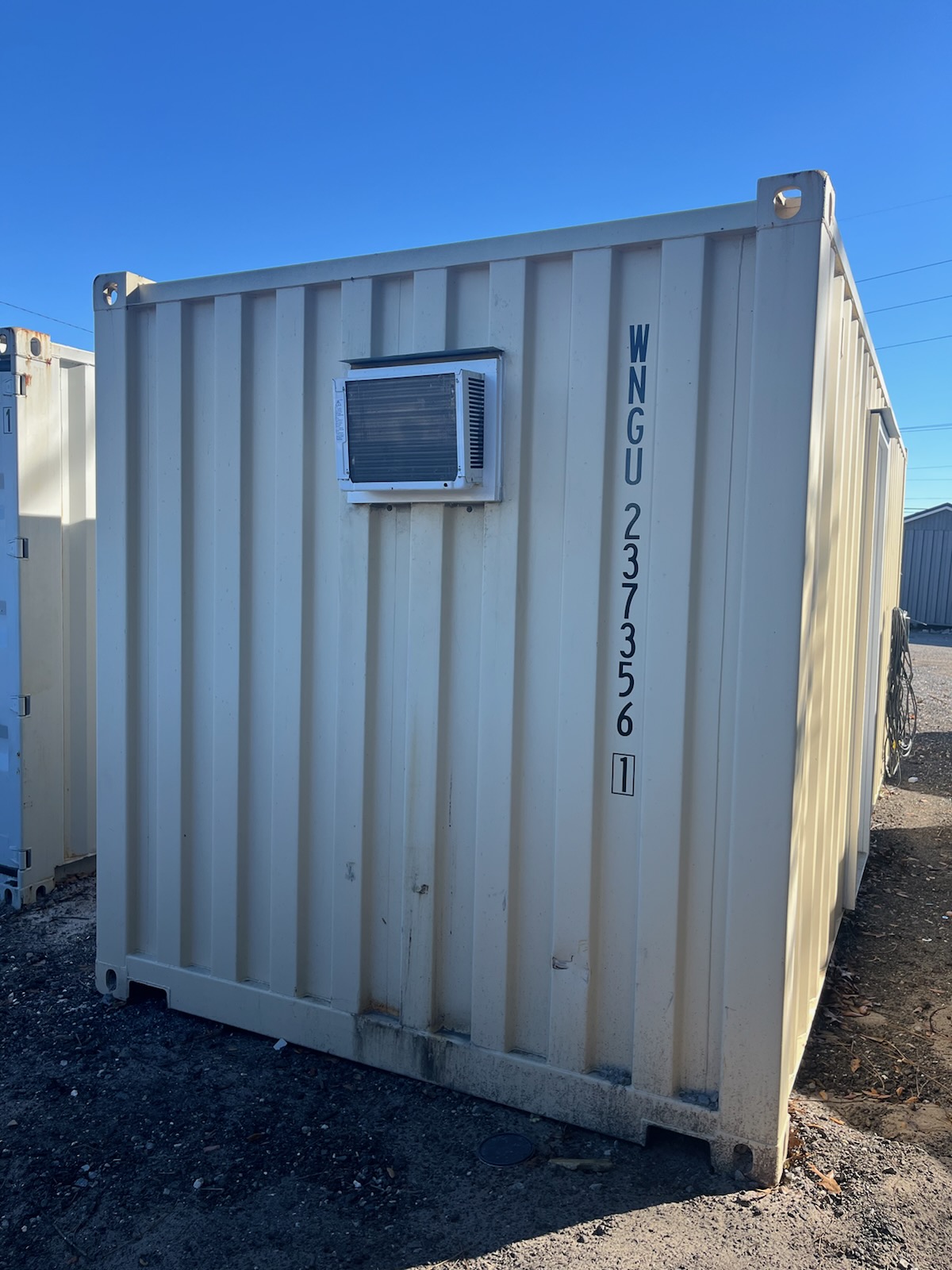

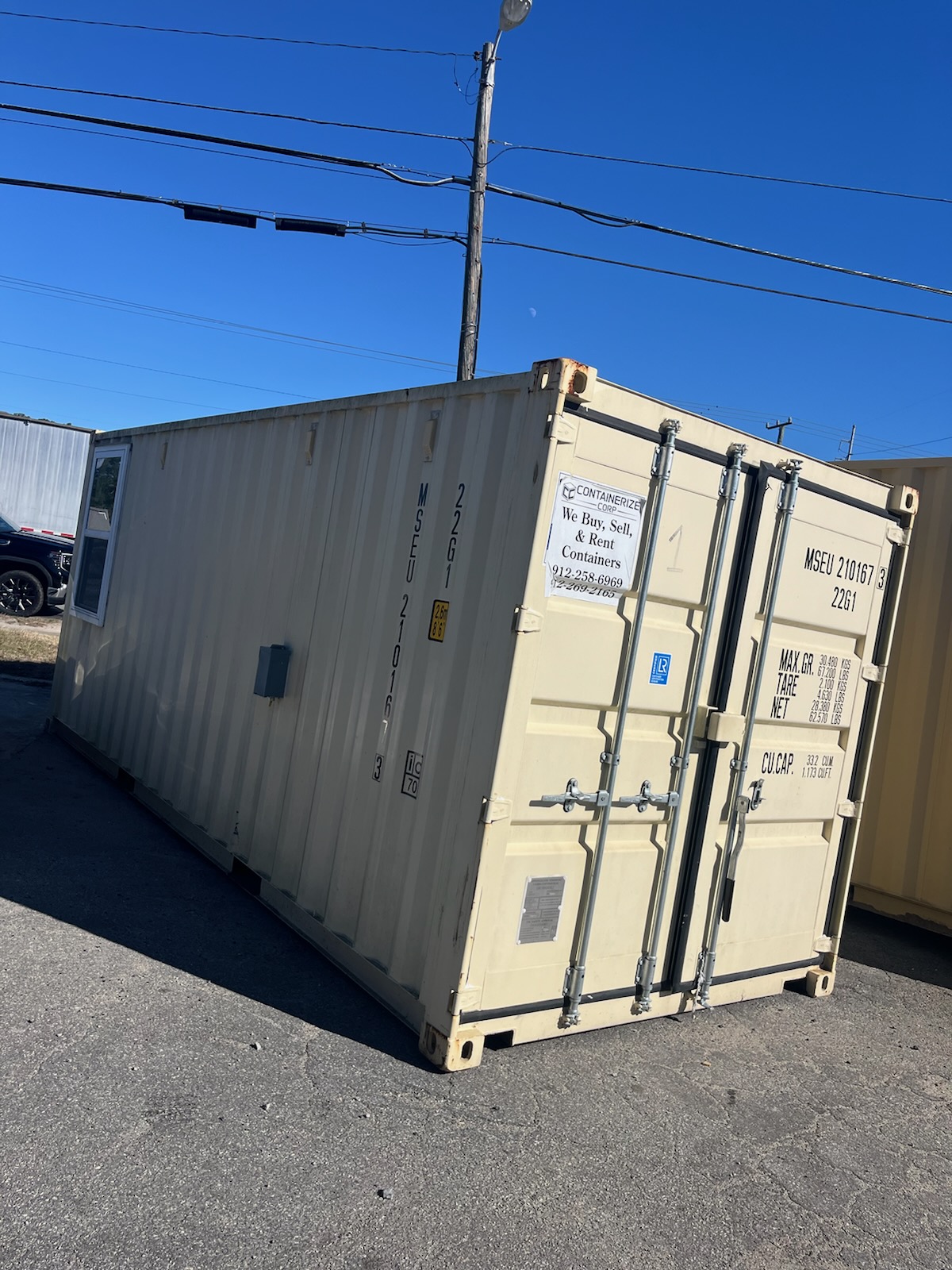

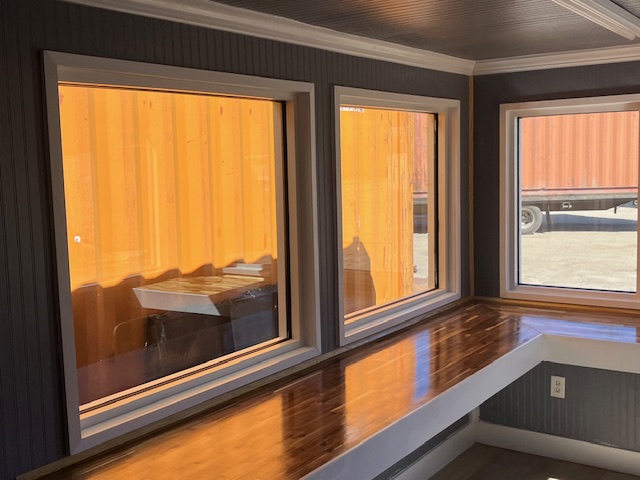

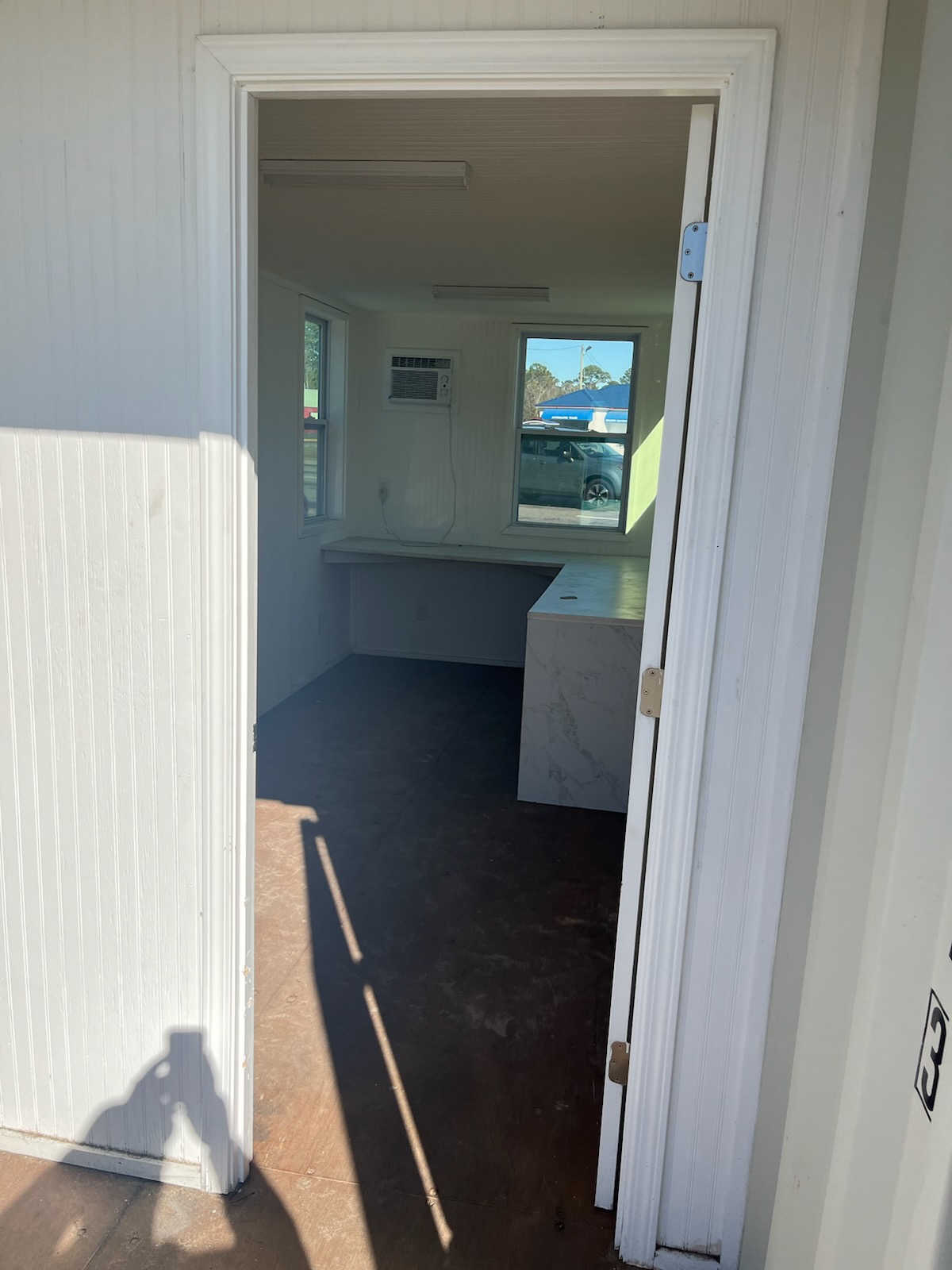

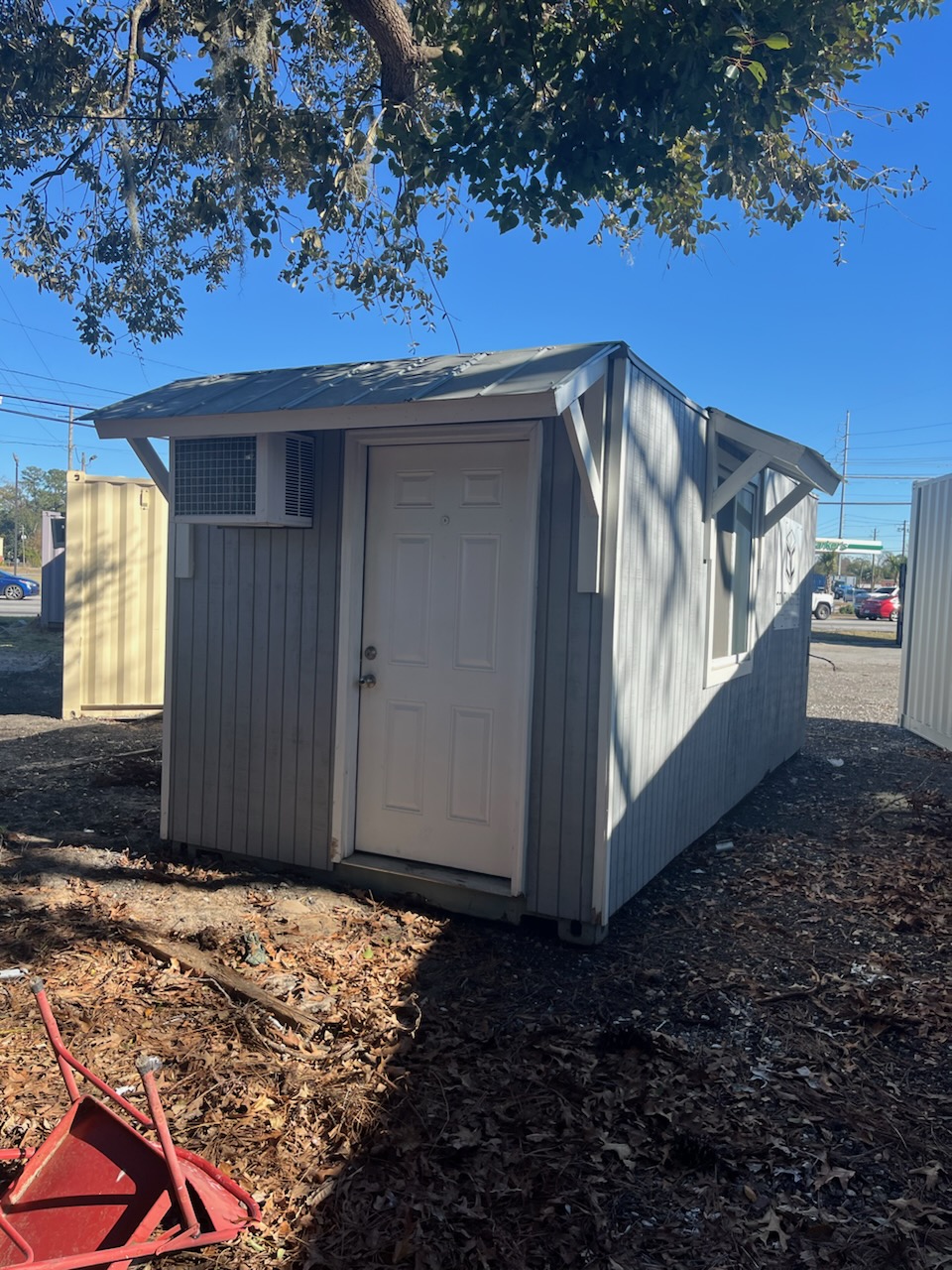

This is a brand new control house. It is currently only primed, and can be painted any color the customer prefers. No MCC, just 120v plugs and led overhead lighting. No counter tops included but could be added. The interior walls are finished with white paneling, the floor will be gray VCT tile (like cedar rapids used to use), or we could do raised rubber roundel (like astec) for an additional charge.
The ceiling is dropped tile acoustical with led strip lighting. Plugs were placed in the ceiling so that red night lighting could be easily added. If the potential buyer wants an MCC in the lower level, it is possible, manufacturer just need a motor list and will need to remove some of the 3/4 floor and add some metal (not a big deal or required, just a suggestion).

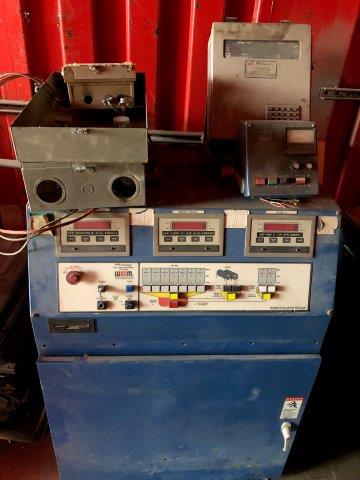

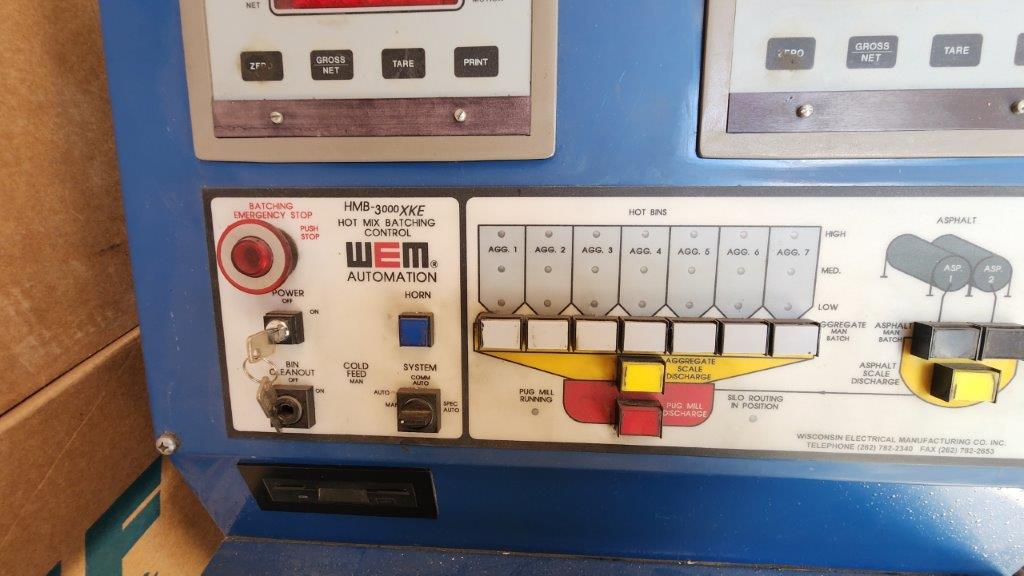

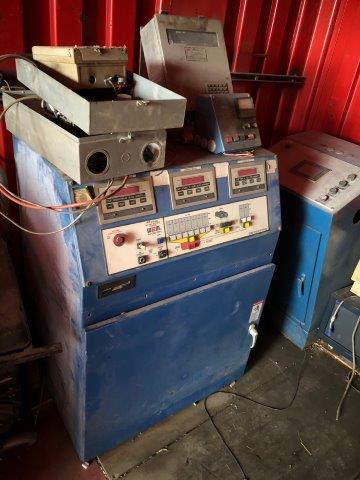

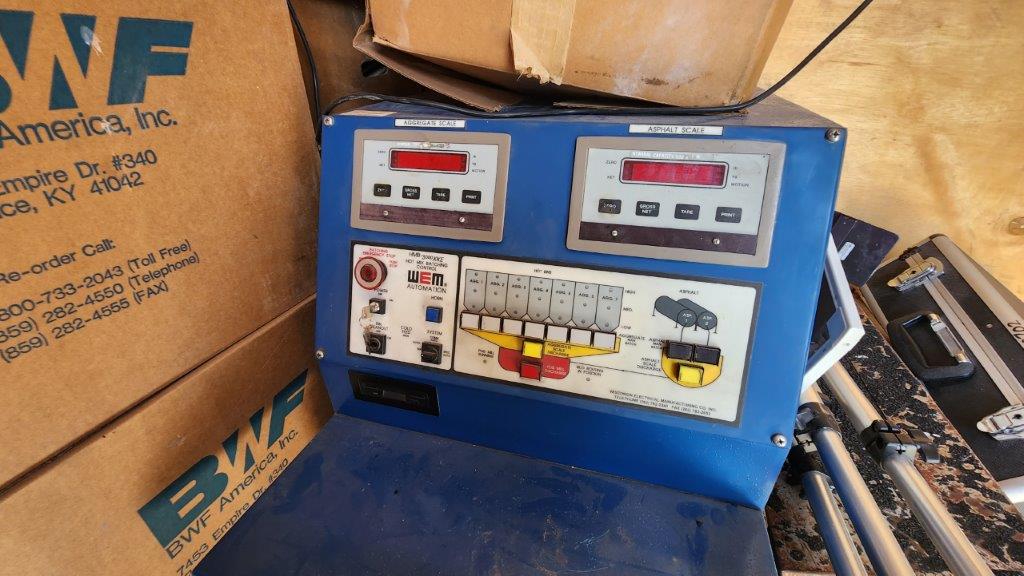

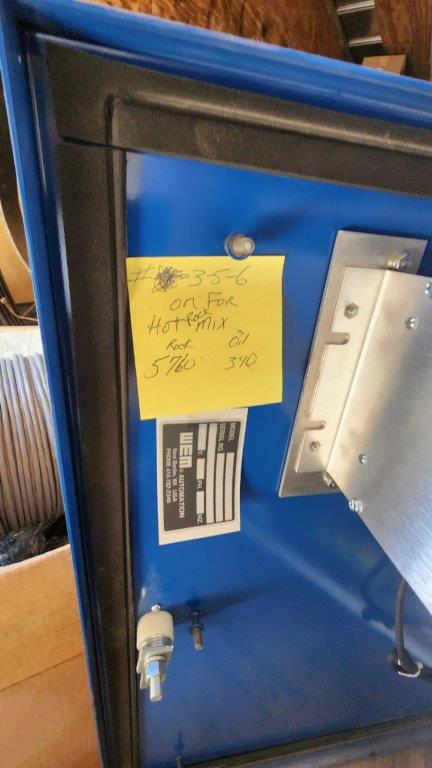

**Make**: WEB

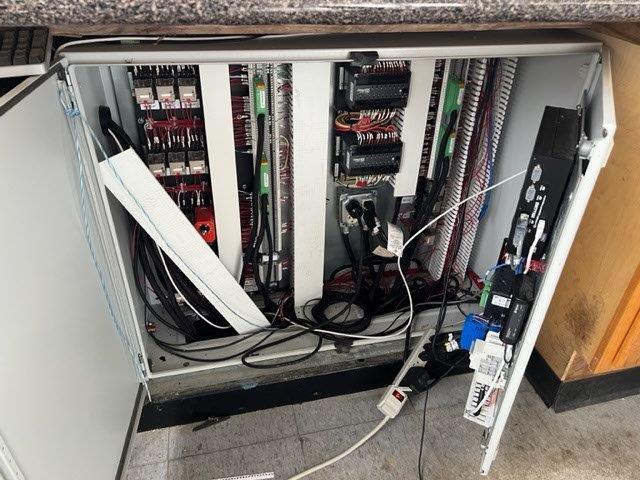

**Model**: HMB 3000 batch plant controls
**Other**:
* Controls worked fine at plant shut down a few years ago.
* Controls were on a 6,000lb h&b batch plant.

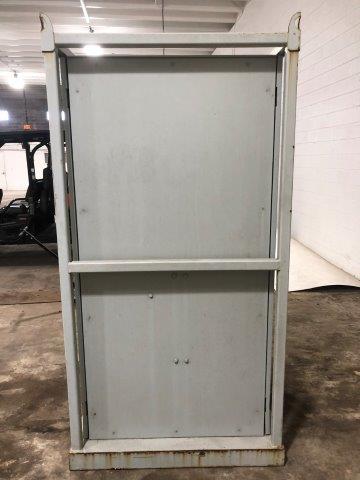

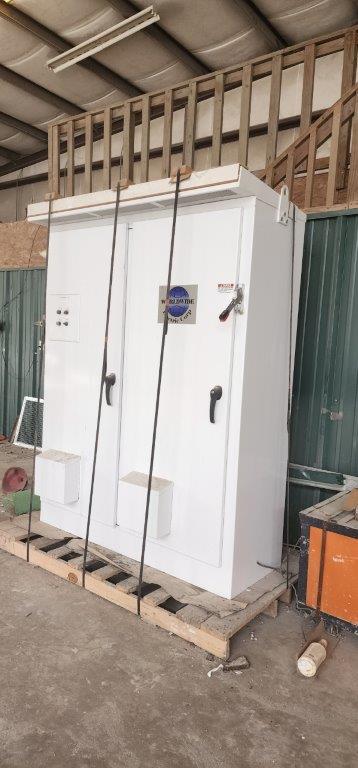

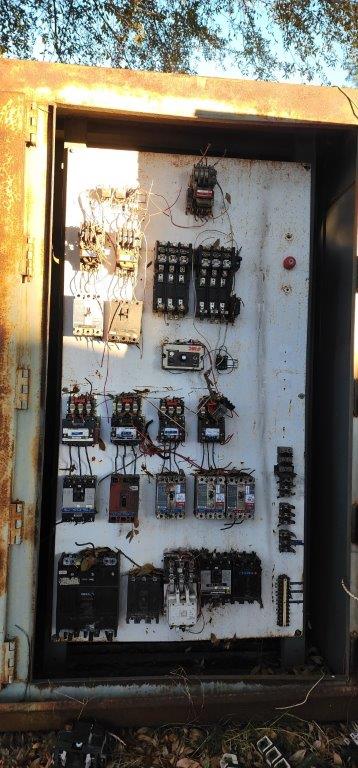

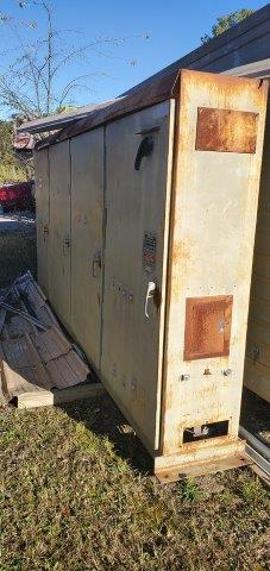

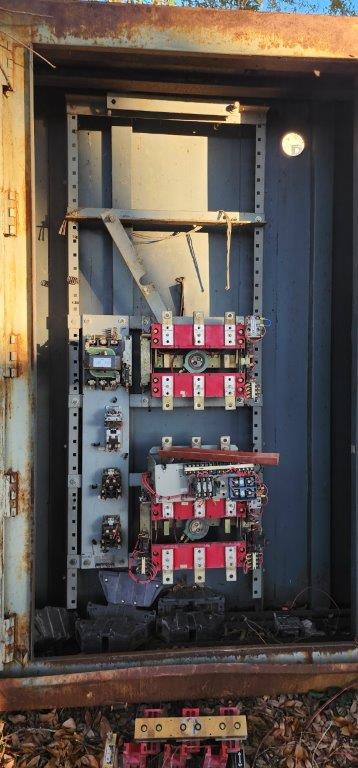

**Make:** Nema

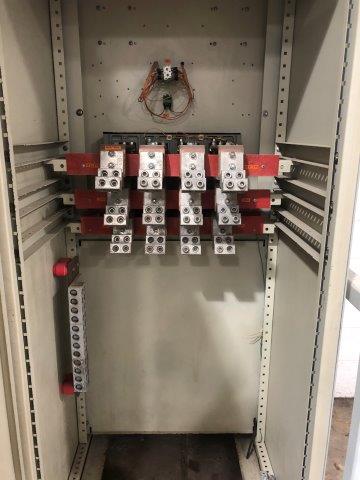

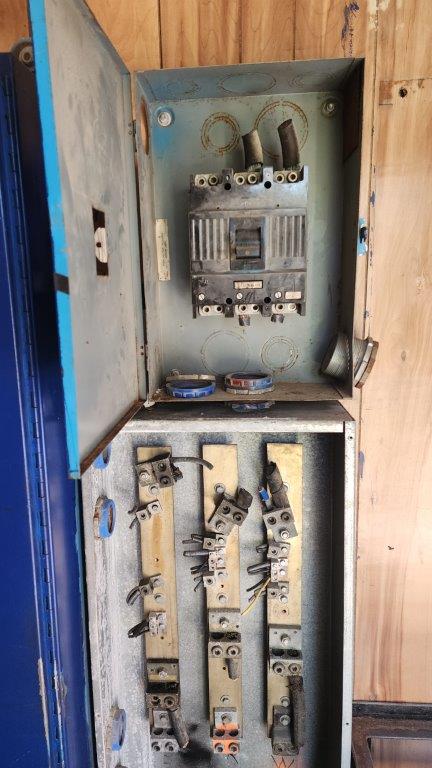

* 1200 Amp Main Plus a 300 Amp Main
* Ran a 350 TPH Drum Plant
* Large Nema Cabinet
**Starters For:**
* Drum
* Baghouse
* Slat
* Conveyors
* Compressors, Augers
* Screen decks
* Heater
* Burner
* Pugmill ETC

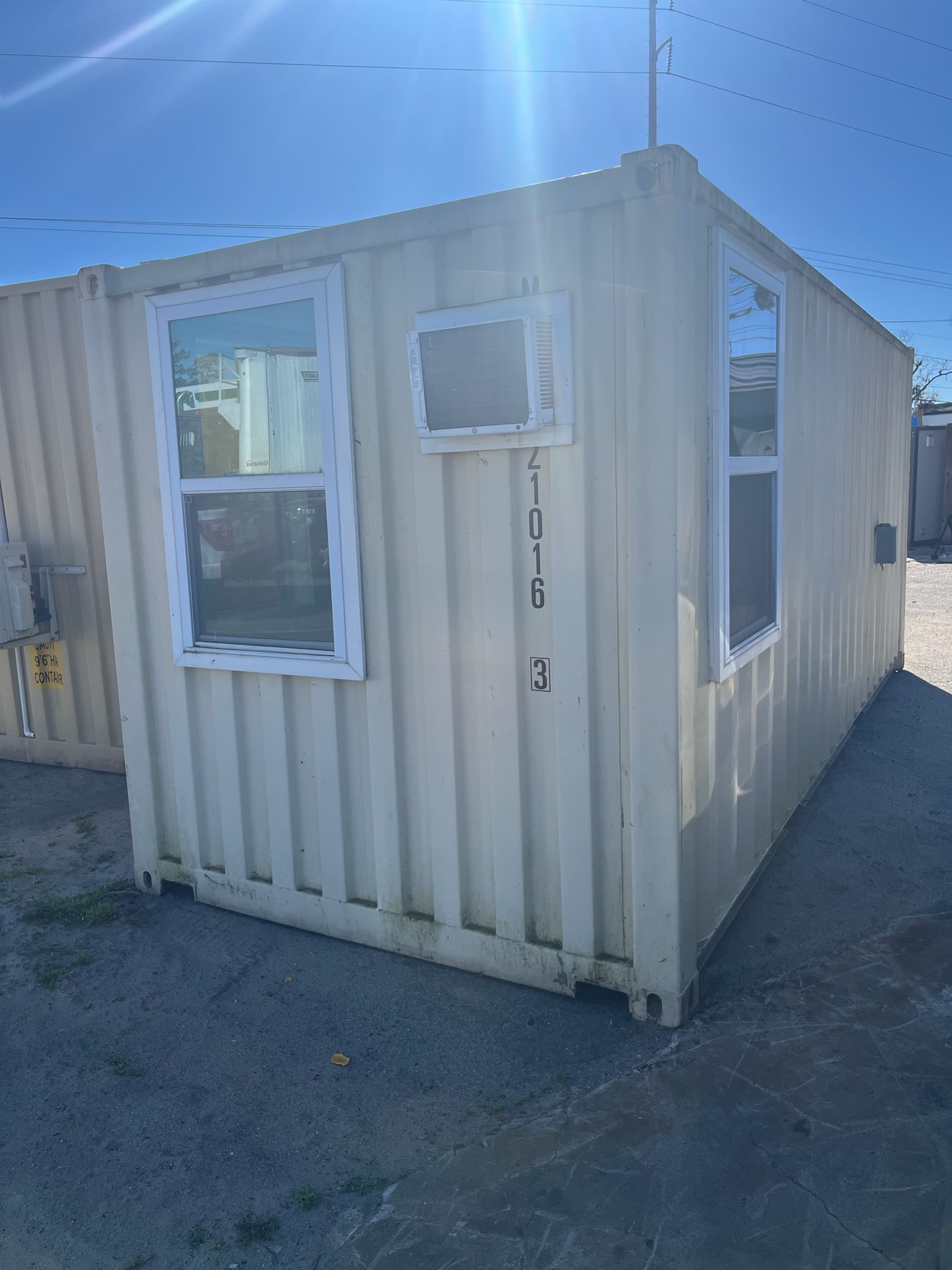

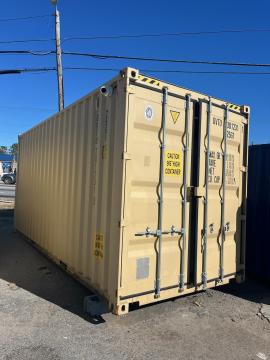

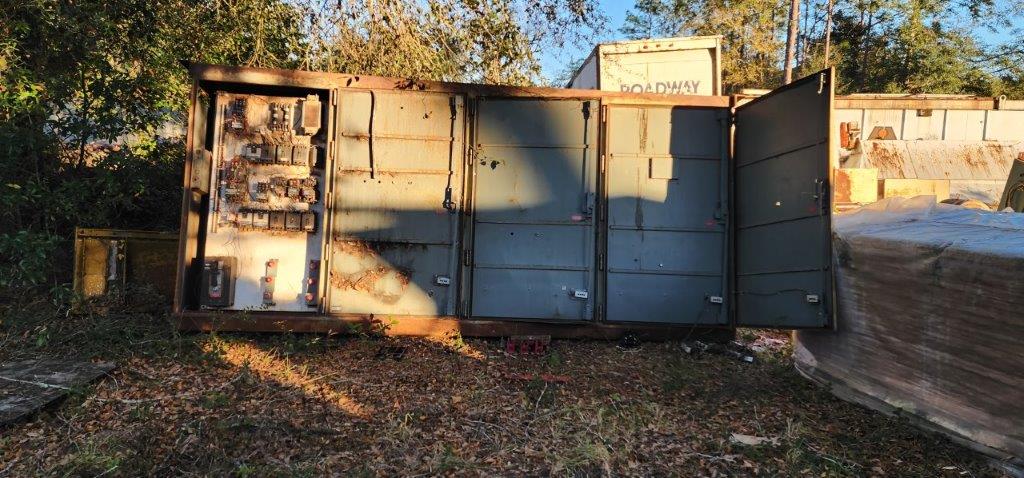

**Size**:MCC center mounted incConex box 8' X 20'
**Details:**
was on a 250TPH duel drum plant

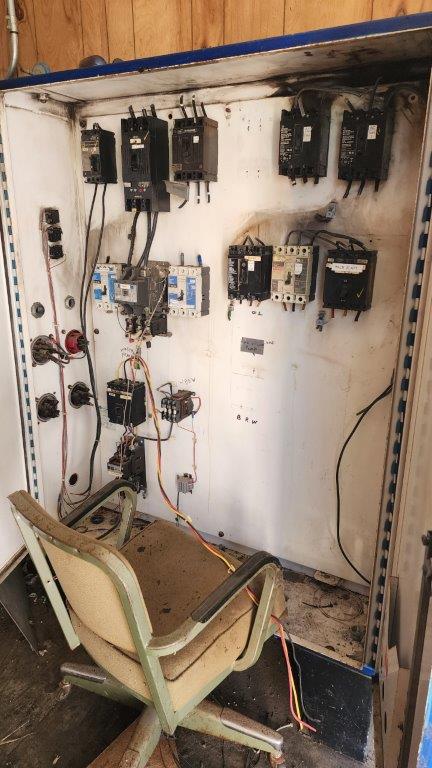

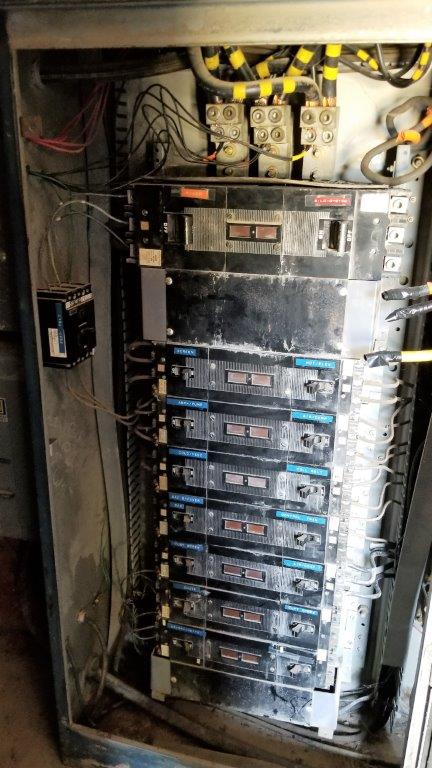

* Please For Starter Buckets (Starters and Breakers)
* Cutler Hammer (Center)
* Individually Bucketed Starters
* Many Starters Updated To Siemens
* Freshly Painted
