Rap Systems

Portable (8' x 12') Cedarapids Rap System

Inventory #: RS1043

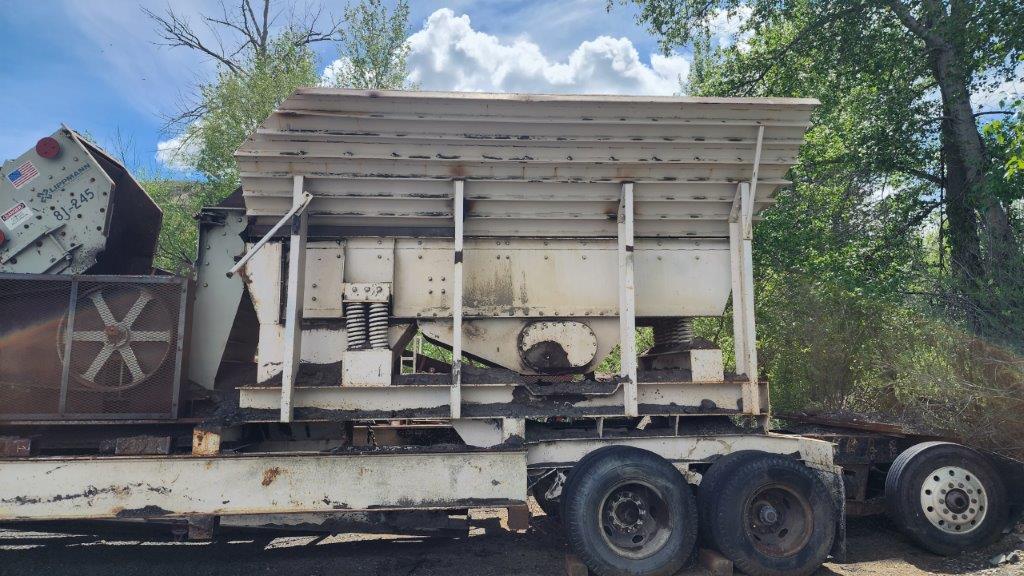

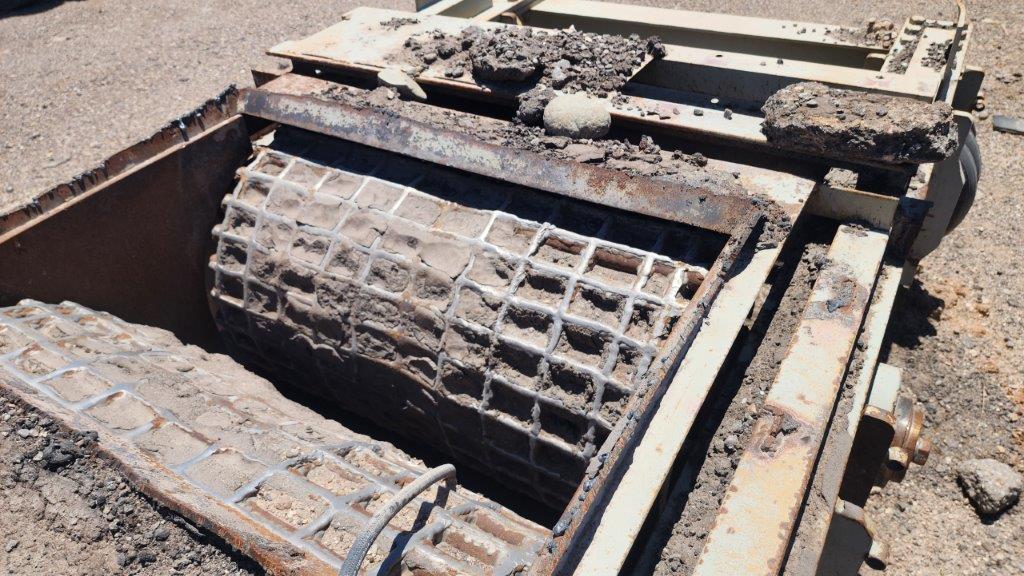

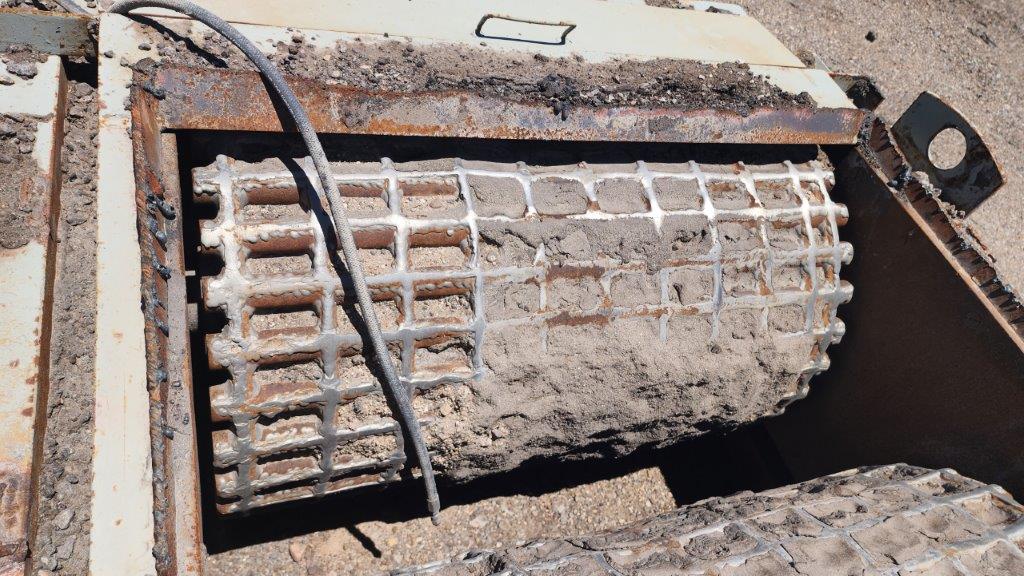

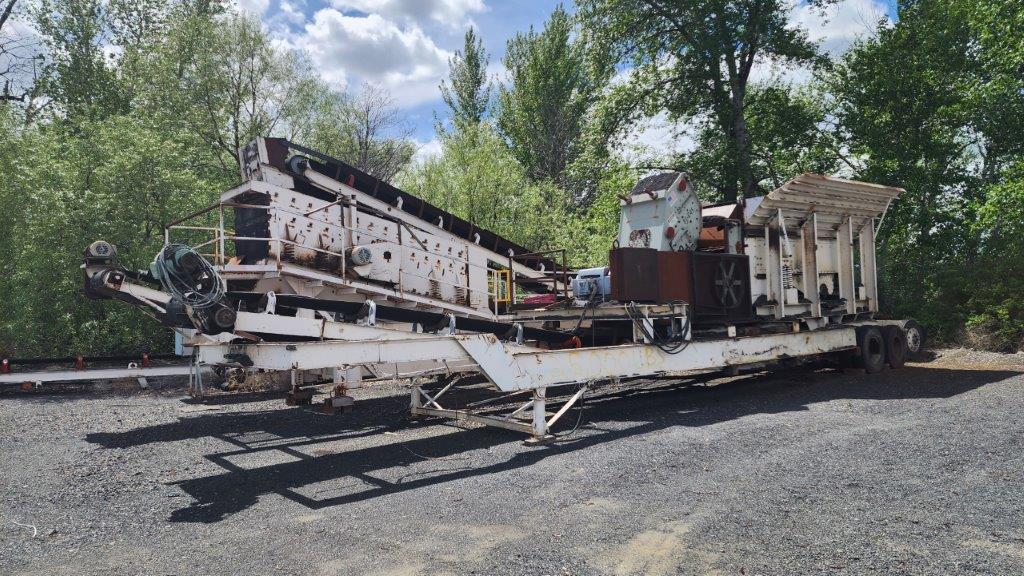

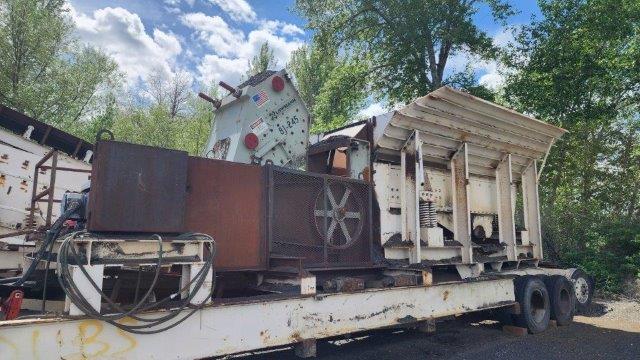

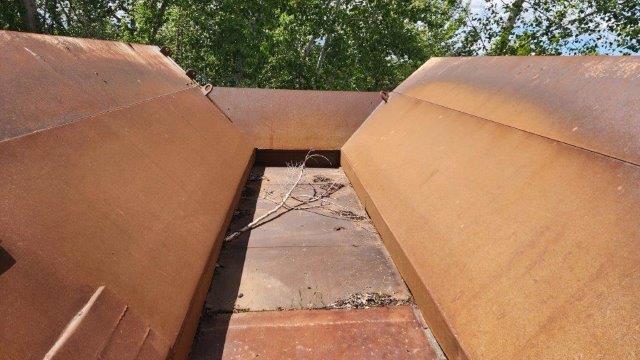

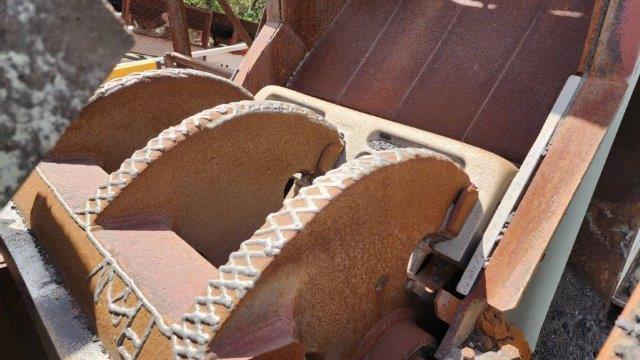

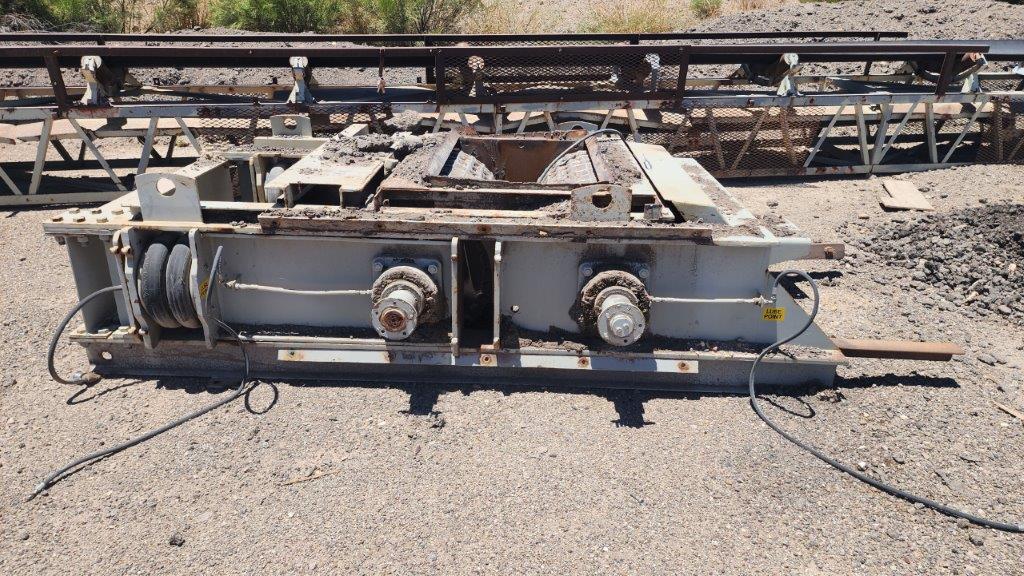

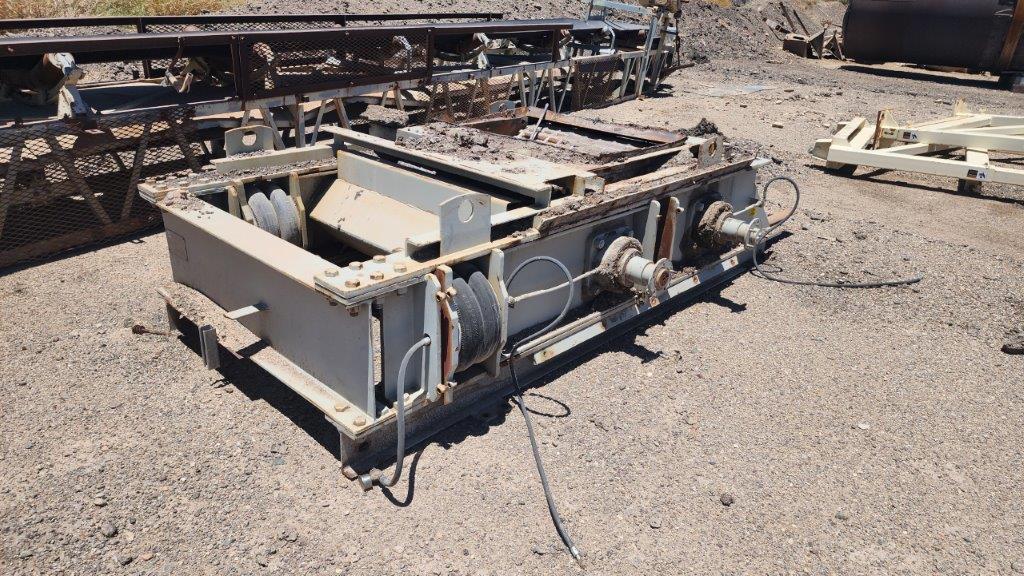

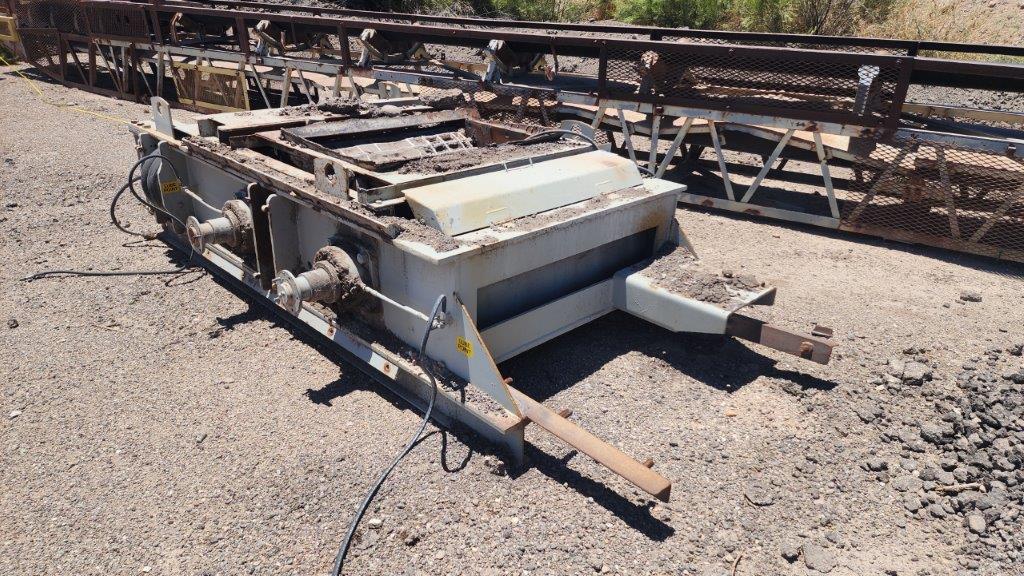

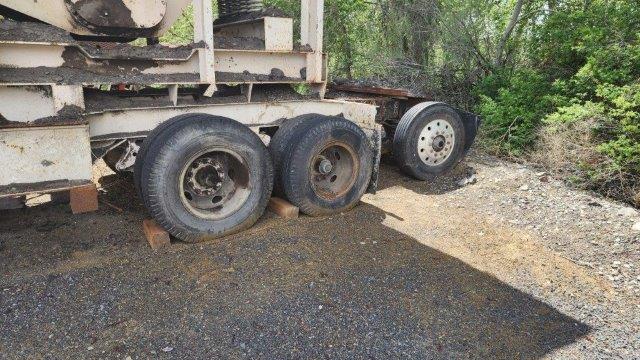

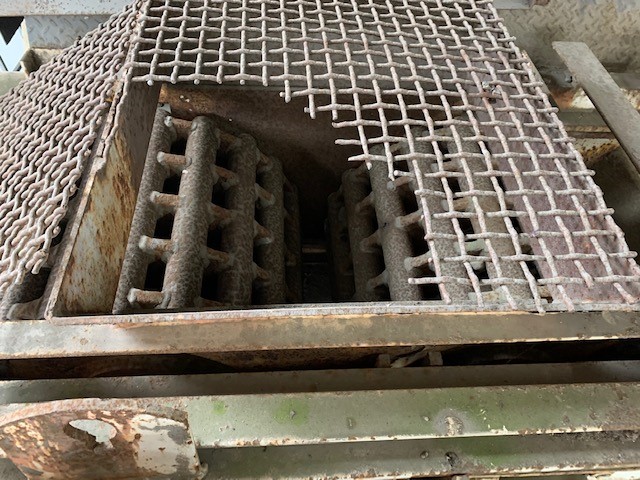

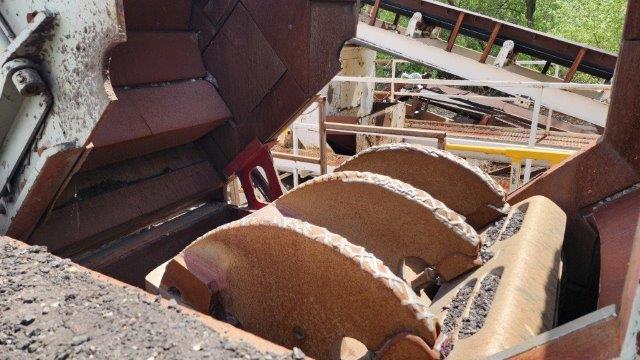

Portable two axle Cedarapids RAP bin trailer with tandem axle and duel wheels: Bin 8ft W x 12ft L (20 ton heaped capacity) with 2 30” wide belt conveyor Each conveyor has 10HP 3 phase motor 4ft x 8ft vibrating scalping screen has 2” screen cloth and 5HP motor Skid mounted Cedarapids RAP Double hammer lump breaker with 2 x 50 HP motors (1 motor NEW with 2 year warranty 3 phase 60 hertz 480 volts will be included in sale) 12ft 10” tall {base detachable at 77” to lower overall height} DIMS 12ft 10” x 7ft 10”W x 10ft 2” L Top opening 40” x 40” with chute for 18” round maximum pieces of RAP Belt Conveyor #1 35ft L x 4ft 10”W x 3ft 6” T 15HP AC driven 3 phase {under RAP lump breaker} Belt Conveyor #2 65ft L x 4ft 10”W x 3ft 6” T 15HP AC driven 3 phase {takes RAP up to drum} Belt Conveyor #3 34ft L x 4ft 10”W x 3ft 6” T 15HP AC driven 3 phase (extra for possible conversion from RAP bin unit to drum conveyor} Belt Conveyor #4 39ft L x 4ft 10”W x 3ft 6” T 15HP AC driven 3 phase (spare) Unit has been out of service for 3 years **Tires are in good condition, New brake lines, Road ready, 2 years ago system was made road ready with all new stuff, it was set up to run RAP**

More Photos:

Portable 2000 CMI Rap System

Inventory #: RS1180

2000 CMI 500 single bin RAP aggregate system complete. Approx. 10x14 opening Incline Feeder conveyor: 30" X 21'. 5hp motor Conveyor Fordable Hydraulic Raise Conveyor to Drum: 24" X 57'. Bin has Grizzly Loading Bulk Head Wall Single Axle This unit has just been taken out of service as we purchased double bin RAP units. Full portability options. Specifications Year: 2000 Manufacturer: CMI Model: PRB120C24 Serial Number: 180

More Photos:

NEW Stationary (13'x6') Shingle Feeder Bin

Inventory #: RS0242

Size: 13' long x 6' wide by 5' deep 24" feeder w/ 10hp motor with #3 gearbox 2 vibrators Plastic liners Hinge walls Flow switch with controller Lifting eyes 1 week to manufacture Picture is of a new unit just installed on an Astec plant here in TN

More Photos:

Relocatable (10'x12) Single Rap Bin

Inventory #: RS1035

Size: 10’x12’ Cat walk Legs off Bin extenders

More Photos:

Semi-Portable (6'x12') Recycle System

Inventory #: RS0118

Size: 6’x 12’ 30” x 8' Variable Speed Feeder 5hp D.C. Motor Portable Incline 30”x 50’ weigh bridge conveyor to recycle collar.

More Photos:

Stationary (8'x8') Rap/Recycle Kit

Inventory #: RS0137

Size: 8’x 8’ Bin Sits on Conveyor Portable Incline 30”x 75’ Chanel Conveyor to Weigh Hopper Was used on a batch plant

More Photos:

Stationary (9'x13') 3 Bin Cold Feed

Inventory #: RS0811

Size: 9' x 13' (w/removeable bin extensions) 3 Bins Feed System Two bins discharge to the right and have WEIGH BELTS (First Bin feeds to the Right for Recycle) ((Second bin the center bin is a shingle bin (completely relined) shingle)) ((drop into impactor (Shop Made))((Third bin feeds to the right and is just variable speed (Virgin Materal))….All three bins have 5hp Freq Drives....All Three Bins have 30" feeders....The two other bins that aren't the shingle bin have relined bottoms

More Photos:

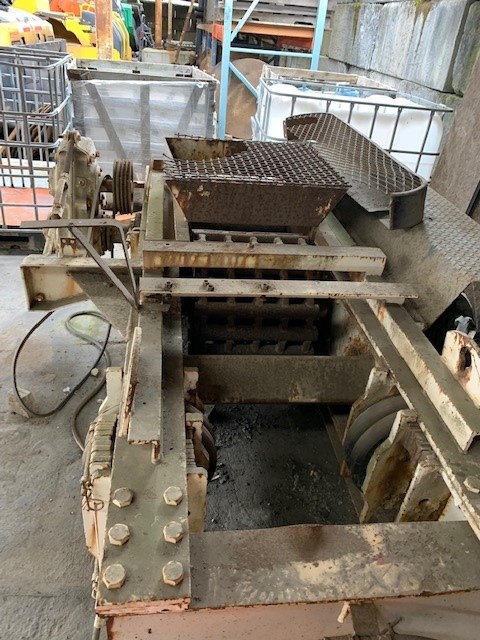

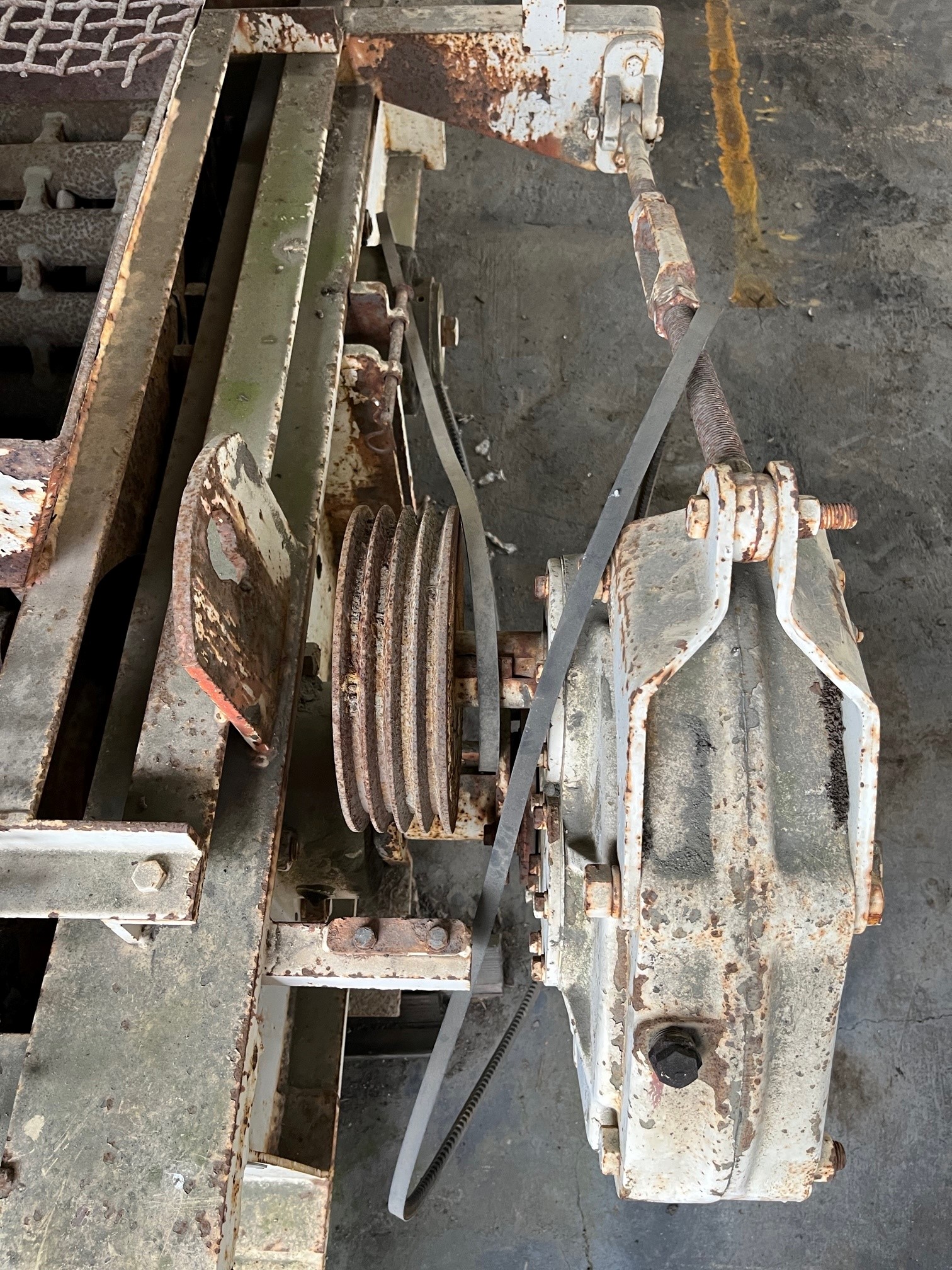

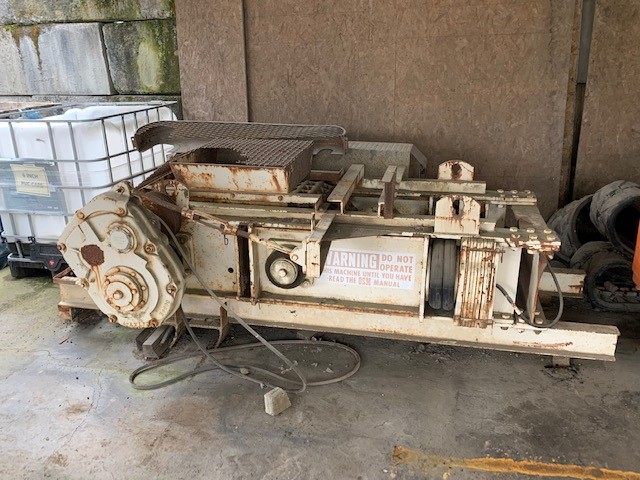

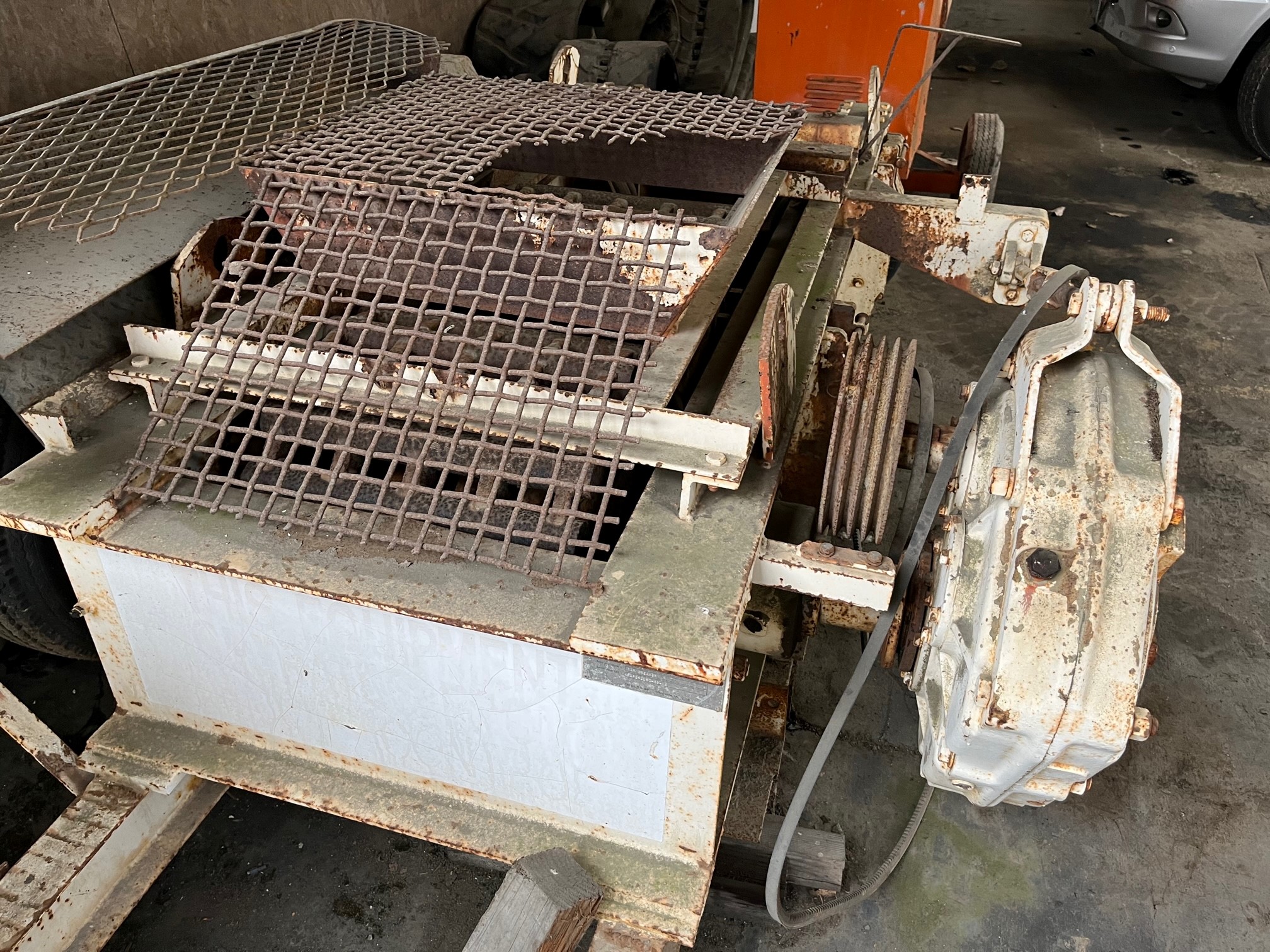

"Recycle Crusher" Gentec Rap Gator

Inventory #: RG0612

Make: Gentec Model: Rap Gator S/N: Painted Over (NONE) Double Roll Lump Breaker Rollers 24" long 12"wide Foot Jones Reducer 25 hp motor

More Photos:

Rap/Shingle Bin

Inventory #: SHB1104

29 ft over all lenght 12.6 ft tall Top of hopper 14 ft long and 8 ft wide Conveyor is 30 inches wide and 25 ft long

More Photos:
