**Property Description:**
200TPH Asphalt plant with 2400 sf insulated metal building and office space
4 12'x14' overhead doors, 2 drive thru bays.
One 10'x10' overhead door in back.
3 offices, one oversized to allow for conference room. Reception area, kitchenette, half bath, storage and copier room.
Security gate allows for access to both properties.
Approx 16 acres total with plant, office and shop.
Plant missing some wire
**Semi Portable Cedarapids 8828 (Non Recycle Plant)**

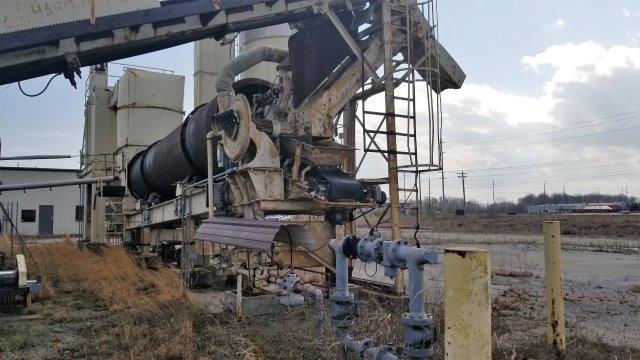

* **Cedarapids Drum**: Model 8828, SN 335903 Portable 7'.3" x 28' Virgin Drum "No Recycle Collar" , Flights in Good Condition, Shell in Good Condition AVERAGE Thickness .400. The tires and trunnions look good. The 1999 AF-60 Burner is set up to run oil (Diesel). The unit is on a Tri Axle Frame with Hydro Levelers

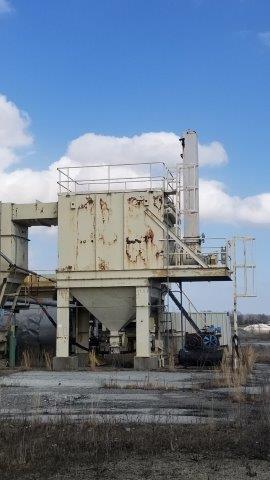

* **Astec Pulse-Jet Baghouse**: Pulse-Jet Stationary Baghouse with 864, 5" x 10' Bags equals 11,303 SQFT of cloth at 5.1 is 57,645 Acfm with a 200 hp motor on the fan. There is a soft start next to operate the fan. Single Auger Discharge and Pneumatic Dust Blower to Deliver Dust To The Drum. 50 Hp Screw Compressor

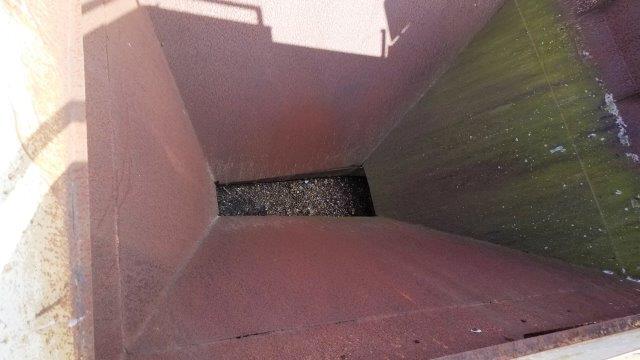

* **Cold Feed**: Five (5) Bin Stationary Coldfeed System. 9' x 11' Bins with 24" x 8' (NEW) A.C. Motors and Dodge Reducers. A 24" Side Walkway Around the Top of the Bins with a Ladder for Access. A 24' x 20' Channel Conveyor Feeds the Scalping Screen.

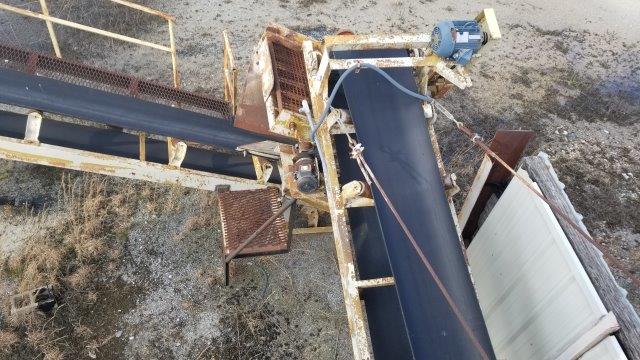

* **Screening**: A Pro Quip Model 281 SD Single Deck 3' x 8' Screen with a 30" x 60' Incline Lattice Weigh Bridge Conveyor Feeds the Drum.

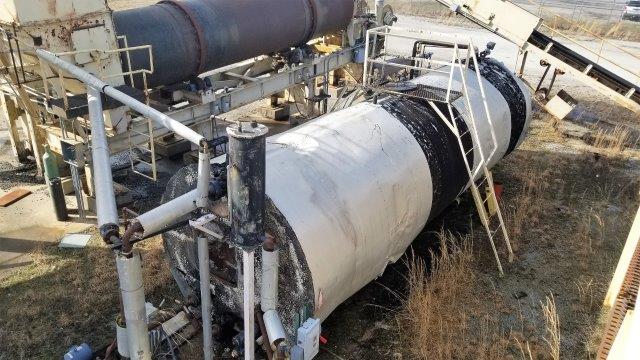

* **A.C. System**: 2 Skidded A.C. Tanks 20,000 Ea (One Is Hooked Up, One is Not) are Coiled and Heated by a CEI 1000A Oil Fired Hot Oil Heater, A 3" Metering Skid included with a Electric Pre Heater for The Burner. A 10,000 Vertical Fuel Tank for the Diesel Storage.

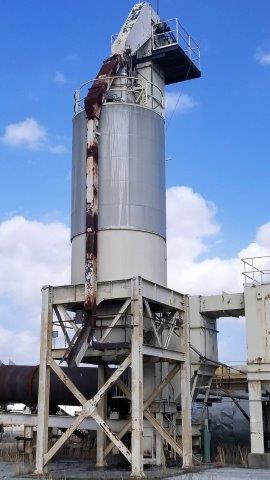

* **ASPHALT STORAGE**: Bituma-Stor Portable Silo Package (Model 100T-138-227-78-TA) A 300 TPH Portable Heated Drag with a Single Chain 24" Slats. Duel Side Walk Ways and a Tandem Axle Carrier. One Portable (Missing Axle) 100 Ton Insulated and Skinned Reject Silo is Provided For Mix Storage. A 10' x 80' Pittless Scale is For Material Weigh Out. A 15 hp compressor is provided for silo load out.
* **Control Systems**: A 360 Single Level Stationary Control House. The Controls are SYSTEMS with Manual LCD Back Ups, Gencor Gen III Burner Controls and NEW A.C. INVERTERS for the Cold Feed System. The Control House is Elevated with the MCC Underneath in a Building.
**The plant is complete with updated above ground wiring (Some Wire has been stolen) and is capable of 250 TPH**.
Stationary 80-120tph Almix Drum Plant
Drum:
66”X 26’ Parallel Flow Drum Mixer With Trunnion Drive
Shell Condition Good “Average .450
Good Trunnions And
4- Dodge Txt-2 Gear Boxes
4-10 Hp Motors
24” Slinger Belt
Burner:
Hauck Star-Jet Combo Burner
Model Jbo-4360-27 Blower 40hp Motor
Maxon Gas Train
4-Cold Feed:
4- Bin, (10’x 8’ Bins) Bins,
No-Flow Switches And Tachs
Ver Speed 20” Belt Feeders
24” Collecting Belt
Allan Bradly D.C. Controllers In Nema Enclosure
Conveyors:
24”X 36” Single Deck Vibrating Scalping Screen,
24”X 20’ Ramsey Weigh To Slinger Belt
Dust Control:
Baghouse (Pulse-Jet)
14 Rows Of Bags 14 Bags Per Row 196 Total Bags 5.5” X 8’
Fan With 1-60 Hp Motor
2 Rotary Screw Compressors
Asphalt Storage:
75 Ton, 2.5ton Anti-Seg Batcher, 5 Ton Weigh Batcher
Electrically Heated Gates
200 Tph Bucket Elevator With Reject Chute)
30 Hp Motor “Single Chain And Buckets Look Good”
Liquid Asphalt Storage:
15,000 Gallon Electric A.C. Tank
Metering Skid And Unloading Pump
Control House:
(Stationary) Updated Computer Controls, Silo Load-Out, Burner Controls And
M.C.C 300 Amp Main (No Plant Wire)
14 Bags Per Row At 14 Rows = 196 Bags
