Sand/Aggregate Drying Systems

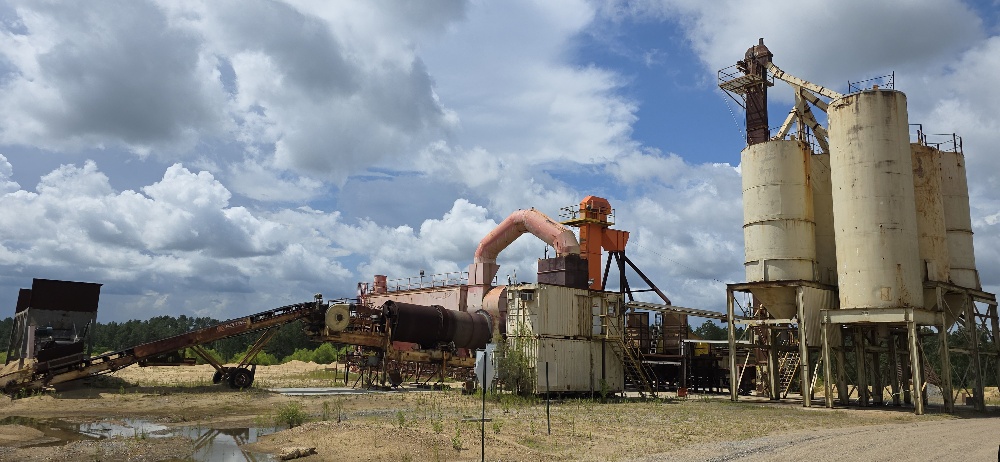

AGGREGATE OR SAND DRYING PLANT

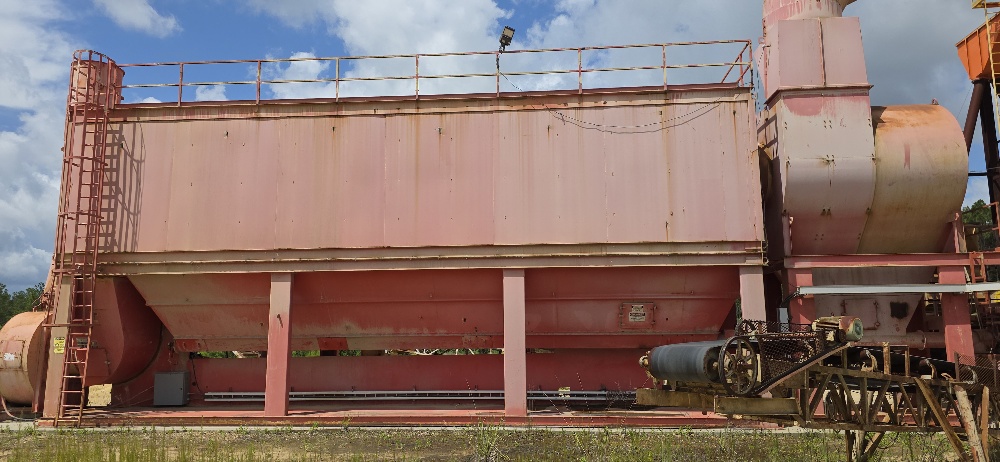

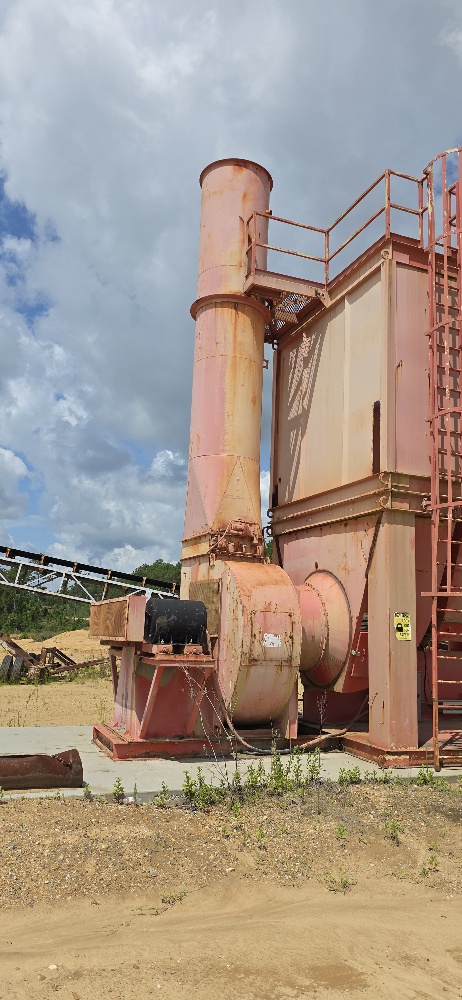

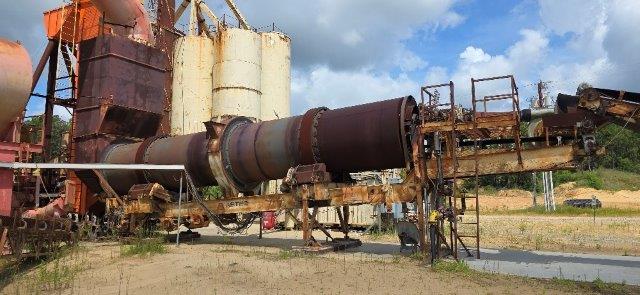

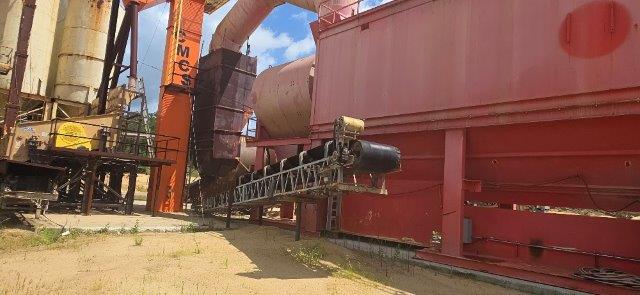

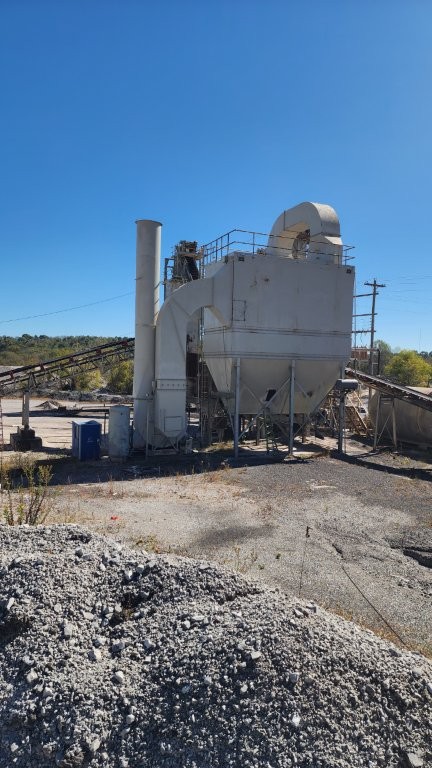

Drying operation in GA.. 1) Stansteel dryer assembly is 7’6” diameter by 32’ long and sits on a full perimeter frame with stand to grade.  A 60 hp motor drives a bull gear rotation system. The aggregate entry chute to the dryer system is lined with ceramic tiles. The tires and rigging as well as the trunnions appear in very good condition. A Gencor Ultra Flame II, model 70 utilizing #2 diesel fuel provides the heat.  The burner Serial # UF1373 was new 3/29/1994. The burner and dryer assembly appear to be in good shape but the system needs paint. 2)This 1990’s era Standard Havens baghouse is an Alpha Mark V size 27.There are 27 rows of bags, 16 bags in a row and the bags are 5.5”x 15’ long. There is a nominal  9,325 square feet of cloth that will effectively filter 51,287 @ 5.5 cfm of dust laden air. The entire baghouse was built of 3/16” bent plate including the tube sheet. This made for a very rigid and long lasting construction. All bags are accessible from the top of the unit. Also, this baghouse has a very large volume so that the dust can enter the house and slow down and fall from the air stream without the bags doing all the work. There is a walkway on the side of the house for accessing the double-diaphragm Goyen valves. The outlet duct with the fan, 150 hp premium efficiency motor, damper and stack are included. The opposed blade damper is missing the actuator. There is no air compressor, however, there is a very large air holding tank piped to the unit.  The hopper section of the baghouse is skid mounted for ease of moving and reassembly. A 12” diameter screw is in the bottom of the hopper and a 5 hp motor drives it. A heavy-duty mesh screen covers the augur.  There is a large access door to the hopper section. NOTE:  This baghouse appears to be in good condition. However, it needs a coat of paint desperately.  Standard Havens set the standard for baghouses in the asphalt industry. The wide row spacing and wide bag spacing coupled with a large box volume insured good long-term performance. 3) This is a two bin, skid mounted cold feed unit. Each bin is 8’ wide by 10’ long.The system has both bin extensions and bin dividers. The belt feeders are 24” wide and 7’ long to provide a nice steady flow of materials. A 3 hp motor with Reeves drives powers each feeder.Each feeder has adjustable gates. These bins were purchased specifically to feed sand or fine materials.As shown in the photos, the inside of the bins appear to be hardly used.this cold feed system appears to be in well above average condition. Overall unit in good condition.... Some controls and starters/breakers included with sale. Price for above system still erected and located in GA is.............................$88,000.00

More Photos:

(PORTABLE) Astec Parallel Flow Sand Drying Drum

Astec Parallel Flow Drum Portable 7' x 42' PF Drum Trunnion Drive, 4-30 HP 460 3 phase drive motors / w reducers (With Guarding), needs seal kits on reducers, Hauck (ECO STAR BURNER) ESO50E-022-01-06-0-08 "PRN 28559" (50,000 MBTU, 4-6 PSI On Nat Gas / 32-38 PSI on Propane) Burner is set up on Nat Gas with MAXON Gas Train Portable Frame Tri- Axle Running Gear This drum is complete and ready to go to new job. The drum is fully portable with all the work done to make it ready to dry materials (Sand, Klinker, Rock ETC). The recycle collar was removed along with any martial build up. Very good condition.......dems. are 60' L x 10'5" w x under 14' tall, weighs approx 65,000LBS

CMI DRYING PACKAGE

PARALLEL FLOW DRUM: This CMI model PVM drum has a portable frame with axles, 9.5’ X 42’ long drum is cradle chain driven by a new100 hp motor and a Faulk gearbox. Both ends of the dryer are expanded for better combustion and mixing. The drum sits on a 24” wide flange beam frame and includes the stationary legs set to grade. A gravity chute is provided for inlet of materials. The Hauck Eco Star is model EC-115- Eco- Star set up to run nat gas. The burner blower is powered by a 100 hp TEFC motor. POLLUTION CONTROL: The CMI Pulse pulse-jet baghouse, model 630 baghouse, Each bag is 6.5”diameter and 94” long. That will effectively filter 63,000 cfm of dust-laden air at a 6 to 1 air to cloth ratio. All inlet and outlet duct work with Twin City backward inclined fan, 1 X 150 hp motors, damper and stack are included. The dust is then blown back into the drum with a pneumatic blower driven by a 25 hp motor. A 2005 Quincy 30 hp screw type air compressor provides the air. New bags and cages were installed 2011 there are approx 100 spare cages and bags.

More Photos:

AGGREGATE OR SAND DRYING PLANT IN CA (ON HOLD TILL 2019)

Standard Havens drum......Alpha Mark III. Standard Havens 12``Screw Conveyor Discharge 60,000 A.C.F.M. 1-250 HP motor on fan Bags In good condition DuctWork From Drum to Baghouse Standard Havens Drum Gencor AF-75 Burner Available Feb 10 (Loaded or Buyers Trucks) Currently Running

More Photos:

6' Drying Package

(Control House) 8'x 25' portable MC Center Starters Controls........................................................................................................................................................................................................................................................... (Feed System) Single Bin 8'x 8' (Incline Bin) 30" x 80' Incline conveyor......................................................................................................................................................................................................................................................... (Stansteel Baghouse) Portable Frame (No Axles) Reverse Air (Missing Reversing Fan) Triple Auger Discharge (Look To be almost new) Front Knock Out Box with Independent Auger Discharge 44,170 ACFM 8,834 SQFT of Cloth Single 150 Hp Motor with New York Blower Size 44 PLR................................................................................................................................................................................................................................................................. (Stationary Dryer) Stansteel, 6' X 28' Chain Drive (Drive Package looks really good) 50 hp motor/reducer combo Flighting good Shell in very good condition average Thickness .325.................................................................................................................................................................................................................................................................

More Photos:

2002 ALMIX DRYING PACKAGE (MIXING) 120tph

2002 ALMIX DRYING PACKAGE (MIXING) 120tph Stationary Almix 6626 Parallel Flow Drum: 2002 Almix 5' 5" x 26' drum (Rated at 120 TPH). No Recycle Collar, Drum set to angle on frame. Trunnion Drive 4 motors with 4 Dodge reducers. Gencor AF-25 Burner. "SN A 51429" (Tri-Fuel Burner "OIL, GAS,LP") Stationary Baghouse: 2002 Environmental Filters Baghouse Model# 120 TNFD 289C / SN# 5147 Pulse-Jet Design with top removal bags Enclosed Man Ladder to the top Rated at 24,000 ACFM 289 Bags @ 6' x 10' Backwards Incline Fan with Electric Damper and Drive Motor Rotary Compressor with Air Storage Tank

More Photos:

600 Ton's Sand Storage Silo's

600 Ton's Custom Sand Storage Silo's 3- 200 ton (Approx 12,000 CFT) Pneumatically Loaded Silo's Three Fill Lines (Can Off Load Load 3 Trucks at Once) Gravity Discharge On The Bottom Cone. The Silo's Can Be Off Loaded On Common Belt Or Single Movable Unit. Three year job just ended the silo's can be sold individually or as a set. The owner will take the silo's down and load included in the cost. The blue loading conveyor can be bought for additional funds. $31,500 ea or $90,000 for set of 3 silo's

More Photos:

DRYING PACKAGE

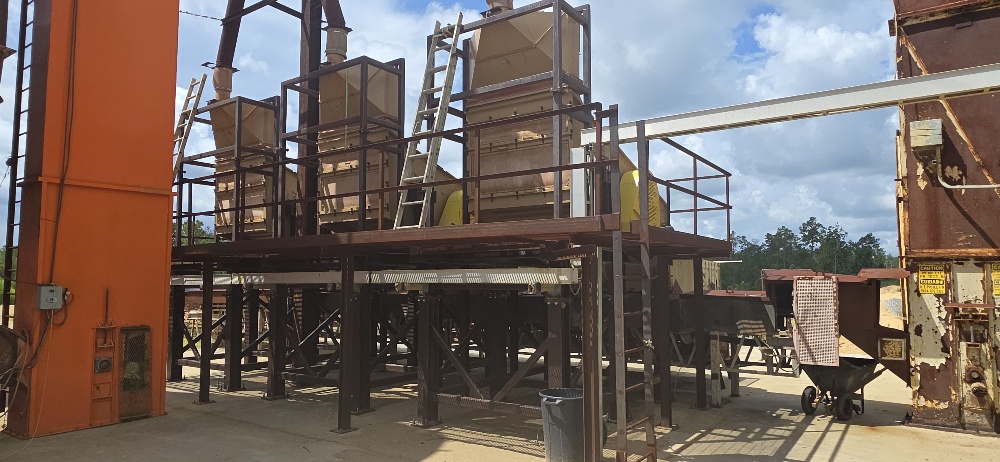

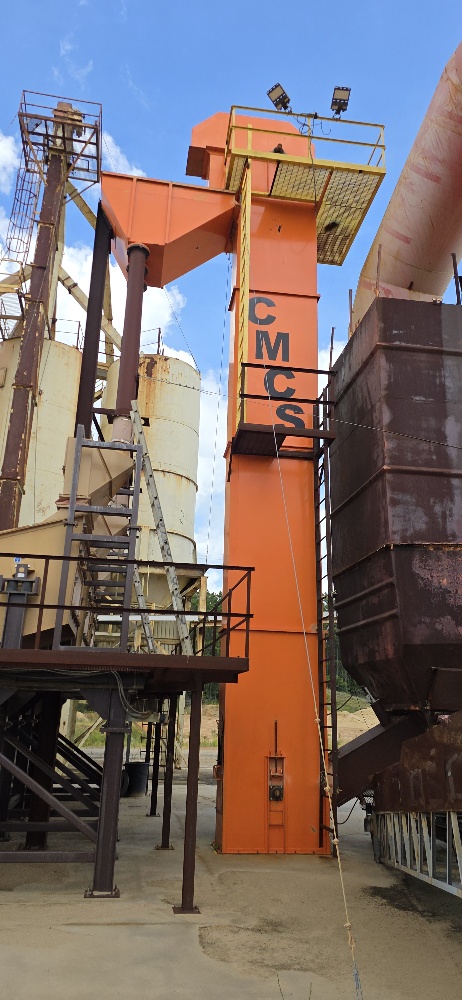

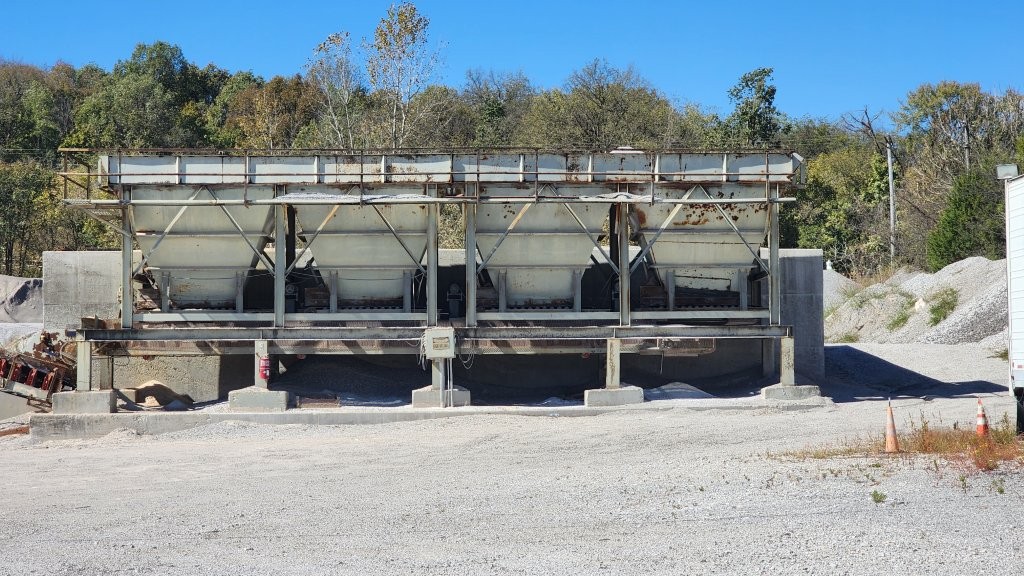

Drying package with hard to find double burner system. One on either end, can use both or one at a time for special applications. Dryer, Center Draft, McDermot 6' x 33', with two 12.5 MBTU Hauck Burners Oil/Gas, now on Gas, with Burner Control. Center Discharge Air, Gear Drive, Gas Trane. Recent New Flights and New Combustion Chamber before shut down 2 seasons ago. Micro Pulse Air Jet Pulse Baghouse.54,000 cfm.(over sized) Bottom Screw 2 Gardner Denver Air Compressors with Air Coolers Fan to BH 250 hp. Allis Chalmers Heat Control Baghouse Valve. Protects baghouse from over heating. 350 BBL Dust Silo. Matran Pressuer Pot with Dust Return system Hot Bucket Elevator with Cast Iron Buckets, Recent New Chain before shut down 2 seasons ago Five, 10 x 10 Bins with Syntron Feeders, Model FH 27 & 33 .Cold Bucket Feed El to Dryer 2.5 Deck Screen. Rebuilt Libra Computer and Motor Controls All Motors, Starters and Wiring. Well maintained and in good running condition when shut down but needs paint.

More Photos:

Stationary Standard Steel Drying Package

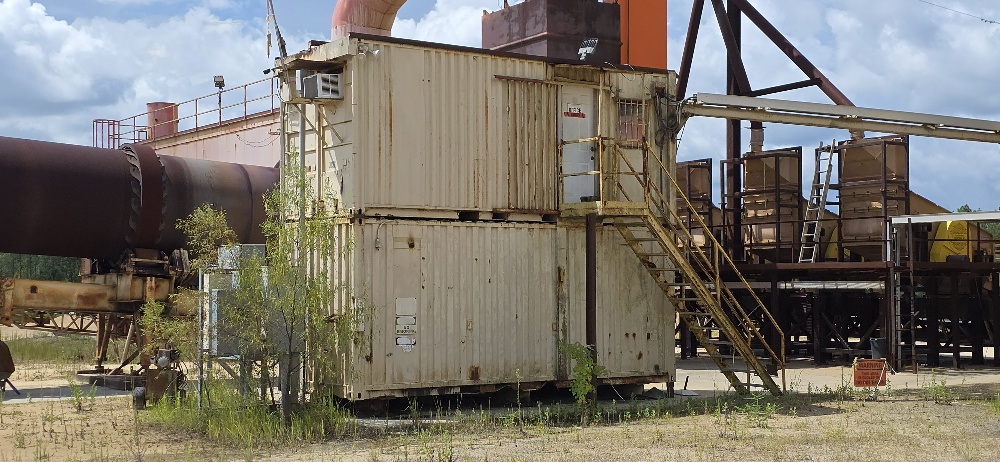

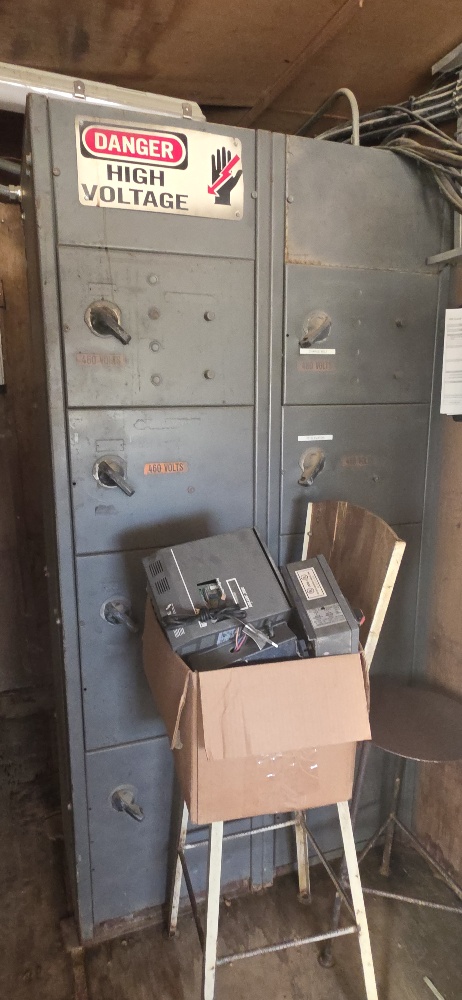

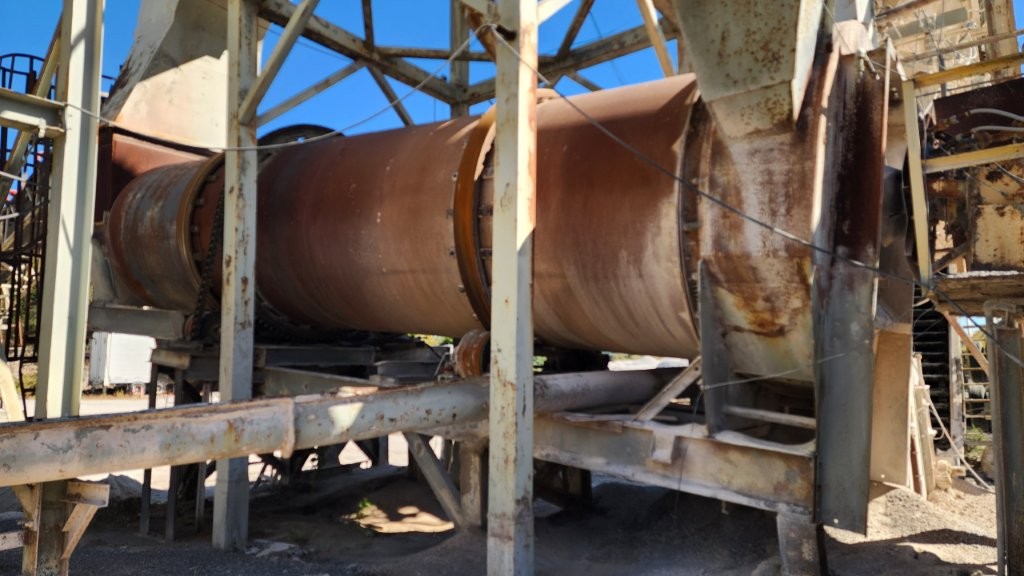

Drying Package, Standard Steel Dryer: 8'x 30' counter flow aggregate dryer (Clean on the inside) Gear drive (Missing 60hp motor) good reducer Genco Ultra II Burner (Set up to run gas) Standard Steel Baghouse: Pulse-Jet 60,000 acfm Good fan with 250 hp motor All connecting duct work Control Trailer: Box van control room Burner controls Baghouse controls Start Stop Panels MCC for the components Soft Starts for baghouse and dryer This is a very nice and clean system plant was run on Nat gas bags in good condition at take down. Dryer shell thick and very clean updated gas burner. Control house with Cuttler Hammer Switch Gear and soft starts. This plant was taken down with the intent of reusing it and was done with great care. There is no wire for the plant but the connecting duct work cones with it very easy to reassemble there are misc conveyors on site that could be for sale to go with the plant.

More Photos:
