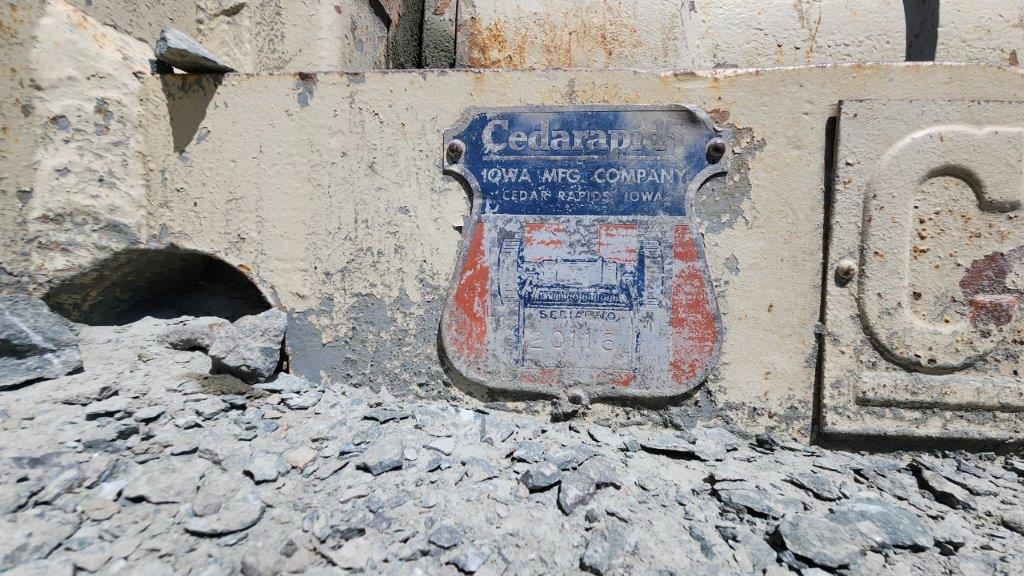

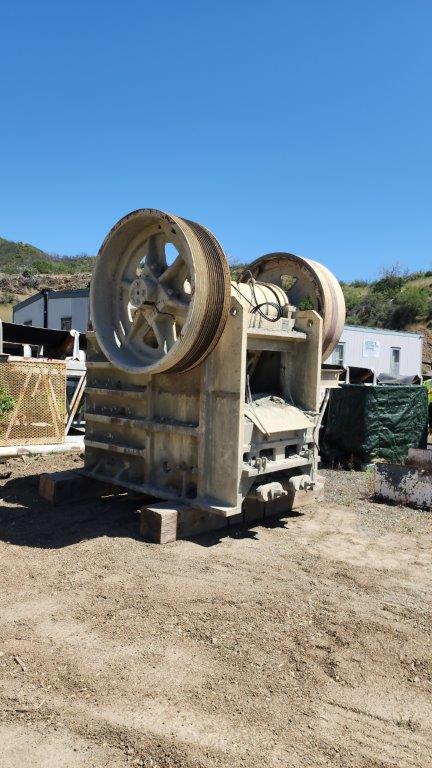

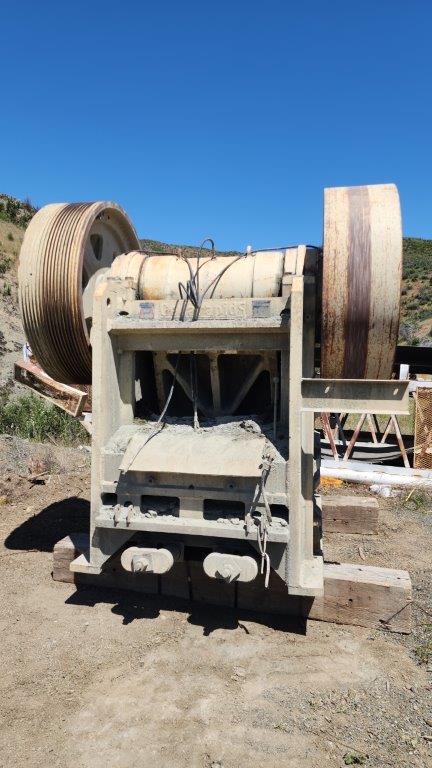

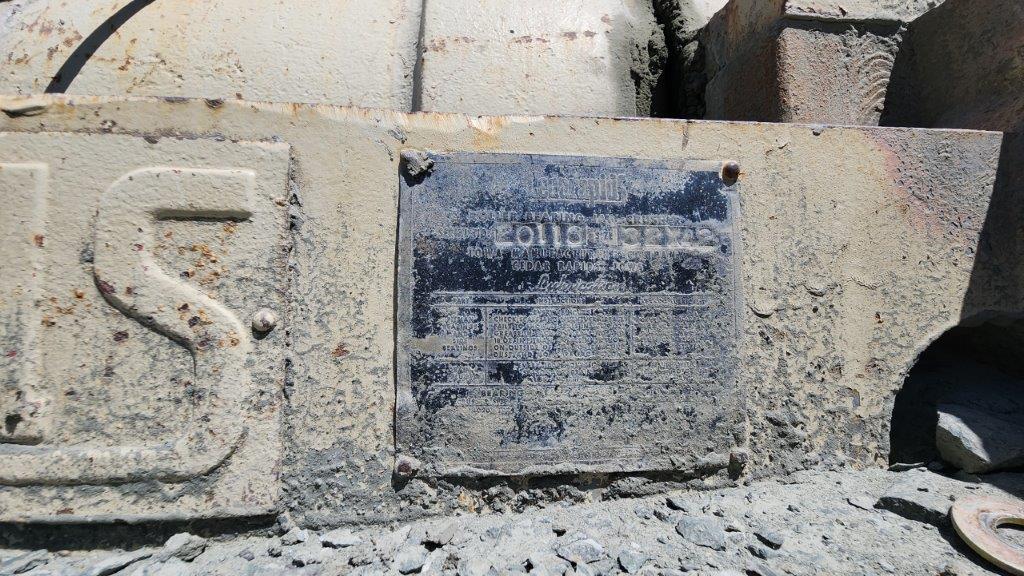

Cedarapids Bare Jaw crusher 32x42 32''x 42'' SR# 20116 Needs new set of bearings

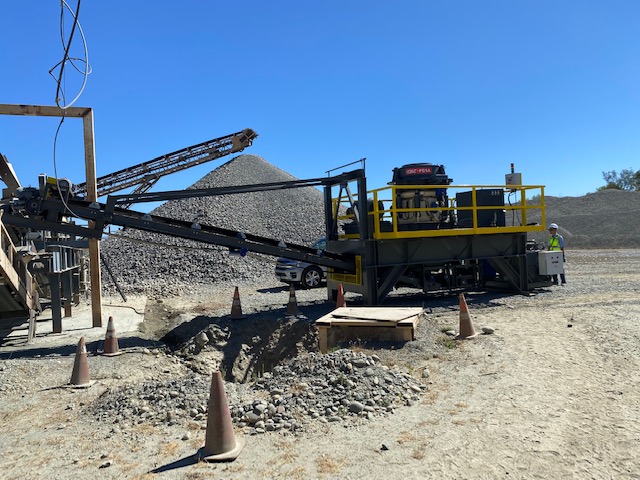

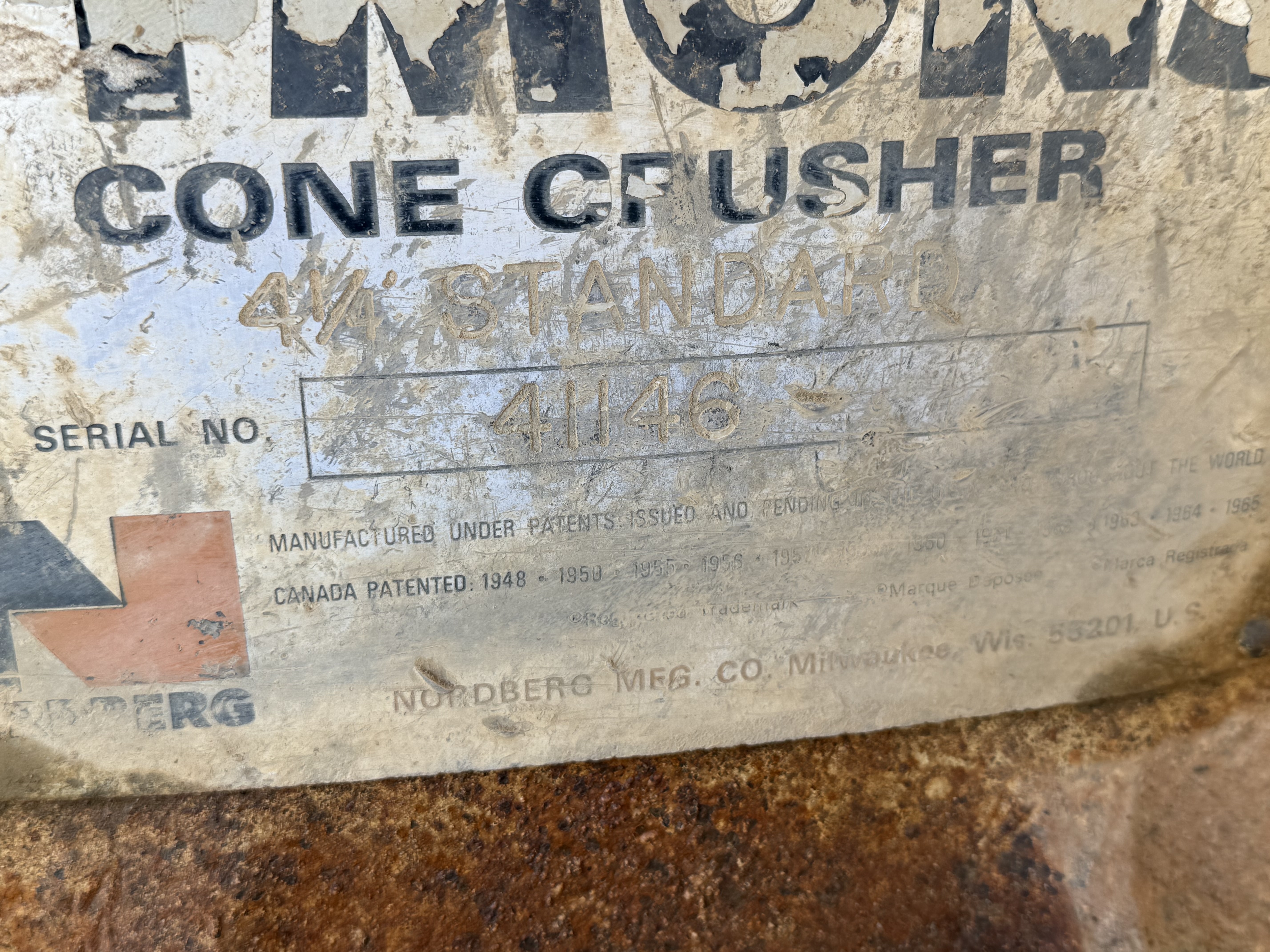

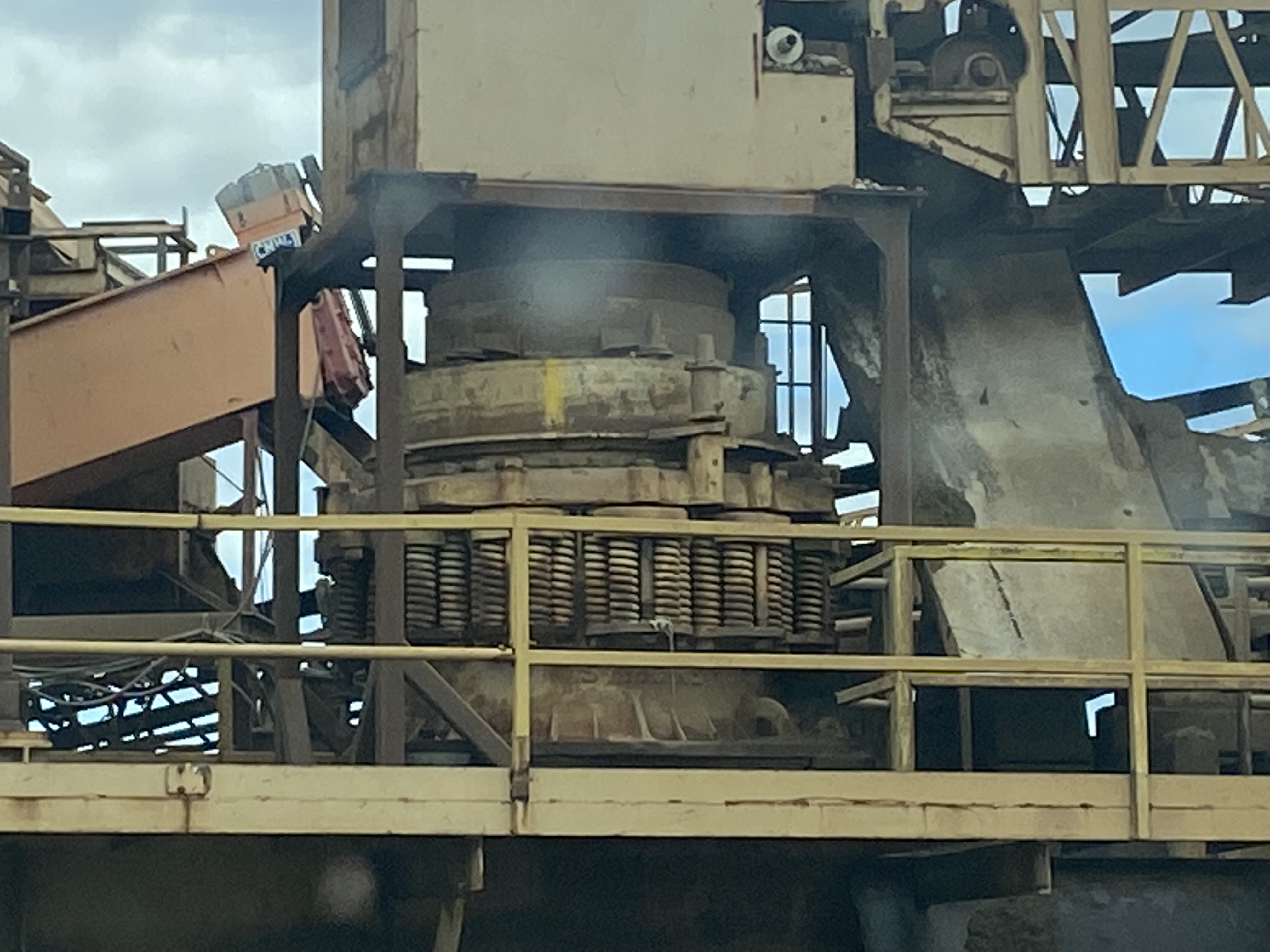

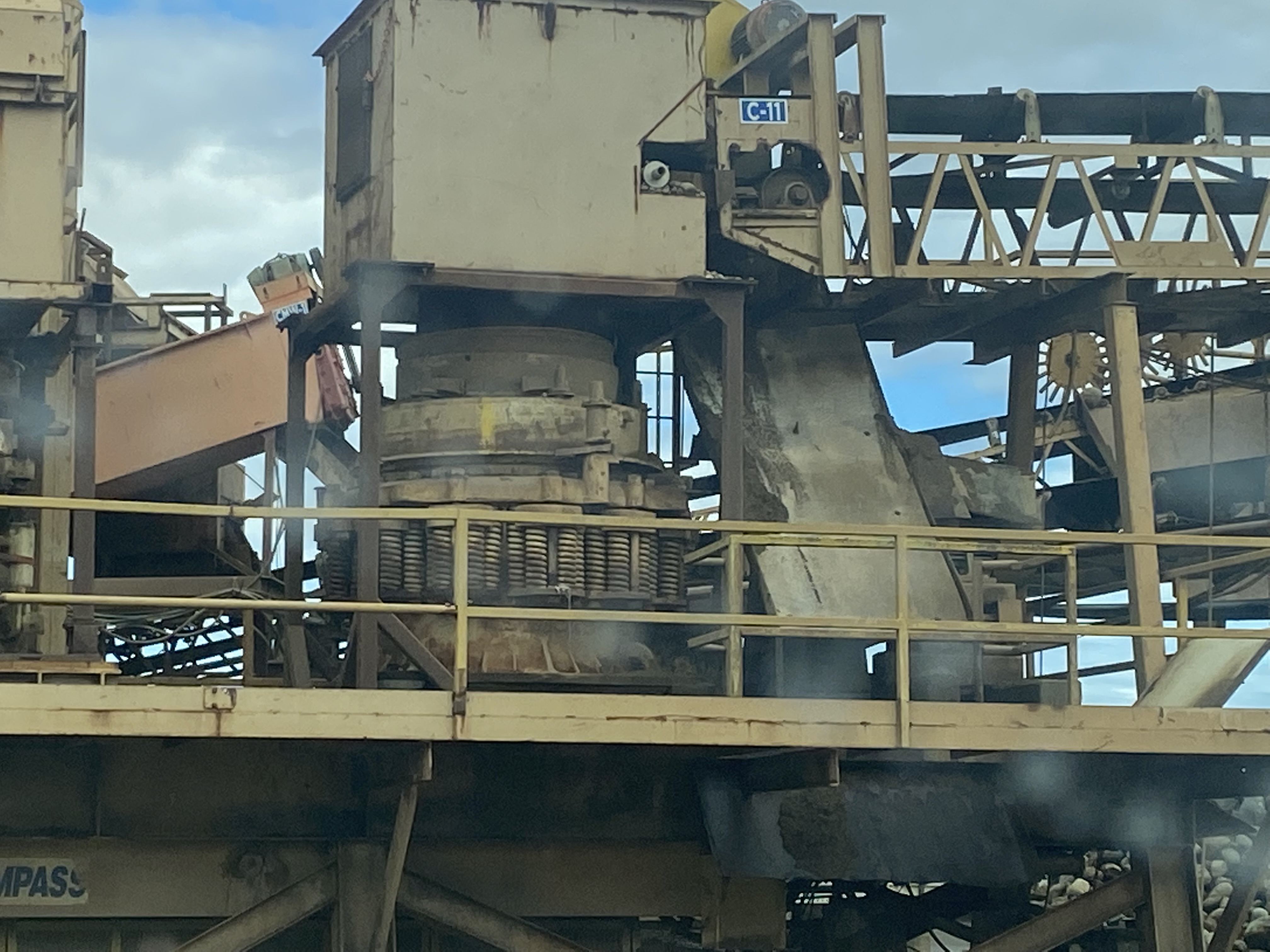

USED SYMONS/NORDBERG 4.25' Standard Cone Crusher                                                         Spring Tramp System Oil Lube/Hydraulic Skid 150 HP TEFC Crusher Duty Electric Motor Crusher and Motor Sheaves with bushings. REFURBISHING ALSO AN OPTION FOR ADDITIONAL $: REFURBISH WORKS INCLUDES – NEW CONE LINERS INSTALLED (buyer to specify), REFURBISH LUBE/HYDRAULIC SKID, NEW MAINFRAME LINERS AS NEEDED. CONE WILL BE DISASSEMBLED AND REPAIRS MADE ON AS NEEDED BASIS. ALSO INCLUDES PREP AND PAINT, APACHE TAN & GREY. REFURBISH WORK WILL TAKE APPROX 6-8 WEEKS FROM DATE OF ORDER

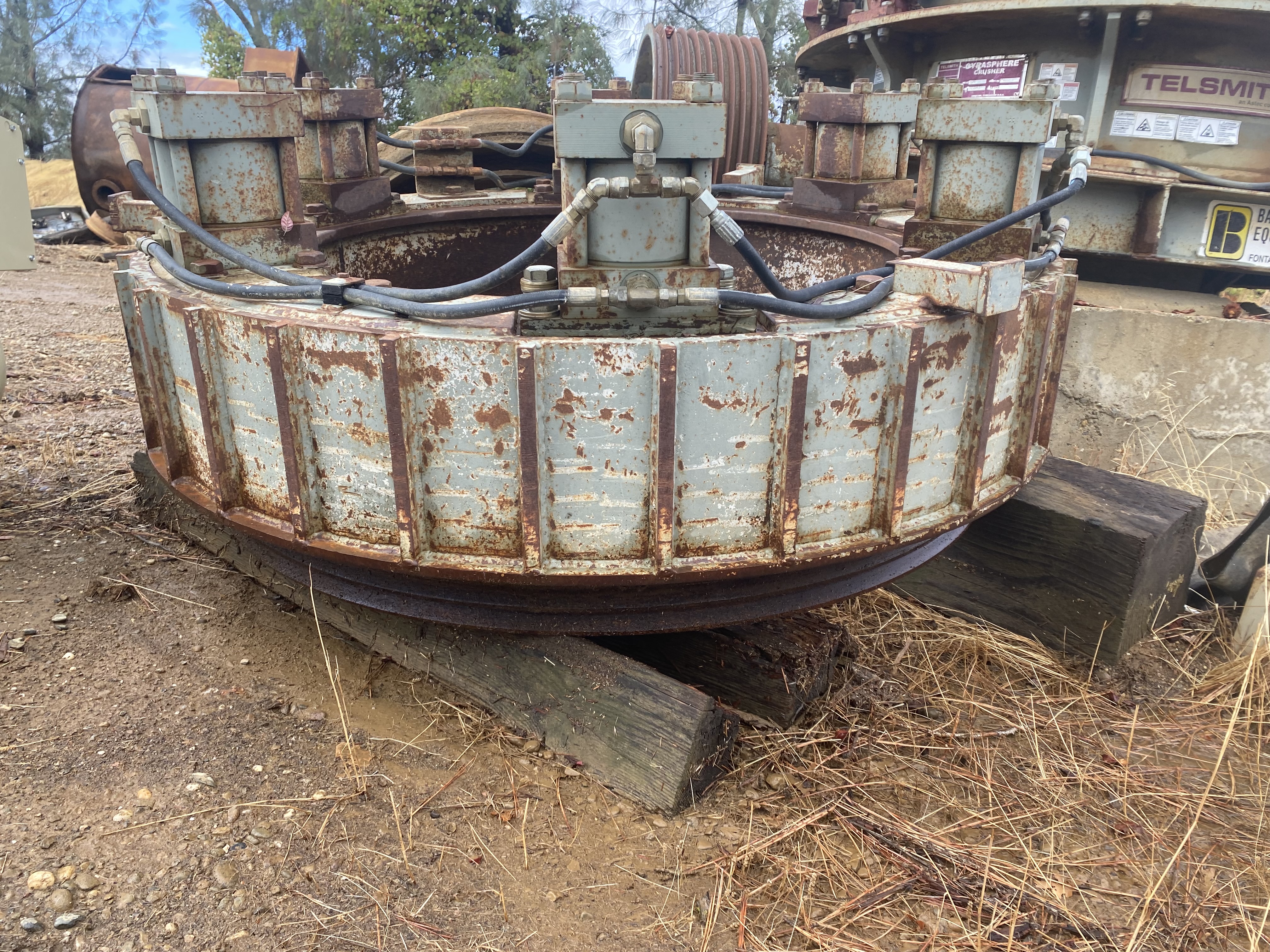

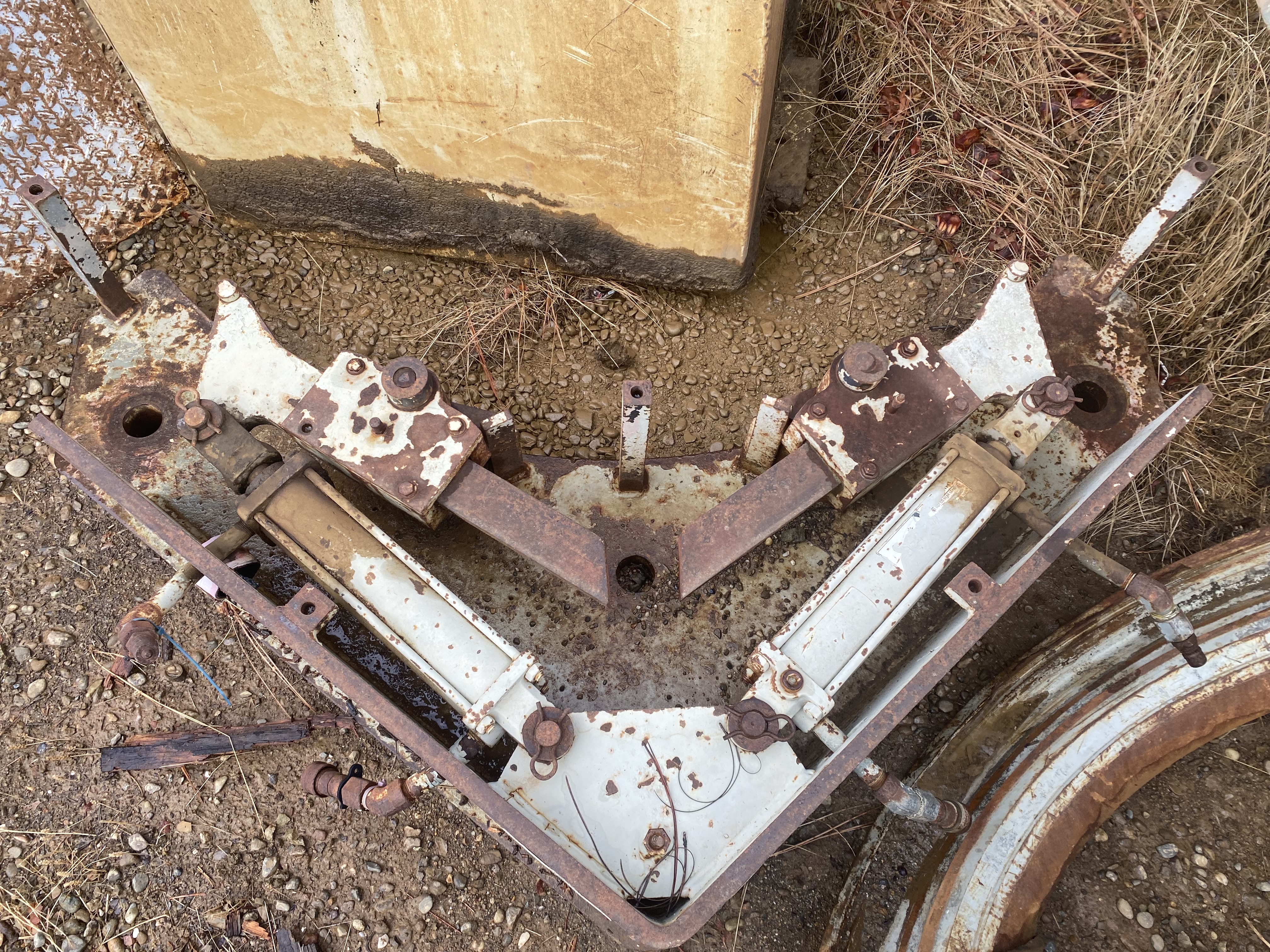

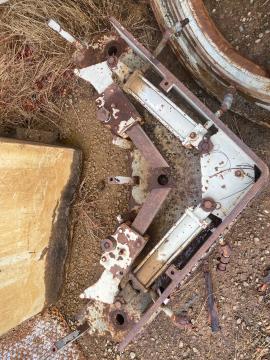

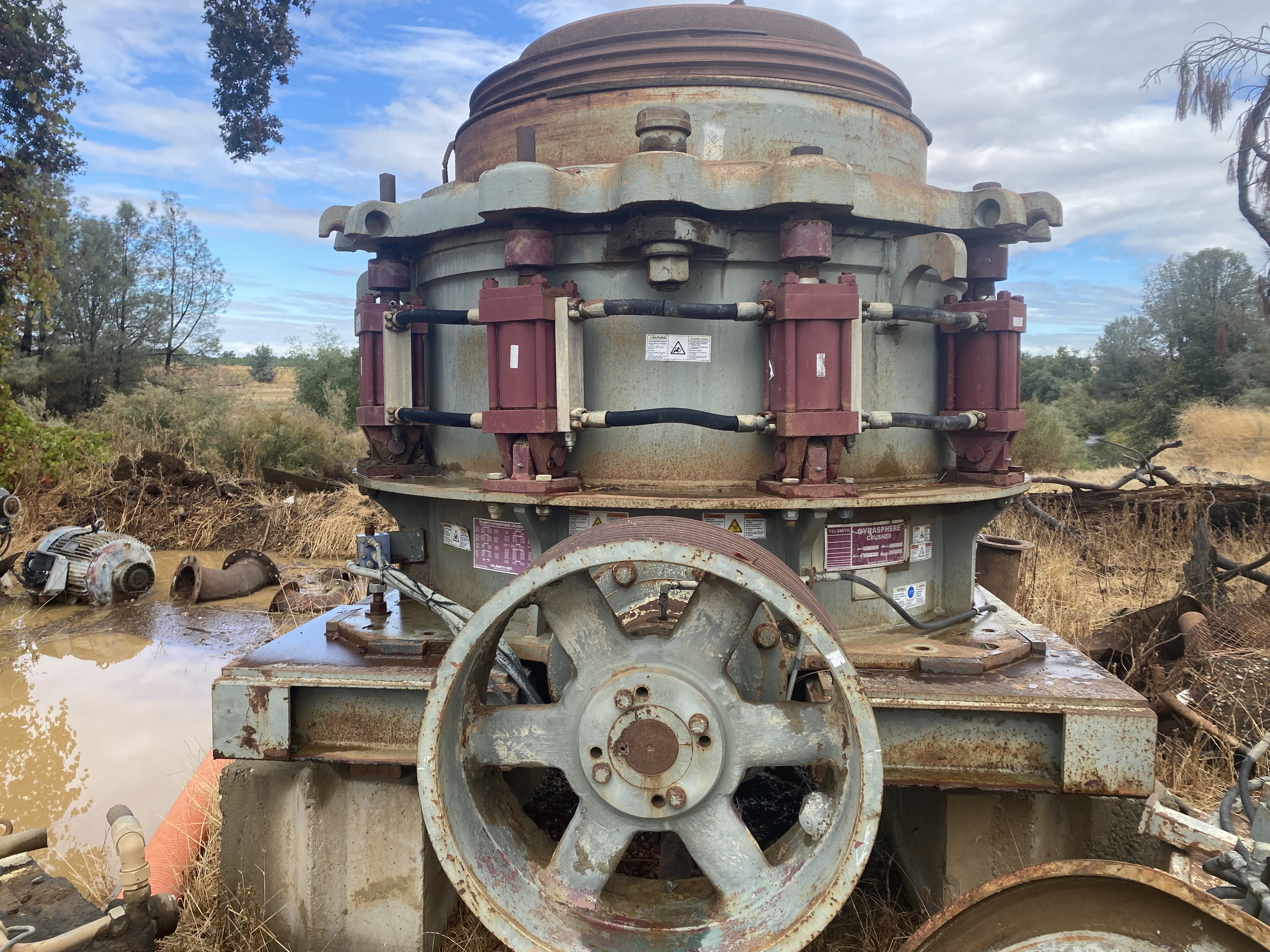

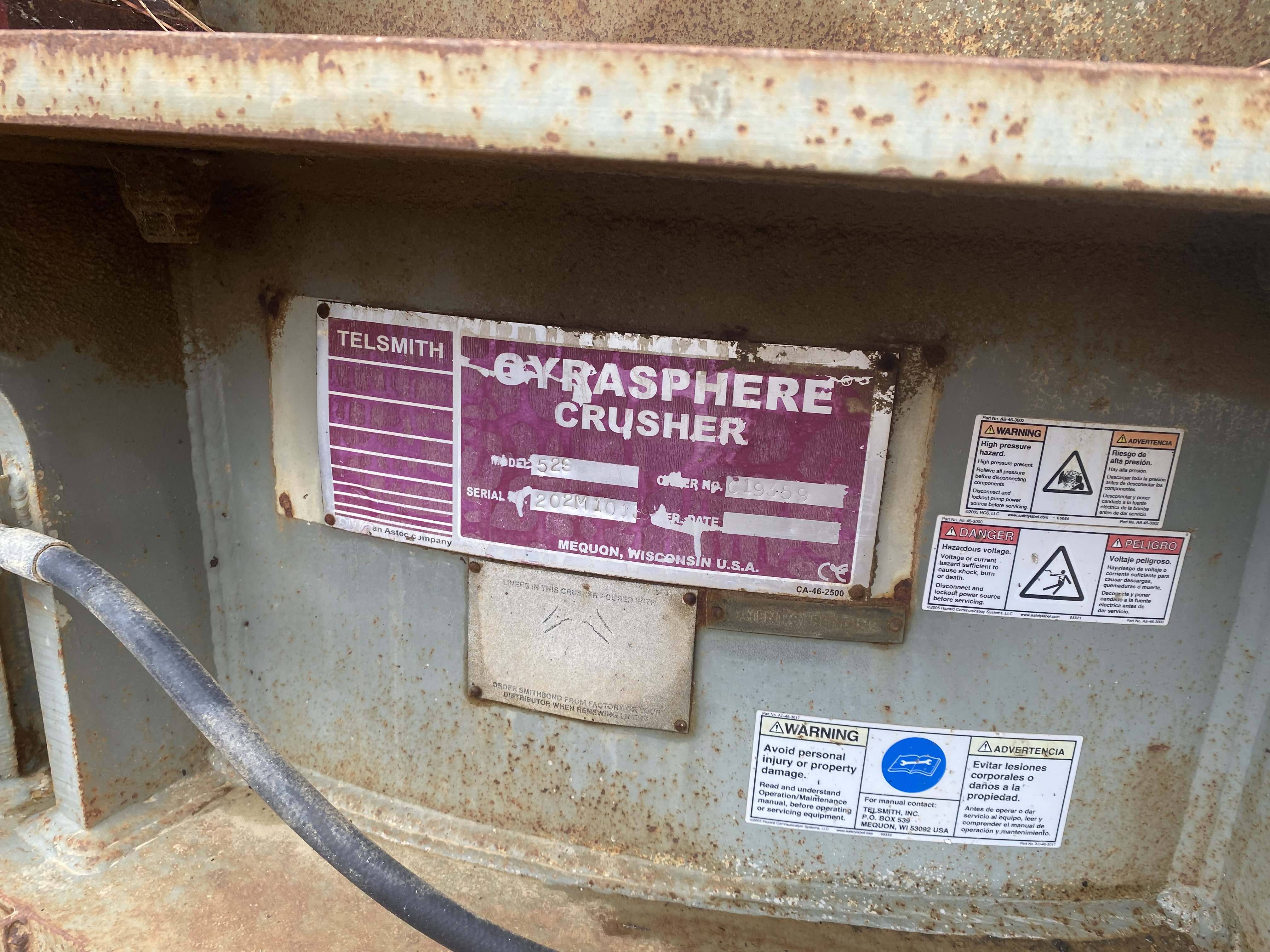

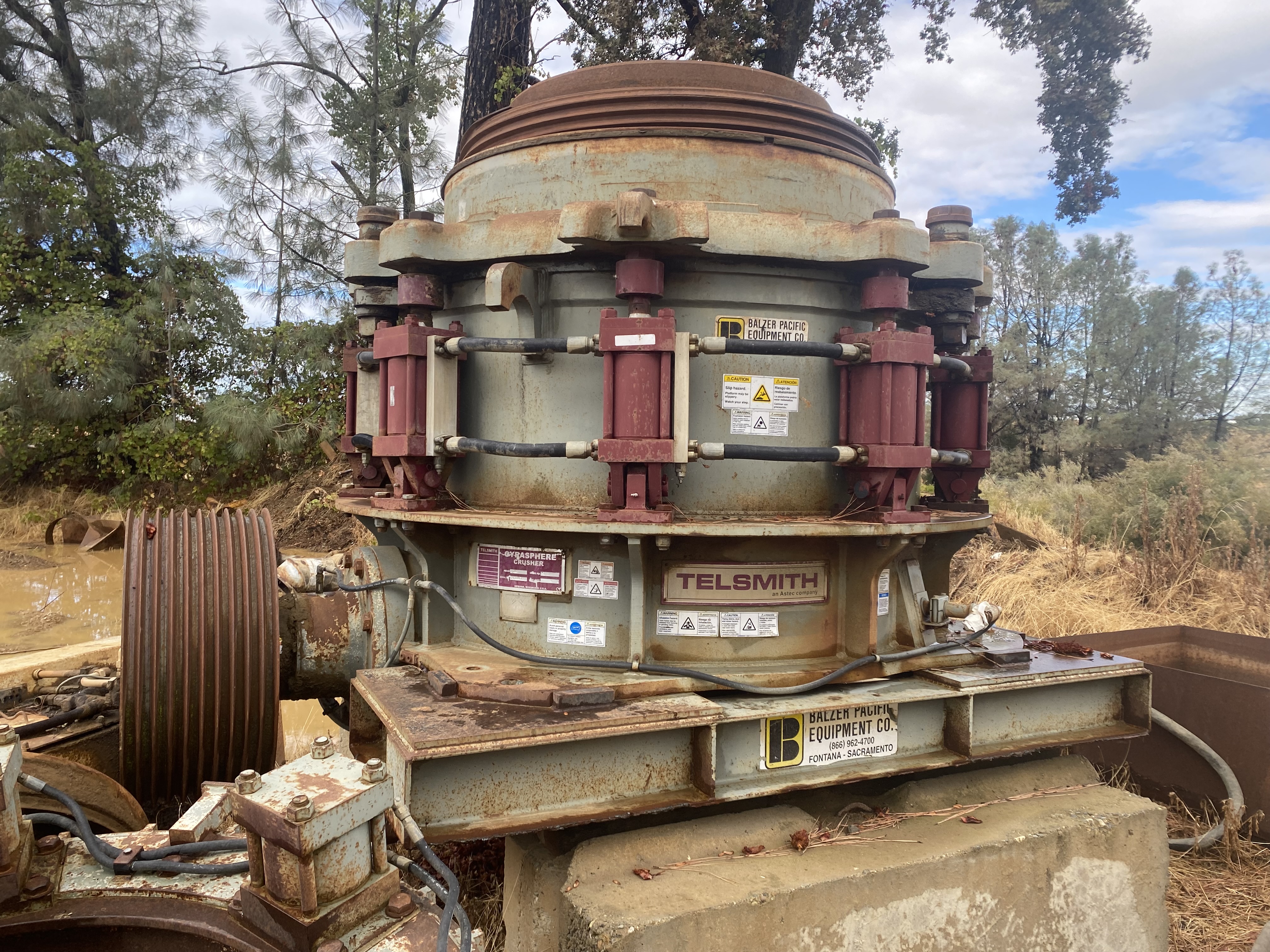

USED H SERIES GYRASPHERE CRUSHER 52S MEDIUM STANDARD CHAMBER RATCHETING HYDRAULIC ADJUST SYSTEM LESS LUBE, HYDRAULIC TANKS AND CONTROLS  CRUSHER SPECS  “H” SERIES GYRASPHERE CRUSHERS ARE USED FOR SECONDARY AND TERTIARY CRUSHING. HP REQUIRED: 250 CRUSHER FLYWHEEL RPM: 600 THROUGHPUT: 235 – 365 TPH WEIGHT: 48,000 LBS. APPROX. REFURBISH WORKS INCLUDES – NEW APACHE LPU & HPU.  CONE HAS MEDIUM STANDARD LINERS INSTALLED (approx. 70% life), RE-MACHINED BOWL AND MAINFRAME THREADS AS NEEDED, RESEAL HYDRAULIC LOCKING CYLINDERS AS NEEDED.  ALSO INCLUDES PREP AND PAINT, APACHE GREY.

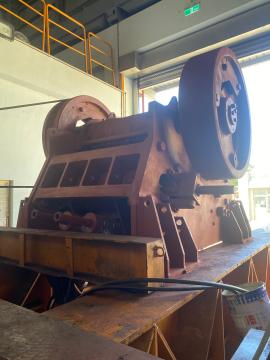

HD JAW CRUSHER WITH MODULAR BOLT TOGETHER DESIGN CAST STEEL BACKING BEAM AND HEAVY-DUTY CAST STEEL PITMAN PRECISION MACHINED FABRICATED STEEL SIDE PLATES JAW DIES - REVERSIBLE JAW DIES FOR MAXIMUM WEAR LIFE. VARIOUS CONFIGURATIONS MANUAL WEDGE ADJUST SYSTEM - ALLOWS FAST CLOSED SIDE SETTING (CSS) CHANGES AND SAFETY FOR JAW OPERATOR. DUAL TOGGLE RODS WITH HD SPRINGS MODULAR BASE JAW MOUNT - ALLOWS FOR ADJUSTABLE MOUNT. INCLUDES RUBBER ISOLATORS FRAME AND PITMAN BEARINGS – SKF OR FAG OVERSIZED BEARINGS WITH SUPERIOR LOAD RATINGS CRUSHER DRIVE MOTOR - 150 HP 1200 RPM TEFC CRUSHER DUTY ELECTRIC MOTOR. INTEGRATED MOTOR MOUNT, DRIVE BELTS, SHEAVE, BUSHINGS AND FLYWHEEL GUARDS MACHINE WEIGHT: 30,800 LBS (14000 KG) TOTAL ASSEMBLED WEIGHT LESS SWITCHGEAR

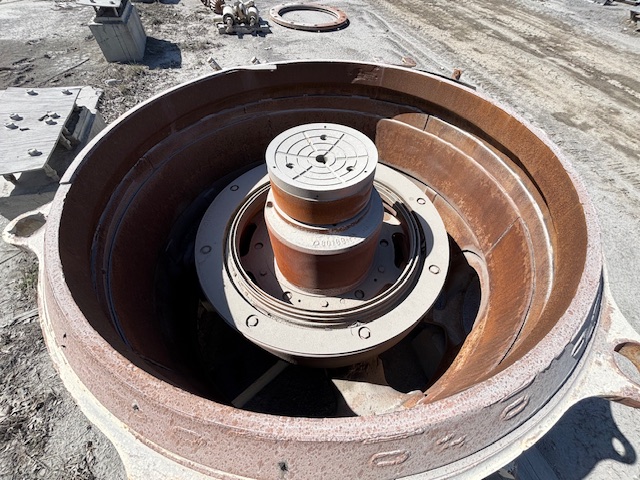

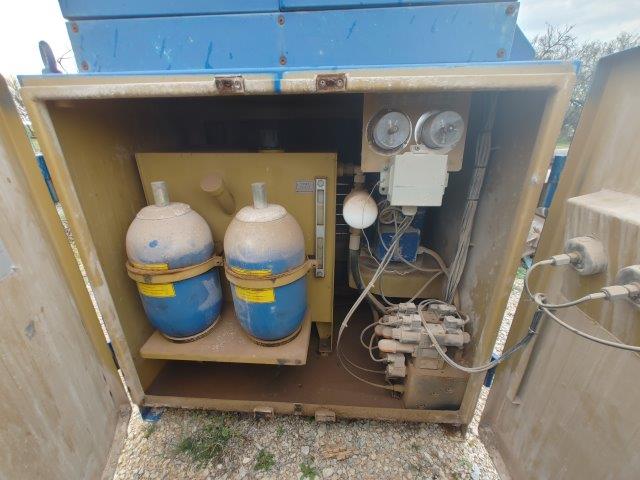

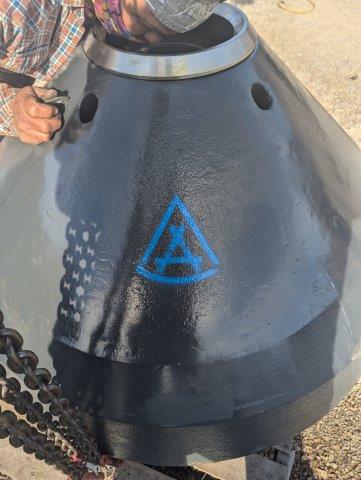

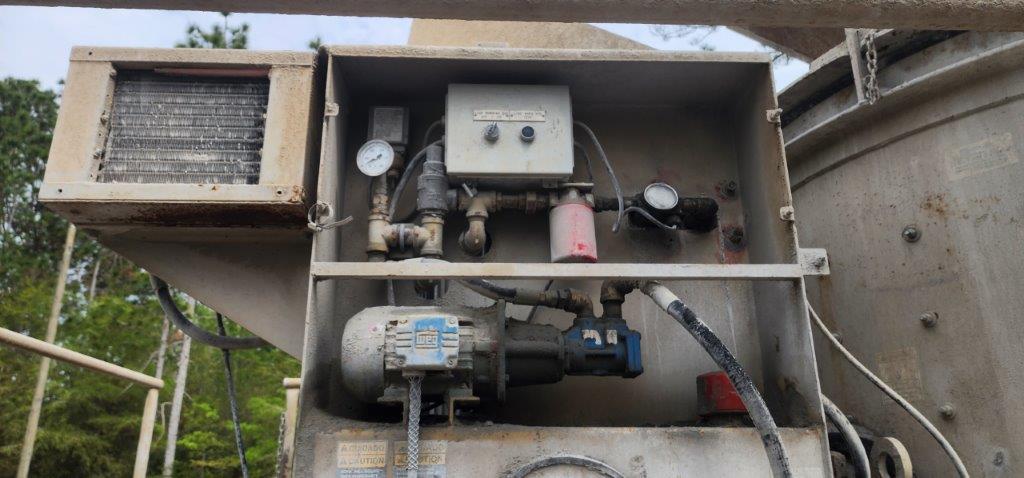

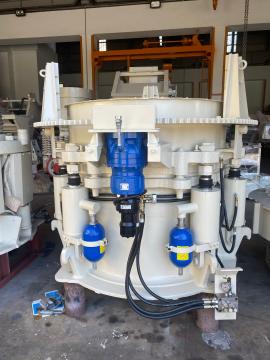

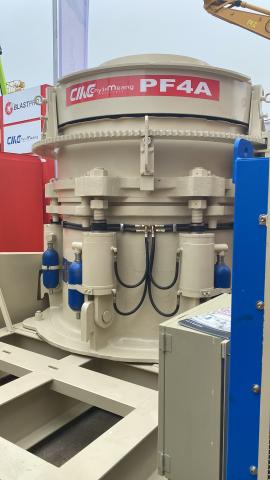

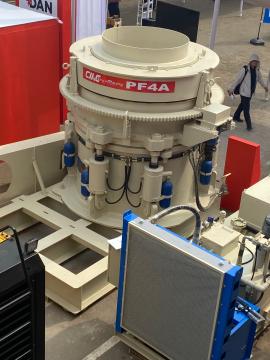

Mainframe - Cast Steel Mainframe with machined seat surfaces. Bowl Assembly - Fabricated Steel Bowl Assembly with replaceable bowl ring gear Head Assembly – Machined steel head with bronze bushings, fixed main-shaft.  Pedestal type design with bronze bushings exhibits higher tolerance to heat and vibration than roller bearings, and lower cost to replace when required. Adjustment - Bowl Ring Gear Adjust System (Hydraulic Powered). Tramp System - Dual Acting Tramp Relief System with replaceable nitrogen charged bladders Hydraulic Lock Cylinders with Cavity Clear Function HPU – Hydraulic Power Unit with oil reservoir, pump, gauges, filter & 7.5-HP Electric Motor, all required lines & fittings. LSU – Lubrication System Unit with oil reservoir, pump, filter & 10-HP Electric Motor, radiator and fan cooling system (3-HP Electric Motor), all required piping and connections. Integrated Safety Switches – Oil flow and Oil Temperature Switches integrated into control system to shut down cone in the event of overheating or loss of oil pressure. Man-In-The-Loop Controls – Start/Stop/Adjust/Cavity Clear Functions. Push Button Panel. Patented Self-Tightening Mantle & Concave – Concave requires no backing material. Sub Base - Cone Sub-base with rubber isolator mounts, adjustable motor mount, and drive guard. Paint – Primed and Painted APACHE Grey & Tan Machinery Enamel with Red & White Decals Machine Weight – 43,120 lbs (19,600 kg) LESS SWITCHGEAR Crusher Chamber & Liners: ·         APACHE HIGH SPEED CONE has multiple crusher chambers available which are determined by bowl and liner selection.  CUSTOMER TO SPECIFY LINER CONFIGURATION Drive Package: ·         Required, bushings, drive belts, sheaves INCLUDED.  ·         300 HP 1200 RPM ELECTRIC MOTOR INCLUDED

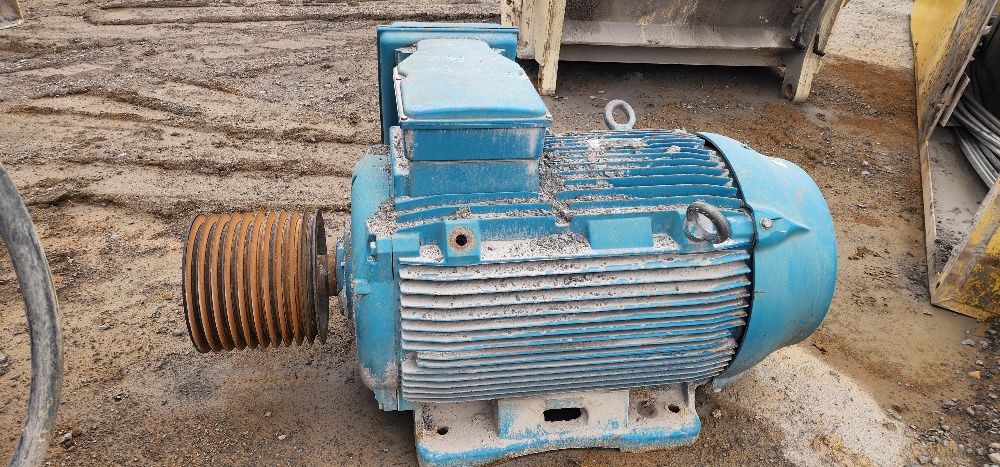

BARE JAW CRUSHER.  DISASSEMBLED FOR SHIPMENT. INCLUDES 350 HP 1200 RPM CRUSHER DRIVE ELECTRIC MOTOR INTEGRATED MOTOR MOUNT USED JAW DIES (LESS THAN 50% LIFE).

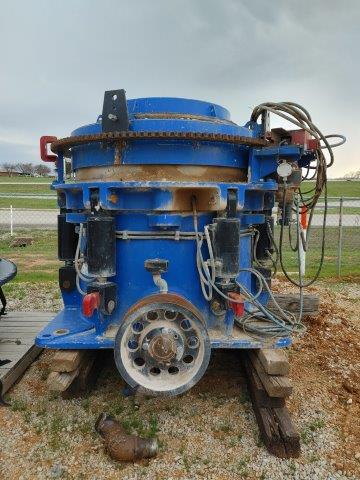

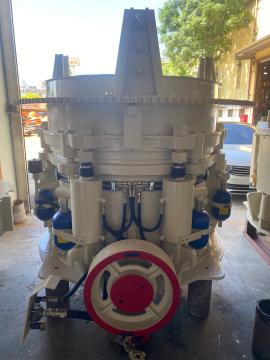

MAINFRAME - CAST STEEL MAINFRAME WITH MACHINED SEAT SURFACES. BOWL ASSEMBLY - FABRICATED STEEL BOWL ASSEMBLY WITH REPLACEABLE BOWL RING GEAR HEAD ASSEMBLY – MACHINED STEEL HEAD WITH BRONZE BUSHINGS, FIXED MAIN-SHAFT.  PEDESTAL TYPE DESIGN WITH BRONZE BUSHINGS EXHIBITS HIGHER TOLERANCE TO HEAT AND VIBRATION THAN ROLLER BEARINGS, AND LOWER COST TO REPLACE WHEN REQUIRED. ADJUSTMENT - BOWL RING GEAR ADJUST SYSTEM (HYDRAULIC POWERED). TRAMP SYSTEM - DUAL ACTING TRAMP RELIEF SYSTEM WITH REPLACEABLE NITROGEN CHARGED BLADDERS HYDRAULIC LOCK CYLINDERS WITH CAVITY CLEAR FUNCTION HPU – HYDRAULIC POWER UNIT WITH OIL RESERVOIR, PUMP, GAUGES, FILTER & 7.5-HP ELECTRIC MOTOR, ALL REQUIRED LINES & FITTINGS. LSU – LUBRICATION SYSTEM UNIT WITH OIL RESERVOIR, PUMP, FILTER & 10-HP ELECTRIC MOTOR, RADIATOR AND FAN COOLING SYSTEM (3-HP ELECTRIC MOTOR), ALL REQUIRED PIPING AND CONNECTIONS. INTEGRATED SAFETY SWITCHES – OIL FLOW AND OIL TEMPERATURE SWITCHES INTEGRATED INTO CONTROL SYSTEM TO SHUT DOWN CONE IN THE EVENT OF OVERHEATING OR LOSS OF OIL PRESSURE. MAN-IN-THE-LOOP CONTROLS – START/STOP/ADJUST/CAVITY CLEAR FUNCTIONS. DRIVE PACKAGE – 400 HP 1200 RPM ELECTRIC MOTOR, DRIVE & DRIVEN SHEAVES, BUSHINGS, V-BELTS. PATENTED SELF-TIGHTENING MANTLE & CONCAVE – CONCAVE REQUIRES NO BACKING MATERIAL SUB BASE - CONE SUB-BASE WITH RUBBER ISOLATOR MOUNTS, ADJUSTABLE MOTOR MOUNT, AND DRIVE GUARD. PAINT – PRIMED AND PAINTED APACHE GREY & TAN MACHINERY ENAMEL WITH RED & WHITE DECALS MACHINE WEIGHT – 59,500 LBS. (27,045 KG) TOTAL ASSEMBLED WEIGHT LESS SWITCHGEAR

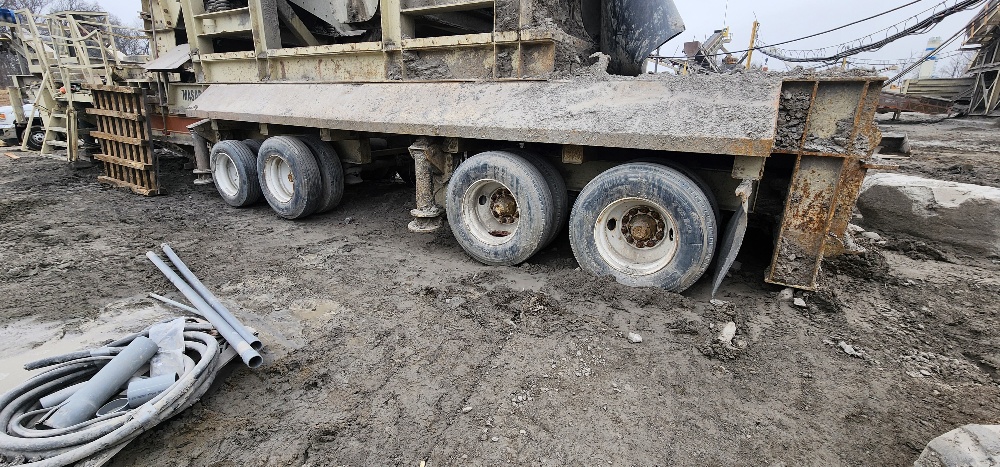

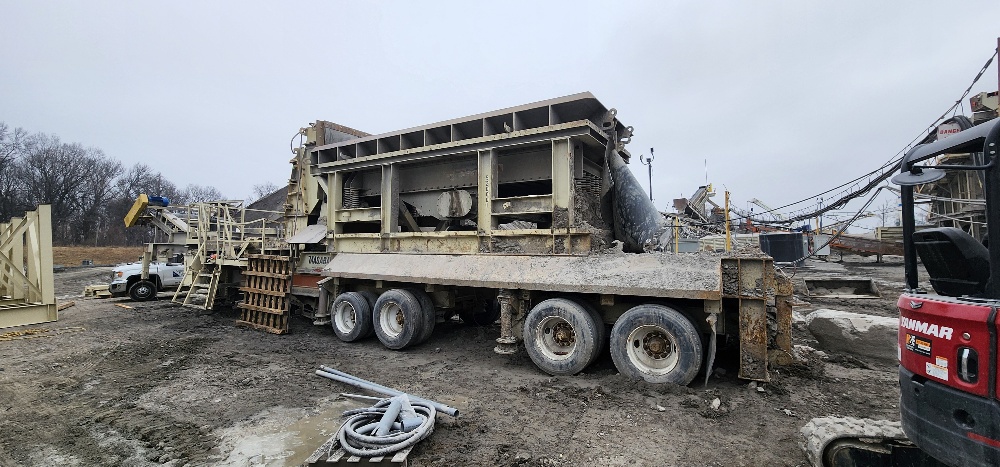

SN# 960012 3-Axle Chassis w/52in W x20ft L VGF Feeder, 40HP Feeder Drive, 48in Reverse High Discharge Conveyor, Return Chute, 5in Thick Impact Hammers w/Top Loaded Wedge Lock Bolts 300HP Electric Motor on Impactor Independent Curtain Hangers, Hydraulic Debridging System For Impactor, Under Crusher Rock Box w/Impact Breaker 1981 Monon TL146 Box Van Trailer VIN# INNEF462NSM0508605 Front and Side Window W/ Fold Down Window Protector Side Man Door Quick Disconnect Wire Bank On The Side W/Electrical Switch Gear and Panel Controls to operate components Tandem Axle

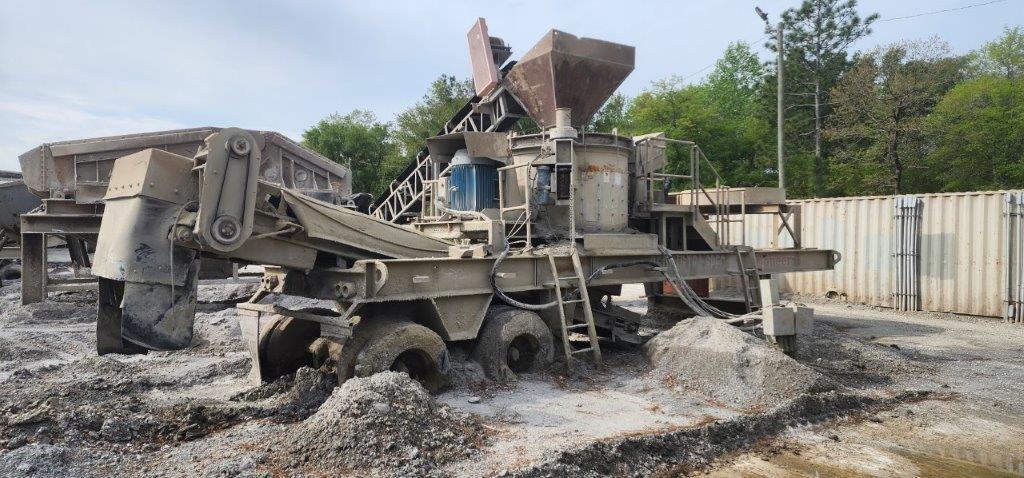

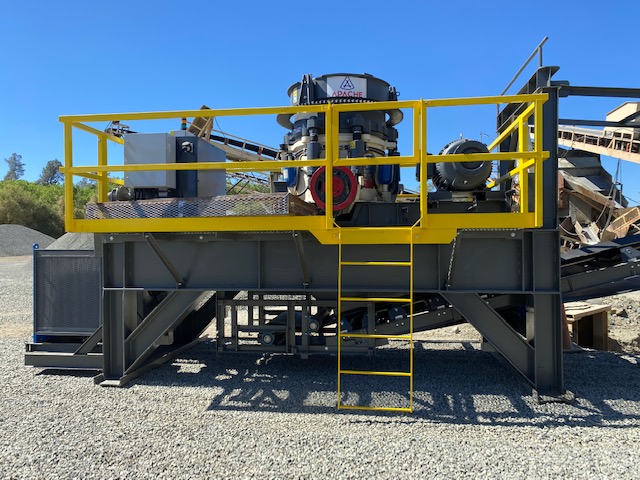

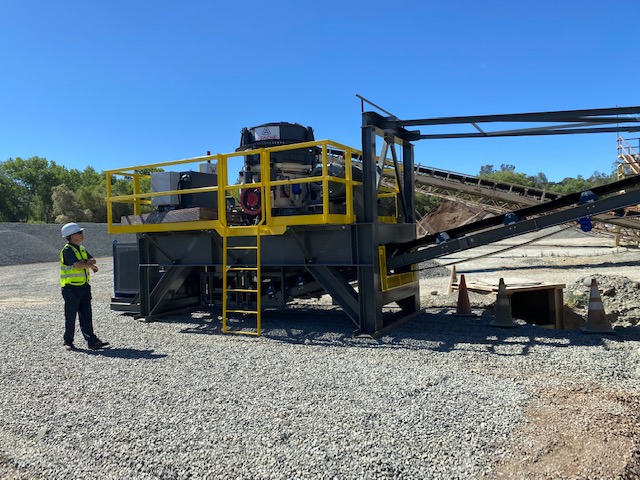

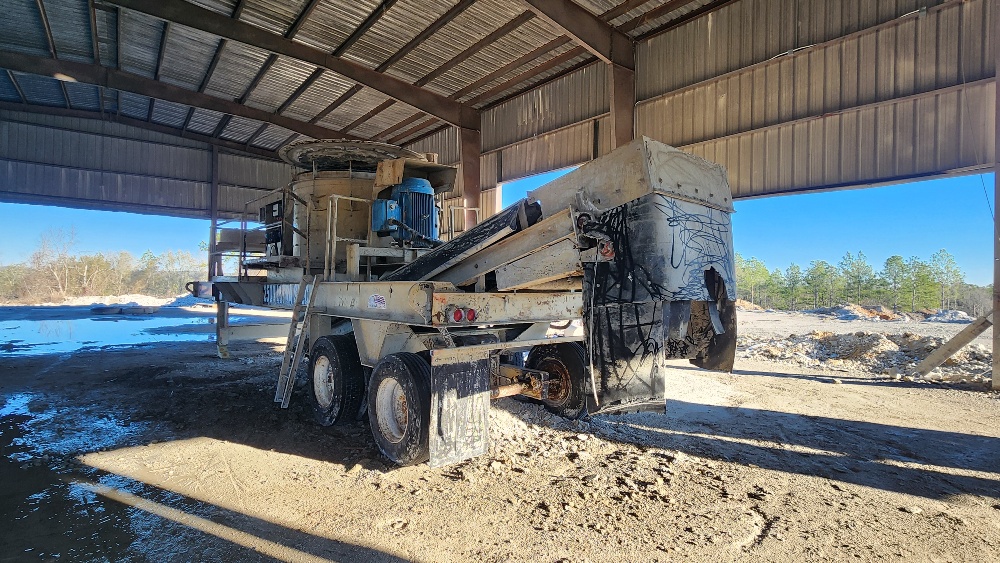

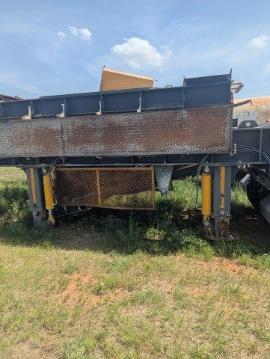

**Make:** Aggretek **Year:** 2020 Portable Cone Chassis Quad-axle chassis with air brakes, lights, and mudflaps (4) hydraulic leveling legs Catwalks with handrails on both sides Dual access ladders 36" discharge conveyor with hydraulic fold Gas-powered hydraulic pump with reservoir and manual control manifold Suitable for: 4', 4.25', HP300, HP400, TC51, TP350, TP450, RC54, MVP280, MVP380, and other comparable-sized cone crushers **ADDITIONAL OPTION:** Inventory Number CR2761 can be mounted on this chassis. Lead time is 4-5 weeks to complete the work. **Please call for pricing if interested in this option.**

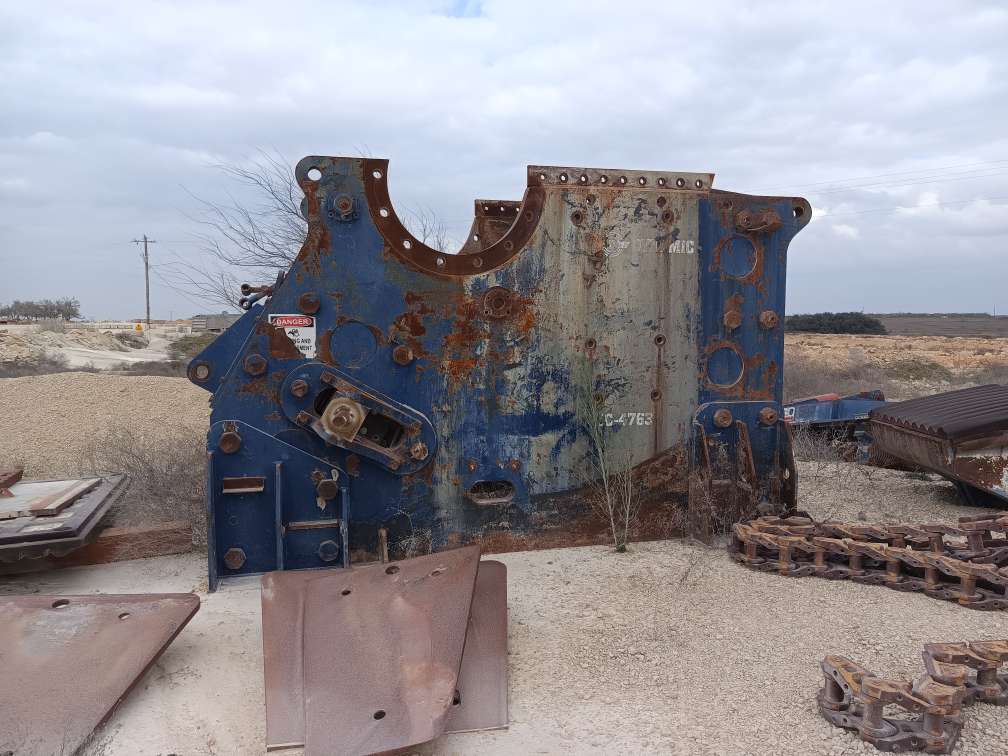

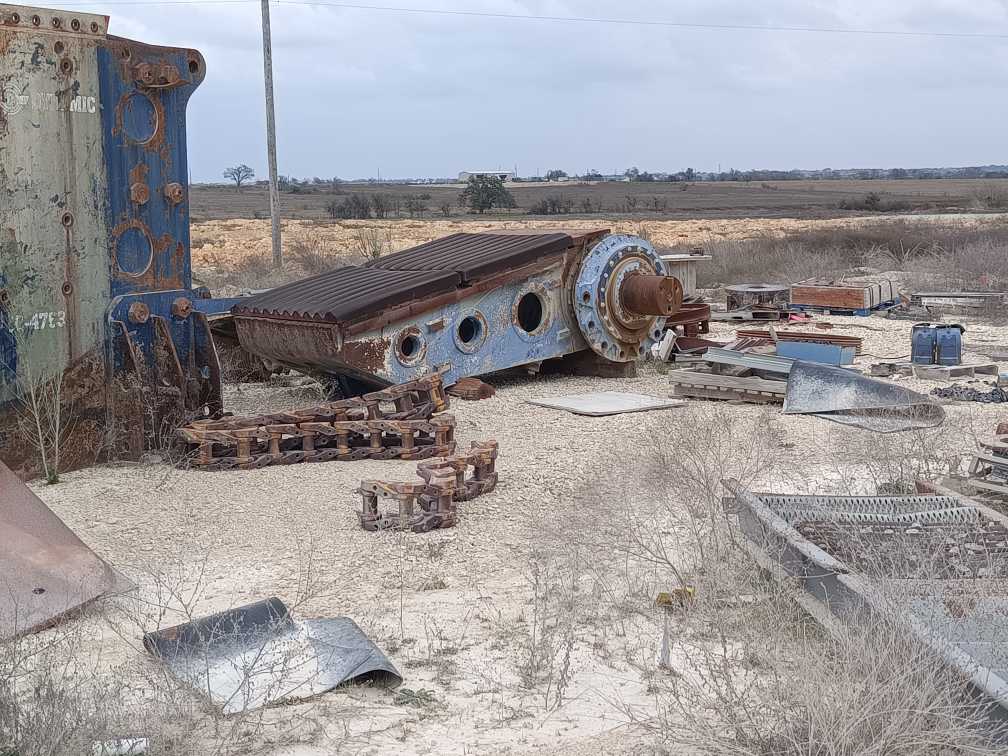

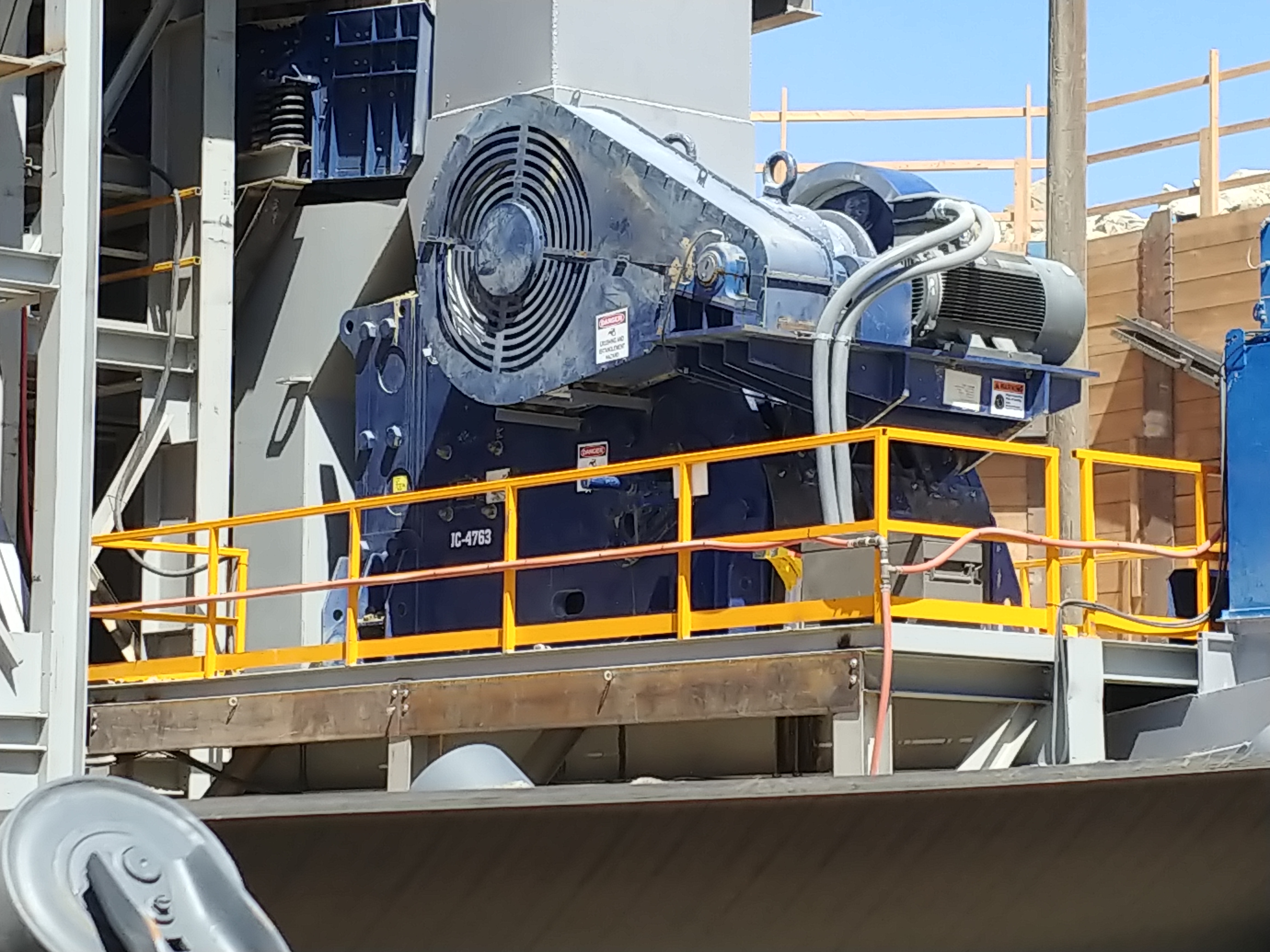

**Make**: Dynamic **Model:** C160/DN4763 **Year:** 2018 **Size**: 47'' x 63'' **Type:** Jaw Crusher **More Details**: * Bare jaw crusher, disassembled for shipment * Includes 350 HP, 1200 RPM crusher drive electric motor * Integrated motor mount **Condition Notes**: * Used jaw dies (less than 50% life remaining) ### Price Listed is for The Crusher as Described Above **Additional Refurbishment Option Available for Additional $:** * Refurbished with new jaw dies, fresh grease and required repairs, primer and paint. Lead-time quoted at time of purchase due to jaw die lead-time.

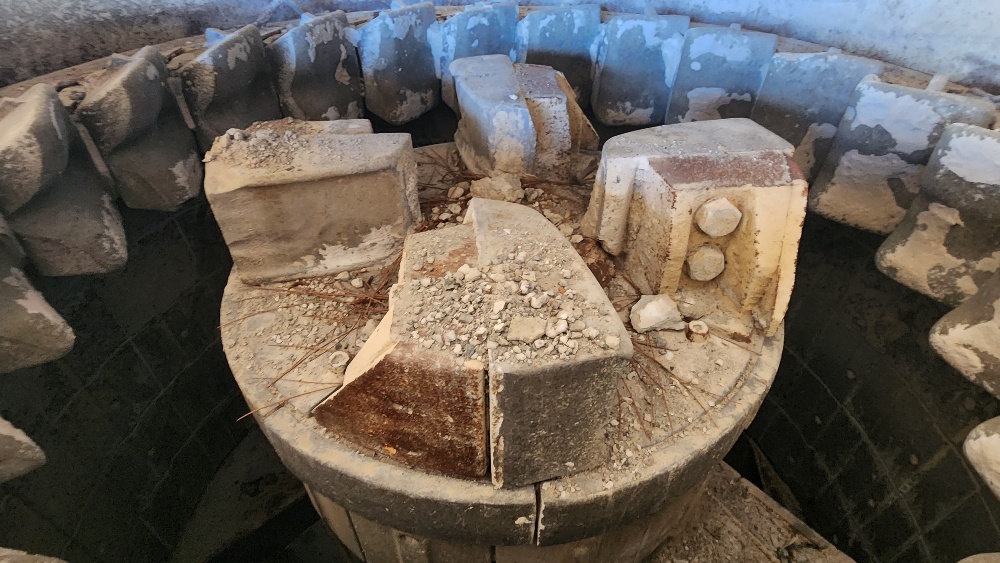

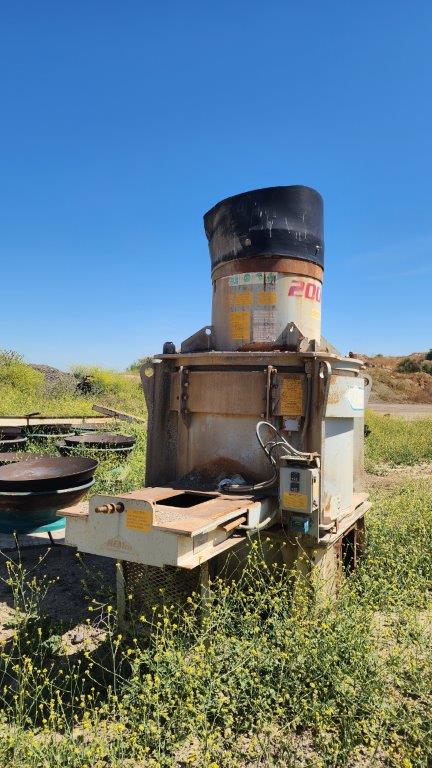

Make: Eljay Model: VSI 2100 Year: 1985 42'' Rear Discharge Belt Electric Switch Gear with Lifting Crane Portable

**Make:** Sandvik **Year:** 2010 **Portability:** Track Mounted **Type:** QH330 **Serial #:** 1884BG09081 **Order #:** SO007789 **Mass Kg**: 37,500 **Nominal Power (kW):** 328 **Engine #:** LGK13617 **Crusher Run Hours:** 5077 **Crushing Hours:** 2459 **Other Info:** Per the owner machine is good overall condition ### CALL ASI FOR MORE INFO OR TO SCHEDULE AN INSPECTION (615-494-1210)

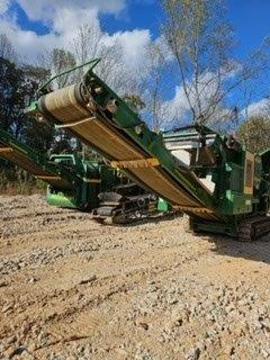

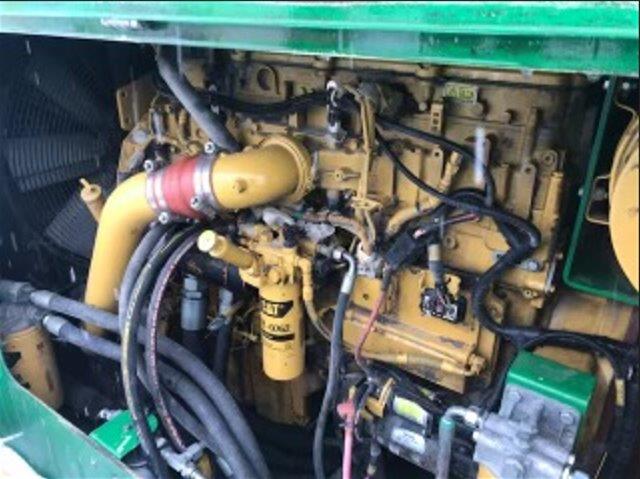

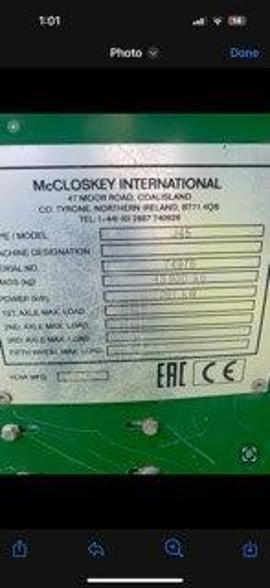

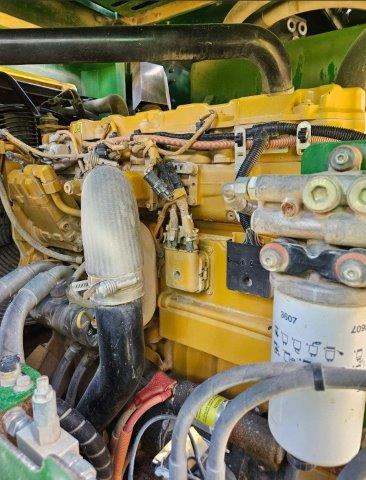

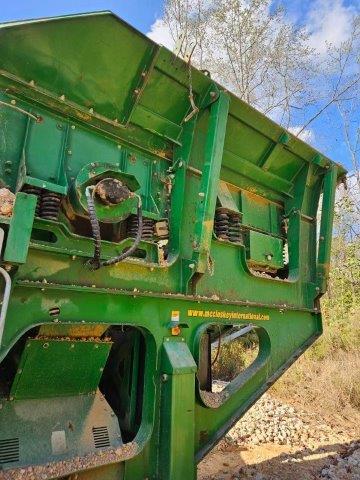

**Make:** Mccloskey **Model:** J45 (45" x 27" Jaw) **Year:** 2020 **SN#:** 74976 **Weight:** 43,900kg **Power:** 261kw **Crushing Hours:** 3800 **More Info:** * Was crushing soft red rock in NC * Track Mounted * Has a factory pre def cat engine * Per the owner- Machine recently had a couple buckets ran through it and everything ran fine, all conveyors worked * Machine can be started up and ran during an inspection ## CALL ASInc TODAY TO SCHEDULE AN INSPECTION (615-494-1210)

## Components sold together as a package and will NOT be sold separately. **Used Kue Ken 60in x 48in Jaw Crusher** Includes Spare Parts: (4) Toggle Pins (Metso K5222-B1) (2) Jaw (1901 10018731 AMSU) (1) Front Toggle (95 K5222-R1) (8) Lower Jaw Plate #4 (K7846) (6) Upper Movable Jaw Plate #5 (K7893-A) (16) 8ft x 20ft Rubber Mesh Screen (9) 6ft x 16ft Reinforced Rubber Mesh Screen (10) 8ft x 20ft Superior Screen (3-1/2G) (7) 6ft x 16ft Upper Mesh Screen (DD V-14) (12) Toggle Seat #88 (K5222-A1) (13) Lower Holding Bolt #37 (K5233-J) (11) Hinge Pin Cap Bolts (P/N 90B, K823-06) (66) Jaw Plate Spring Bolt #70 (1) Roller Bearing Pump (#11P) (3) Flywheel Housing (P/N 20#, K5232-HQ) (1) Roller Bearing - Flywheel Side (#11F) (12) Toggle Seat Spring #42 (K5549-EV) (5) Non-Driving Shoe (84N) (3) Pump Drive Gear & Shaft (K5223-G) (7) Pump Drive Gear #50 (K5157-F) (7) Inner Diaphragms #21 (K2516-AJ)

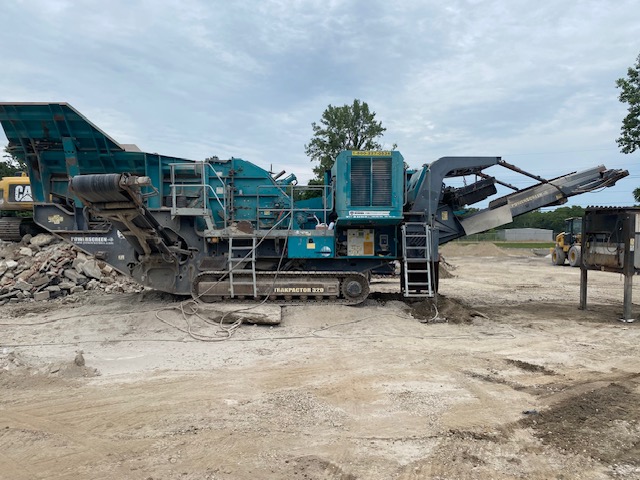

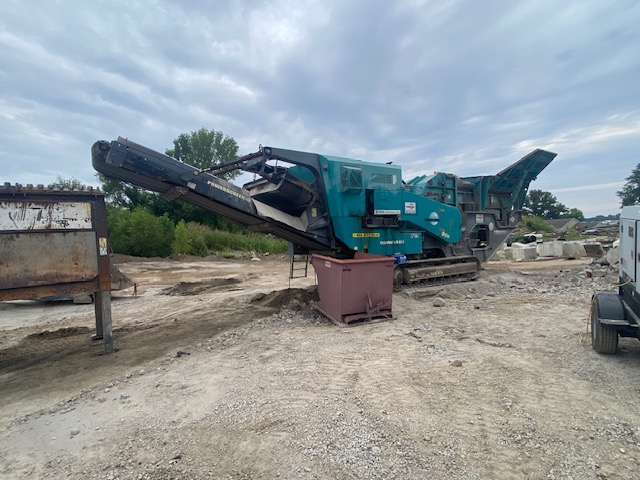

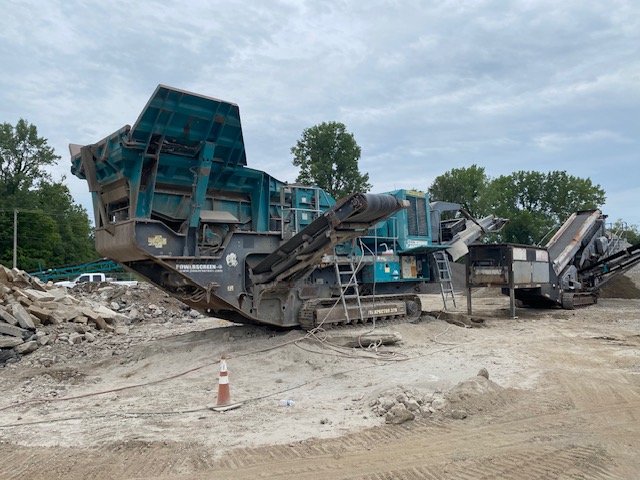

**Make:** Powerscreen **Model:** Powerscreen 320 **Year:** 2014 **Engine:** Scania DC9 350 HP diesel engine **Hours:** 6500 Hours **More Info:** * Horizontal impact crusher * 44.5” wide X 31.5” high feed opening * 4 bar rotor * 8.2 yard hopper capacity * Vibrating grizzly feeder * Under Grizzly fines conveyor * Under crusher front discharge conveyor * Self-cleaning permanent magnet **Transportation Dimensions & Weight** * Width: 8'5" Length: 48'6" Height: 11'4" / Width: 2.57m Length: 14.78m Height: 3.46m * Weight 80,600 lbs **CALL FOR PRICE**

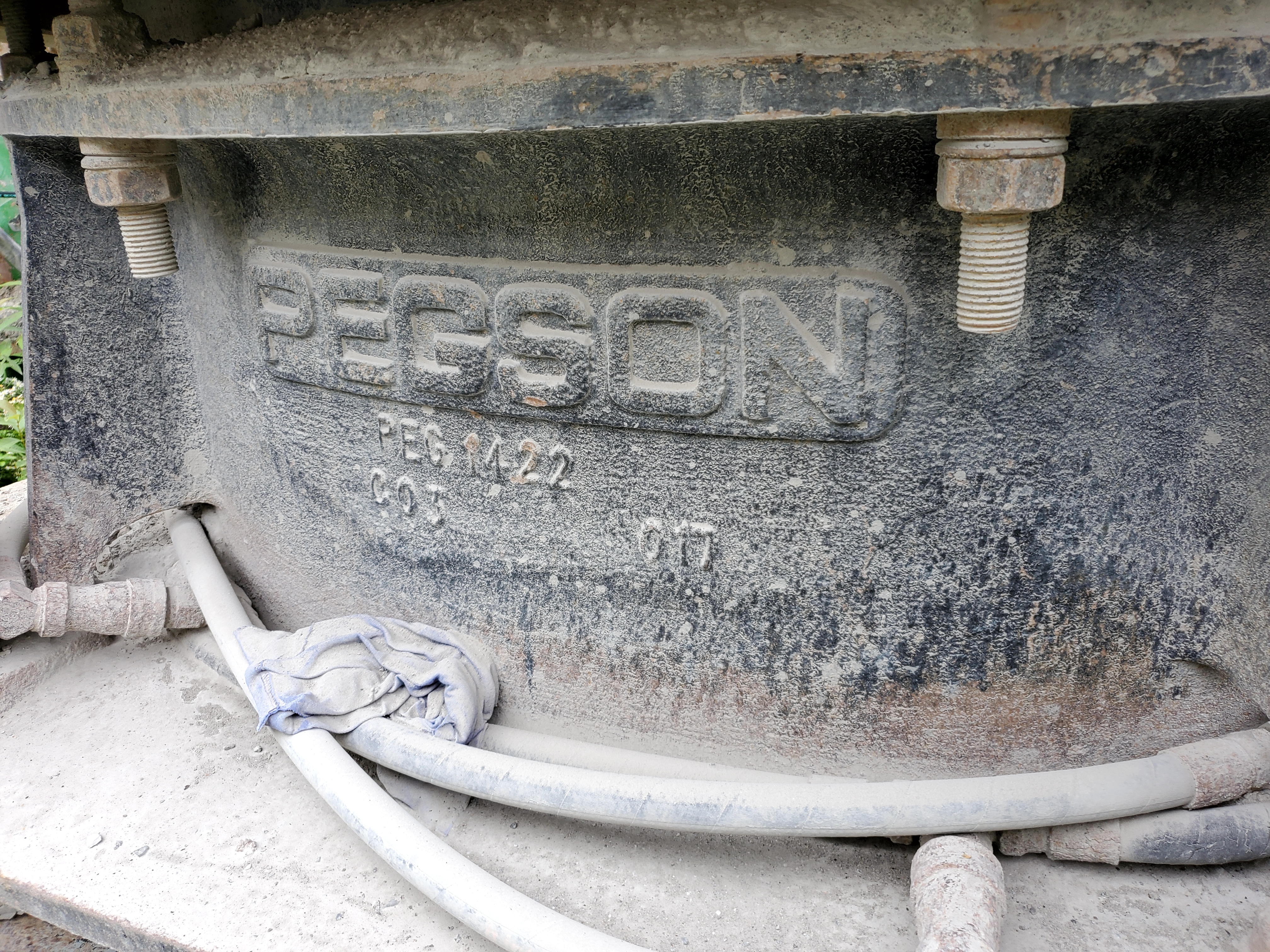

Make: Pegson Model: PEG M22 C03 017 SN: P7881002 HP: 300 Frame: 587UZ

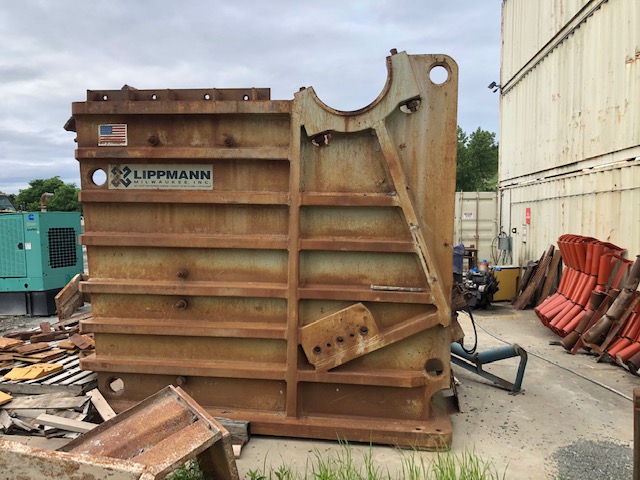

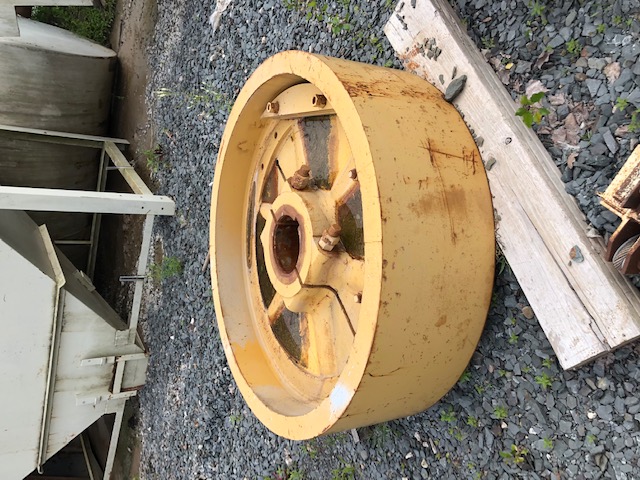

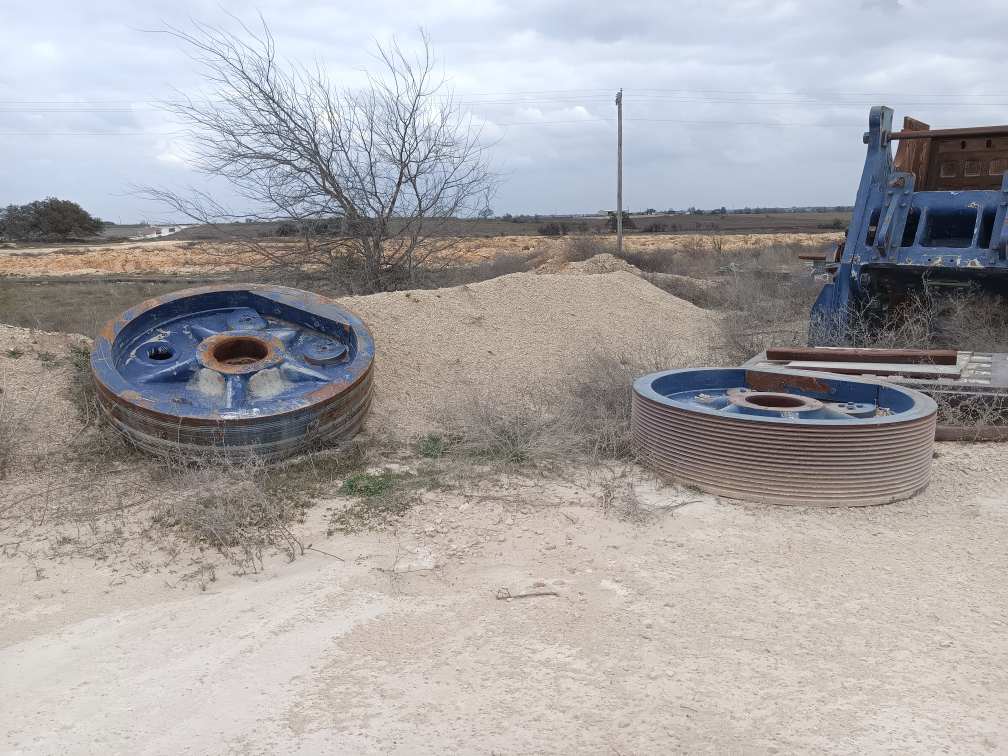

Lippman 42x48 spare parts Frame Fly wheels No motors **ALL COMPONENTS THAT ARE INCLUDED WITH THE UNIT ARE INCLUDED IN THE BELOW PHOTOS.**

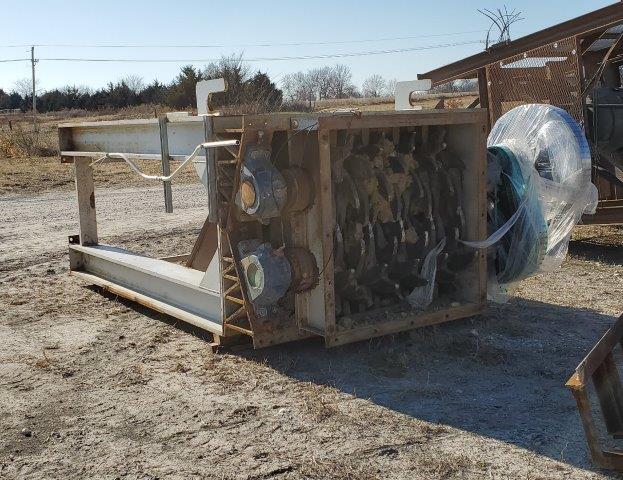

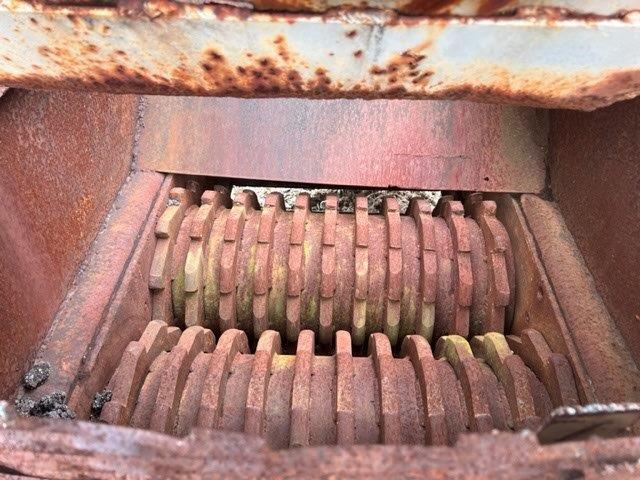

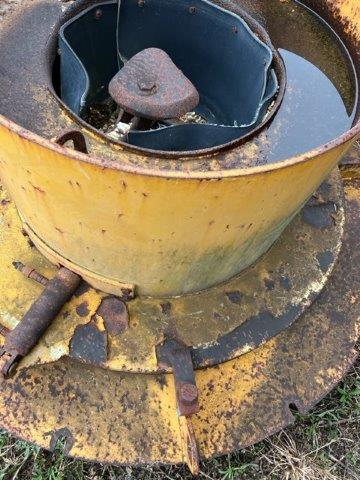

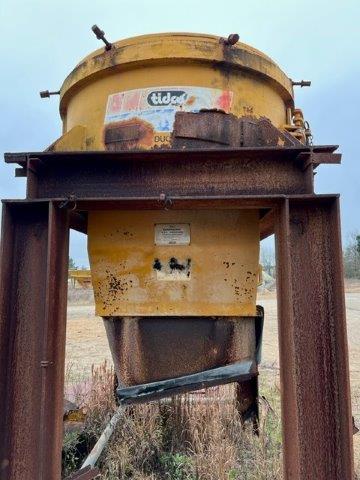

(1) Tidco VSI Crusher (1) Gentec Turbo Rap Gator (No Motor Size and Cannot Read Tag). Roll Crusher. CALL FOR PRICE

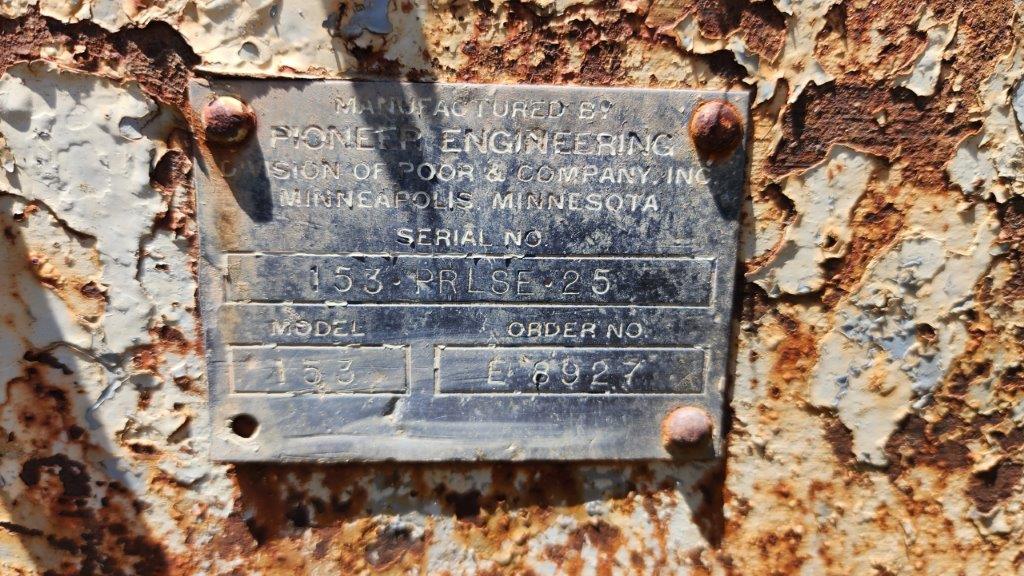

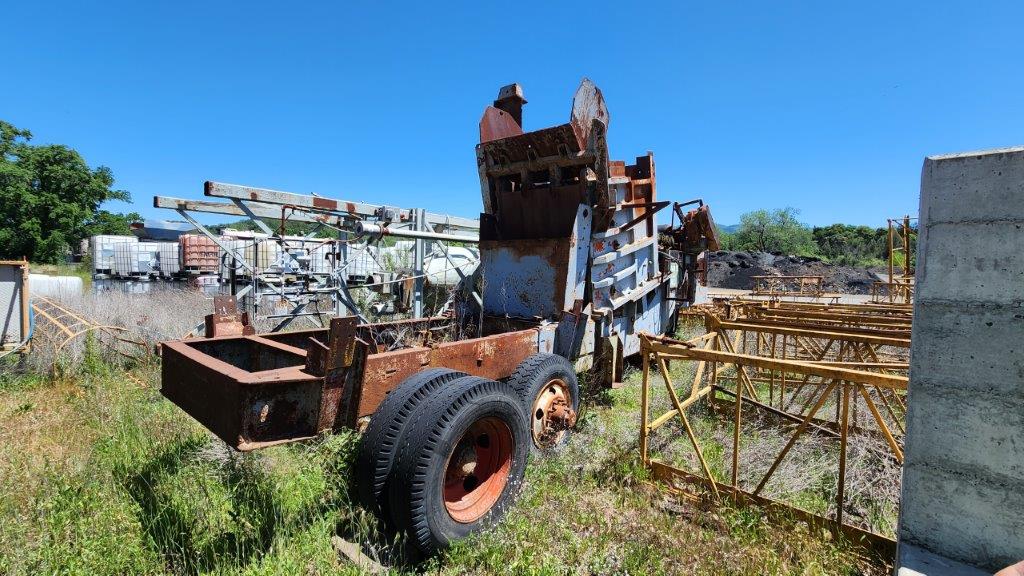

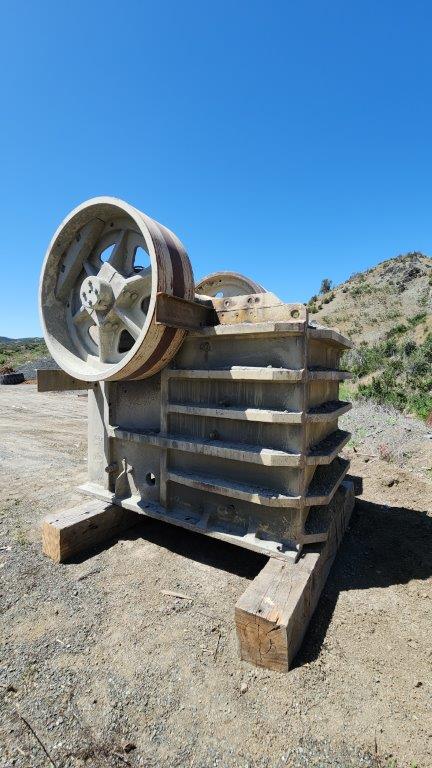

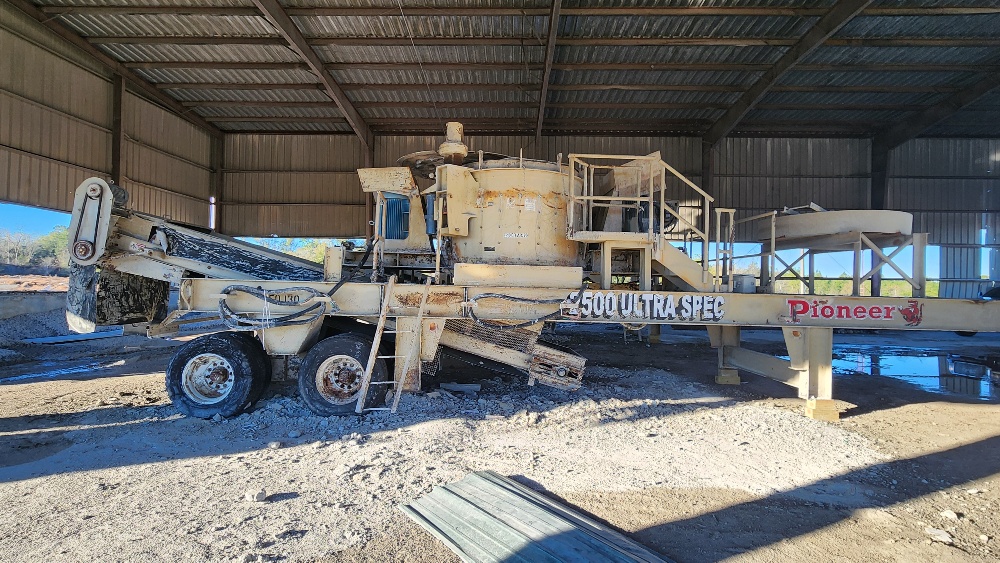

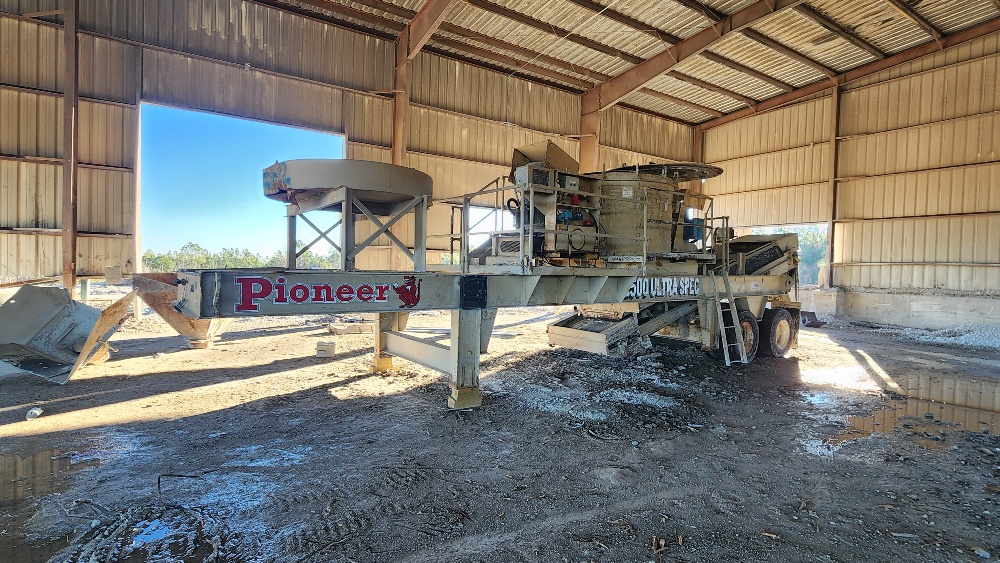

Crusher Pioneer Crusher Portable Frame frame SN# 153-PRLSE-25 Model# 153 2 Axle Cedarapids Jaw Crusher SN# 18922 Model # 3242 36" x 20' Discharge Belt NO HOPPER ASI IS UNSURE OF CURRENT WORKING CONDITION MAKE REASONABLE OFFER

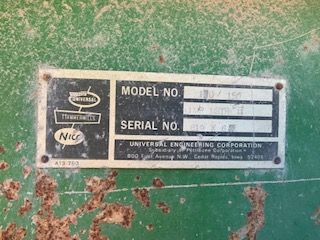

Impact Crusher UNIVERSAL 150/150 TC IMPACT MASTER Motor Not Included

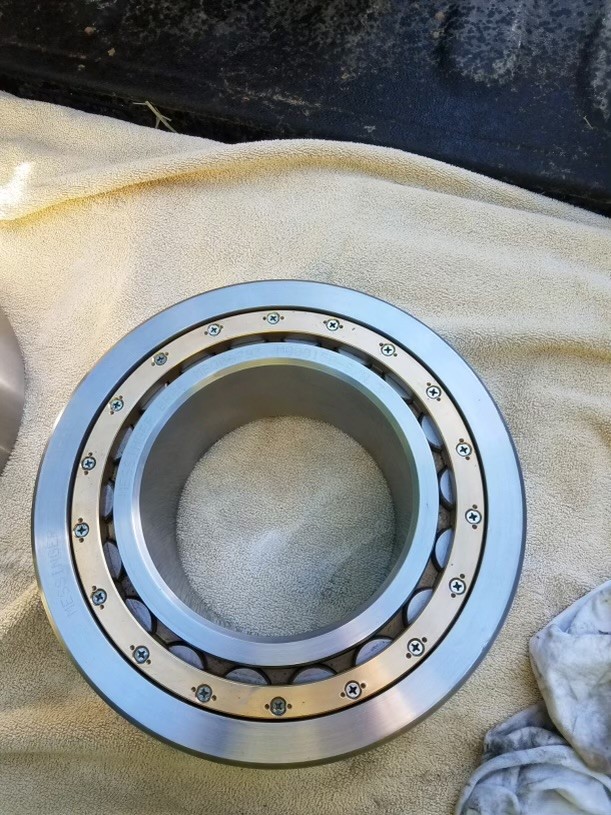

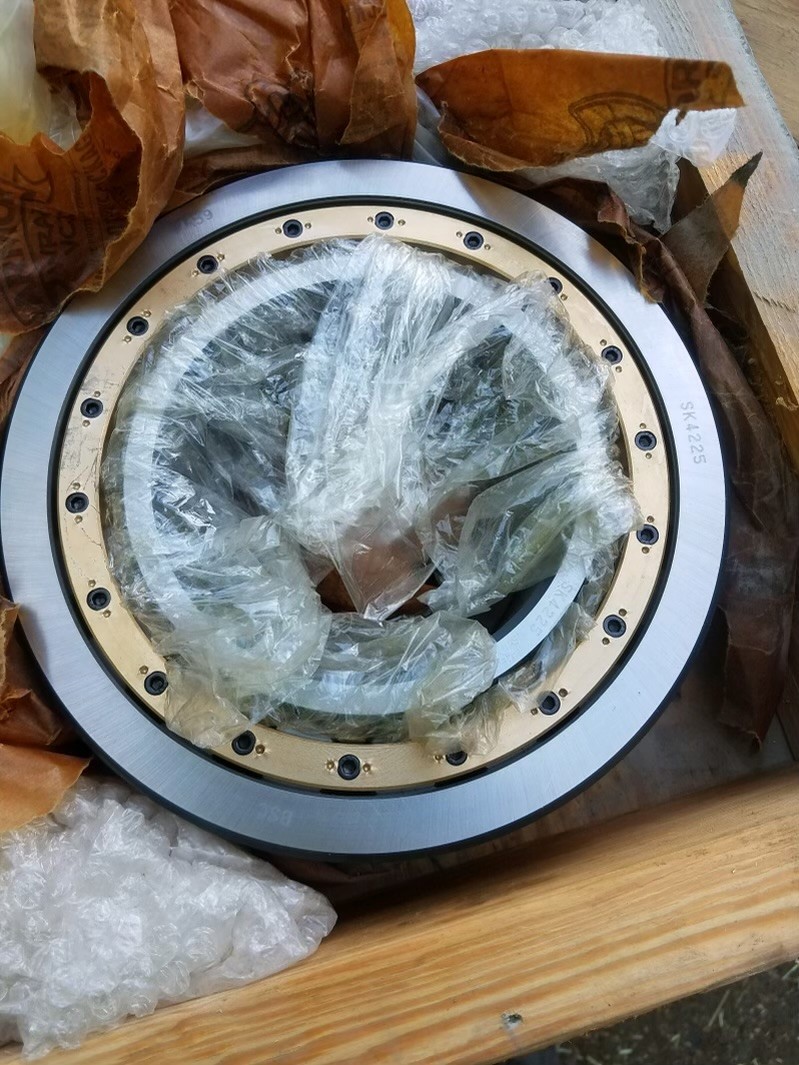

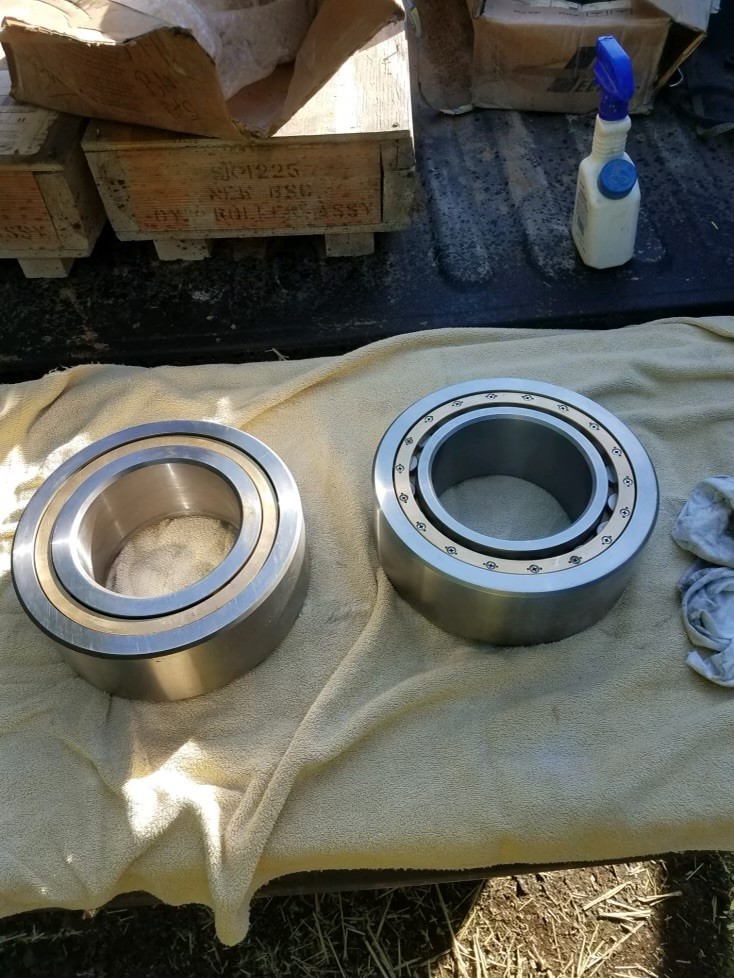

(4) Messinger Bearings Total (2)- MB006793-M000150-SN3 (2)- SK4225 New in Box never used

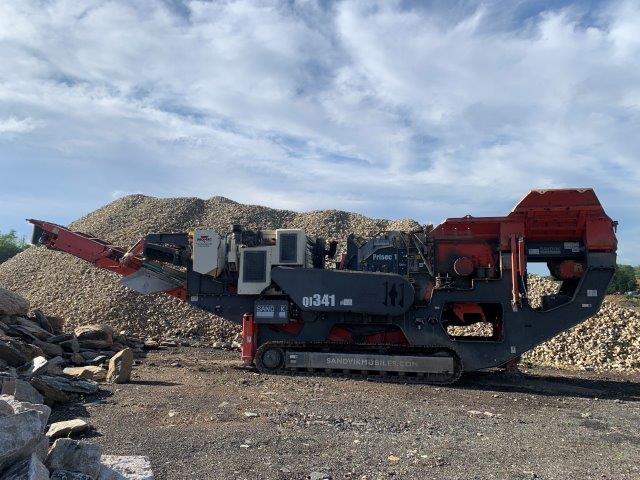

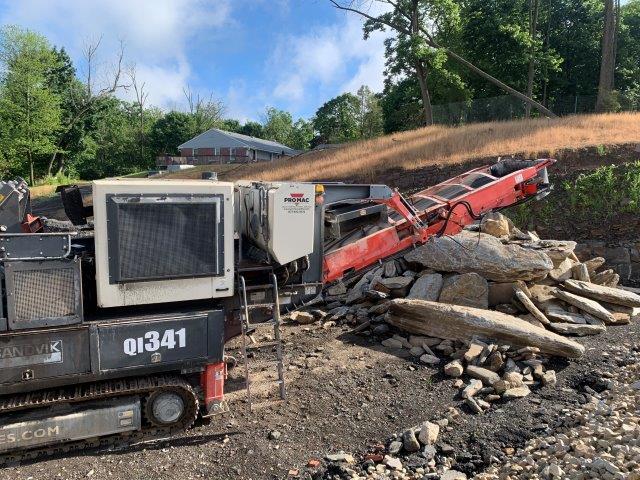

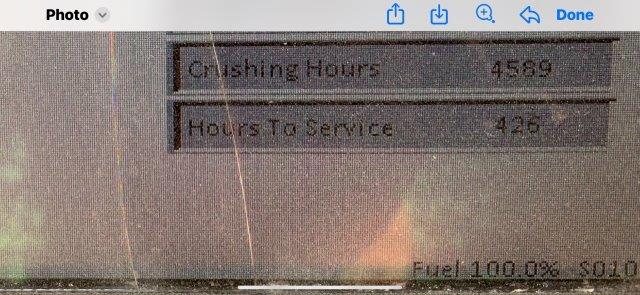

2015 Sandvik Make: Sandvik Model: QI-341 Year: 2015 Hours: 4589 Owner's Notes: Crusher isn’t used every day only intermittently. New set of blow bars in it plus a new set to go with. Rollers and head drum recently replaced and maybe 100 hrs on them etc. Crusher can go straight to work
