Drying Systems/Plants For Sale

2016 Gencor Drying System Partial Package

Location: Saskatchewan Canada
Condition: USED
Price: $398,500.00

View Details

175 - 200 TPH Astec Sand Drying Plant

Location: LA
Condition: USED

View Details

Stationary (8'x32') Standard Steel Dryer and baghouse

Location: Winton, CA
Condition: USED
Price: $65,500.00

View Details

2016 Gencor Drying System Partial Package

Inventory #: SND2976

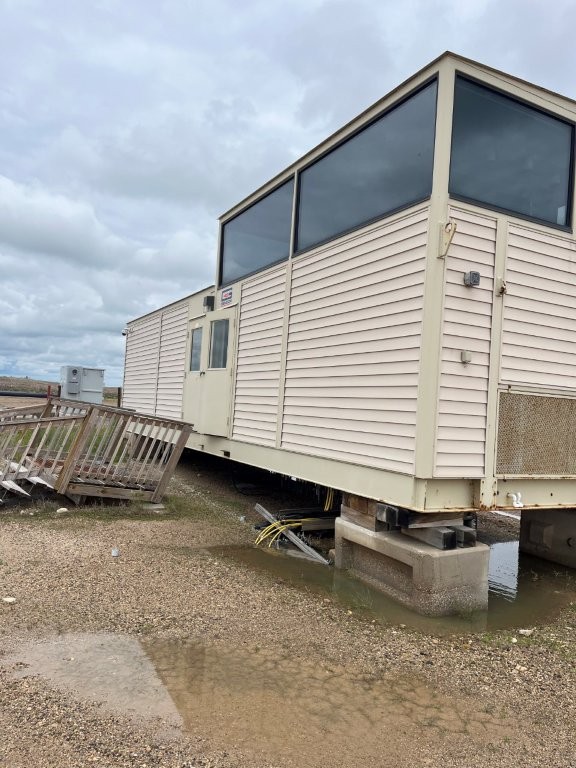

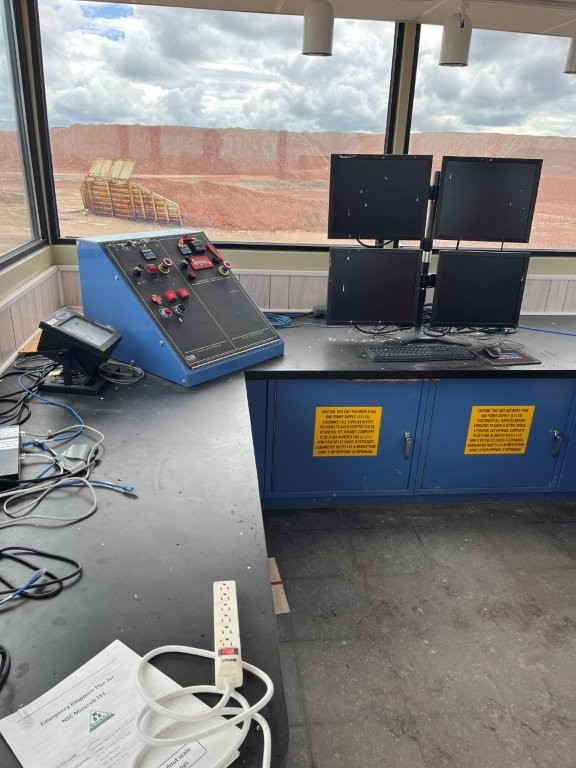

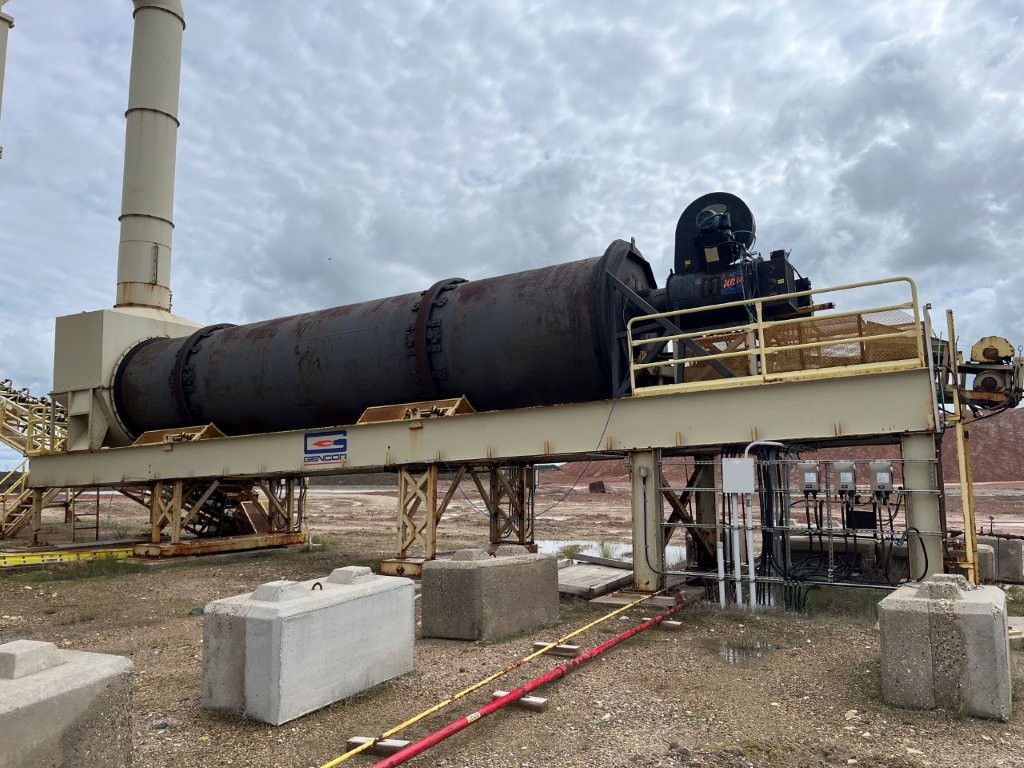

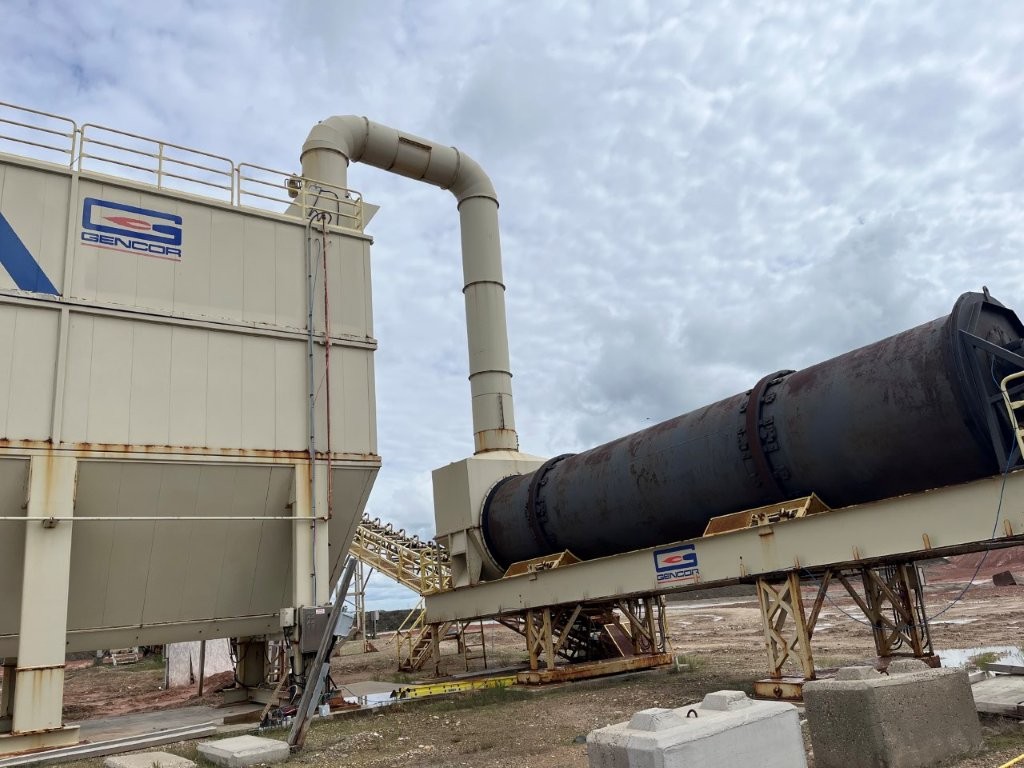

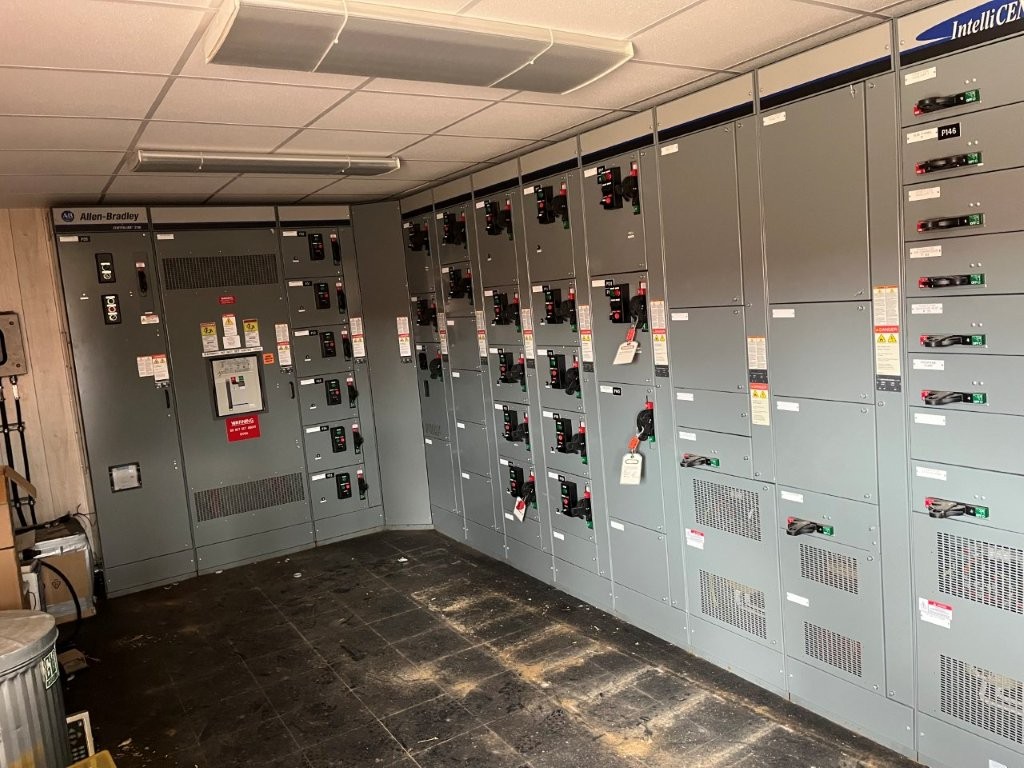

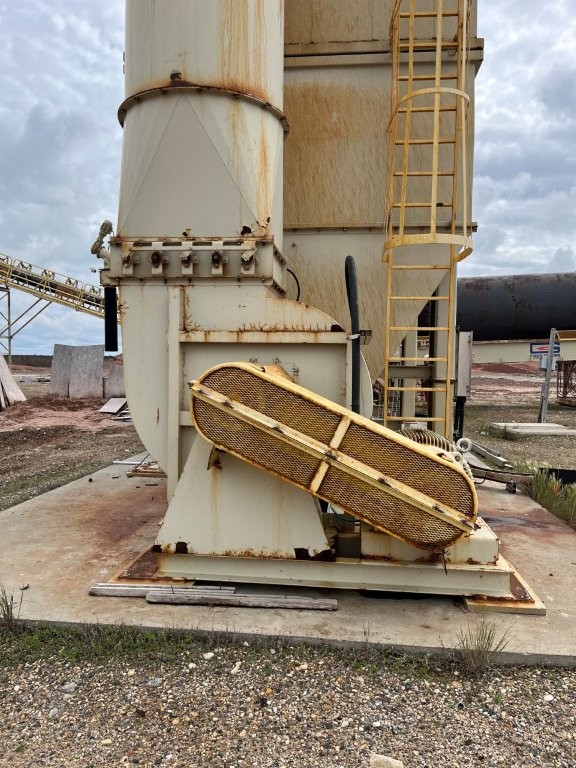

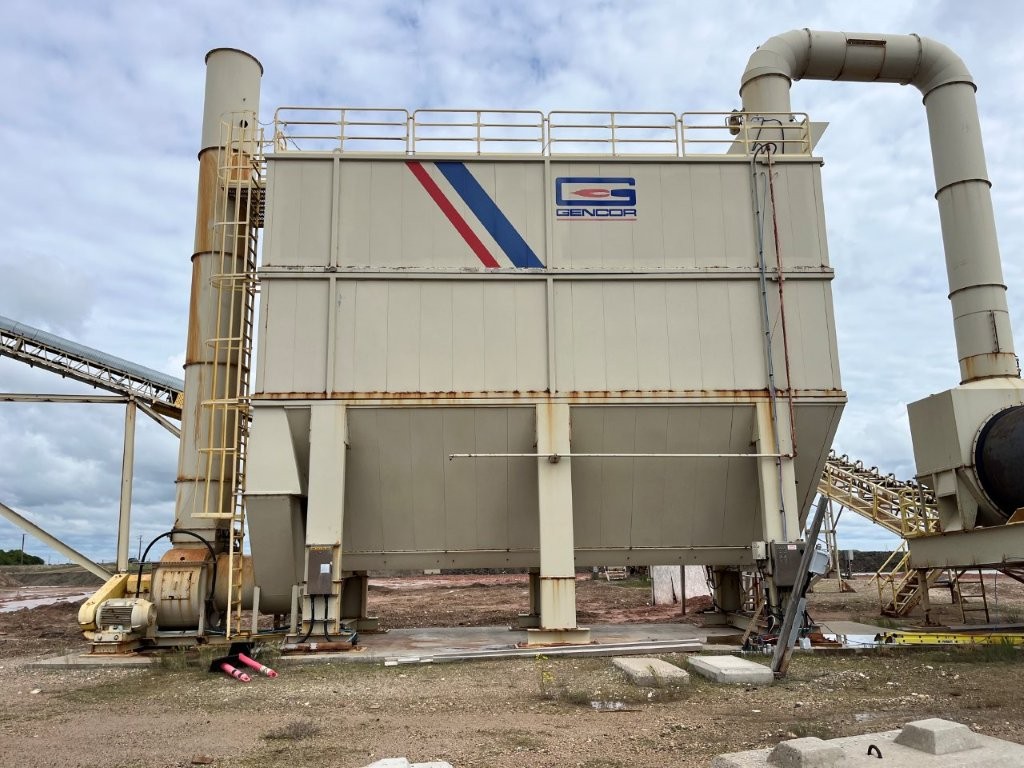

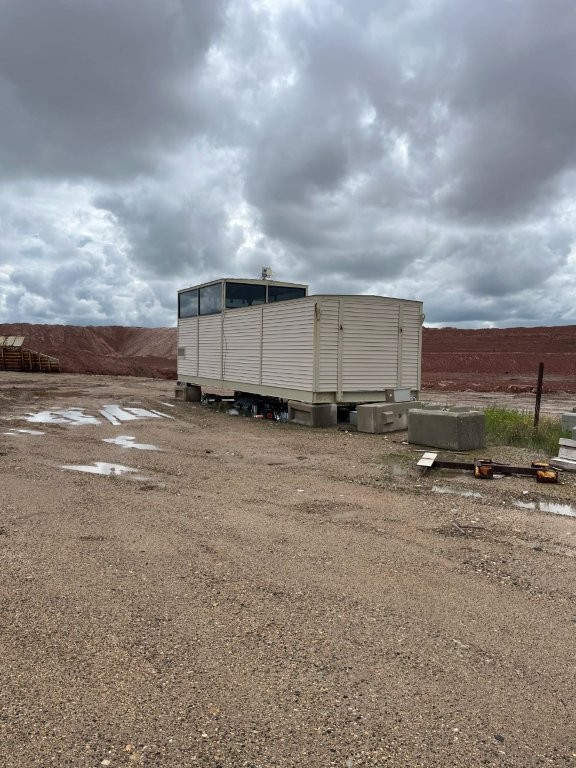

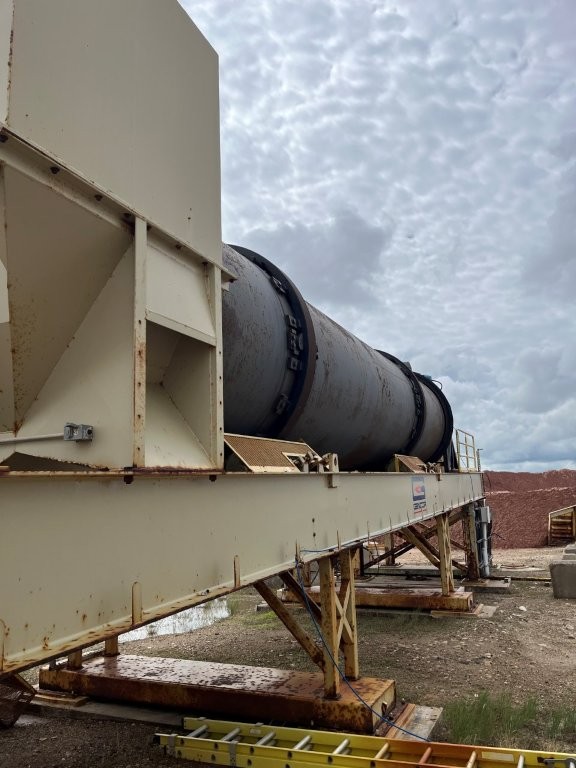

## Dryer **Year:** 2016 **Manufacturer:** Gencor **Model**: 89" x 36' Parallel Flow Dryer **Condition:** Excellent **Description:** 89" x 36' parallel flow dryer Ultra II 40 MMBTU oil/gas burner Trunnion drive with (4) 15 HP motors 5 HP slinger conveyor 480V / 3 Phase / 60 Hz Skid-mounted Low tonnage through unit (less than 40,000 tons) Ideal for drying aggregates, frac sand, minerals, salt, and similar materials **Components Also Listed Separately: DR2977** ## Baghouse **Year:** 2016 **Manufacturer:** Gencor **Model:** 132 Jet Pulse Baghouse **Condition**: Excellent **Description:** 32,000–72,000 CFM capacity 125 HP, 480V fan with VFD Holds 504 bags (16' long) Collection hopper with auger Slam damper Exhaust stack Skid-mounted **Components Also Listed Separately: BH2979** ## Control Center **Year:** 2016 **Manufacturer:** Gencor **Model:** 12' x 40' Control Center **Condition**: Excellent **Description:** Gen 3D burner control system Allen-Bradley MCC Control panels configured for drying aggregates, sand, minerals, salt, and similar materials Controls feeder bin, scale conveyor, dryer, burner, baghouse, augers, access conveyors, and screens **Components Also Listed Separately: CON2980** UNITS AS IS WHERE IS, STILL ERECTED, TAKEDDOWN AND LOADOUT BUYERS RESPONSABILITY

Location:

Saskatchewan Canada

Condition:

USED

Price:

$398,500.00

More Photos:

2016 Gencor Drying System Partial Package (2 of 10)

2016 Gencor Drying System Partial Package (3 of 10)

2016 Gencor Drying System Partial Package (4 of 10)

2016 Gencor Drying System Partial Package (5 of 10)

2016 Gencor Drying System Partial Package (6 of 10)

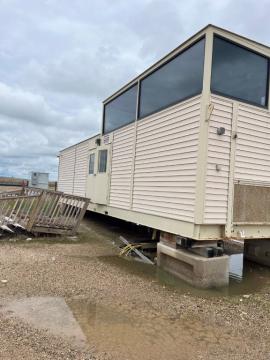

2016 Gencor Drying System Partial Package (7 of 10)

2016 Gencor Drying System Partial Package (8 of 10)

2016 Gencor Drying System Partial Package (9 of 10)

2016 Gencor Drying System Partial Package (10 of 10)

175 - 200 TPH Astec Sand Drying Plant

Inventory #: SND2823

**Feed System:** Make: Custom Built Feed Bin Size: 8’ x 16’ Number of Bins: Single Variable Speed Feed Conveyor: 36’’ x 20’ Astec Incline Weigh Bridge: Portable, 30’’ x 50’ **Dryer:** Make: Astec Year: 8-85 Model: PDM742F 30" Slinger Feed Conveyor Trunnion Drive: (4) 25hp Motors Size: 7’ x 42’ Parallel Flow Drum (Converted To A Dryer) Shell Thickness: Average of .300 Elongated Knockout Box on Rear Duct From Drum To Baghouse Portable "Triple Axle" Hydraulic Erection Legs with Hydro Pump Kit Reject Conveyor 30" x 40' Burner Make: Hauck Burner Model: SJO-4360A-111-06-03-02 Burner Serial Number: 85-117-3 Fuel Source: Natural Gas PRN: 24925 Fan: 75hp **Baghouse:** Make: Astec Model: RBH67DB SN: 99064-3001 ACFM 64,000 Pulse Jet Stationary, Skidded Motors: (2) 125hp Motors Separate Cyclone Pre Cleaner From Elongated Knockout Box and Duct Work Single Auger In Baghouse Hopper Single Auger Discharge, (1) 24" x 40' Discharge Conveyor for Waste Material Most Doors Replaced with Stainless Steel Compressor: 20hp Rotary Compressor W/ Extra Air Storage Tanks **Dried Sand Elevator To Screens:** Bucket Size: 40’T Bucket Size: 18'' x 10'' Rubber Belt Small Holding Hopper to Screen Feed Chutes **Sand Screening:** (3) Three Screens: Make: Midwestern Year: 2023 Screen Size: 5’ x 10’ Screen Decks: 2 SN: 0123-5106 Model: MEV510-2 30’’ x 45’ Reject Horizontal Conveyor To a 30" x 70' Incline Non-Powered Stacking Conveyor 24’’ x 45’ Feed Conveyor from Screen to Bucket Elevator For Screened Sand **Astec Bucket Elevator Screened Sand:** Make: Astec 80’ Long 12'' x 7’ Buckets with Rubber Belts **Sand Storage:** Quantity: 6 Silos Type: Sand Silos Capacity: (5) 200 Ton and (1) 150 Ton Gravity Fed Pneumatic Ram Discharge 12’ x 13’ Base **Control House:** Top Box with 280 Degree View Size: 8’ x 20’ Type: Conex Box Manual Start/Stop – Burner/Baghouse/Load Out Controls Bucketed Starters, Relay Cabinet **Second Conex Box:** Located Under the Control House, Used for Quality Control Gibson Screen and Misc Other Items **Parts Box:** Miscellaneous Parts Bags, Motors, Rollers and Cans, etc. **Other:** Above Ground Wire in Cable Trays Newer Electrical Components Plant Appears Empty 2023 Screening System ## CALL FOR PRICING

Location:

Condition:

USED
