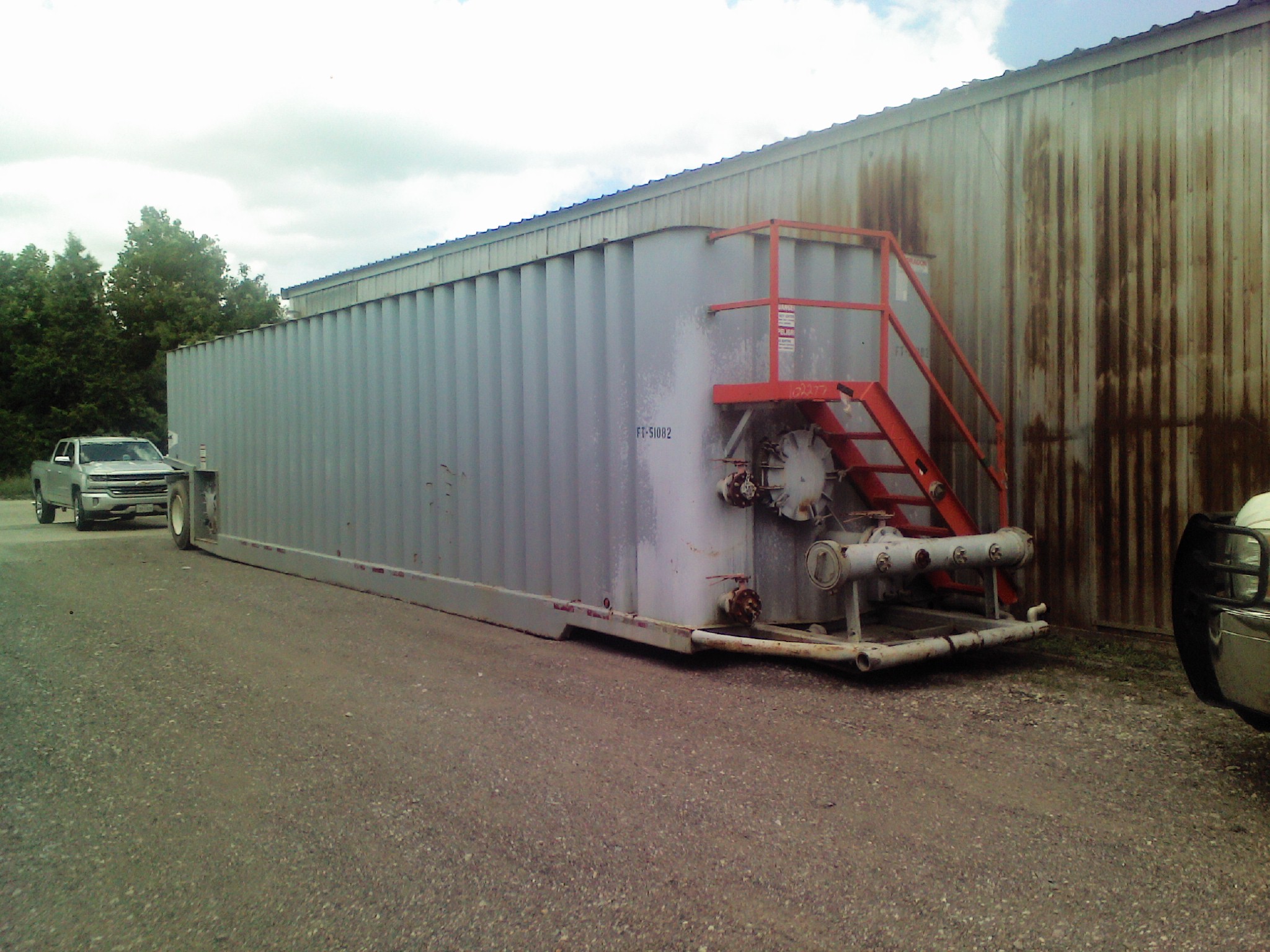

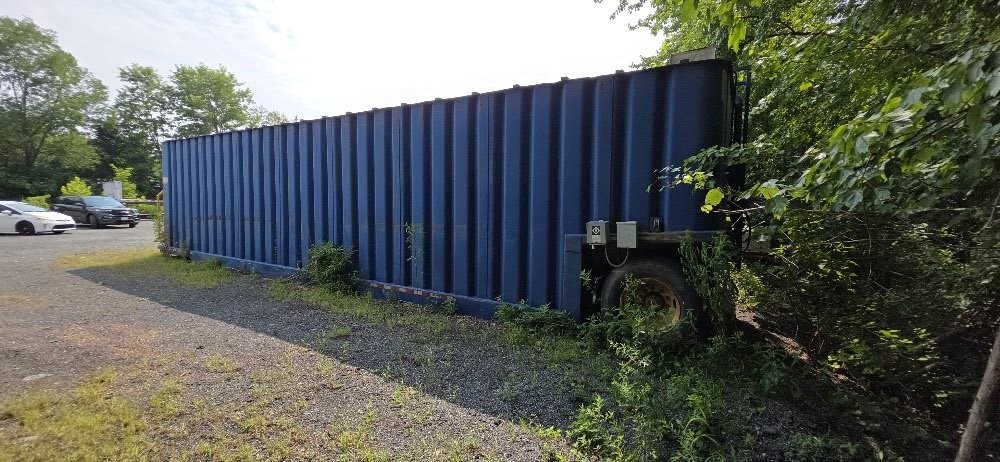

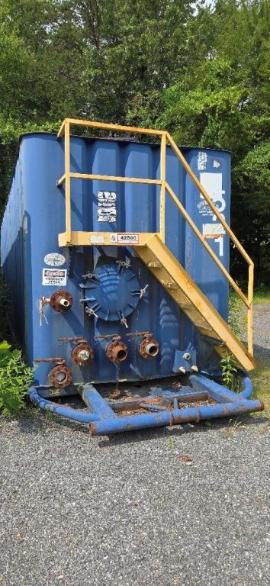

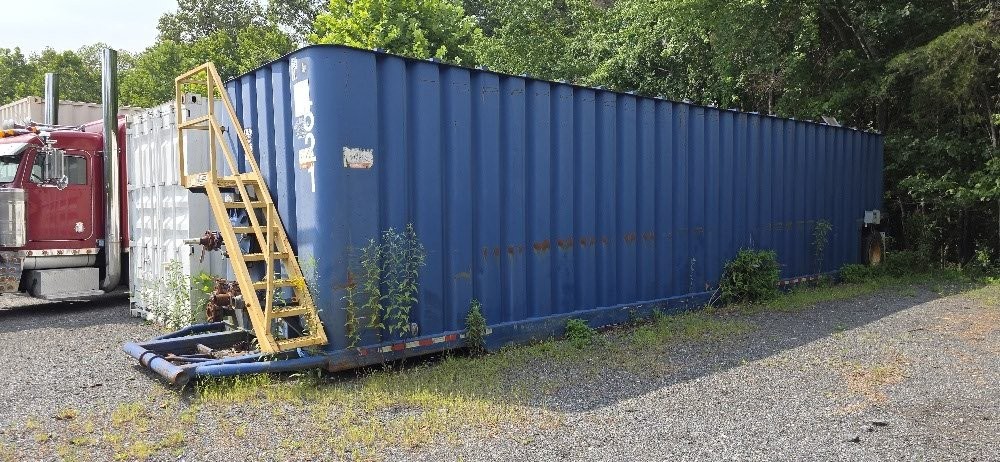

Dragon 500 BBL Frac Tank Trailer
Axle: Single Axle

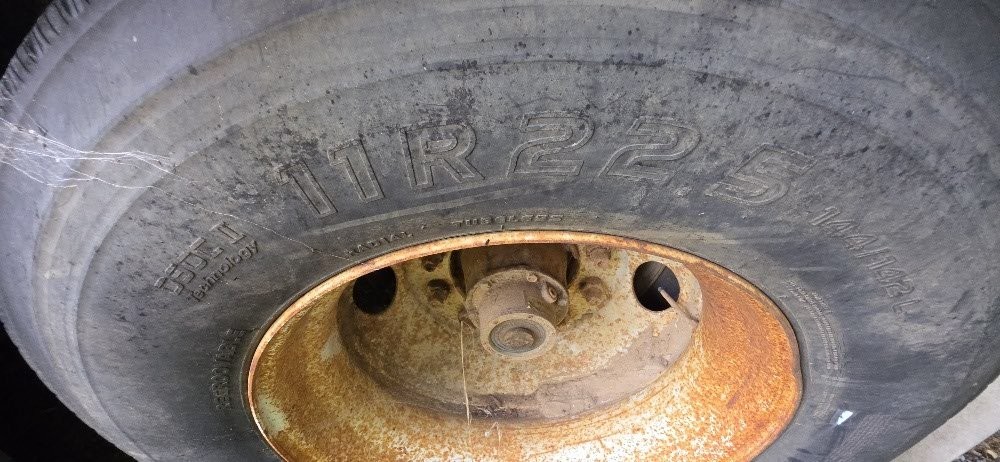

Tires: 11R 22.5

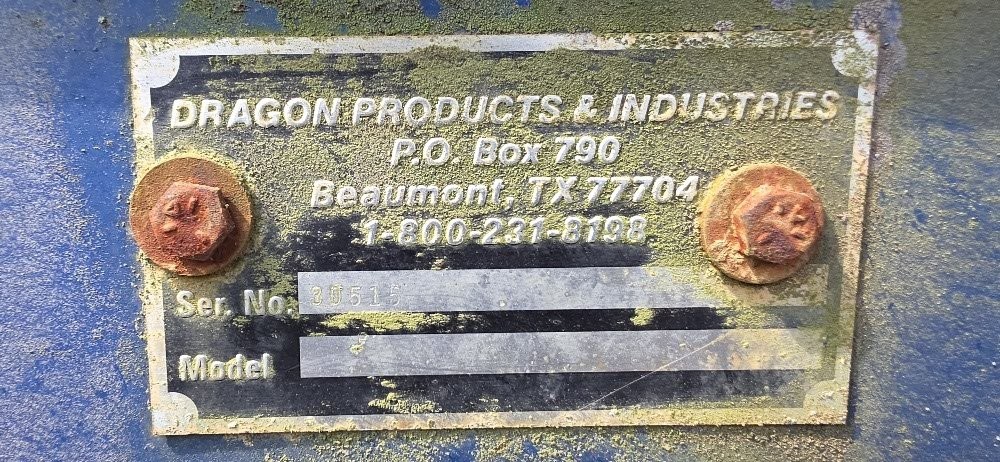

Serial #: 30515
Tank Construction & Features:
1/4″ Steel Plate Tank Construction

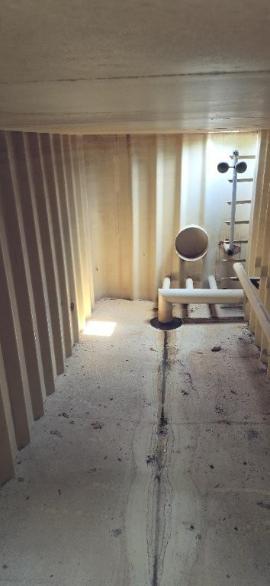

Smooth Interior Walls for Easier Cleaning
V-Bottom Floor for Better Drainage
3″ Fill Line
Manways Conveniently Located on Front, Side, and Top
4″ Drains and Front Inlet/Outlet
Heavy-Duty Nosebar Assembly
Fittings & Components:
Flange-Mount Blaylock LL 10 P/V Vent, 16 oz Pressure, 0.4 oz Vacuum Settings
2″ Coupling with Plug
4″ Flange with Blind Cover
21″ Manway Domed Lid and Bars
3″ Elbow Fill Line with Cap
Safety Walkway (36″ Grating)
Access Stairs

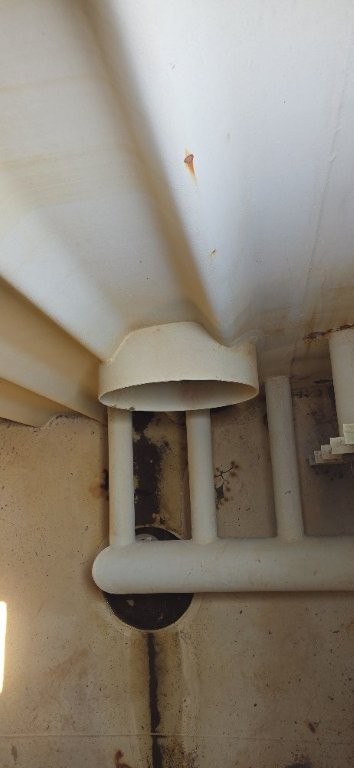

Level Gauge with 8″ Stainless Steel Ball “Y” Support (Holds Ball 1″ Minimum Off Floor)

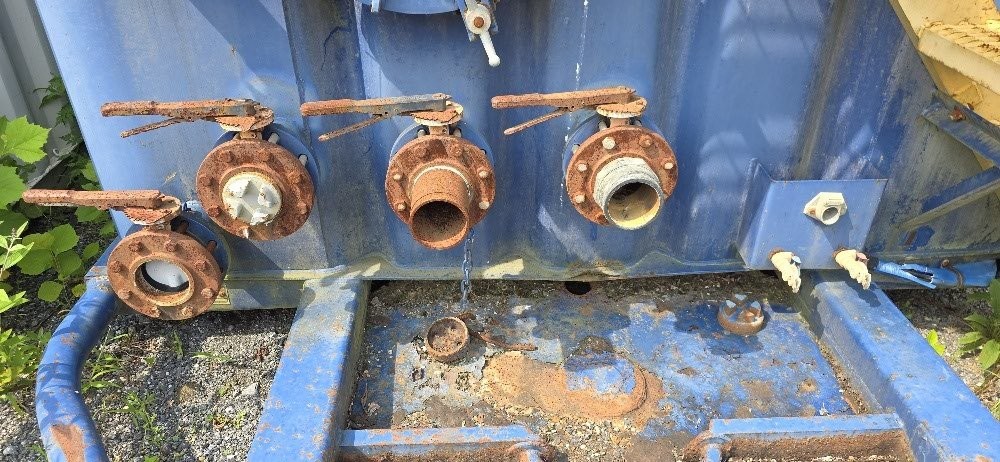

Front Drain with Valve, Threaded Flange, Plug, and Chain
(2) 21″ Manways with Domed Lids
11.00 x 22.5 Tubeless Tires on 10-Hole Steel Wheels
Folding Handrails
4″ Flange Valve with Threaded Flange, Plug, Chain, and Remote Operation Handle
Running Gear & Suspension:
25K Axle with Automatic Slack Adjusters
Top-Mounted 30 Service Chambers
Outboard Drums
Hutch 9700 Suspension with 3-Leaf High-Arch Springs
Lighting:
DOT Tail Lights and Lower Marker Lights (No Top Lights)
4″ Coupling with Plug

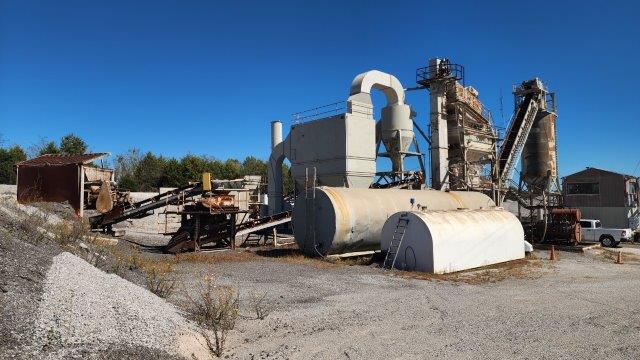

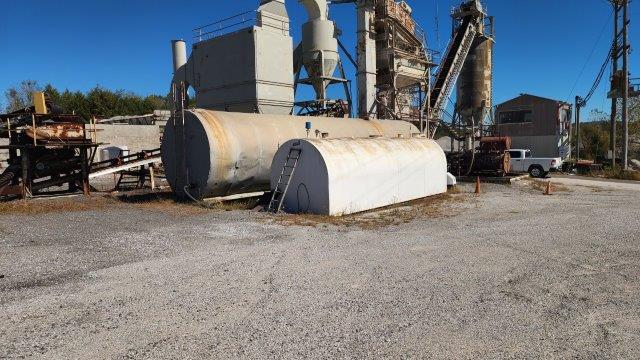

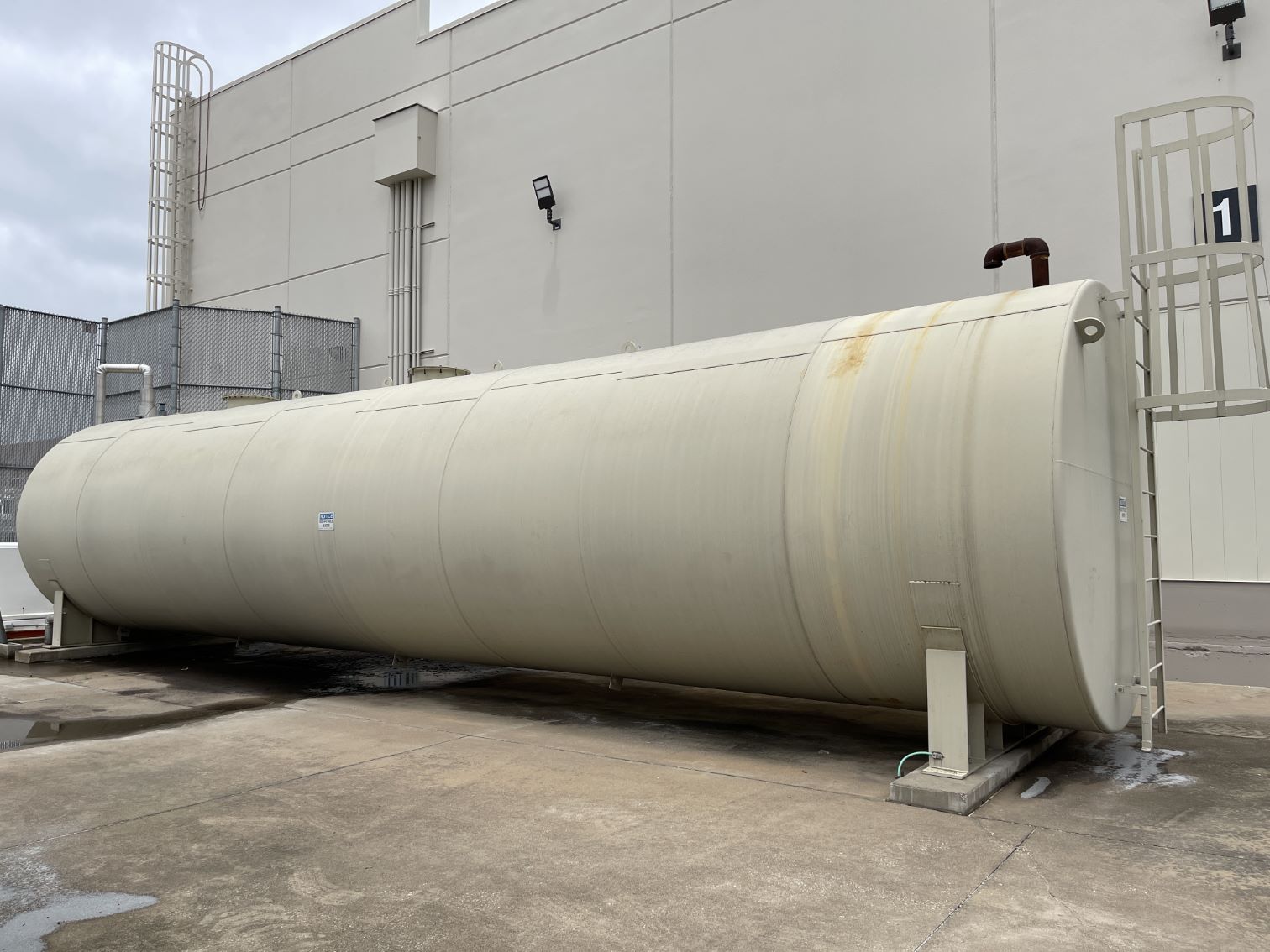

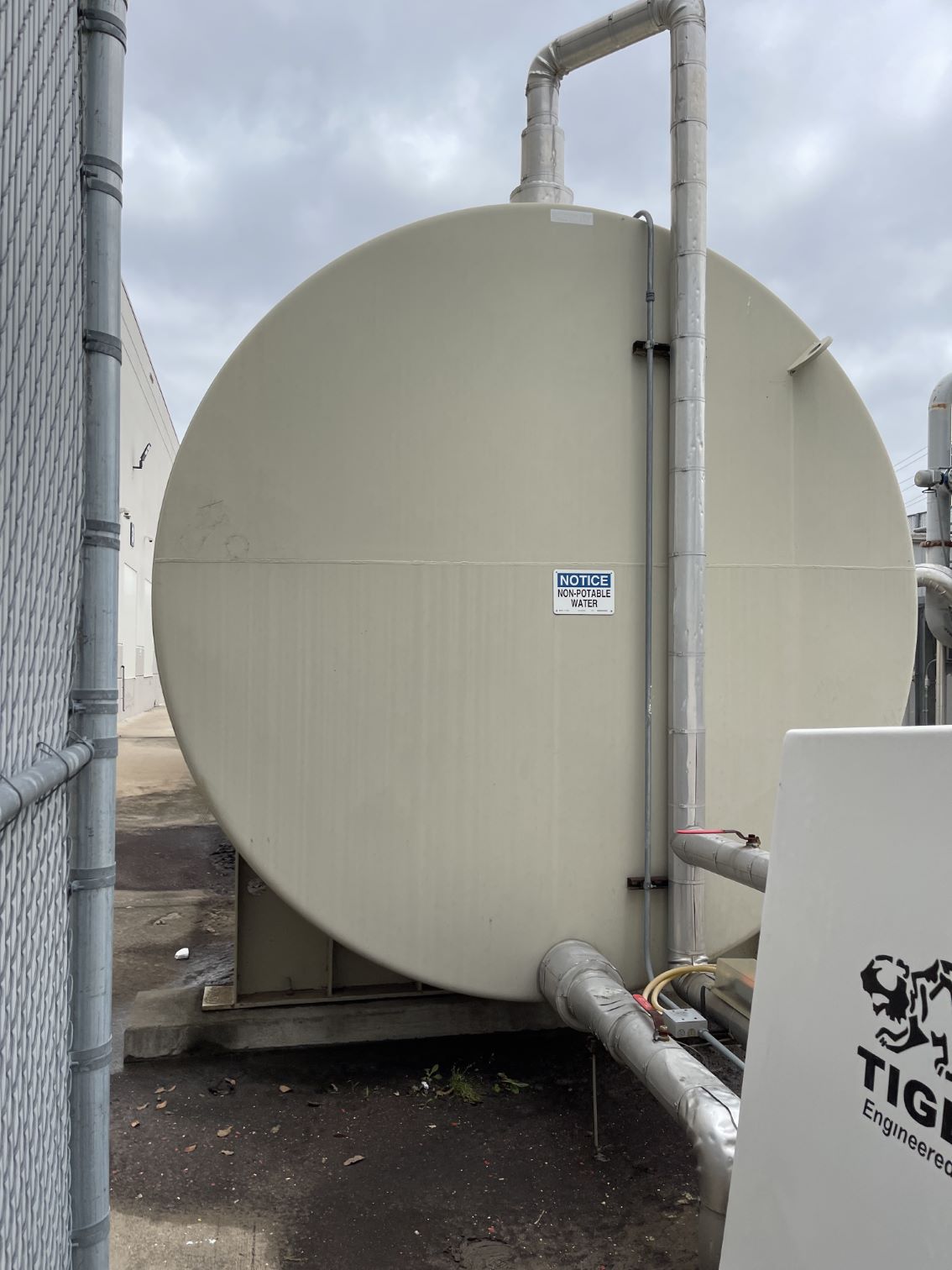

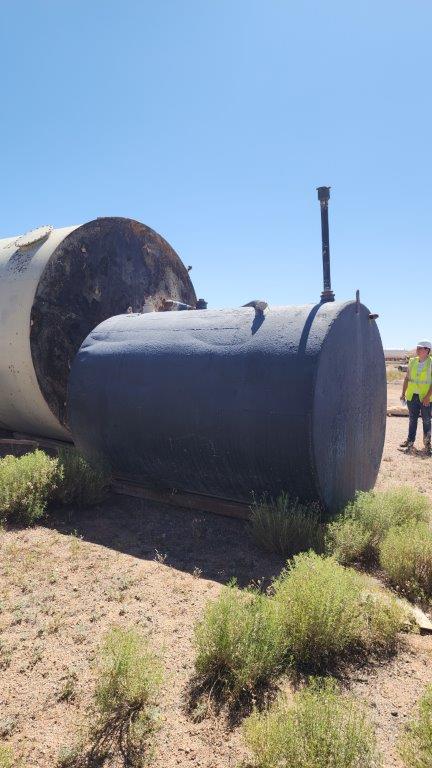

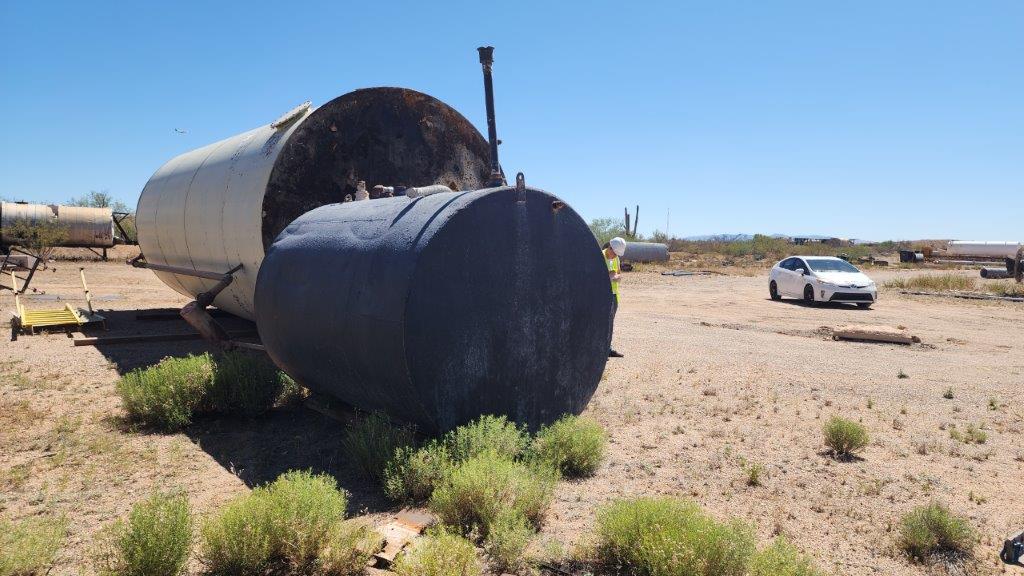

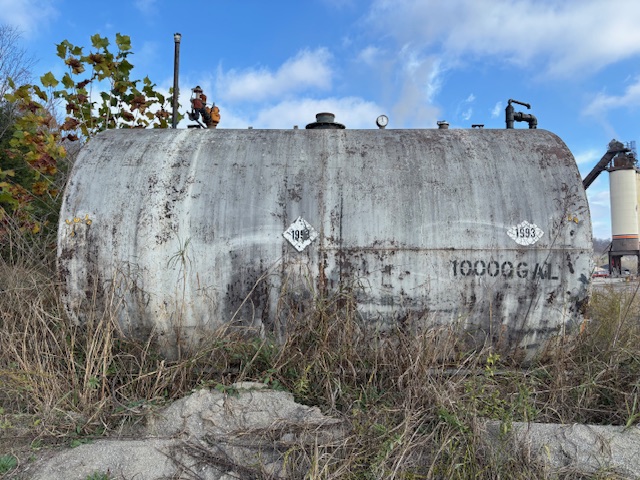

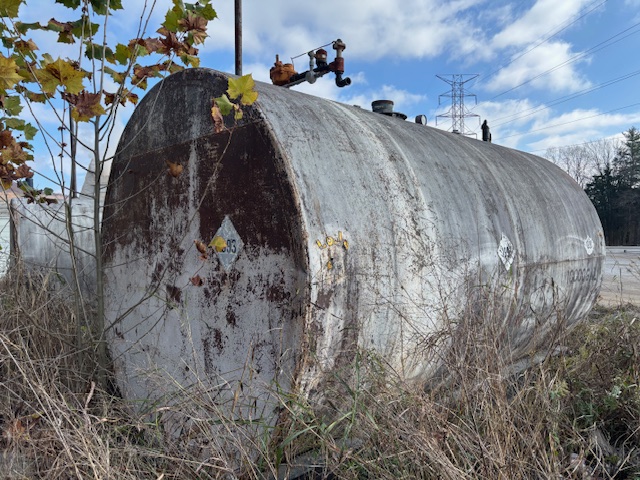

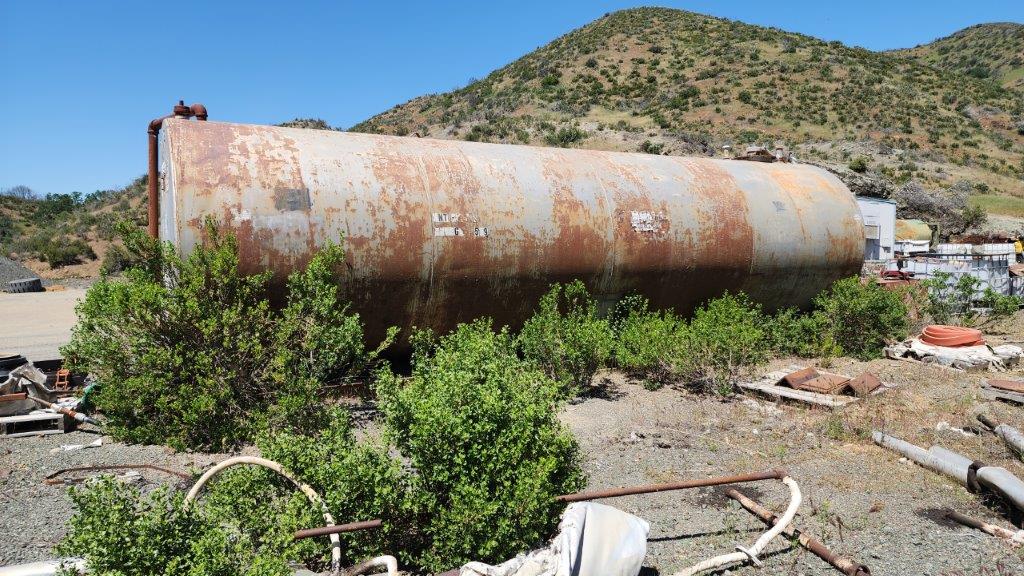

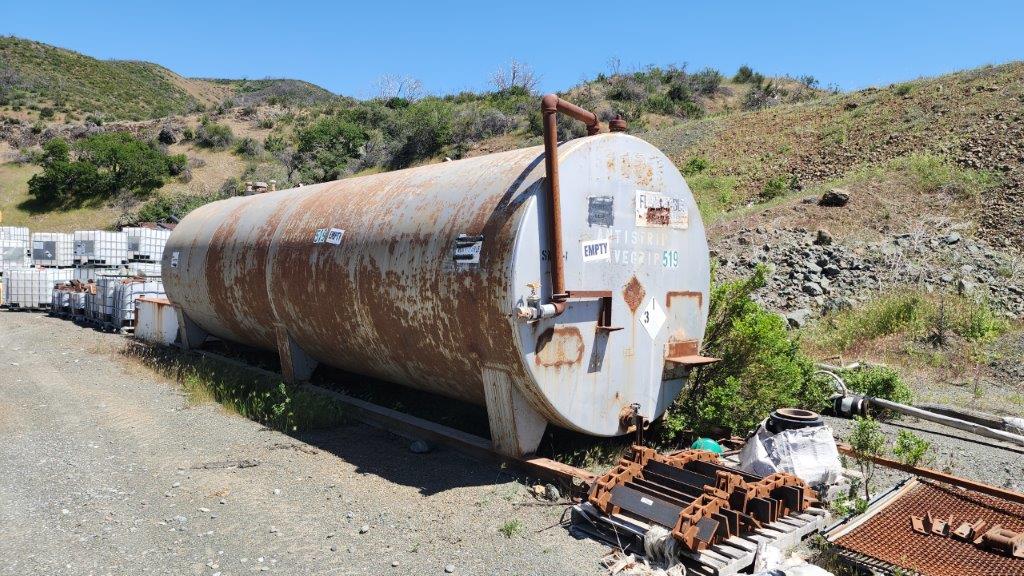

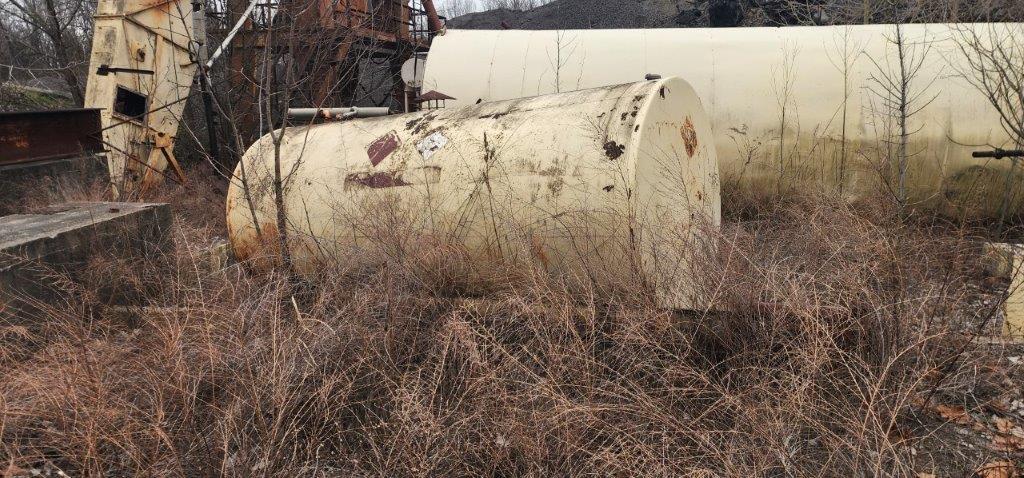

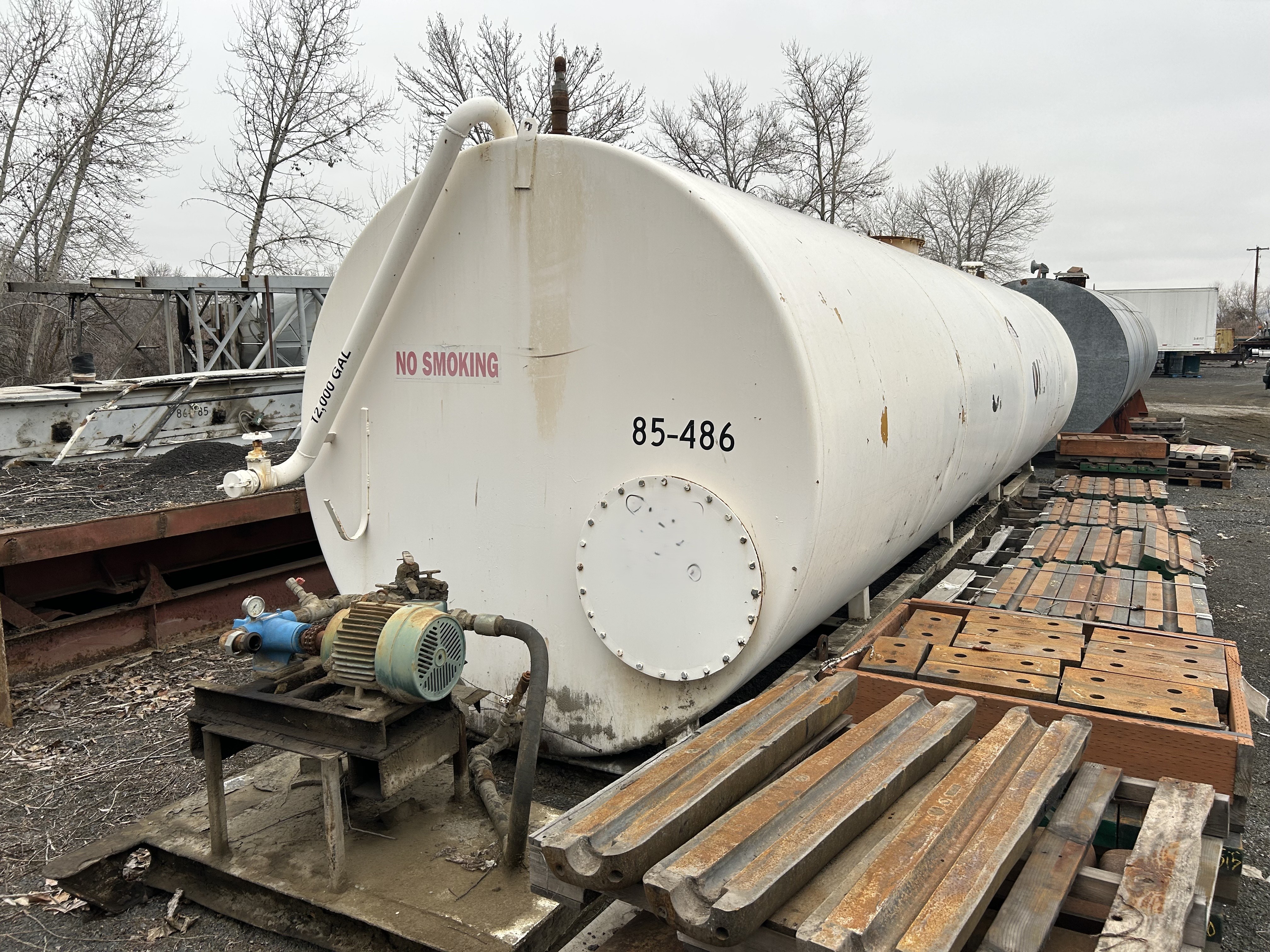

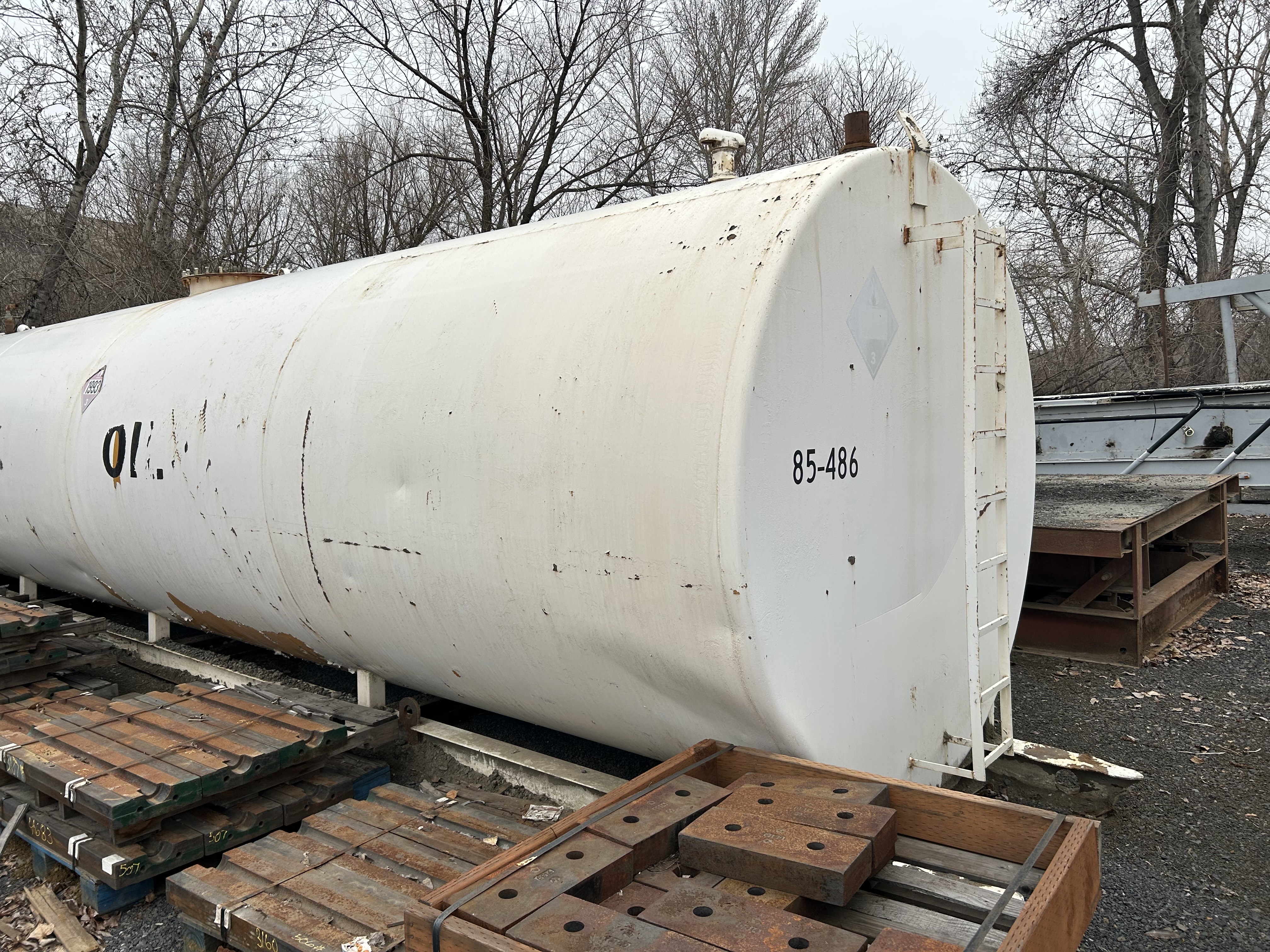

Approx 10,000 Gallon
Empty
Stationary/Skidded
Approx Tank Dims: 10'W x 17'L x 124''T
Approx Shipping Dims: 10'W x 19'L x 12'T (With Pipe That Cannot Be Removed)
Very Tall Pipe Can Be Cut or Unscrewed for Transportation
Owner says nice tanks, no leaks, just surplus and need paint
Single walled

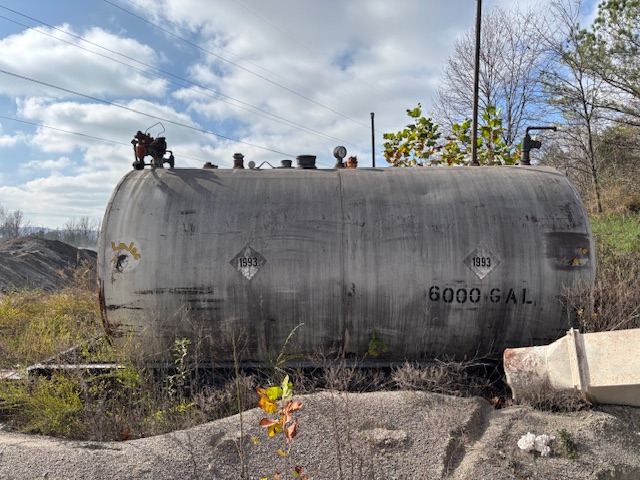

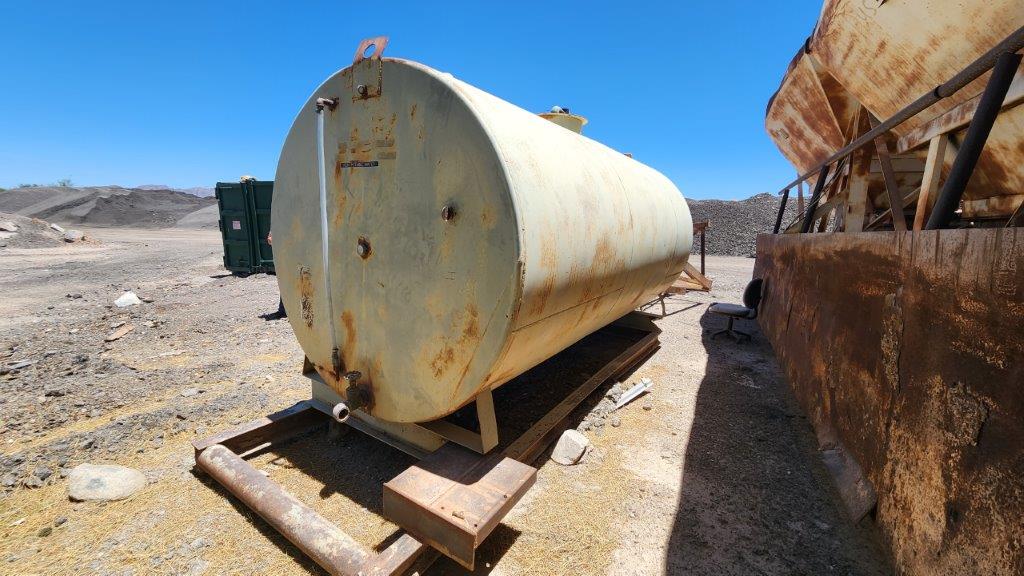

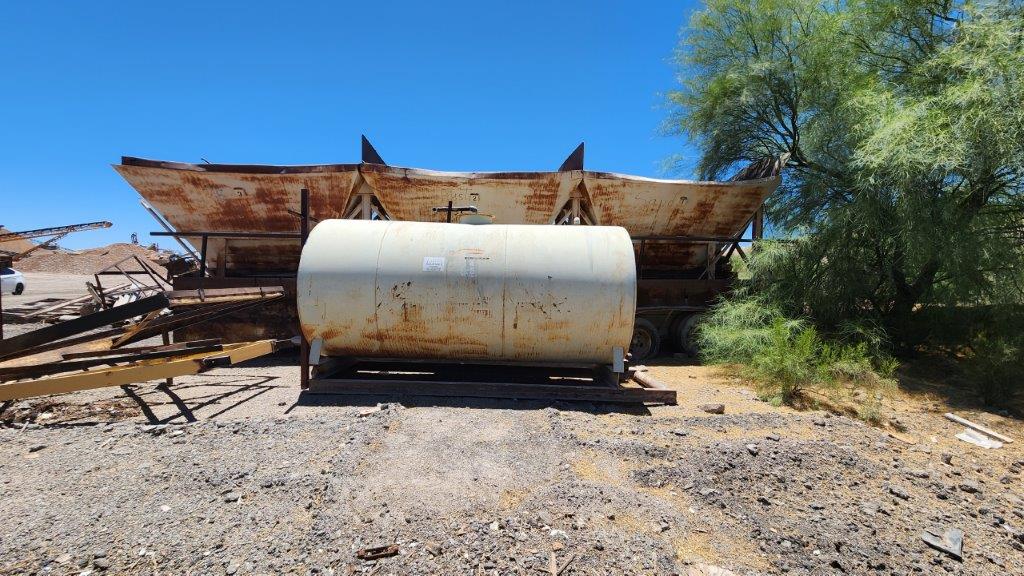

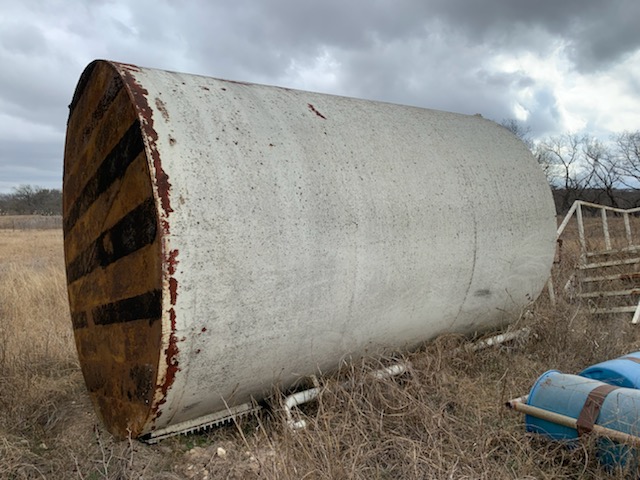

Approx Size: 6,000 Gallon
Empty
Stationary/Skidded
Approx Tank Dims: 94''W x 16'L x 10'T
Approx Shipping Dims: 94''W x 20'L x 11'8''T (including shorter pipe that cannot be removed)
Very Tall Pipe Can Be Cut or Unscrewed for Transportation
Owner says nice tanks, no leaks, just surplus and need paint

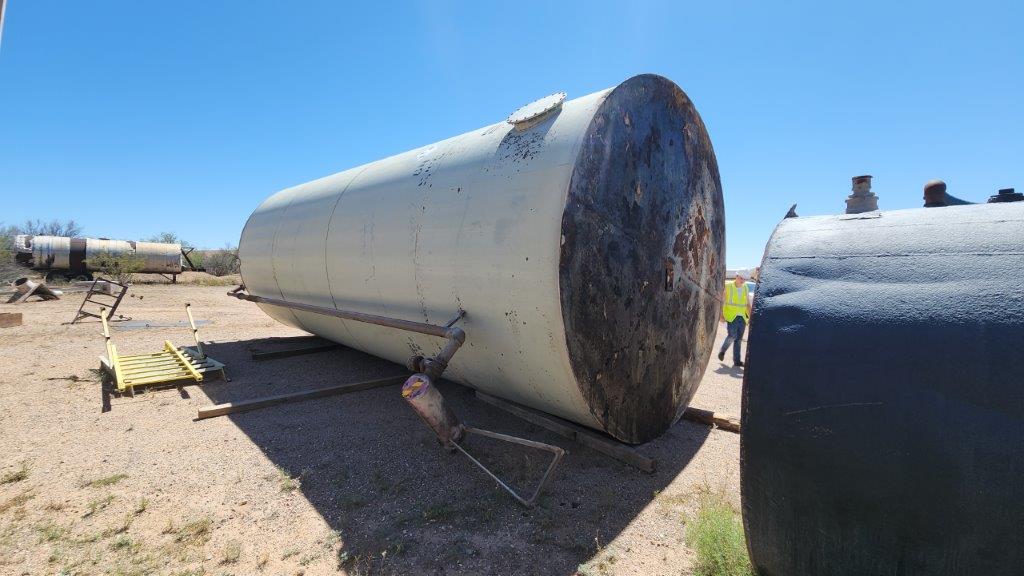

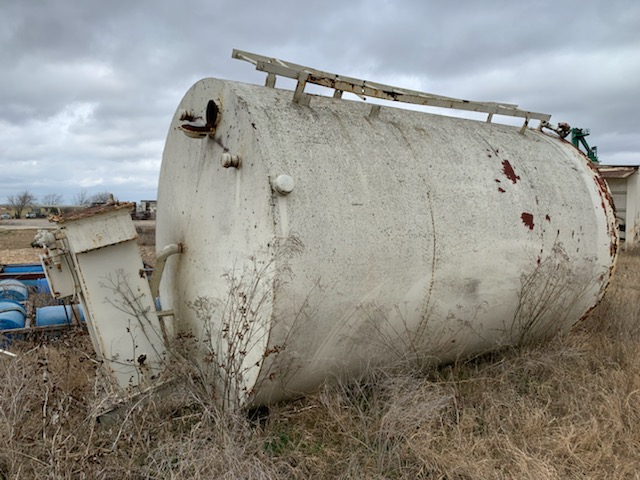

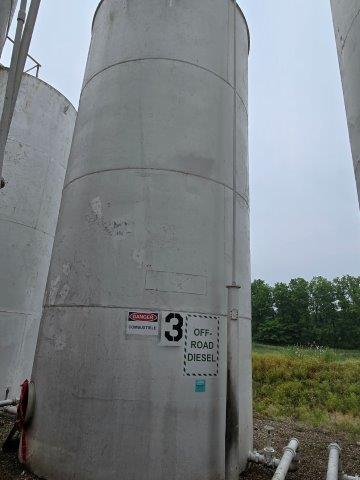

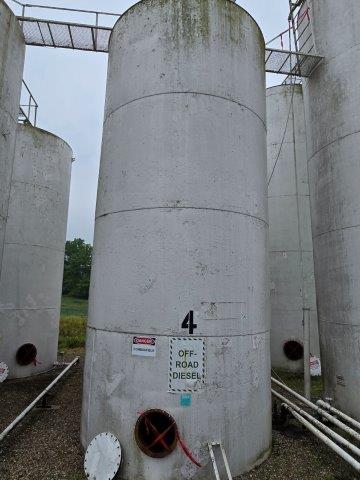

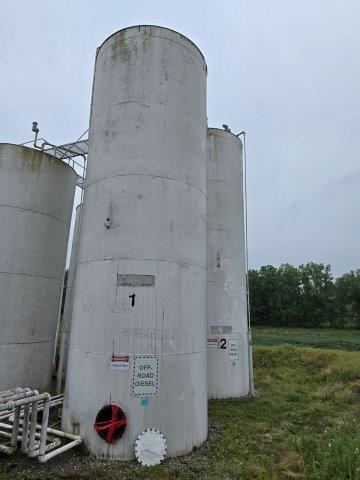

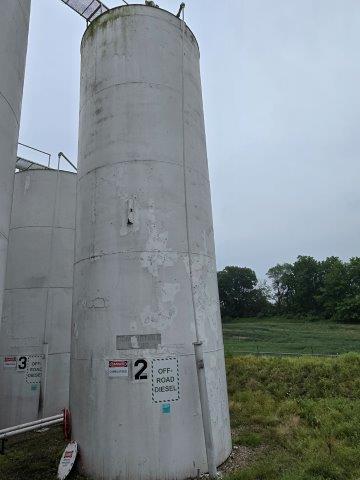

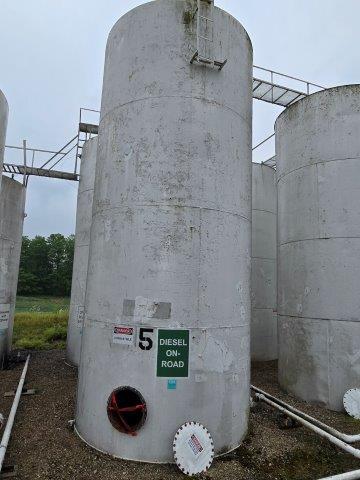

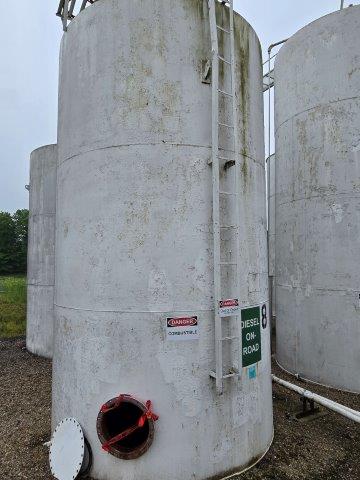

Fuel Tank
Approx 20,000 Gallon
Vertical
Stored Recycled Oil/Burner Fuel
Minor Skin Damage
Owners Notes:
No Leaks, Decided to Switch to Natural Gas and No Longer Have a Need

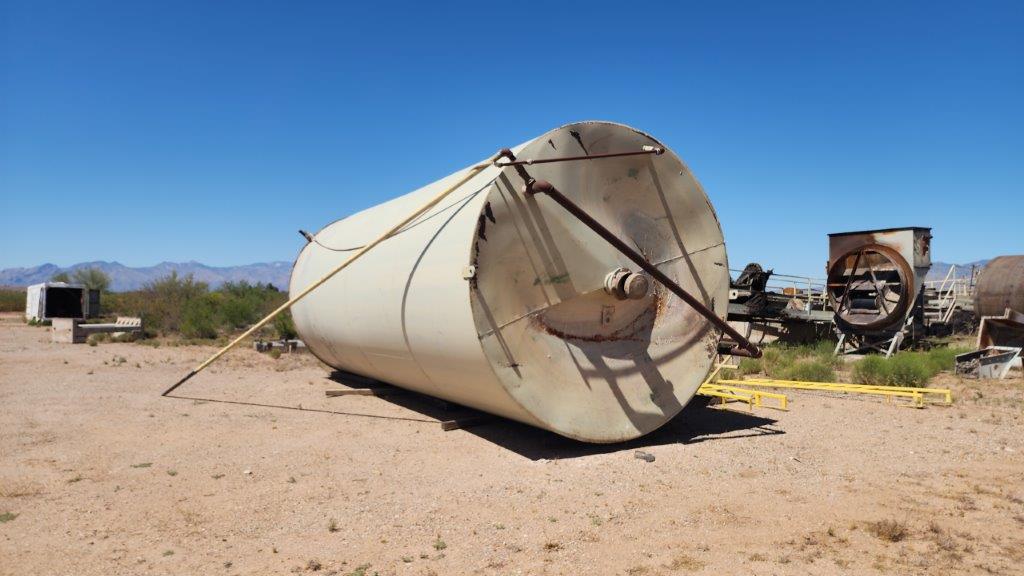

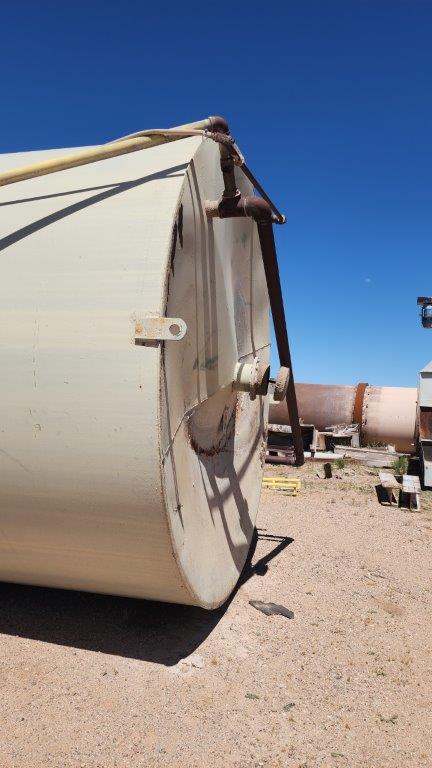

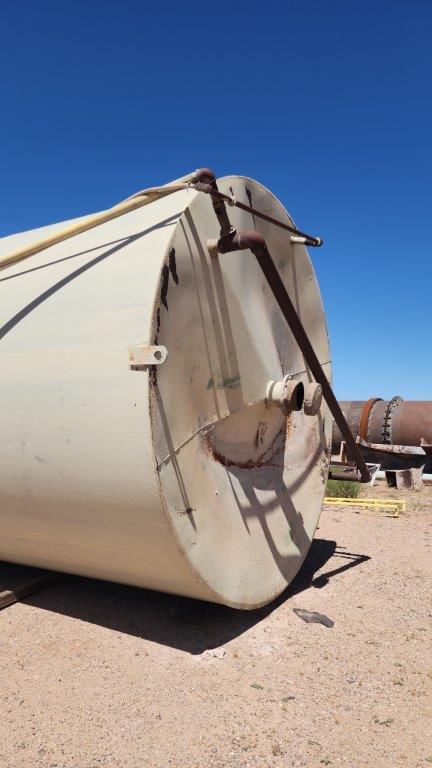

**Make:** N/A (Vertical Fuel Tank)
**Size**: 7,300 Gallons
**Other Info**:
* approx. 10ft x 15ft Tall
* Loading included
* Was used to store waste oil, has been cleaned out
* No holes or tears in skin
* Structurally sound tank

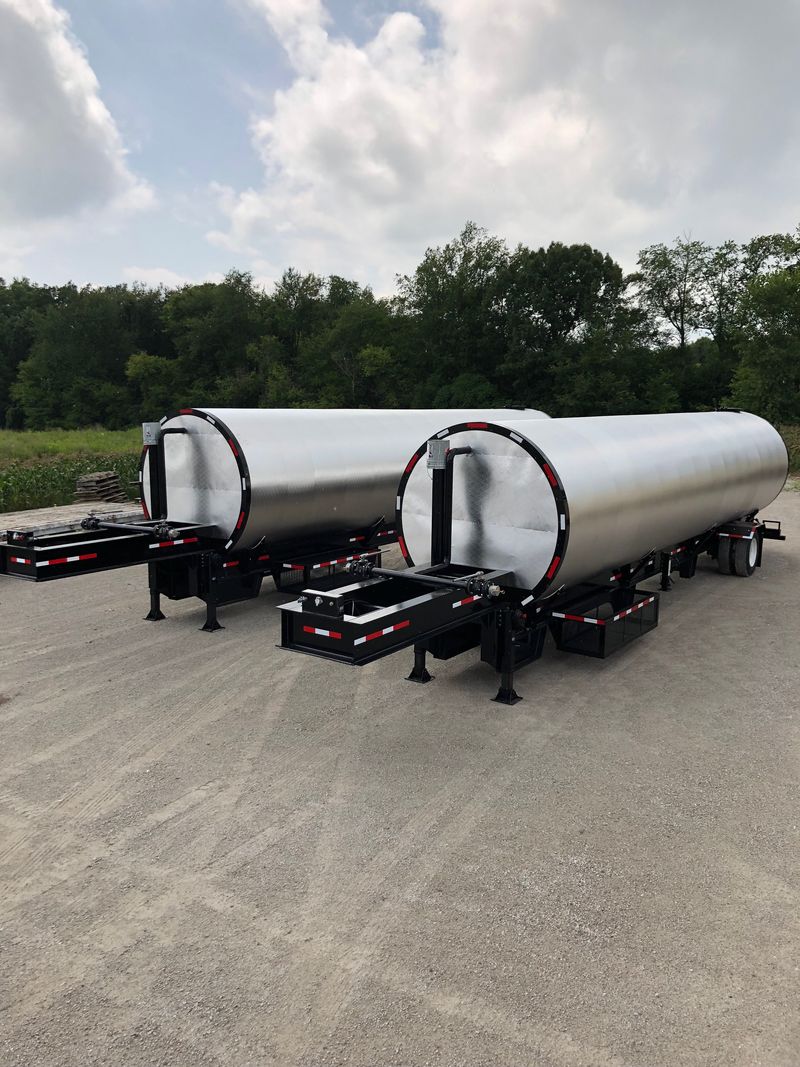

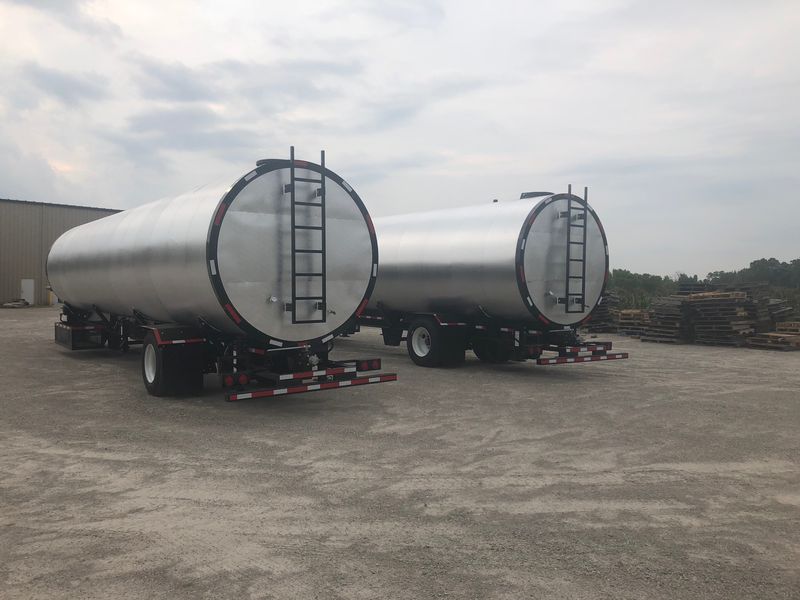

**Capacity:** 13,200 Gallon
**Portability:** Portable
**Other info:**
* 3” high density wool insulation with textured aluminum jacketing
* Single walled
* Single 25,000# axles
* (2) sets of leveling jacks
* (1) set of landing gear
* 8” fire tube with 6” return and turn up for exhaust
* 3” overflow and vent
* 22” manway with external and internal ladders
* Temperature gauge
* Test valve
* (4) blocking points
* Hose baskets
these units are new and takes approx. 12 weeks to manufacture after initial payment
NO UNITS IN STOCK
