Rap and Shingle Systems

Astec Rap System

2005 Astec Recycle Feed System (WRAP AROUND SYSTEM) . MODEL RC 2421321 . SN# 05-131-4414 . Complete with (1) Bin 10' x 14'-8"' recycle bin with grizzly and bin extensions . Bin is complete with bulkhead and folding wing walls. . 36'' x 16' belt feeder with lagged head pulley, self-cleaning tail pulley and 5 HP variable speed drive .Air cannon. 36'' x 40' belt feeder with lagged head pulley, self-cleaning tail pulley and 5 HP variable speed drive that feeds a screen deck . 4' x 8' single deck scalping screen complete with reject chute 30'' inclined feed back conveyor with 5 HP drive . Belt magnet over feed back conveyor . Telesmith 2024 Blowbar solid hammer Impact crusher for over sized material . Package is all mounted on a skid frame . A cable tray is provided along one side of the frame for cabling

More Photos:

Astec Rap Bin

Bin opening is 14' x 10' . Folding Bin Extensions . 36" Feed Belt w/ Variable Speed Drive . 4' x 8' Single Deck Screen . 30" Screen Feed Belt . 30" Under Screen Belt w/ Hydraulic Raise . Portable- Heavy Duty 2 Axle Carrier ...... 88' Overall Length . 65' Long with end conveyor removed . 13' 8" High w/ Bin Extensions folded for transport . 11' Wide

More Photos:

3-Bin Cold Feed

Three Bin Feed Feed System: 9'x 13' Bins with Removable Bin Extensions...Two bins discharge to the right and have WEIGH BELTS (First Bin feeds to the Right for Recycle) ((Second bin the center bin is a shingle bin (completely relined) shingle)) ((drop into impactor (Shop Made))((Third bin feeds to the right and is just variable speed (Virgin Materal))….All three bins have 5hp Freq Drives....All Three Bins have 30" feeders....The two other bins that aren't the shingle bin have relined bottoms

More Photos:

PORTABLE 100% ALL RAP SYSTEM (60TPH)

RAP TECHNOLOGIES ALL RAP PLANT DESCRIPTION: Portable equipment for the production of hot asphalt and cold patch mixes from Recycled Asphalt Pavement (100% RAP + a recovery additive). Comprising 1. 2 aggregate feed hoppers for feeding the initial fractionated RAP; 2. Liquid additive dosing system including pump and gear meter; 3. 350 and 500 gallon day tanks; 4. Trailered counterflow dryer to heat RAP up to 300°F; 5. Cast refractory to eliminate contact between open flame and RAP minimizing damage to rap binder; 6. Hauck Starjet dual fuel burner (liquid fuel/natural gas) with fuel oil valve train; 7. Trailered pollution control system to remove dust and aerosol fumes from dryer gases; 8. Air conditioned operator's control room. 9. Custom Allen Bradley automation - integrated blending, motor, and burner control; 10. Wifi and 4g enabled automation for remote access. Capacity 60 tons of mixture per hour Controls updated in 2015 (NOT INCLUDED WITH SALE 1. Generator 100KW 2. Surge storage silo).....Plant on ground and ready for pick up.

More Photos:

Portable CMI-PRB120 rap system

CMI-PRB120 Portable Rap breaker Grizzly Air cannon Missing weigh bridge conveyor Located in Alabama

More Photos:

Stationary Rap Kit

RECYCLE SYSTEM: Smaller bin 8’x 8’ Bin Sits on Conveyor Portable Incline 30”x 75’ Chanel Conveyor to Weigh Hopper Was used on a batch plant

More Photos:

NEW SHINGLE FEEDER BIN

13' LONG X 6' WIDE BY 5' DEEP 24" FEEDER W/ 10HP MOTOR WITH #3 GEARBOX 2 VIBRATORS PLASTIC LINERS HINGE WALLS FLOW SWITCH WITH CONTROLLER LIFTING EYES 1 WEEK TO MANUFACTURE PICTURE IS OF A NEW UNIT JUST INSTALLED ON AN ASTEC PLANT HERE IN TN

More Photos:

Semi-Portable Recycle System

RECYCLE SYSTEM: Smaller bin 6’x 12’ 30” x 8' Veriable Speed Feeder 5hp D.C. Motor Portable Incline 30”x 50’ weigh bridge conveyor to recycle collar.

More Photos:

(Sale Pending) GENTEC RAP GATOR

Easily one of the most recognized names for deconsolidating milled or crushed chunks of asphalt recyclable materials, The Gentec Rap Gator is among the best. The unit has two rolls with teeth that counter-rotate to break down the slivers or chunks. A 25 hp motor with a Foote-Jones gearbox drives the system. If there is a chunk that is too large, a large industrial spring allows the rolls to move back for discharge. This RAP GATOR is mounted on an OEM stand with ladder for ease of positioning. Condition: The drive system including the 25 hp motor, gearbox, drive chain and bearings all appear to be in very good condition. The stand with ladder is excellent. One of the rolls must have new teeth attached. These teeth are available from the manufacturer and this is a relatively easy project. . Compare this price with new. Consider how easily the teeth may be replaced and save a lot of money.

More Photos:

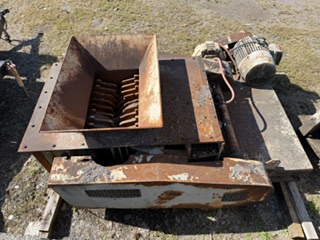

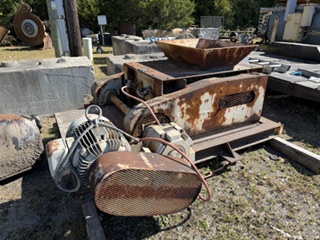

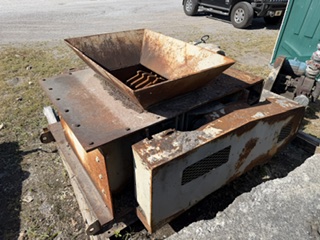

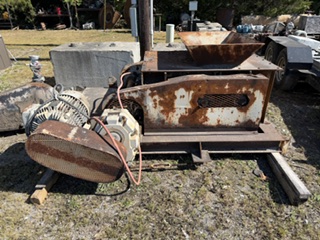

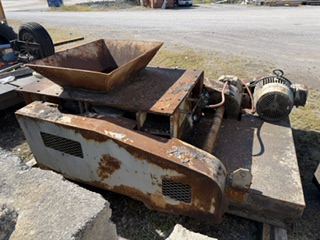

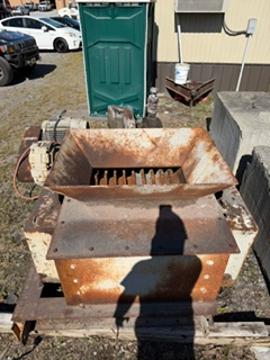

"RECYCLE CRUSHER" Rap Gator

Rap Gator Gentec Model# Rap Gator SN# Painted Over (NONE) Double Roll Lump Breaker, rollers 24" long 12"wide Foot Jones Reducer 25 hp motor

More Photos:
